Catalog # 308067 - Model 8067 2-Terminal Barrier Strip A/B/C/D Switch

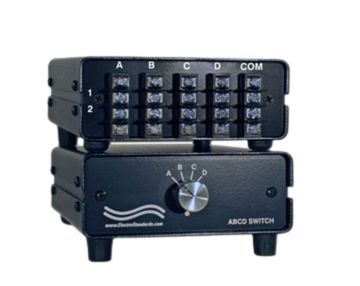

Click image to enlarge

Base Price:

$340.00

Catalog No:

308067

Model No:

8067

Product Type:

Switches: Copper

Interface:

2-Terminal Barier Strips

Positions:

Cable Type/Port Connector:

Terminal Strip

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Configuration:

Desktop

Pins Switched:

Local Control:

Rotary Knob

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Manual Network Switch, Terminal Barrier Strip Switches

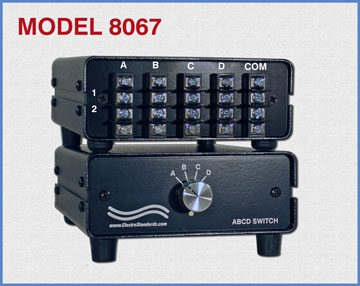

Model 8067 2-Terminal Barrier Strip A/B/C/D Switch, Manual, Desktop

Model 8067 2-Terminal Barrier Strip A/B/C/D Switch, Manual Desktop

SPECIFICATIONS:

PORT CONNECTORS: (5) Two-Terminal Barrier Strips labeled A, B, C, D and COMMON.
FRONT PANEL CONTROL: (1) Rotary switch on front panel selects A, B, C, or D.
POWER: No power required. Manually operated.
ENCLOSURE: Shielded Aluminum Enclosure.
DIMENSIONS: 5.25" W x 2.0" H x 7.25" D. (13.3 x 5.1 x 18.4 cm)
WEIGHT: Approximately 1.2 lbs (0.5 Kg)

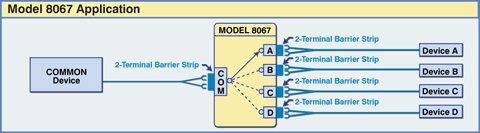

A/B/C/D 2-TERMINAL BARRIER STRIP APPLICATION: The drawing illlustrates a COMMON device connected to the 2-Terminal Barrier Strip COMMON port. The COMMON device has access to Device A, Device B, Device C, and Device D which are shown connected respectively to the 2-Terminal Barrier Strips ports labeled A, B, C, and D.

Network Application Diagram of Model 8067 2-Terminal Barrier Strip A/B/C/D Switch

FEATURES:

Allows quick connection to any one of four 2-Terminal Barrier Strip interface devices from one COMMON device.
Manual operation via front-panel rotary switch.
Both pins of the 2-Terminal Barrier Strip are switched.
High quality sealed switch with self-wiping low impedance contacts.
Eliminates the need to connect and disconnect cables.
No external power required.
Attractive anodized black box packaging provides EMI/RFI shielding.
Lifetime guarantee against manufacturing defects.
Custom length spade lug cables available for your switch installation.

The Model 8067 allows the user to access four devices connected to the A, B, C, and D, 2-Terminal Barrier Strip ports from one device connected to the COMMON 2-Terminal Barrier Strip port. Switching connection between devices is quickly and easily accomplished via the front panel rotary selector - No need to plug and unplug cables. The Model 8067 is packaged in slim desktop style enclosure.

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.
All ESL Data Communication Products are available for export.
