308070 - Model 70 DB25 U-Do-It M/F Custom Adapter Kit for 25-Pin D-Connector

    M/F Adapter KitM/F Adapter Kit
Click image to enlarge
    • M/F Adapter Kit
    • M/F Adapter Kit
Base Price:
$35.00
Catalog No: 308070
Model No: 308070 DB25 U-Do-It M/F Adapter Kit
Description:Male/Female Adapter Kit
Price:8.00
Type:25-Pin D-Connector

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Custom Adapter Kits for 25-Pin D-Connector
Model 70 Male/Female Adapter Kit, Cat. No. 308070

  • Quickly, easily reassign EXISTING cable connection to meet your NEW pin/signal requirement.

Custom Adapter Kits: 25 Pin D Connector

FEATURES:

  • Customize your 25-Pin D-Connector for your specific application.
  • Quick and easy to install!
  • Solve your cable or peripheral incompatibility problems.
  • Economical, cost-effective solutions.
  • Applicable when existing data cable runs through walls and over partitions. Can be "adapted" for new use by reconfiguration of pin/signal connections.

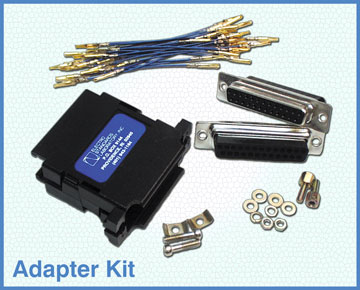

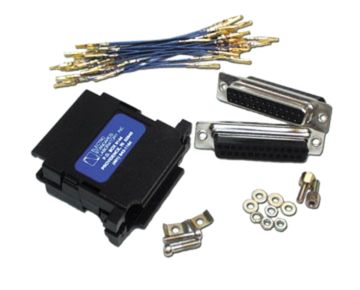

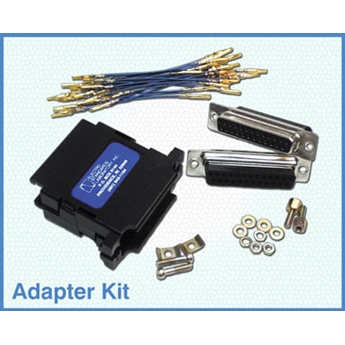

Model 70 Male/Female Kit Includes:

  • (1) DB25 Housing
  • (1) DB25 Female Connector
  • (1) DB25 Male Connector
  • (1) Set of Male Screw Hardware
  • (1) Set of Female Screw Hardware
  • (15) 1-to-1 Jumpers, One Male Contact to One Female Contact
  • (3) 1-to-3 Jumpers, One Male Contact to Three Female Contacts
  • (3) 1-to-3 Jumpers, One Female Contact to Three Male Contacts

25-Pin D-CONNECTOR APPLICATION: Custom Adapter Kits to modify existing cable.
Using your DB-25 Pin U-Do-It-Adapter custom kit, build the desired M/M, M/F or F/F adapter and place in between the cable and interface device to modify the existing cable.

Network Application to modify existing cables with DB25 Custom Adapter Kits, 25 Pin D-Connectors

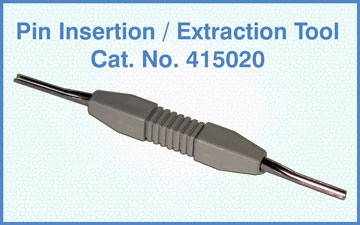

OPTION: Pin Insertion / Extraction Tool:
Pin insertion or extraction is a snap with this essential tool.  When terminating your own D-Type connector, ESL's double ended tool performs both insertion and extraction operations.

Cat. No. 415020 Pin Insertion / Extraction Tool
