*Keylock Switch, Secure Grounded* Catalog # 308267 Model 8267 DB25 2-Position Keylock Switch

    DB25 2-Position Keylock SwitchDB25 2-Position Keylock SwitchDB25 2-Position Keylock SwitchDB25 2-Position Keylock Switch
Click image to enlarge
    • DB25 2-Position Keylock Switch
    • DB25 2-Position Keylock Switch
    • DB25 2-Position Keylock Switch
    • DB25 2-Position Keylock Switch
Base Price:
$640.00
Catalog No: 308267
Model No: 8267
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Security:Keylock
Configuration:Desktop
Pins Switched:25
Local Control:Keylock

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

DB25 Manual Network Switches, 2-Positions, Keylock Switches
LineSelect® Model 8267 DB25 A/B Switch, Manual Operation, via Keylock, Desktop

  • Key Operated Control Provides Secure A/B Switching

  • A Robust, High Integrity Switch

  • No Power Required

SPECIFICATIONS:

  • PORT CONNECTORS: (3) DB25 female connectors labeled A, B, and Common.

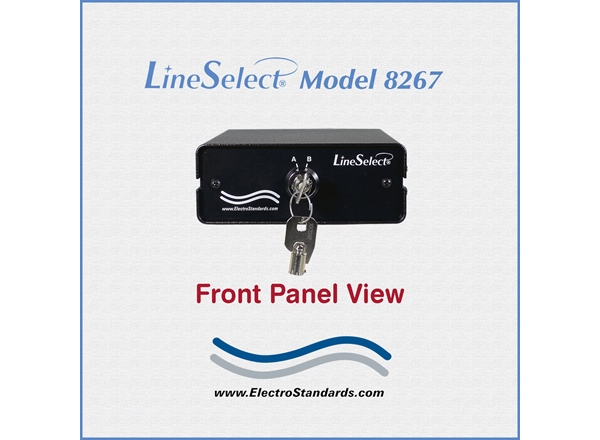

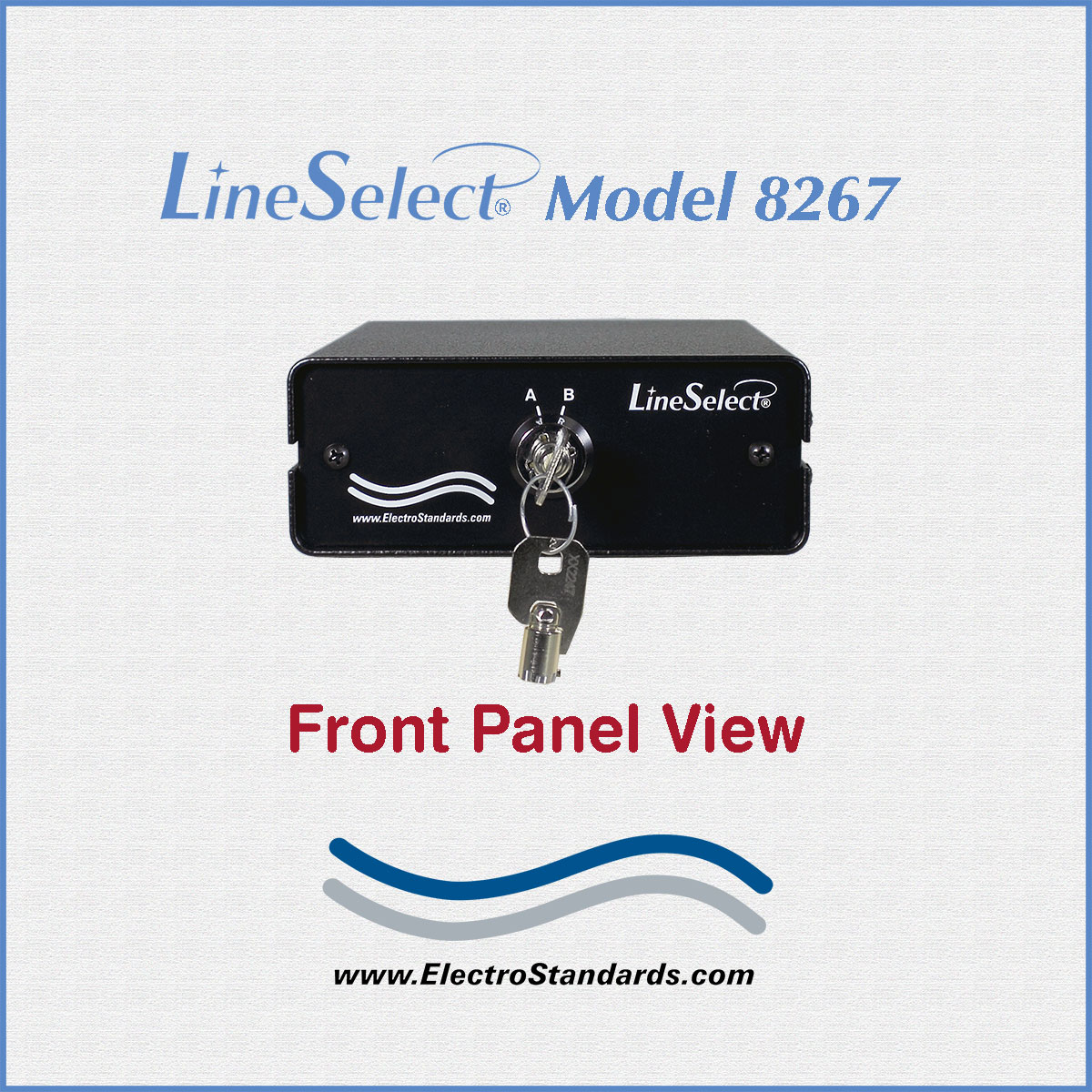

  • FRONT PANEL CONTROLS: (1) Keylock Switch allows local switching.
  • POWER: Manually operated. No power required.

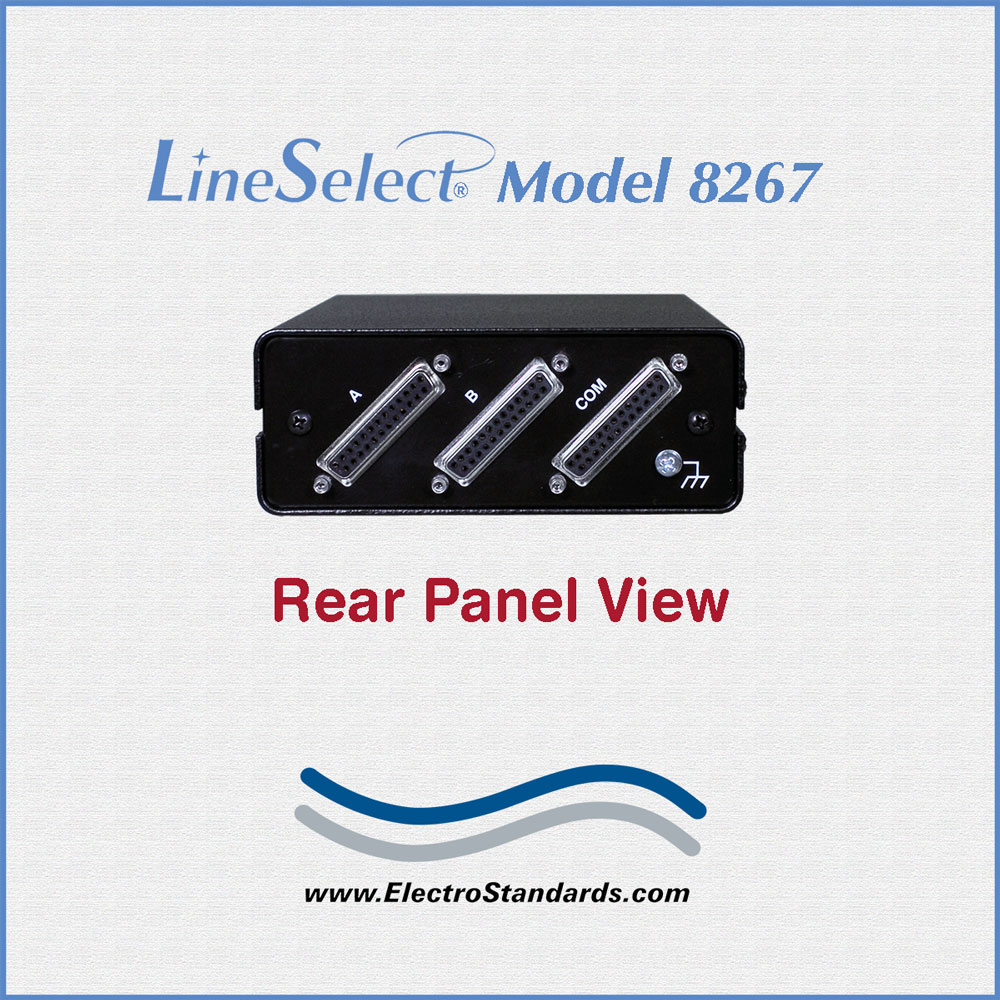

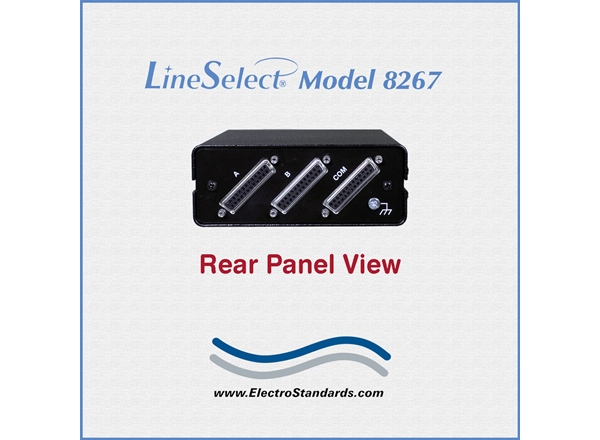

  • GROUND STUD: On rear panel.
  • DIMENSIONS: 5.44"W x 2.02"H x 7.27"D. (13.9 x 5.2 x 18.5 cm)
  • WEIGHT: Approximately 1.5 lb. (0.7 kg.)

LineSelect® Model 8267 DB25 A/B APPLICATION w/KEYLOCK SWITCH:

The application diagram shows a COMMON device connected to the DB25 COMMON port with access to Device A and Device B, connected to the DB25 A port and the DB25 B port, respectively. The unit's position is controlled via the front panel keylock switch. There is a rear panel chassis ground lug on rear panel.

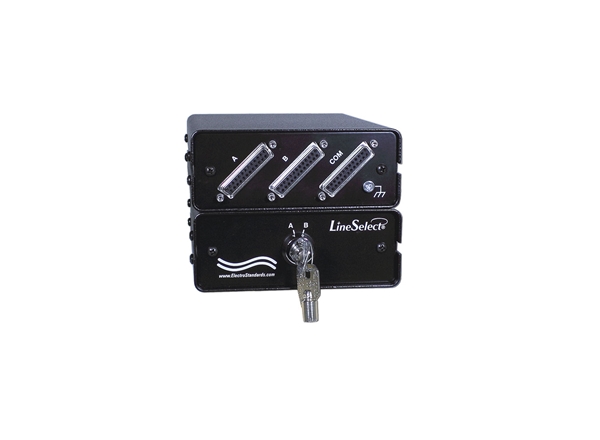

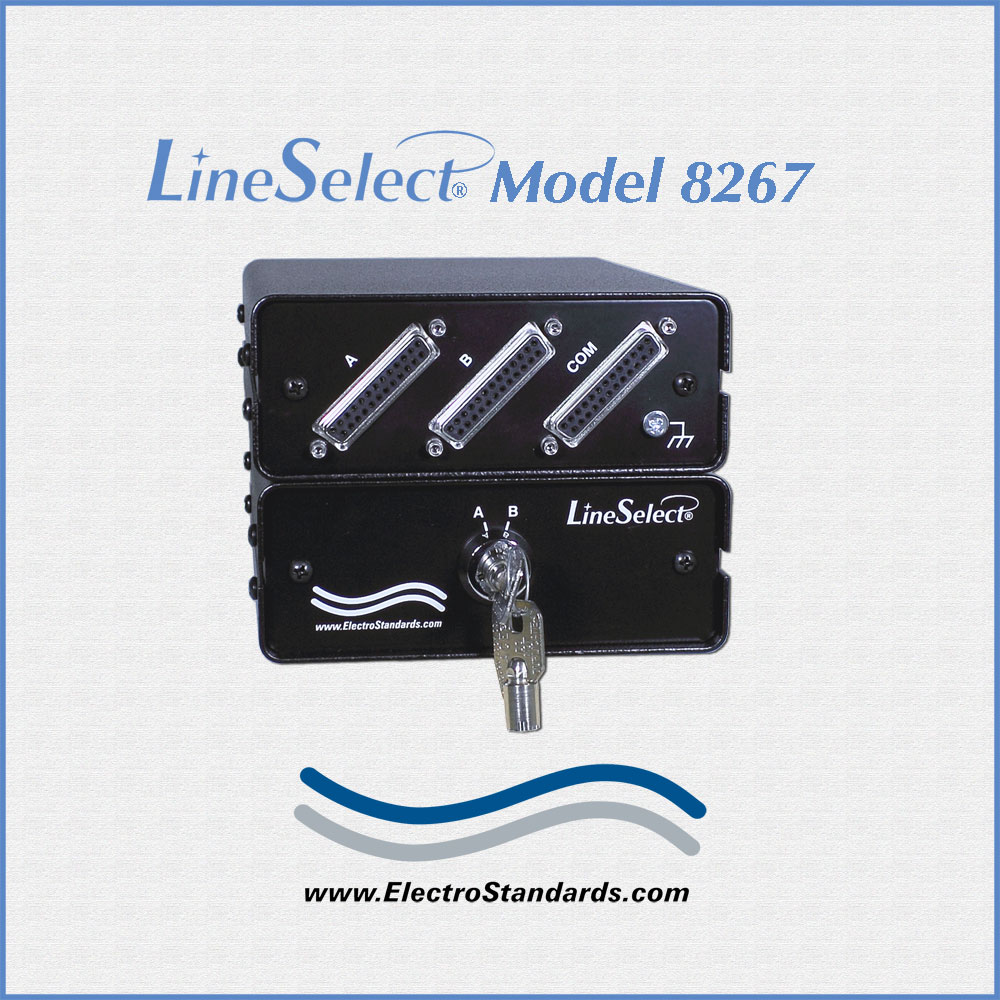

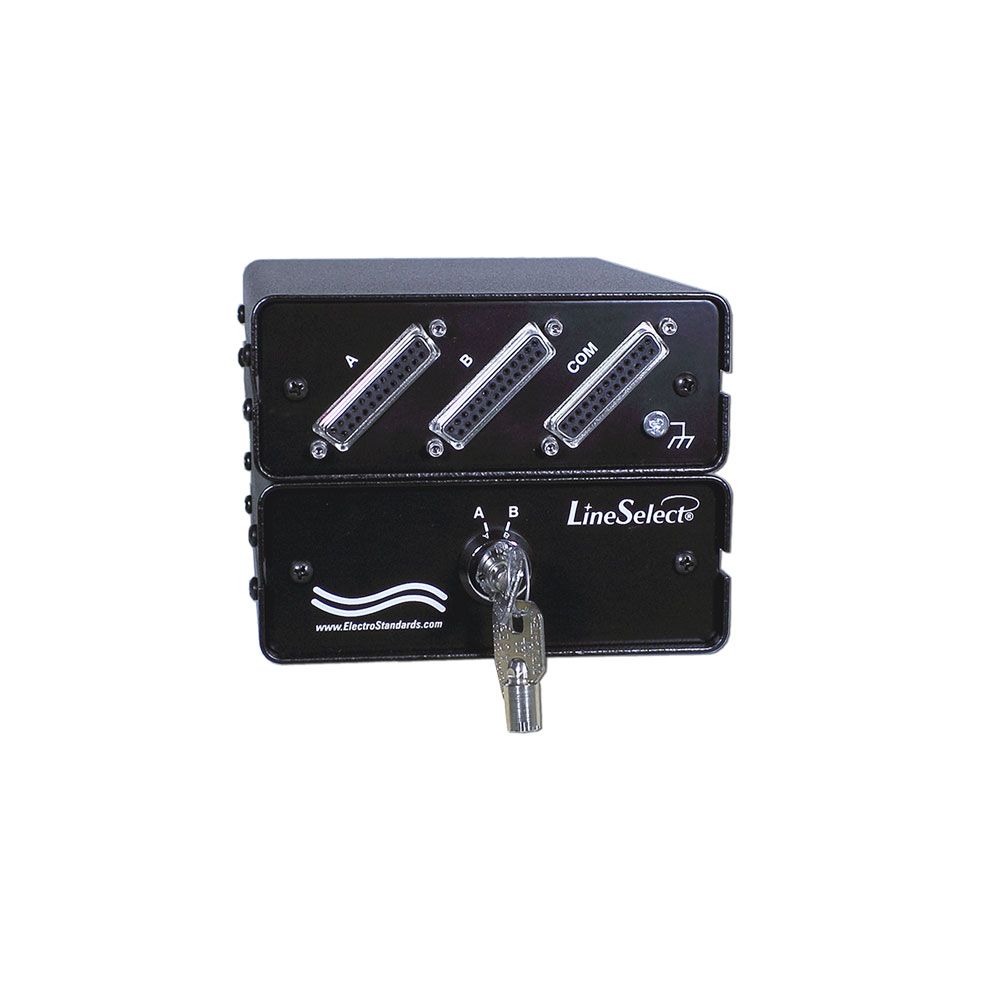

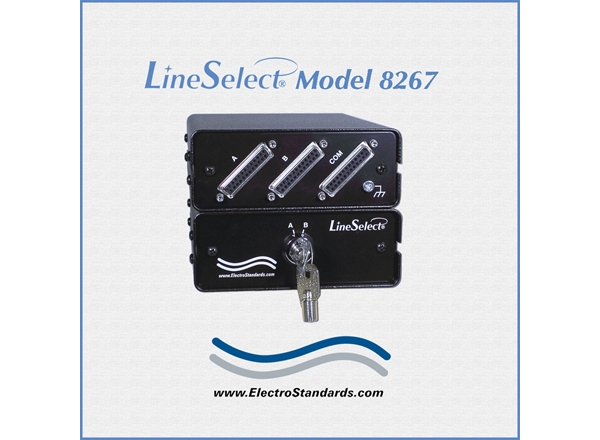

LineSelect® Model 8267 A/B Keylock Switch

FEATURES:

  • Allows access to two networks from one computer or workstation.
  • High reliability sealed switch with self-wiping precious metal contacts.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Transparent to data speed and format.
  • Manual operation via front panel keylock switch.
  • Key is captive in position B.
  • Key can only be removed in the A position.
  • All (25) pins of the DB25 interface are switched via a break-before-make rotary switch.
  • Attractive anodized aluminum black box packaging provides EMI/RFI shielding.
  • Chassis has no feet.
  • Rear panel chassis stud accepts spade lug for secure grounding.
  • Custom length DB25 cables available for your switch installation.
  • Improves computer network efficiency by allowing sharing of peripherals.
  • Lifetime guarantee against manufacturing defects.

The LineSelect® Model 8267 DB25 A/B Switch allows the user to access two DB25 devices connected to the A and B ports from one DB25 device connected to the COMMON port.  Switching between devices A and B is quick and easy via the front panel keylock switch.  The LineSelect® Model 8267 is packaged in a slim desktop style enclosure.

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
