Catalog # 308461 - Model 8461 MIL Spec, 9-Channel DB15 Connect / Disconnect Switch

    9-Channel DB15 Connect / Disconnect Switchoptional 3.5
Click image to enlarge
    • 9-Channel DB15 Connect / Disconnect Switch
    • optional 3.5
Base Price:
$16,951.00
Catalog No: 308461
Model No: 8461
Product Type:Switches: Copper
Positions:2, Offline
Cable Type/Port Connector:DB15 Switch Ports
Channels per Switch Chassis:9
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Independent Channel Control
Security:Offline Position
Compliance/Standards:MIL Spec
Configuration:Desktop
Pins Switched:2,3,6,7,8,11,12,13, and 14
Local Control:Rotary Knob

Add to Cart

* Utilizes MIL components for Shock, Vibration, Altitude and Humidity Compliance *

Switches pins 2, 3, 6, 7, 8, 11, 12, 13 and 14. Pin 1 of each is bussed through.

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

DB15 Manual Network Switch, Rotary Switches

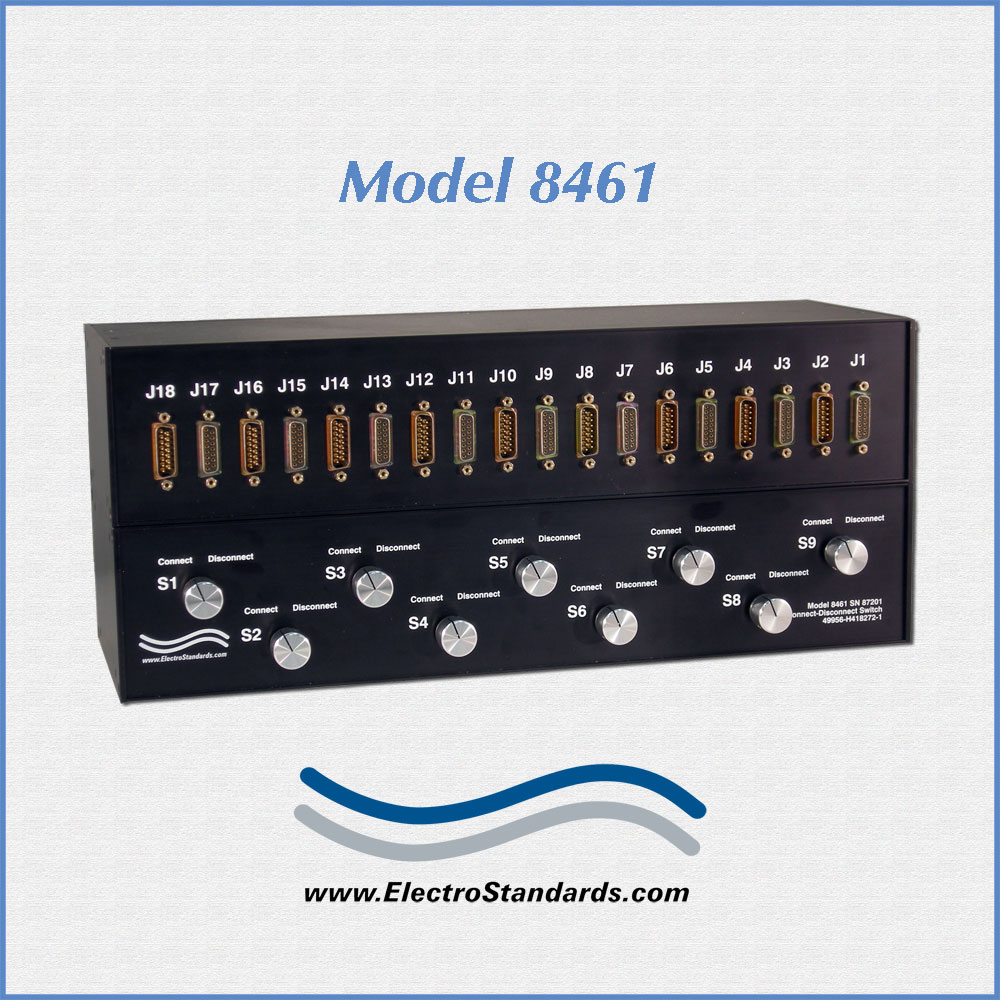

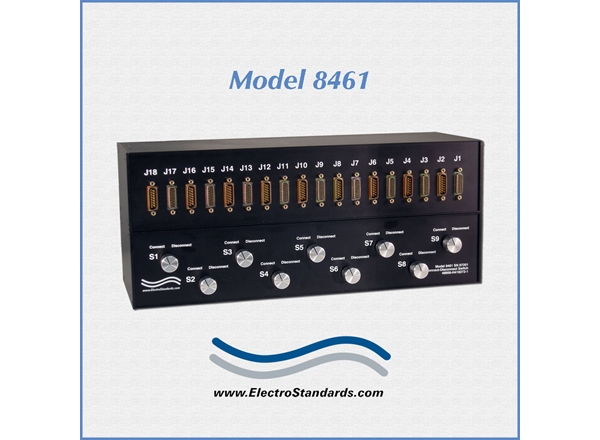

Model 8461 Nine-Channel DB15 Connect / Disconnect Switch, Manual Operation

  • Utilizes MIL components and designed to support rugged MIL applications.

  • Absolutely NO DATA passes when switch is in the DISCONNECT position.

  • High Quality Manual Data Network Switches Increase the Reliability of Your Network

  • NSN 5930015733

SPECIFICATIONS:

  • PORT CONNECTORS: (9) DB15 (M) Input connectors. (9) DB15 (F) Output connectors.
  • FRONT PANEL CONTROLS: (9) rotary switches allow local switching.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: Desktop Configuration: 16.73" W x 3.5" H x 6.7" D. (42.5 x 8.8 x 17.0 cm)
  • WEIGHT: Approximately 4.0 lbs. (1.8 kg)

Model 8461 9-Channel Manual DB15 CONNECT/DISCONNECT Switch Application:

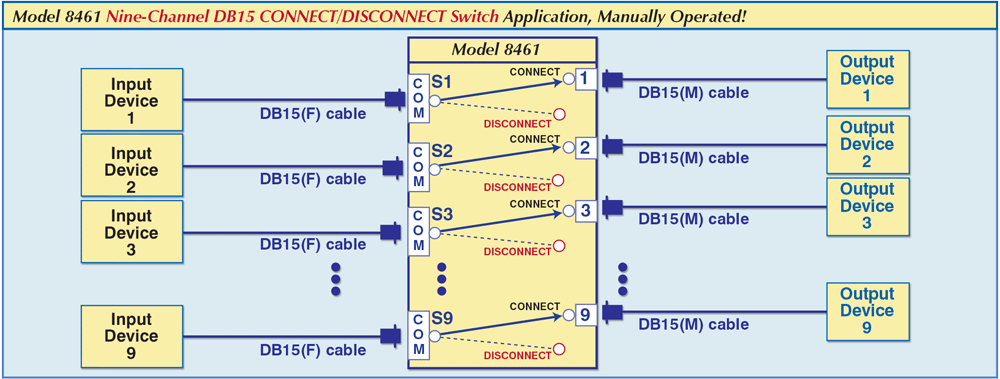

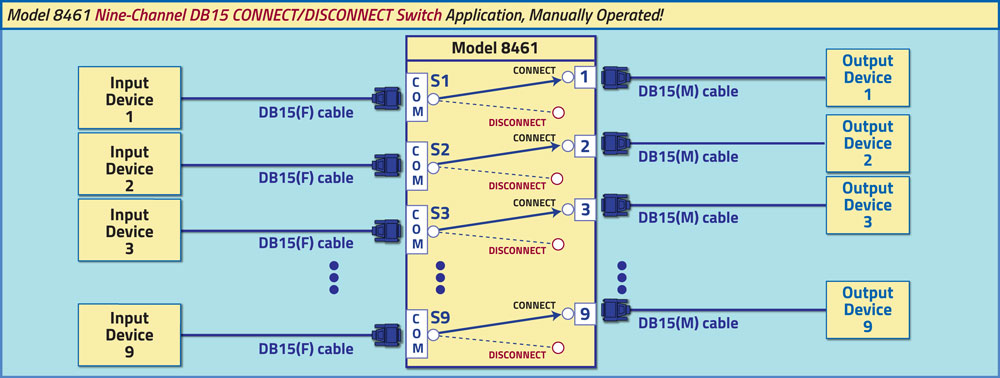

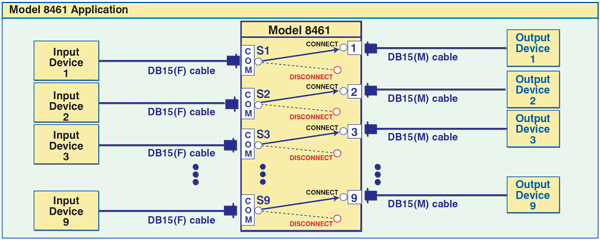

Individually controlled 9-Channel DB15 Connect/Disconnect switch. Utilizes MIL components and designed to support rugged MIL applications. The drawing illustrates a COMMON Device connected to the DB15 port for each of nine channels. The COMMON device is connected to the Output device in the "CONNECT" position. When the switch is in the "DISCONNECT" position no data passes to the Output Device.

Model 8461 9-Channel DB15 CONNECT / DISCONNECT Manual switch application.

FEATURES:

  • Output Connectors (female): M24308/1-2F
  • Input Connectors (male): M24308/3-2F
  • Jackposts: M24308/26
  • Rotary Switch: Grayhill p/n 09YY50111, built to the same drawing as Series 09 for MIL-DTL-3786/13 Type SR13E45B1MPCL, but with different system plating.
  • Dielectric Withstanding Voltage: Mil-STD-202F, Method 301.
  • Insulation Resistance: MIL-STD-202F, Method 302.
  • Workmanship in accordance with MIL-HDBK-454, Guideline 9.
  • Letter of compliance certification.
  • Shock Compliance: MIL-STD-810E, Method 516.4, Procedure 1 (1/2 sine30g x 20 millisec)
  • Vibration Compliance: MIL-STD-810E, Method 514.4, Category 1, Procedure 1 (2 hours per axis)
  • Low pressure (Altitude) Compliance: Altitude 5000 feet. MIL-STD-810E, Method 500.3, Procedure 1.
  • Humidity: MIL-STD-810F, Method 507.4.
  • Independently switch each of 9 channels via knobs on front panel.
  • Switches pins 2, 3, 6, 7, 8, 11, 12, 13 and 14. Pin 1 of each is bussed through.
  • High quality sealed switch with self-wiping precious metal contacts.
  • No external power required.
  • Transparent to data speed and format.
  • Manual operation via front panel rotary switches.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length DB15 cables available for your switch installation.

The Model 8461 Network Switch is comprised of nine individually controlled, manually operated, DB15 Connect/Disconnect switches.  When in CONNECT position, that individual channel input is completely connected to its respective channel output.  When in DISCONNECT position, that individual channel input is completely disconnected from its respective channel output.

Optional Rackmount Brackets allow the Model 8461 DB15 manual network switch to be mounted in a 19" rack enclosure. The brackets are field installable. To order the 3.5" brackets, request: Cat. No. 512433, Model 2433.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
