308470 - 8470 DB25 Audio Interface 4-Position Switch, Removable Brackets

    DB25 Audio Interface 4-Position Switch, Removeable BracketsDB25 Audio Interface 4-Position Switch, Removeable BracketsDB25 Audio Interface 4-Position Switch, Removeable BracketsDB25 Audio Interface 4-Position Switch, Brackets RemovedDB25 Audio Interface 4-Position Switch, Removable Brackets
Click image to enlarge

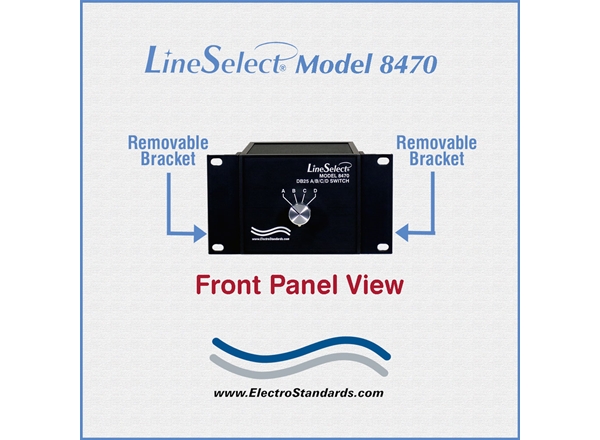

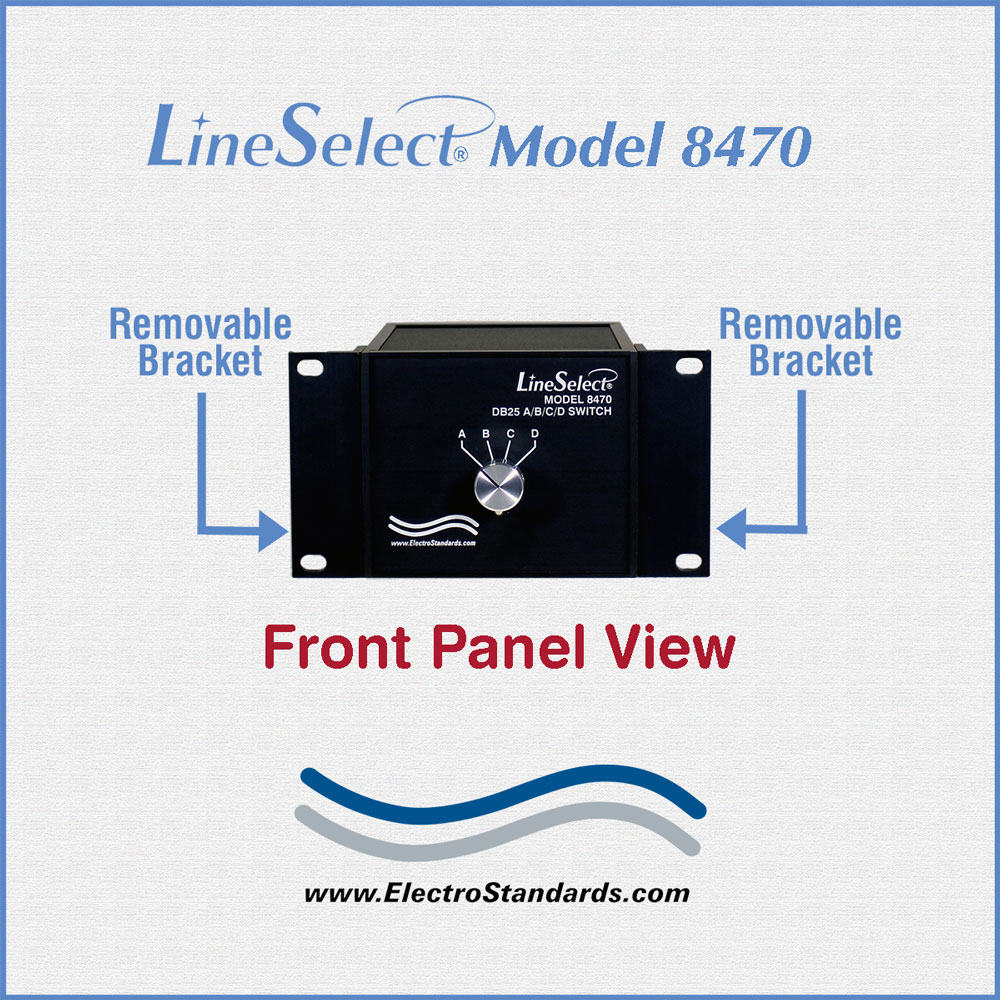

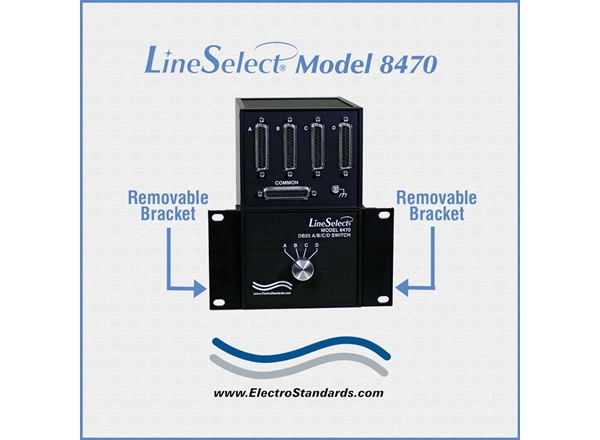

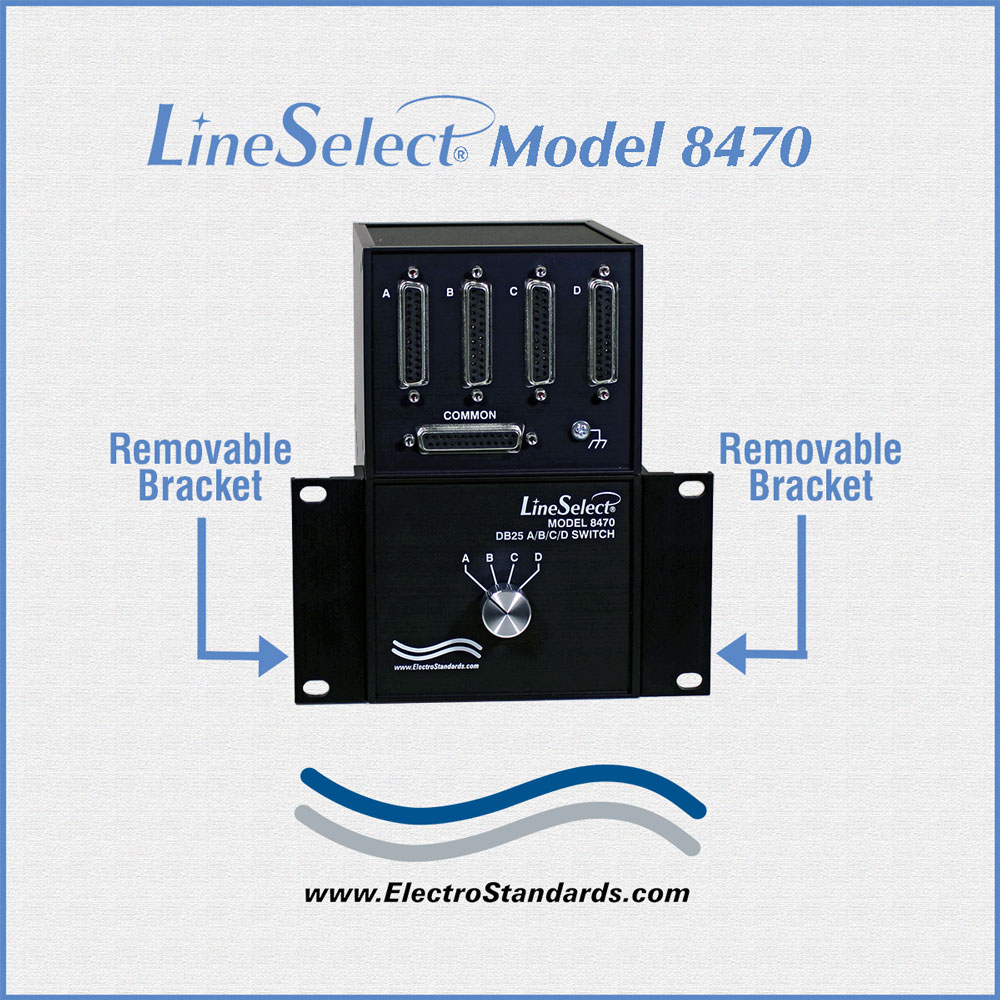

    • DB25 Audio Interface 4-Position Switch, Removeable Brackets
    • DB25 Audio Interface 4-Position Switch, Removeable Brackets

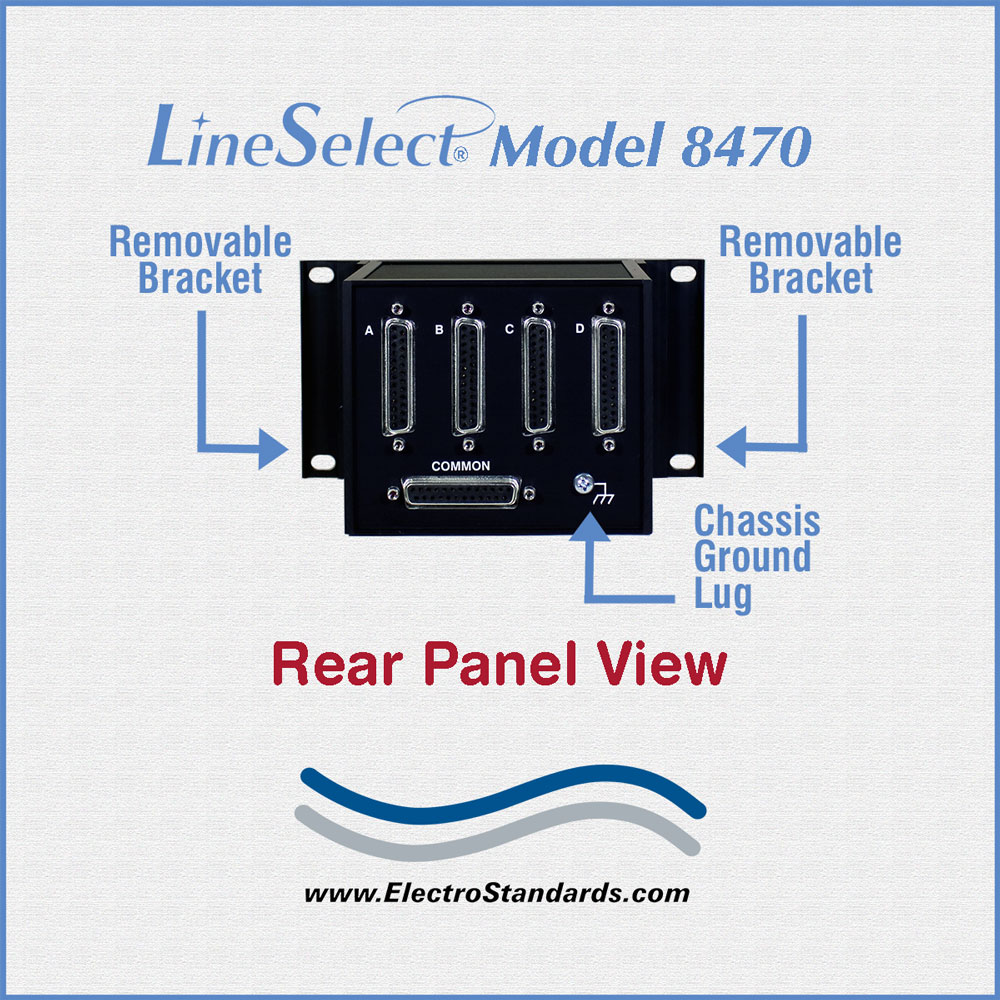

    • DB25 Audio Interface 4-Position Switch, Removeable Brackets

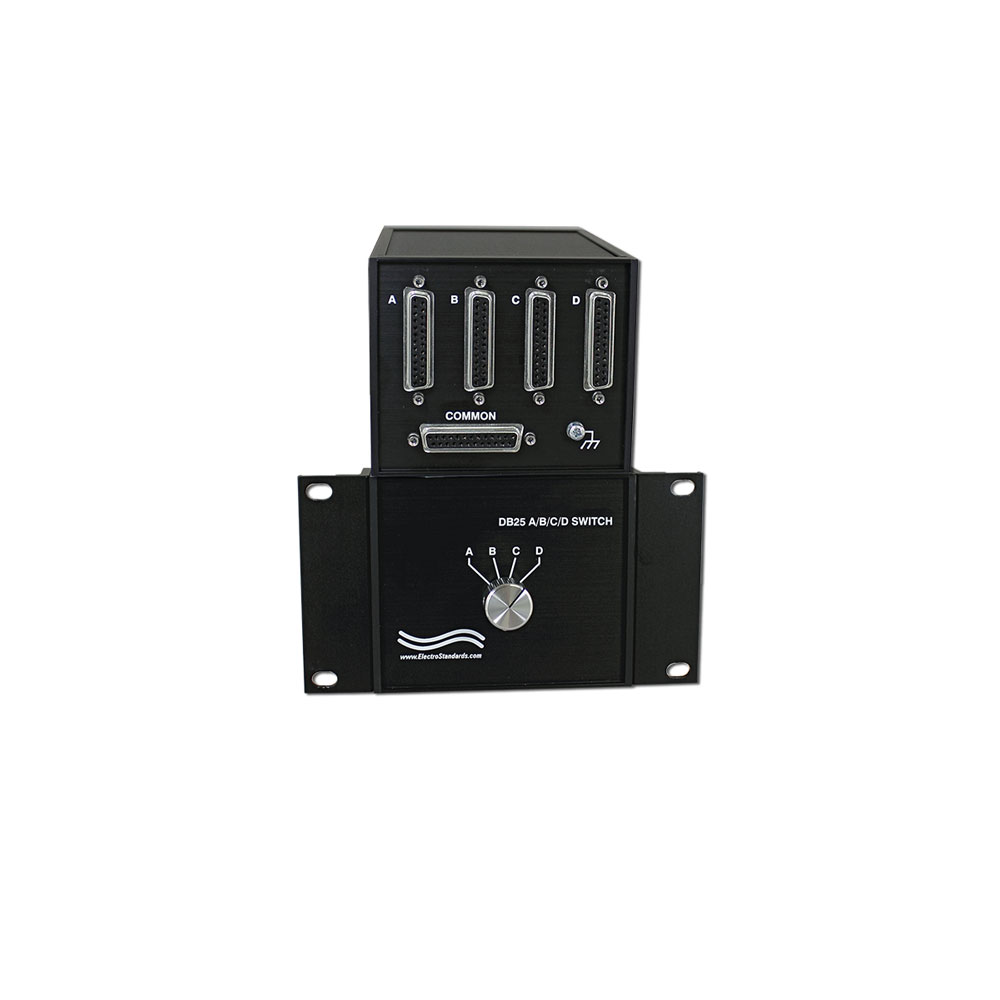

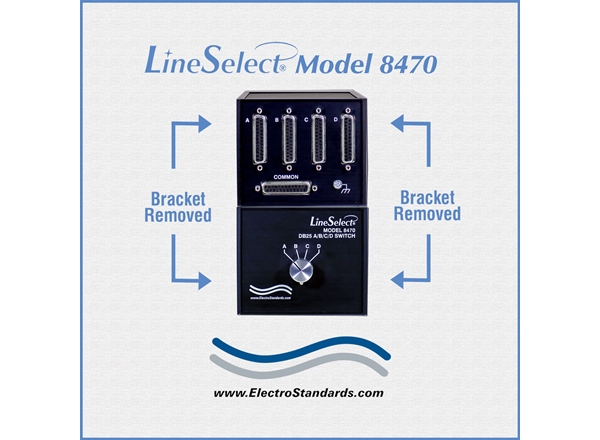

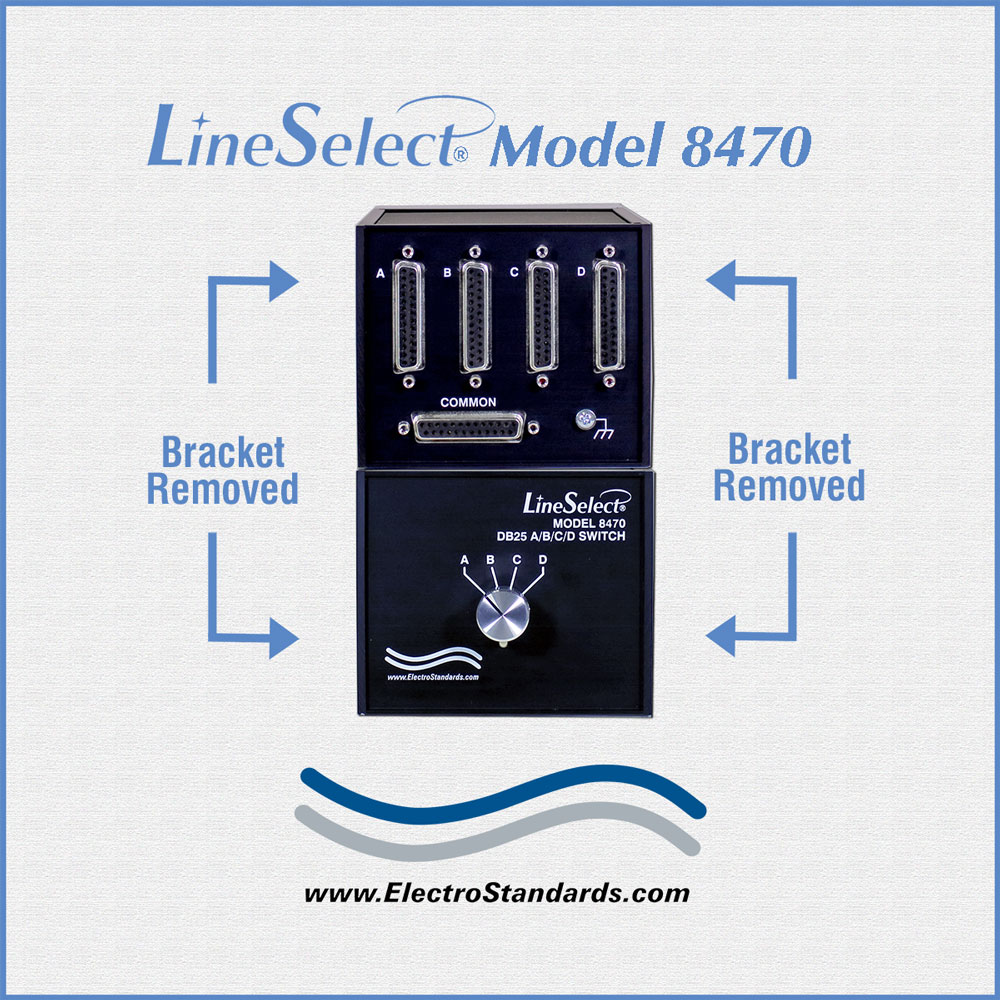

    • DB25 Audio Interface 4-Position Switch, Brackets Removed
    • DB25 Audio Interface 4-Position Switch, Removable Brackets
Base Price:
$703.00
Catalog No: 308470
Model No: 8470
Product Type:Switches: Copper
Interface:DB25 Audio Interface
Positions:4
Switch Application:Audio/Video Switching
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Configuration:Removeable Brackets
Pins Switched:25
Local Control:Rotary Knob
Feature:Wiring paired to minimize audio signal crosstalk

Add to Cart

LineSelect® Model 8470

  • DB25 Audio Interface A/B/C/D Switch, Removable Brackets
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

DB25 Manual Network Switches, 4-Positions, Rotary Switches
Model 8470 DB25 THX Audio Interface A/B/C/D Switch, Rackmount, Manual Operation

  • Internal wiring between the switch and the DB25 port connectors utilizes twisted pairs to accommodate the pin/signal listing of THX audio signals.  Pairing selected to minimize audio signal crosstalk.

SPECIFICATIONS:

  • PORT CONNECTORS: (5) DB25 female connectors labeled A, B, C, D, and COMMON.
  • FRONT PANEL CONTROLS: (1) Rotary Switch on front panel selects A, B, C, D.
  • POWER: No power required. Manually operated.
  • LOW IMPEDANCE CONTACTS: Typical contact resistance, 3 milliohms.
  • SIGNAL PAIRING:  Each signal "positive" is paired with its respective signal "ground".
  • DIMENSIONS: With Brackets attached: 6.4" W x 3.5" H x 6.64" D. (16.3 x 8.9 x 16.9 cm)
  • WEIGHT: 2.0 lb. (0.9 kg).

LineSelect® Model 8470 DB25 THX Audio Interface A/B/C/D Switch Application:

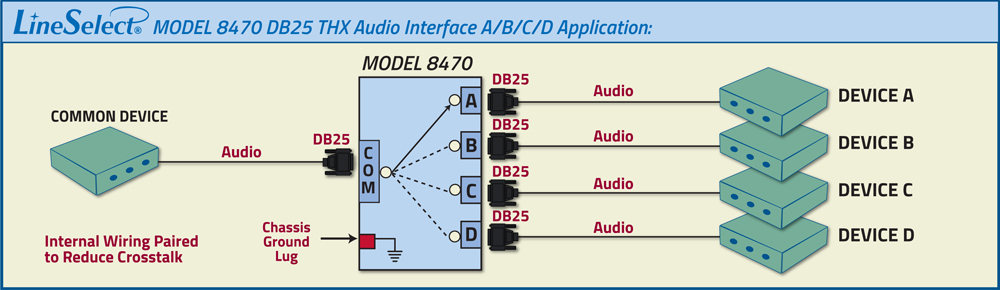

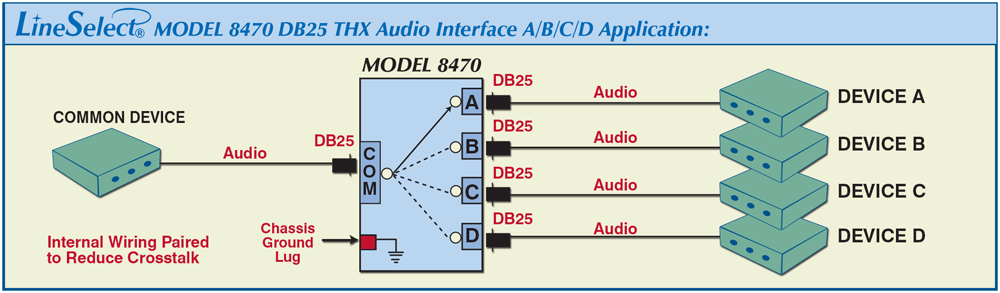

The LineSelect® Model 8470 Application drawing illustrates a COMMON device connected to the DB25 COMMON port sharing among four devices connected to the A, B, C and D ports.  (The internal Wiring Paired to Reduce Crosstalk) The drawing also shows the Chassis Ground Lug for secure grounding.

LineSelect Model 8470 DB25 THX Audio Interface A/B/C/D Switch Application

  FEATURES:

  • Ideal for THX Audio Interface switch applications.
  • Allows quick connection to any one of four DB25 interface devices from one COMMON port.
  • Manual operation via front-panel rotary switch.
  • High quality sealed switch with self-wiping precious metal contacts.
  • All (25) pins of the DB25 interface are switched via break-before-make rotary switch.
  • All port shields are grounded to the chassis.

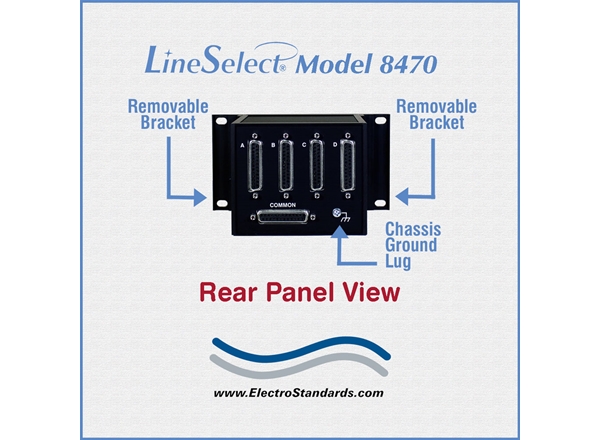

  • Rear-panel chassis stud accepts spade lug for secure grounding.
  • No external power required.

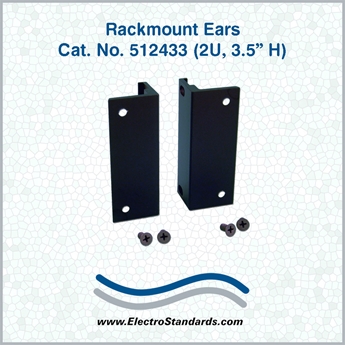

  • Packaging includes removable rackmount brackets.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Ruggedized to withstand vibration encountered in mobile/motion applications.
  • Internal wiring is paired to minimize audio signal crosstalk for THX signal assignment at DB25 interface.
  • Lifetime warranty against manufacturing defects.
  • Custom length, custom designed DB25 cables wired to your specifications available for your switch installation.

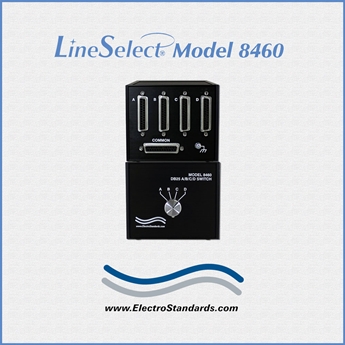

  • For a Desktop version of the LineSelect® Model 8470, See Model 8460, Cat No 308460.

The LineSelect® Model 8470 DB25 THX Audio Interface A/B/C/D Switch allows the user to reroute data between any one of four DB25 devices to one COMMON device with the simple rotation of a selector switch.  All 25 pins of the DB25 interface are switched.  No need to plug and unplug interconnection cables thereby eliminating connector wear and/or errors when reconfiguring system connections.  The LineSelect® Model 8470 is packaged in a compact enclosure that includes removable brackets.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
