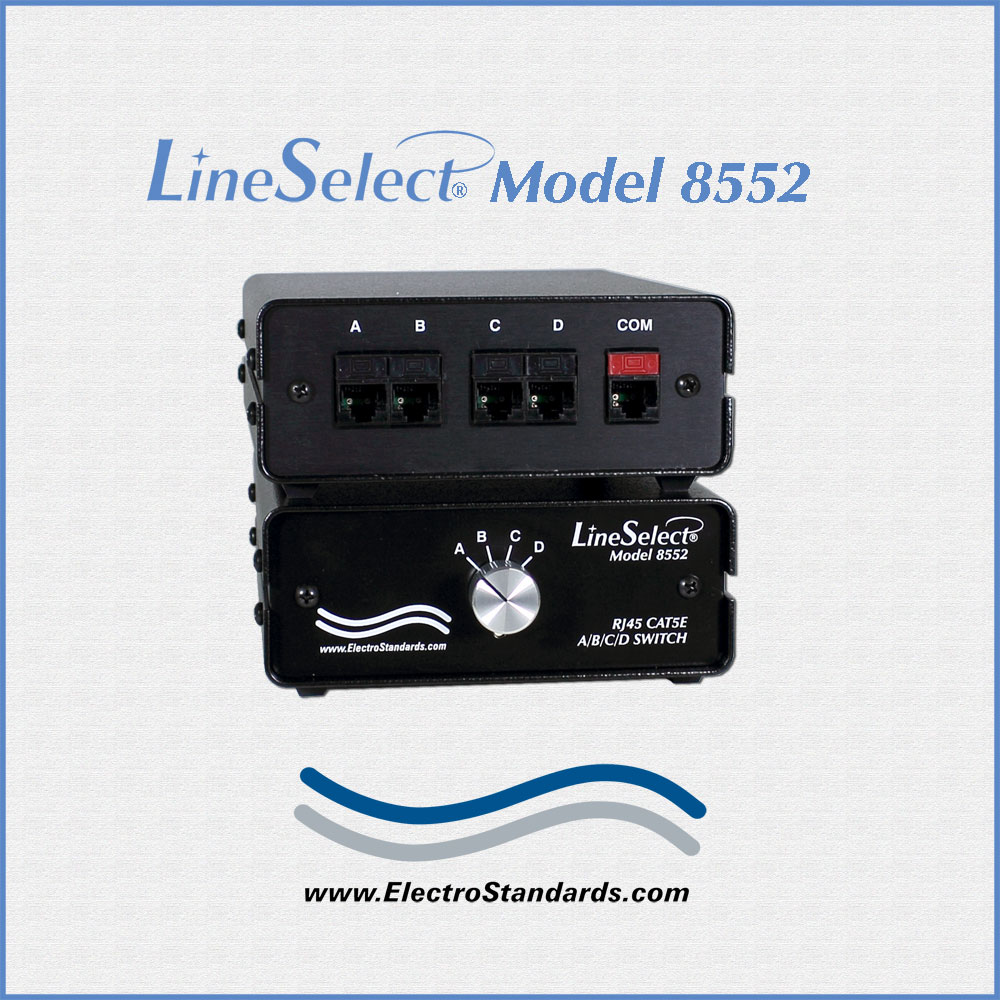

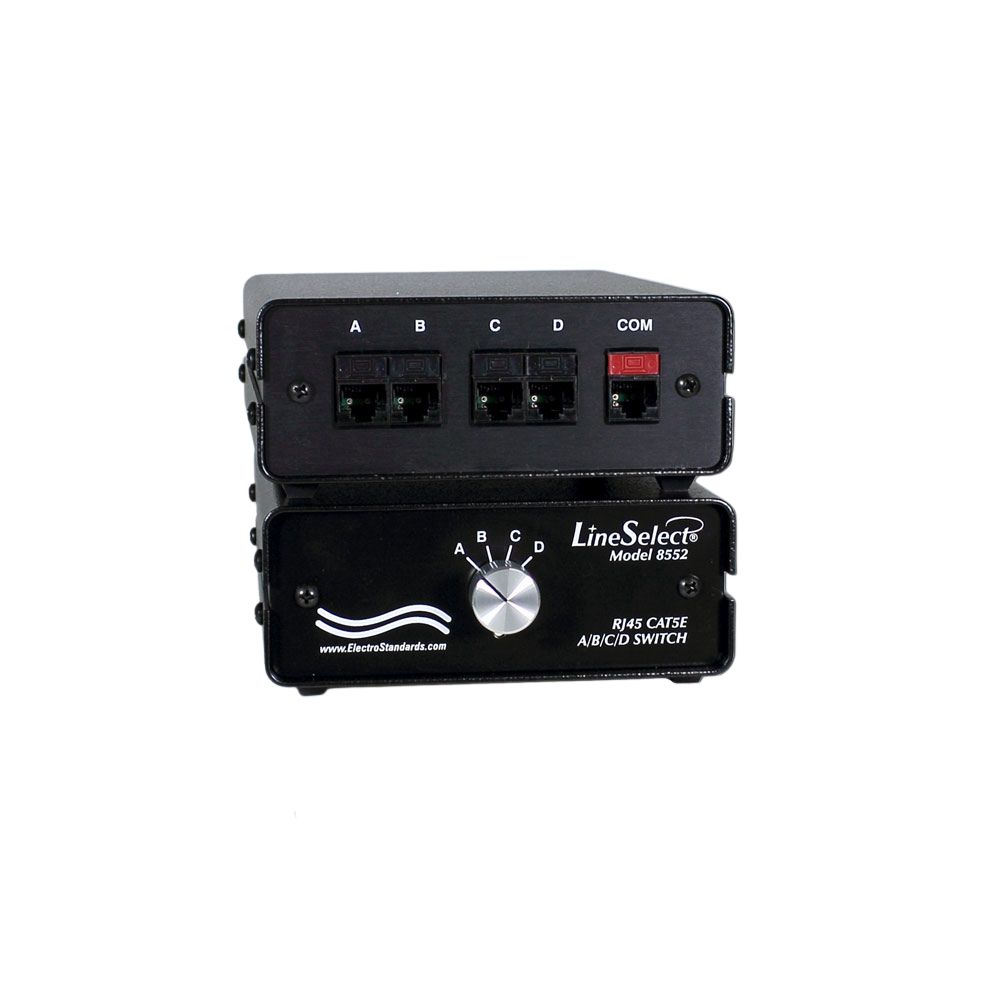

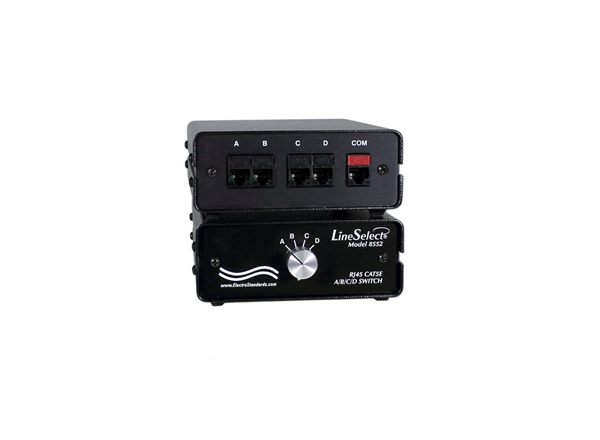

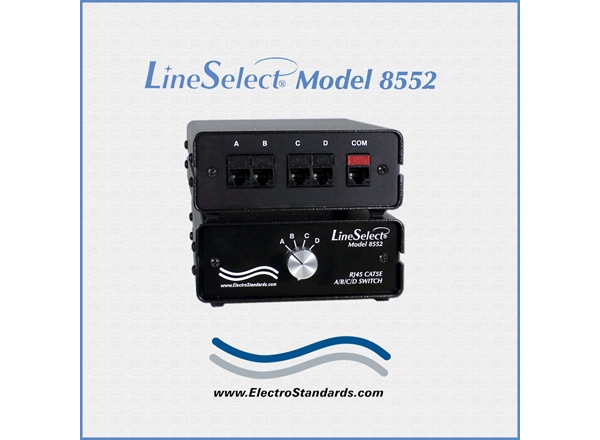

Catalog # 308552 - Model 8552 RJ45 A/B/C/D CAT 5e Switch

Click image to enlarge

Base Price:

$625.00

Catalog No:

308552

Model No:

8552

Product Type:

Switches: Copper

Interface:

RJ45, 10/100/1000 Base-T, Cat 5e

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Compliance/Standards:

Cat5e

Configuration:

Desktop

Pins Switched:

Local Control:

Rotary Knob

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Cat5e Manual Network Switch, RJ45
LineSelect® Model 8552 RJ45 A/B/C/D Switch, Manual Control, CAT 5e Compliant

Share ANY RJ45 interface networks or devices, "quick & easy".

SPECIFICATIONS:

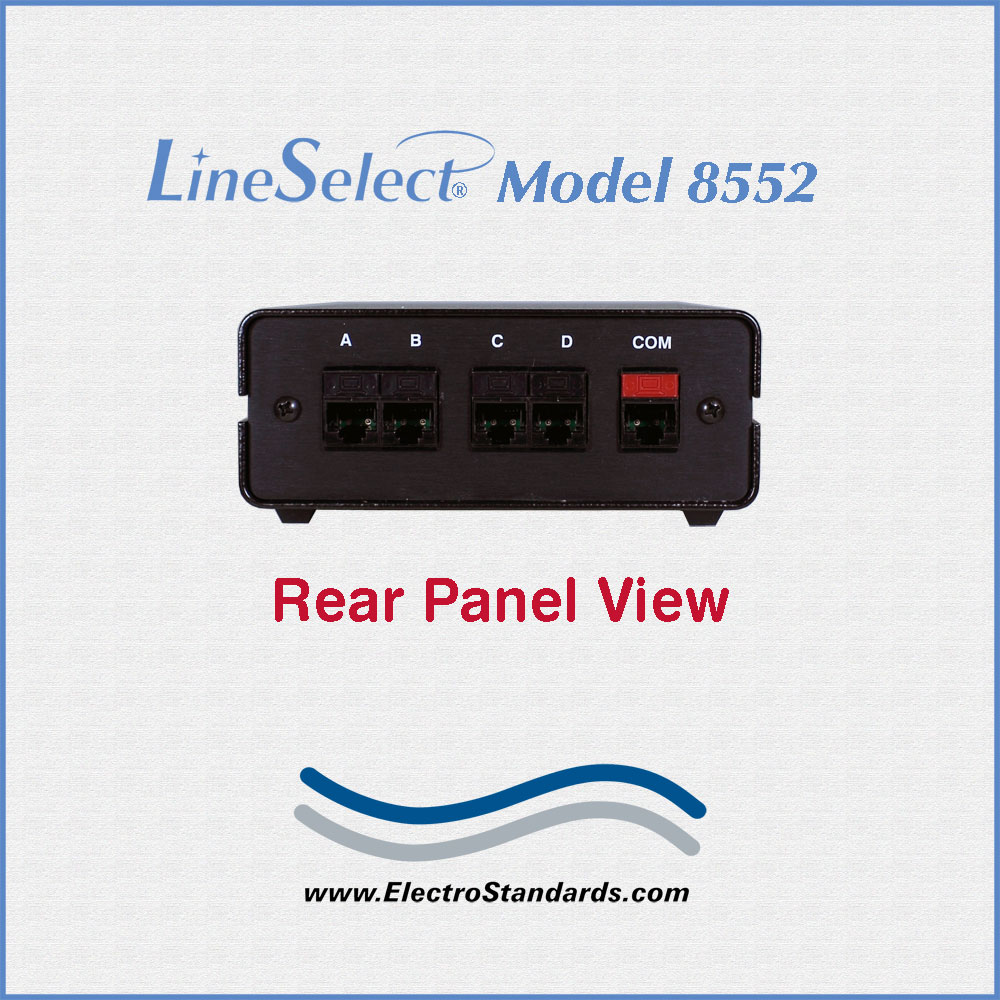

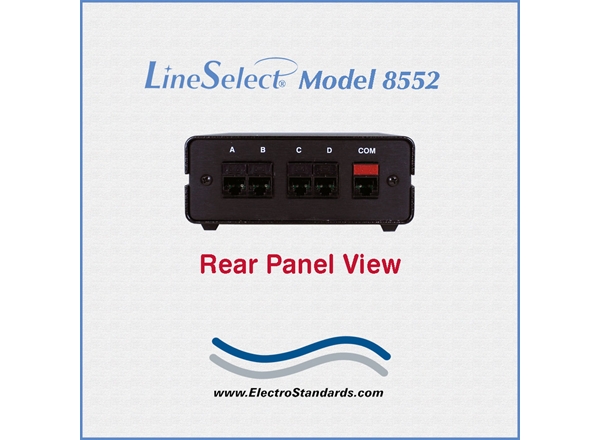

PORT CONNECTORS: (5) RJ45 female connectors labeled A, B, C, D, and COMMON.

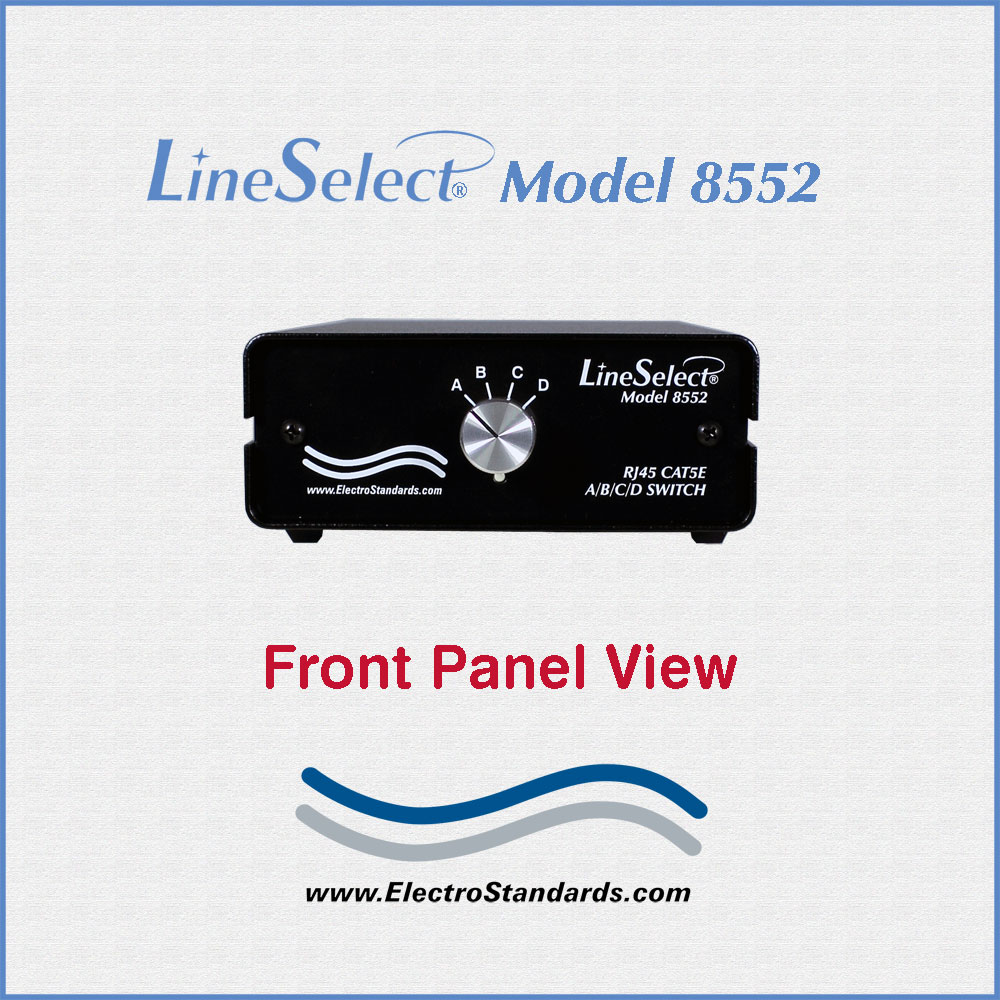

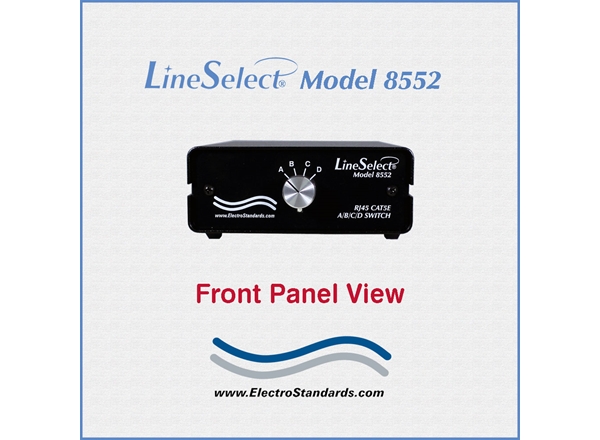

FRONT PANEL CONTROL: (1) Rotary switch on front panel selects A, B, C, D.
POWER: No power required. Manually operated.
DIMENSIONS: 5.3" W x 2.6" H x 7.3" D (13.5 x 6.6 x 18.5 cm).
Weight: Approximately 1.2 lb. (0.6 kg).

LineSelect® Model 8552 CAT5e A/B/C/D APPLICATION:

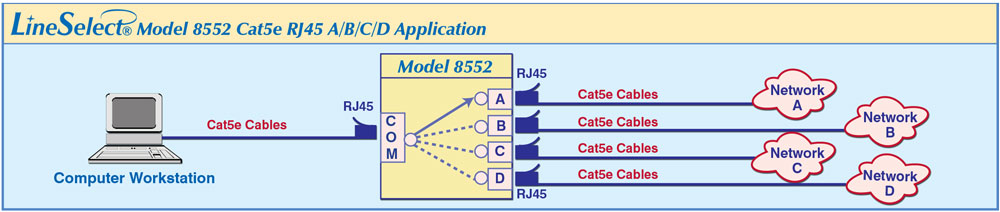

The drawing illustrates a computer or workstation connected to the COMMON port. The computer or workstation has access to four RJ45 10/100/1000 Base-T Networks connected to the A, B, C, and D ports.

LineSelect® Model 8552 RJ45 A/B/C/D rotary switch application drawing

FEATURES:

Allows access to four networks from one computer or workstation.
Certified for CAT5e compliance.
Eliminates the need to plug and unplug cables.
No external power required.
The switch ports are transparent to all data.
Manual operation via front-panel rotary switch.
Rated for 10/100/1000 Base-T networks (up to CAT5e).
Attractive anodized black box packaging provides EMI/RFI shielding.
High quality sealed switch with self-wiping precious metal contacts.
All 8 pins of the RJ45 interface are switched via a break-before-make rotary switch.
Lifetime warranty against manufacturing defects.
Custom length CAT5e cables are available for your switch installation. Get optimum network performance!

The LineSelect® Model 8552 enables access to four RJ45 10/100/1000 Base-T networks from one COMMON RJ45 device. The LineSelect® Model 8552 Category 5e A/B/C/D Switch allows the user to reroute data between four networks with a simple turn of the front panel rotary switch. No need to plug and unplug cables thereby eliminating connector wear. Since the data switch supports all eight pins, it is applicable to sharing ANY RJ45 device.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
