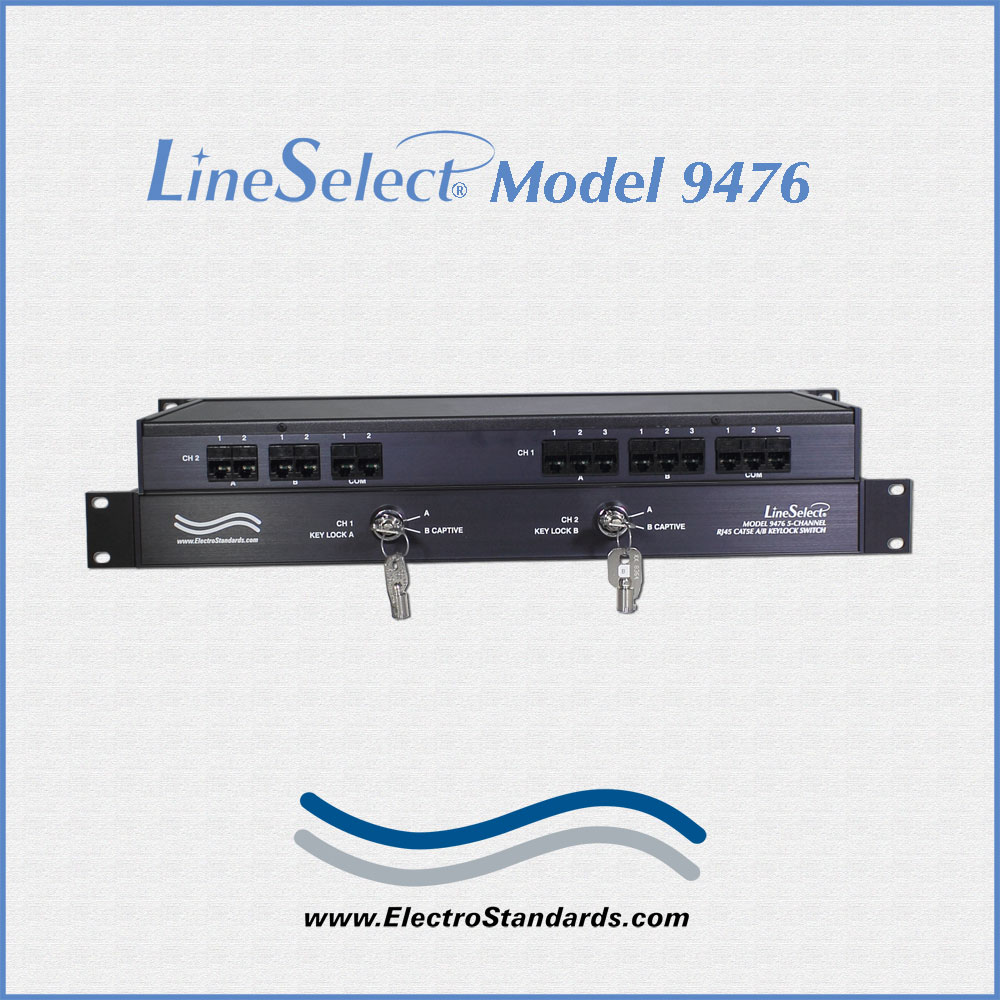

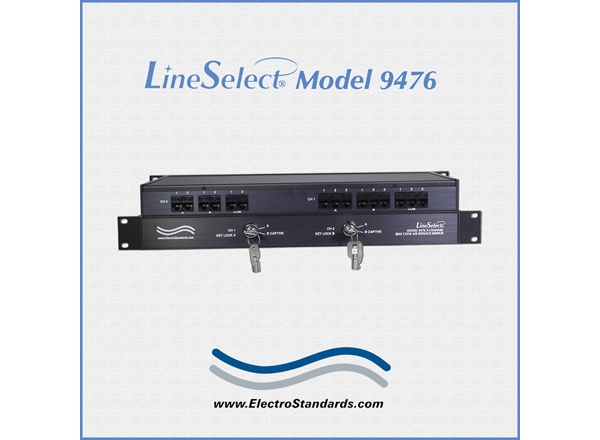

309476 - 9476 5-Channel RJ45 Cat5e A/B Keylock Switch, Individual Control of 3-Channel & 2-Channel Group

Click image to enlarge

Base Price:

$2,374.00

Catalog No:

309476

Model No:

9476

Product Type:

Switches: Copper

Interface:

RJ45, Cat5e

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Channel Control:

Simultaneous Channel Control

Security:

Keylock

Compliance/Standards:

Cat5e

Configuration:

Rackmount

Pins Switched:

Local Control:

Keylock

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

LineSelect®

Cat5e Manual Network Switch, RJ45 Keylock Switches
Model 9476 5-Channel RJ45 Cat5e A/B Keylock Switch, Individual Control of 3-Channel Group and 2-Channel Group

Applicable to switching ANY RJ45 interface, quickly and reliably.

SPECIFICATIONS:

PORT CONNECTORS: (15) RJ45 female connectors three labeled A, B, and COMMON, for each of the 5 channels.
FRONT PANEL CONTROL: (2) Keylock switches - Channel 1/ Keylock A selects A or B (key captive position), switching its three connector groups simultaneously; Channel 2/ Keylock B selects A or B (key captive position), switching its two connector groups simultaneously.
POWER: No power required. Manually operated.
DIMENSIONS: Rackmount: 19.0" W x 1.75" H x 8.22" D. (48.3 x 4.4 x 21.1 cm)
WEIGHT: Approximately 5.3 lbs. (2.5 kg)

LINESELECT® MODEL 9476 5-CHANNEL RJ45 CAT5E A/B KEYLOCK SWITCH APPLICATION:

Individual Control of a 3-Channel Group
Individual Control of a 2-Channel Group

The drawing illustrates two Channel Groups. Channel 1 Group consists of three channels, and Channel 2 Group consists of two channels. Each Group can be controlled individually.
There are two keylocks:

Keylock A to allow or inhibit front panel operations for Group 1.
Keylock B to allow or inhibit front panel operations for Group 2.
Each group is switched simultaneously.

LineSelect® Model 9476 5-Channel RJ45 Cat5e A/B Keylock Switch application drawing

FEATURES:

The two, Channel keylock actuators on the front panel allow the user to insert a key and switch groups of RJ45 Cat5e connector ports
Channel 1 simultaneously switches three channels of RJ45 Cat5e A/B connector groups using style "A" key.
Channel 2 simultaneously switches two channels of RJ45 Cat5e A/B connector groups using style "B" key.
Tested for Cat5e compliance.
All 8 pins of the RJ45 interface are switched via break-before-make keylock switch.
Key is removable in the A position and captive in the B position.
High quality sealed switch with self-wiping low impedance contacts.
Manually operated keylock switch. No power required.
Attractive all metal, black box packaging provides EMI/RFI shielding.
Rackmount configuration is standard.
Lifetime warranty against manufacturing defects.

The LineSelect® Model 9476 switches two groups of RJ45 Cat5e ports; Channel 1 simultaneously switches three A/B RJ45 Cat5e connector groups; Channel 2 simultaneously switches two A/B RJ45 Cat5e connector groups. Each channel is switched by inserting a unique key into its corresponding keylock actuator located on the front panel. The key for Channel 1 is style A key; the key for Channel 2 is a style B key.

The unit supports all 8 pins of the RJ45 Cat5e interface. No need to plug and unplug cables thereby eliminating connector wear. The LineSelect® Model 9476 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.
