Overview

Manual Network Switch, Cat5e, RJ45

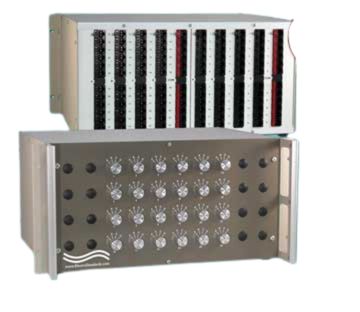

Model 9743 High Density Cat5e RJ45 24-Channel A/B/C/D
Network Switch System

- Certified 10/100/1000Base-T Cat 5e compliance

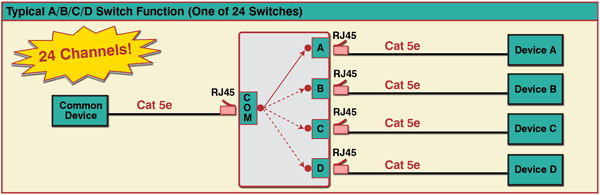

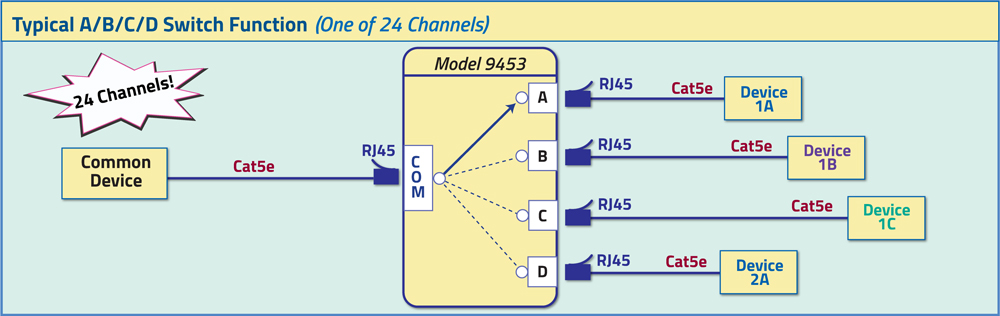

CAT5e 24 CHANNEL APPLICATION: The drawing illustrates one of 24 independent switches. For each of the 24 channels, a COMMON device connected to the COMMON port has access to one of four devices connected to the Cat5e RJ45 A, B, C, and D ports.

Model 9743 Cat5e 24 channel A/B/C/D Switch System Application.

FEATURES:

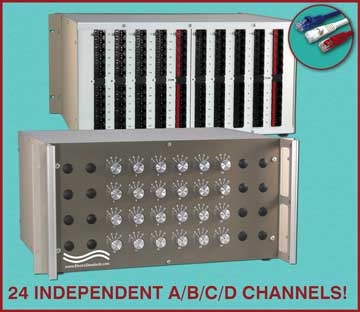

  • 24 Channels of Cat 5e RJ45 A/B/C/D switching in only 8.75 inches of panel height.
  • 24 Independent A/B/C/D Channels!
  • Manually control each channel separately via knobs located on the front panel, one knob per channel.
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switch for each channel. Allows compatibility with all RJ45 interfaces.
  • Rated for 10/100/1000Base-T networks (Up to Cat5e).
  • Manually operated, no power required.
  • All RJ45 female ports located on the rear panel.
  • Rackmount style chassis, 19.0" Wide x 8.75" High x 13.0" Deep.
  • (48.3 x 22.2 x 33.0 cm)
  • Custom length Cat5e RJ45 interconnection cables available for your installation.
Cat5e patchcords - ideal for 10BASE-T, 100BASE-T, 1000BASE-T, Ethernet & Gigabyte Ethernet
 Color  3 ft.  5 ft.  10 ft. 25 ft.
 Black  990328-003  990328-005  990328-010  990328-025
 Blue  990329-003  990329-005  990329-010  990329-025
 Green  990330-003  990330-005  990330-010  990330-025
 Orange  990331-003  990331-005  990331-010  990331-025
 Purple  990332-003  990332-005  990332-010  990332-025
 Red  990333-003  990333-005  990333-010  990333-025
 Grey  990334-003  990334-005  990334-010  990334-025
 White  990335-003  990335-005  990335-010  990335-025
 Yellow  990336-003  990336-005  990336-010  990336-025

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/
