Catalog # 315150 - Model 5150 Conference Room Switching System

Click image to enlarge

Base Price:

$9,999.00

Catalog No:

315150

Model No:

5150 Video Conference Room Secure Switching System

Product Type:

Switches: Copper, Switches: Fiber Optic

Positions:

3, Offline

Switch Application:

Audio/Video Switching

Cable Type/Port Connector:

RJ45, RJ11/12, SC

Security:

Keylock, Offline Position

Configuration:

Rackmount

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

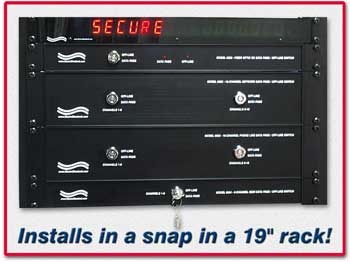

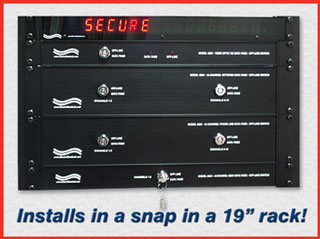

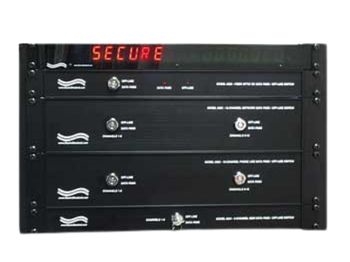

Model 5150 Keylock Video Conference Room Secure Switching System

This Videoconference Room Secure Switching System is an important Videoconferencing equipment requirement.

Model 5150 System Keylock Video Conference Room System

"NON-SECURE" Mode (Key in DATA PASS position)

In this mode, the Model 5150 Video Conference Room Secure Network Switching System passes the connection of copper and fiber voice and data lines from the conference room equipment to the building data network.

"SECURE" Mode (Key in OFF-LINE position)

In this mode, the Model 5150 Video Conference Room Secure Network Switching System disconnects the same set of lines from the building data network, isolating all of the conference room equipment, completely.

Install the Model 5150 Secure Switching System with listed modules, or customize with the assistance of "The Switch Experts" - Electro Standards Laboratories!

SECURE/NON-SECURE SYSTEM STATUS INDICATOR

Model 5008 Display Indicator connects to status ports of all four system switches via daisy chain cables.

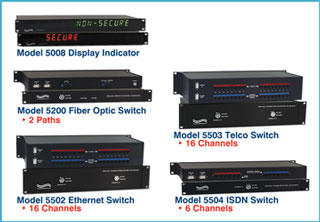

Secure Video Switches for the System Model 5150

Model	Catalog #	Type	Description
5008	303100	Secure/Non-Secure Indicator	Connects to status ports of all system switches.
5200	303101	QuickSwitch Fiber Optic Switch	Multimode Duplex SC connectors (2 Fiber Strands). 2 Paths.
5502	303102	Ethernet Switch	RJ-45 Connectors (Pins 1, 2, 3 and 6). 16 Channels.
5503	303103	Telco Switch	RJ-11/12 connectors (Center 4 pins). 16 Channels
5504	303104	ISDN Switch	RJ-45 connectors (Pins 3, 4, 5 and 6). 6 Channels

This network switch system utilizes the Model 5200 QuickSwitch Fiber Optic Switch. Check out our complete line of QuickSwitch Fiber Optic Switches.

MODEL 5150 SYSTEM DIAGRAM OF SWITCH FUNCTIONS:

The diagram shows all four switches have a keylock.
The four switches also have front panel keylock control.
Model 5504 has 6 channels of RJ45 ISDN connectors.
Model 5200 has 2 paths of SC Fiber switching.
Model 5502 has 16 channels of RJ45 Ethernet connectors.
Model 5503 has 16 channels of RJ11/12 Telco connectors.

Model 5150 Video Conference Room Switching System Diagram of Switch Functions

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

Custom Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.
All ESL products are available for export.
