331209 - Energy ActionSystem Model 3312, Lithium Ion Capacitor Development Shelf

Click image to enlarge

Base Price:

Call for Price

Catalog No:

331209

Model No:

3312

Application:

Bidirectional high power pulses, very low leakage, very high life cycle, exceptional energy density

Custom Configurations Available to Meet Your Application Requirement!

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Energy ActionSystem Model 3312 Lithium Ion Capacitor Development Shelf, Cat#331209

The ActionSystem Model 3312 Lithium Ion Capacitor (LiC) Development Shelf provides a series connection of up to 9 LiC modules (108 LiC cells) along with associated protection, monitoring, and cell balancing circuitry that can be incorporated into a larger system design or used by itself in applications requiring high power, high energy LiC energy storage. LiC Supercapacitor systems are ideal for applications that require bidirectional high power pulses, very low leakage, very high cycle life, and exceptional energy density.

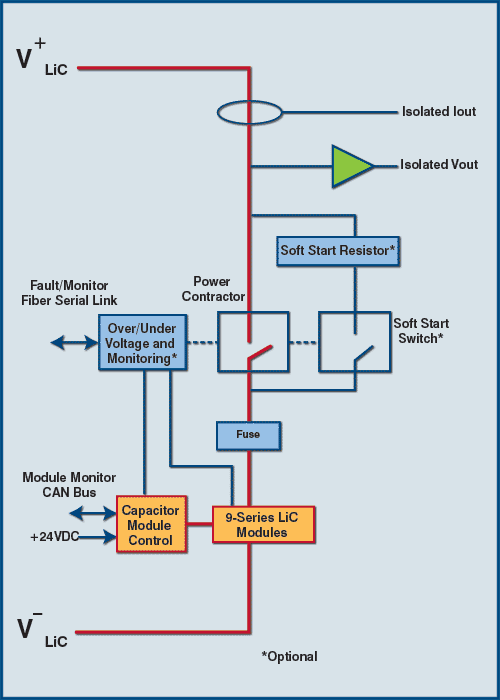

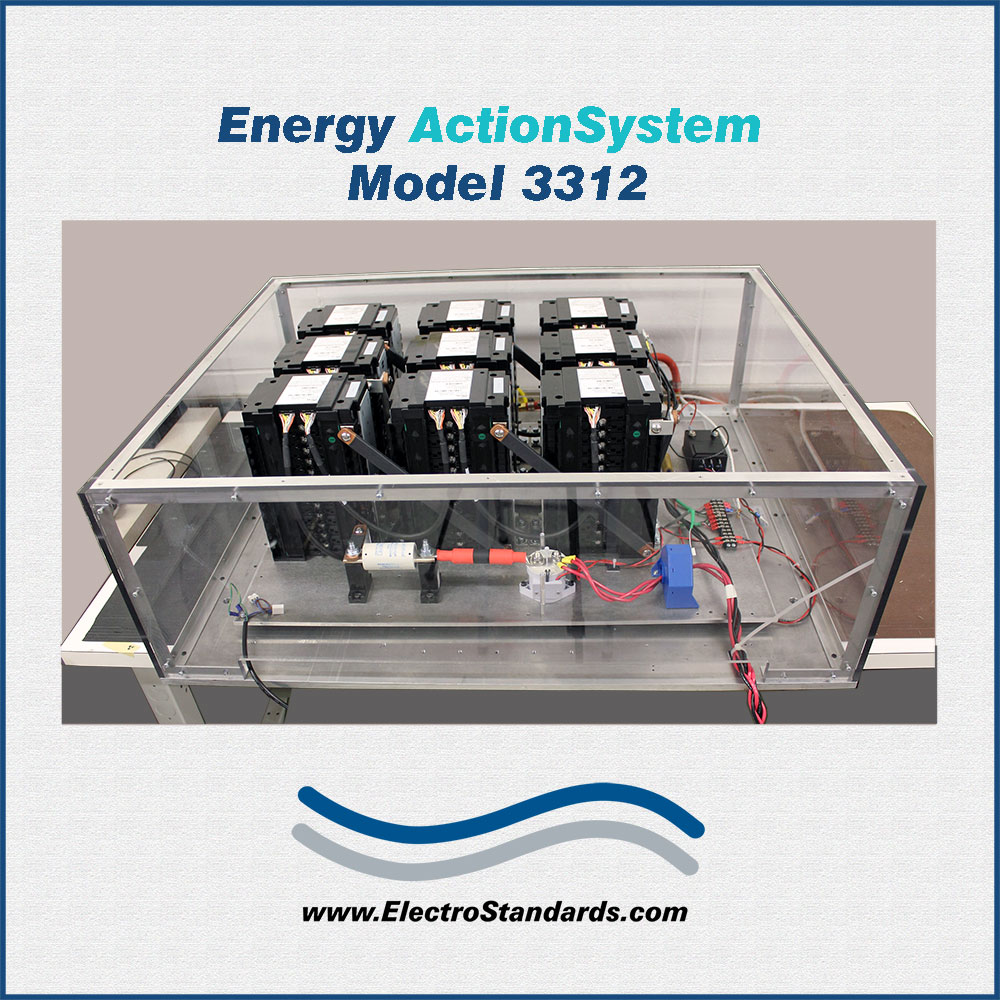

Figure 1 is the Model 3312 product photo of the LiC Supercapacitor Development Shelf. A block diagram of the Lithium Ion Capacitor Development Shelf is shown in Figure 2 below. The series connected LiC modules can be operated between 238VDC and 410VDC. The Capacitor Module Controller provides LiC cell balancing and fault monitoring that is accessible via a CAN bus interface. Overcurrent protection is provided by a series connected fuse. Remote connection of the LiC bank and soft start is accomplished via on-board switches that are controlled through the Fault Monitoring Board. The Fault Monitoring Board has a fiber serial interface to allow for remote control of the switches and remote monitoring of under/over voltage and module over temperature faults. The development shelf is intended to ease the incorporation of LiC modules into a system application. The shelf is designed for easy mounting in a commercially available equipment rack. Custom configurations are available upon request.

Figure 2

Model 3312 LiC Development Shelf Specifications:

Energy Storage:
- 9 Modules each containing 12 LiCs. 108 total LiC cells
- Each LiC super capacitor: 3300F, ±200A continuous
- Stack Operating Range: 238VDC to 410 VDC, ±200A Cont.
- Stack Capacitance: 30.6F nominal
- Cell Balancing: Integrated with Capacitor Module Controller
- Each Capacitor Module: JMenergy ULTIMO MPA 45G275H
- Capacitor Module Controller: JMenergy NA102, power with 24V, 100mA
Protection:
- Fuse: Littlefuse L70S175, 175A
- Power Contactor: 500A max, 9-36VDC coil
- Soft Start Switch contacts: 2A max.
Sensor Feedback:
- Voltage Sensor: Isolated LEM LV-1000
- Current Sensor: LEM LA305-S, Inominal ±300A, Imax ±500A
Soft Start:
- Resistor: 80Ω, 600W
- Soft Start Switch Current: <2A
Communications:
- Serial duplex fiber: fault monitor and power contactor, soft start switch control
- CAN Bus: Communications with Capacitor Module Controller
Physical:
- Dimensions: 22.6"W x 30.4"D x 11"H
- Weight: Approximately 185 lbs.
Custom Lithium Ion Capacitor Development Shelf Configurations are available to meet your application requirements.
