Catalog # 509929 - Model 8265 DB25 2-Position Switch

    DB25 2-Position SwitchDB25 2-Position SwitchDB25 2-Position SwitchDB25 2-Position Switch
Click image to enlarge
    • DB25 2-Position Switch
    • DB25 2-Position Switch
    • DB25 2-Position Switch
    • DB25 2-Position Switch
Base Price:
$370.00
Catalog No: 509929
Model No: 8265
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Configuration:Desktop
Pins Switched:Switches Pins 2 thru 25. Pins 1 tied together
Local Control:Rotary Knob
Feature:Sealed Switch Mechanism
Ruggedized:Plenum Rated Insulation

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

DB25 Manual Network Switches, 2-Positions, Rotary Switches

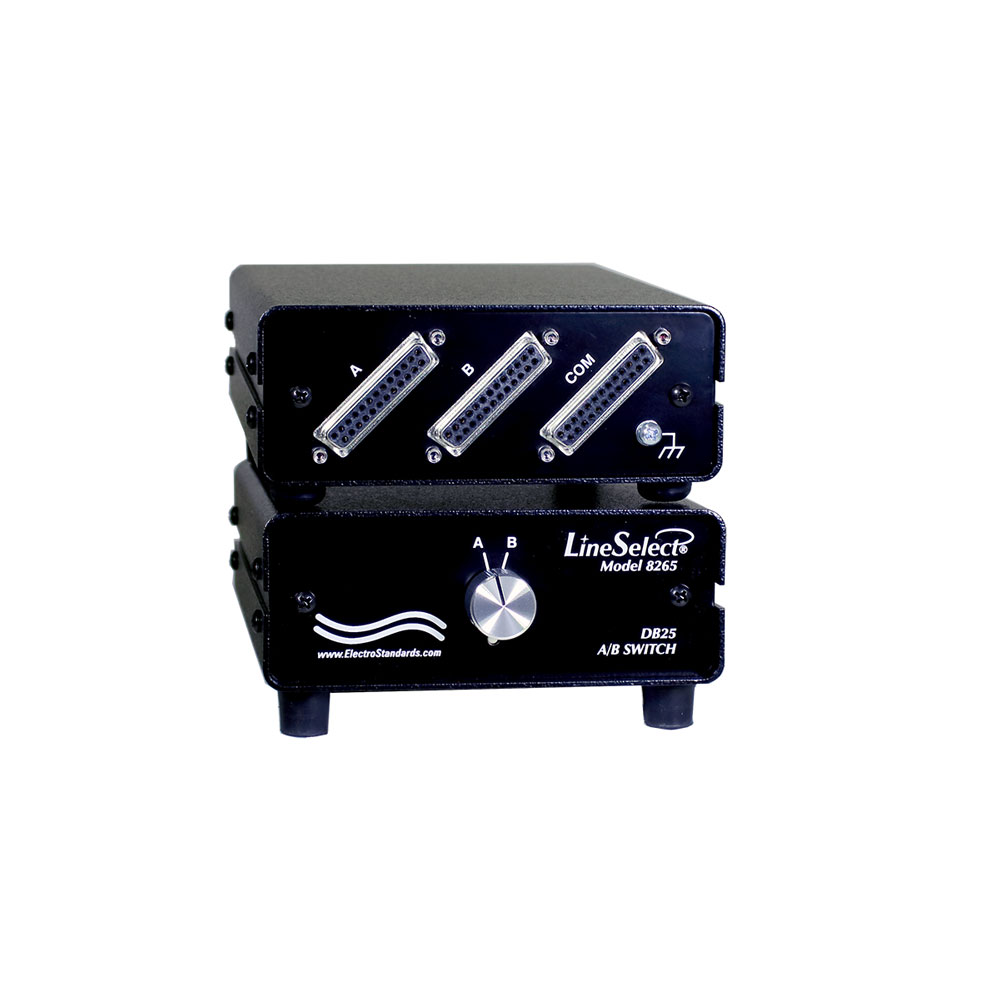

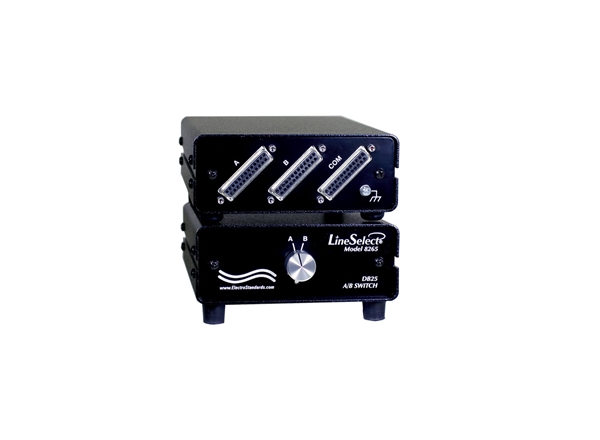

Model 8265 DB25 A/B Switch, Manual Operation, Desktop

  • A Robust, High Integrity Switch

  • No Power Required

SPECIFICATIONS:

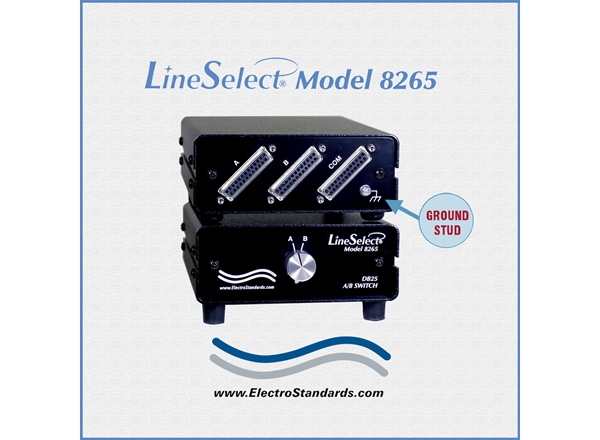

  • PORT CONNECTORS: (3) DB25 female connectors labeled A, B, and Common.

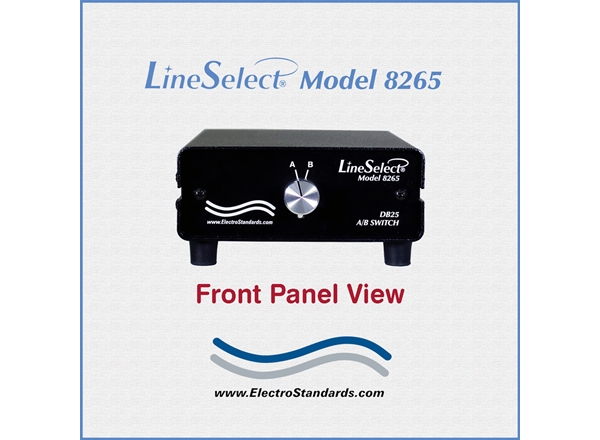

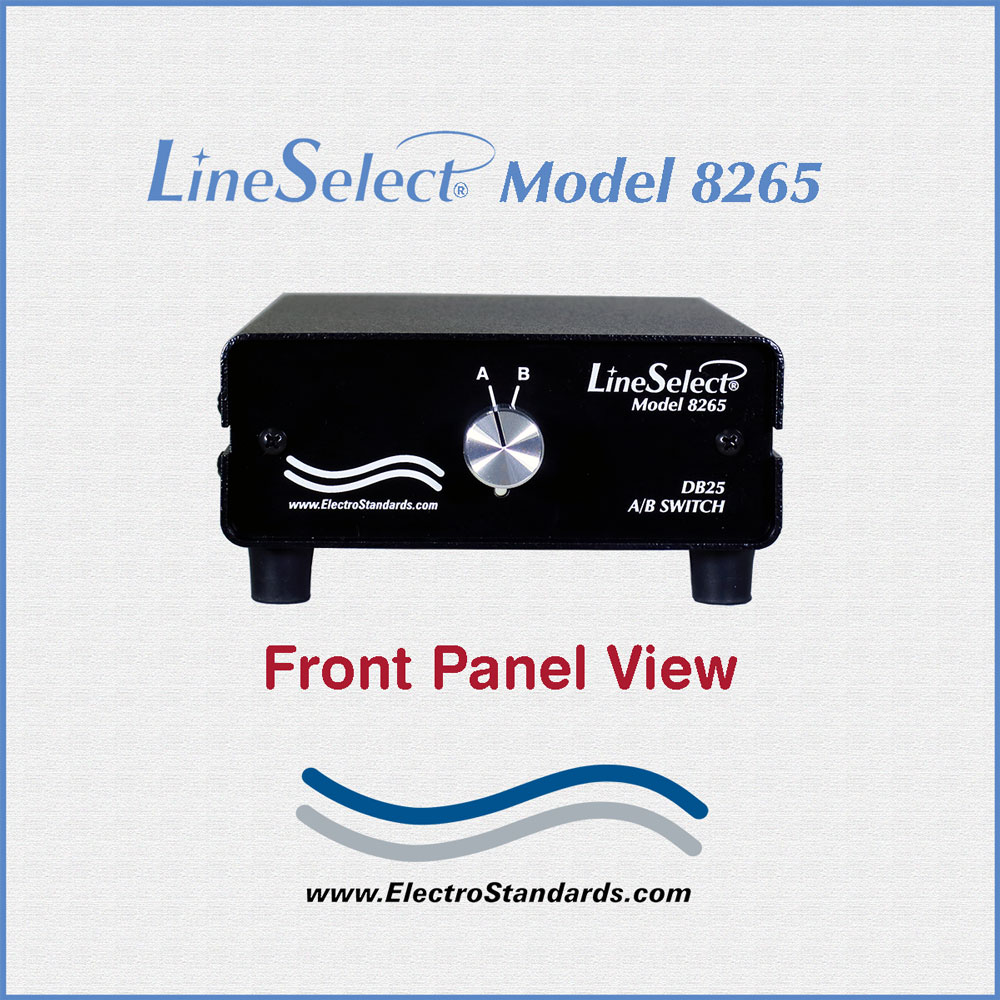

  • FRONT PANEL CONTROLS: (1) Rotary Switch allows local switching.
  • POWER:  Manually operated.  No power required.

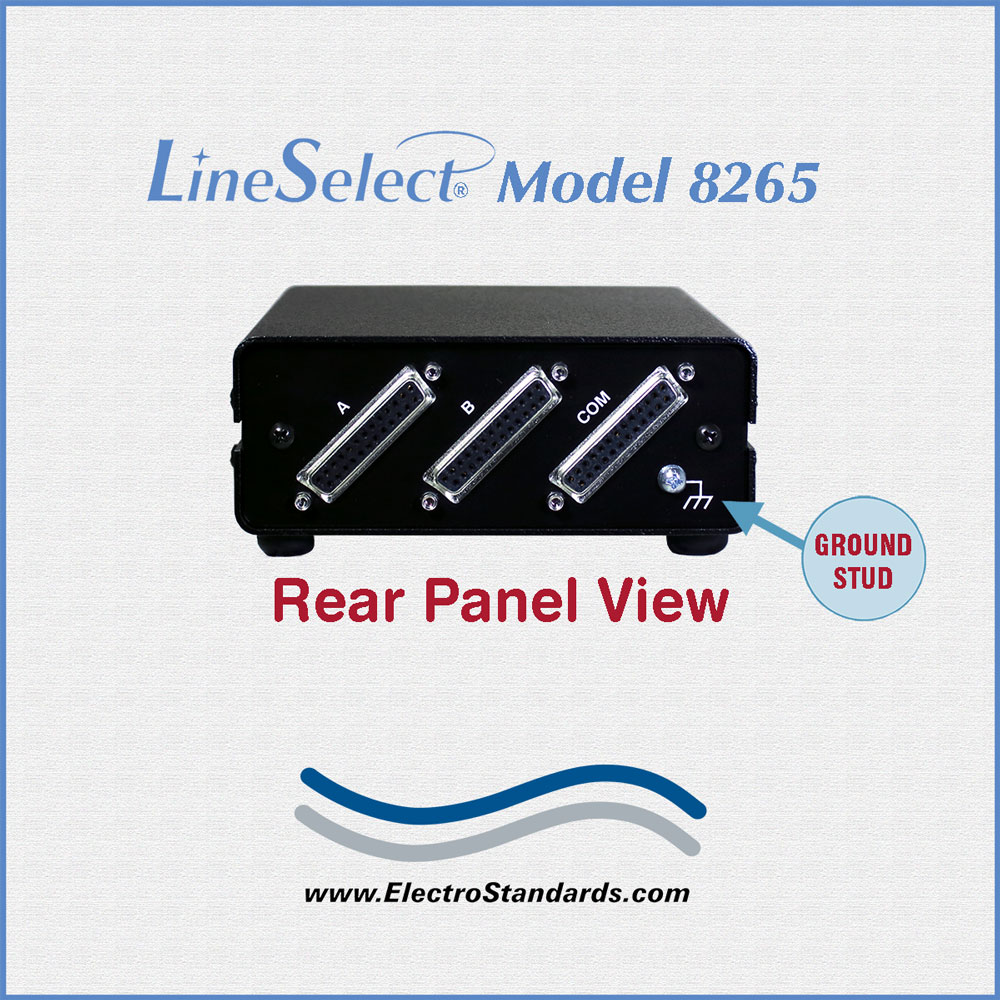

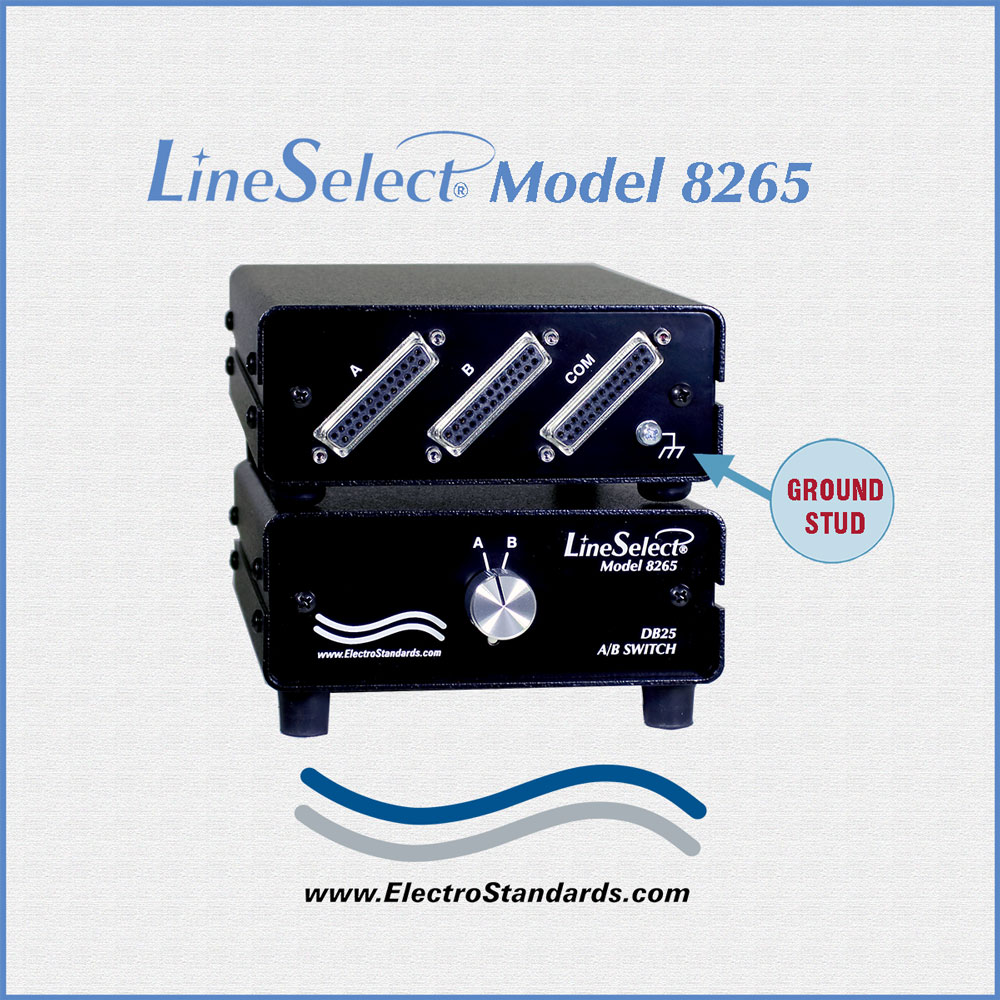

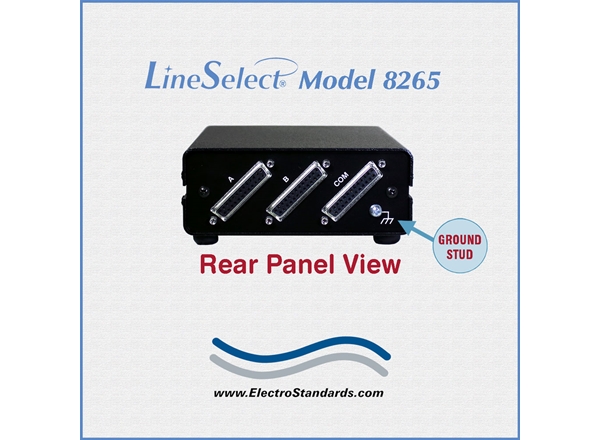

  • GROUND STUD:  On rear panel.
  • DIMENSIONS:  5.25"W x 2.62"H x 7.8"D. (13.3 x 5.1 x 18.4 cm)
  • WEIGHT: Approximately 1.2 lb. (0.6 kg.)

LineSelect® Model 8265 DB25 A/B Switch Application: (rear panel Ground Stud)

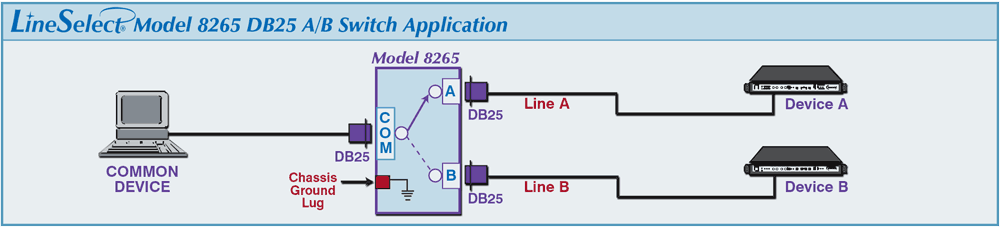

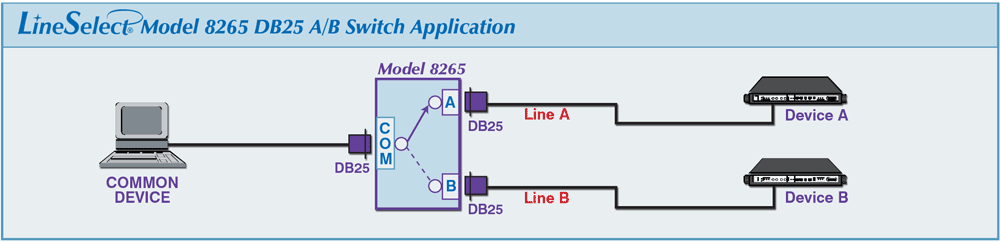

LineSelect® Model 8265 application drawing illustrates a COMMON Device connected to the DB25 COMMON port with access to Device A or Device B connected to Line A and Line B, respectively. The unit is controlled locally via a front-panel rotary switch allowing the user to select Device A or Device B to be connected to the COMMON port. A Chassis Ground Lug is located on the rear panel.

  • Switches pin 2 through 25 of the DB25 interface. All pins 1(Protective Ground) are tied together and bussed through to eliminate surges.

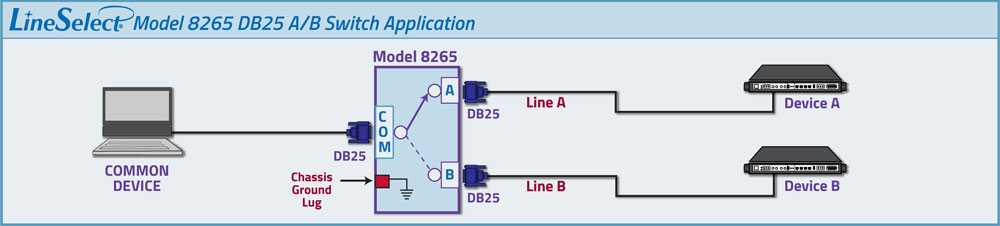

LineSelect® Model 8265 DB25 A/B Switch application
