514424 - CellView Multi-Display Software for CellMite Product Line

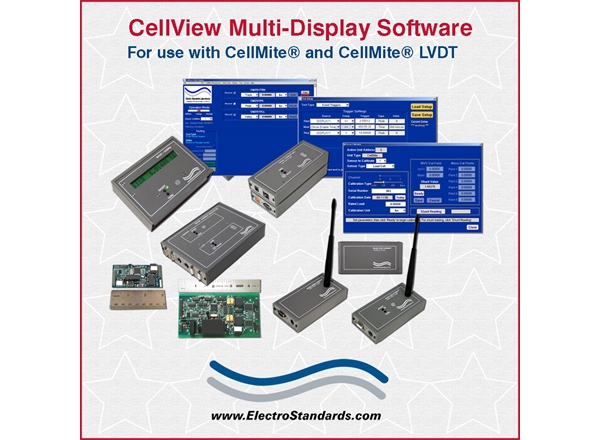

    Multi-Display Software for CellMite Product Line
Click image to enlarge
Base Price:
$632.00
Catalog No: 514424
Model No: CellView Multi-Display Software
Description:Software for CellMite Product Line
Product Type:CellMite®

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

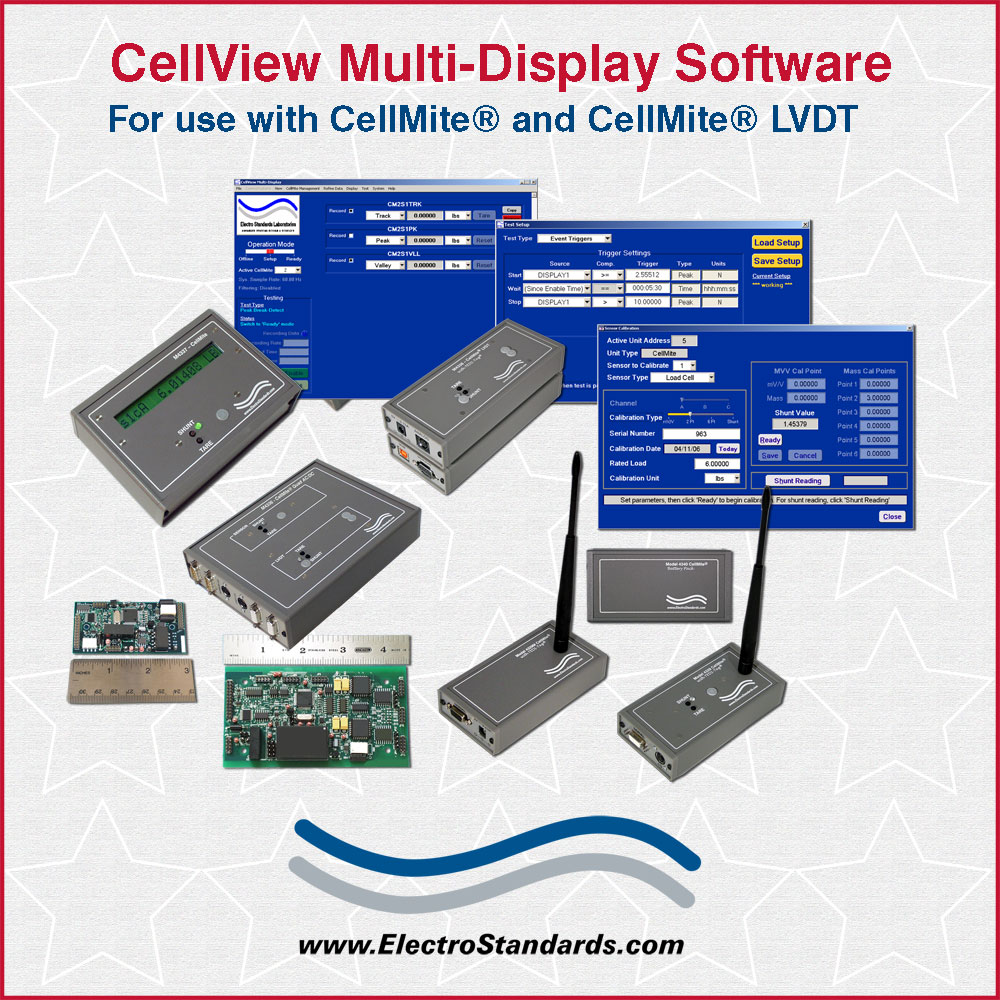

Overview

CellView Multi-Display GUI Software for CellMite® Strain Gauge and
CellMite® LVDT Intelligent Digital Signal Conditioners
Cat. No. 514424

The CellView Multi-Display Graphical User Interface (GUI) application communicates with up to eight precision CellMite® digitizing signal conditioners that are designed to amplify, filter and linearize the output of a strain gauge sensor. CellView Multi-Display presents the user with a graphical user interface to monitor incoming load data from the CellMite® unit and to visualize and refine the data.

CellView Multi-Display GUI Software Features:

  • User interface connects up to eight pre-addressed CellMite® Strain Gage or CellMite® LVDT units.
  • Units can hold calibration data for up to three separate sensors.
  • User interface guides user through sensor calibrations.
  • User interface allows creation of up to eight independent displays of data from the various connected units.
  • Each display relates to a specific sensor.
  • User can tare and reset peak and valley for the sensor from the displays.
  • User can set filter level of the sensor via the unit, and/or further filter data as it enters the GUI software.
  • User may manually start and stop tests or automate the process.
  • Tests may be run in segments where each segment has a different data frequency.
  • User can save and load CellMite®, Sensor, and Test setup info.
  • User may save data and/or test info for use with spread sheets.
  • User can refine data as it comes into the Unit by applying a 5th order polynomial.

CellView Multi-Unit / Multi-Display GUI - The Intuitive Software!

Calibrate all three sensors on the Active Unit Address independently by utilizing the Sensor to Calibrate selector.  The 4 calibration options are: mV/V, 2-Pt, 6-Pt and Shunt.

 Sensor Calibration GUI screen shot

Manually Controlled Tests - Click Start and Stop buttons.  Event Trigger Tests include Start Condition, Wait Condition, and Stop Condition.

 The Operation Mode has 3 options: Offline, Setup, and Ready.  Use Offline when changing CellMite®, or Test setup functions are done in Setup mode.  Ready Mode begins data aquisition.

Use the CellMite® Setup panel to Edit, Save, Load, and Activate parameters within the CellMite® unit.  Parameters include CellMite® name, the Analog Output Control for the unit, and the Temperature Compensation settings.



 System Requirements
   Minimum  Recommended
Processors   Pentium IV 400Mhz  Pentium IV 400 Mhz
Memory  256 M bytes  512 M bytes
Disk Space  50 MB  50 MB
Video   Local Bus  Accelerated Bus
Screen Resolution  1024 x 768  1024 768 Large Fonts
Windows Version  Windows 2000  Windows XP
Drive   CD-ROM  CD-ROM
Printer   Windows Compatible   Epson Stylus

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
*Prices online are subject to change and verification.
All ESL products are available for export.
