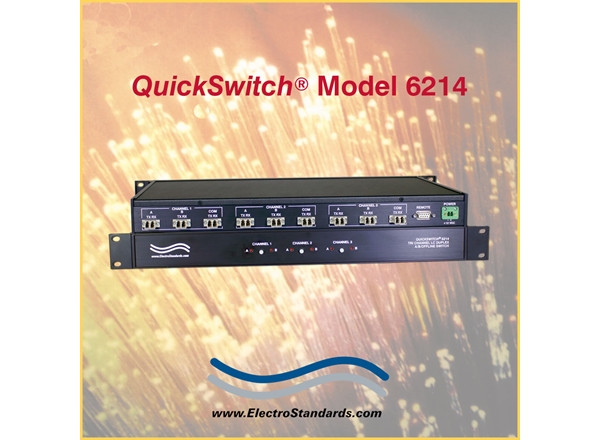

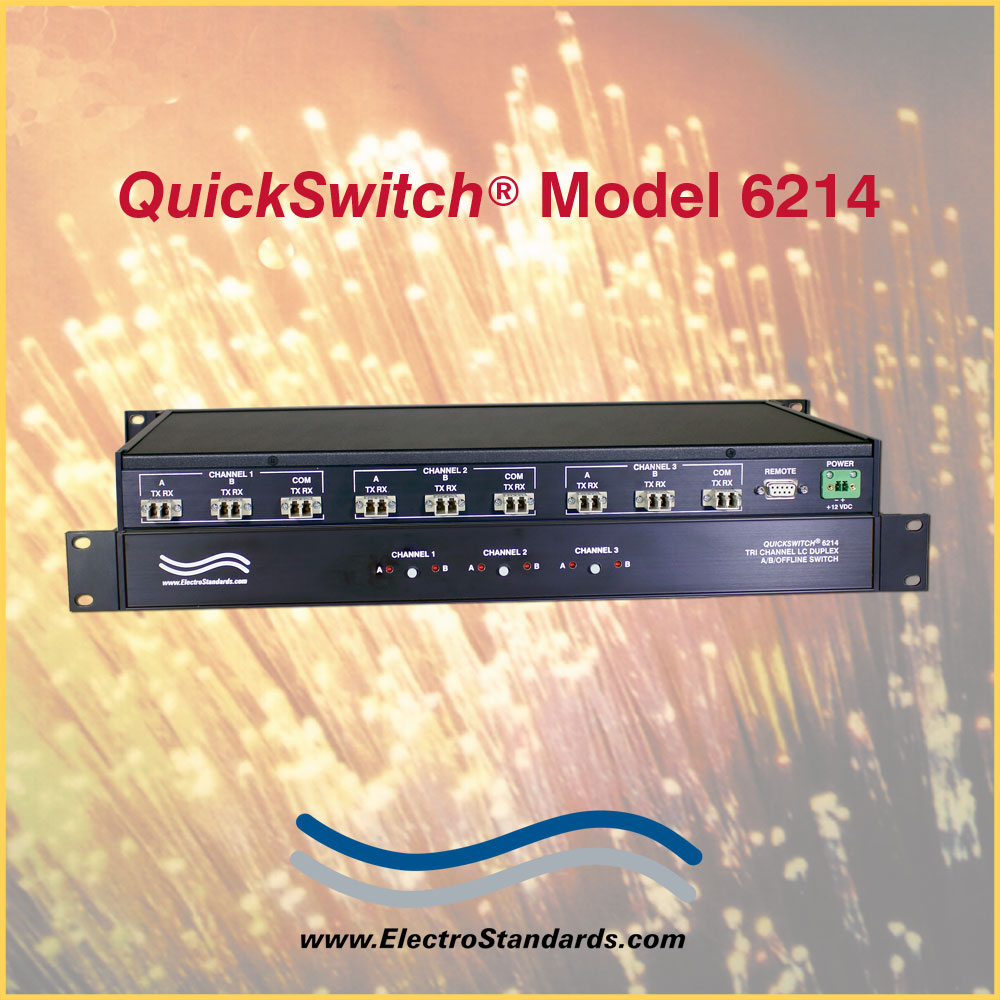

Catalog # 306214 - Model 6214 3-Channel LC A/B/Off-Line Fiber Switch

    3-Channel LC A/B/Off-Line Fiber Switch3-Channel LC A/B/Off-Line Fiber Switch3-Channel LC A/B/Off-Line Fiber Switch
Click image to enlarge
    • 3-Channel LC A/B/Off-Line Fiber Switch
    • 3-Channel LC A/B/Off-Line Fiber Switch
    • 3-Channel LC A/B/Off-Line Fiber Switch
Base Price:
Call for Price
Catalog No: 306214
Model No: 6214
Product Type:Switches: Fiber Optic
Positions:3, Offline
Cable Type/Port Connector:LC
Channels per Switch Chassis:3
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Channel Control:Independent Channel Control
Remote Control:Contact Closure
Security:Offline Position
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:50/125
Fiber Type:Duplex
Remote Port:DB9
Mirror Technology:OO

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® Fiber Optic Network Switch, SC Duplex
QuickSwitch® 6214 Tri-Channel LC Duplex Fiber Optic A/B/OFFLINE Switch with Contact Closure Remote

SPECIFICATIONS:

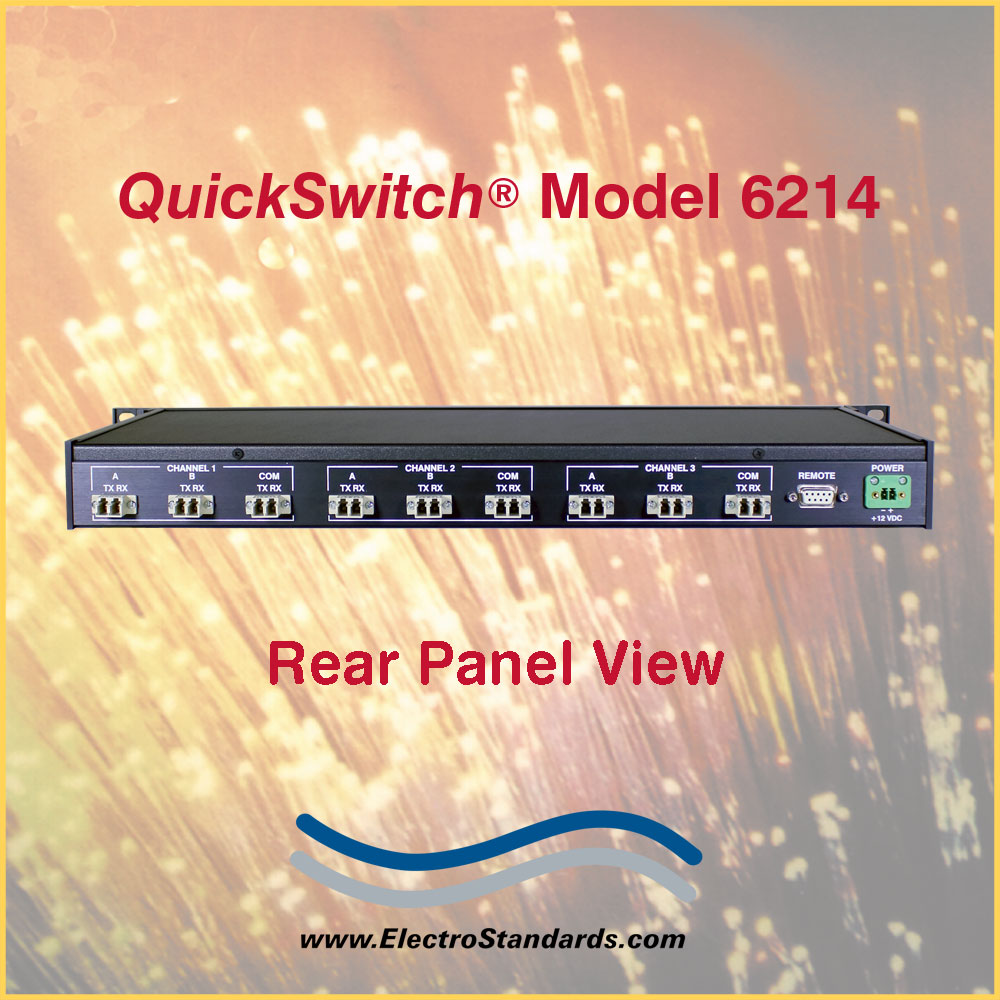

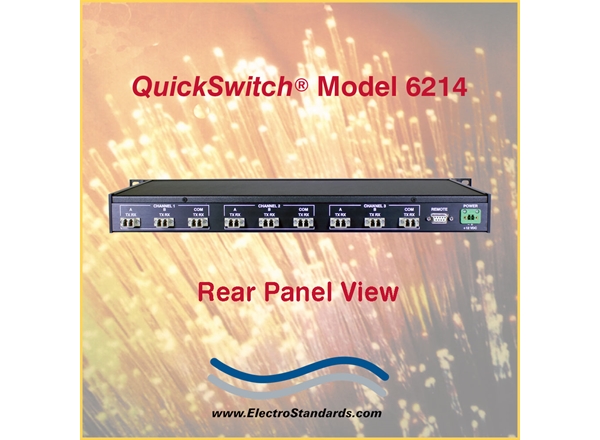

  • PORT CONNECTORS: (9) LC Duplex Fiber Optic connectors on rear panel (A group of (3) labeled A, B, and COMMON for each of the 3 channels.)
  • FIBER: 50/125 micron, 850 nm.

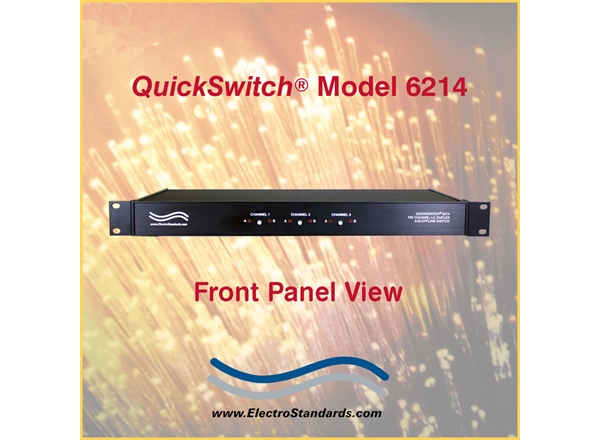

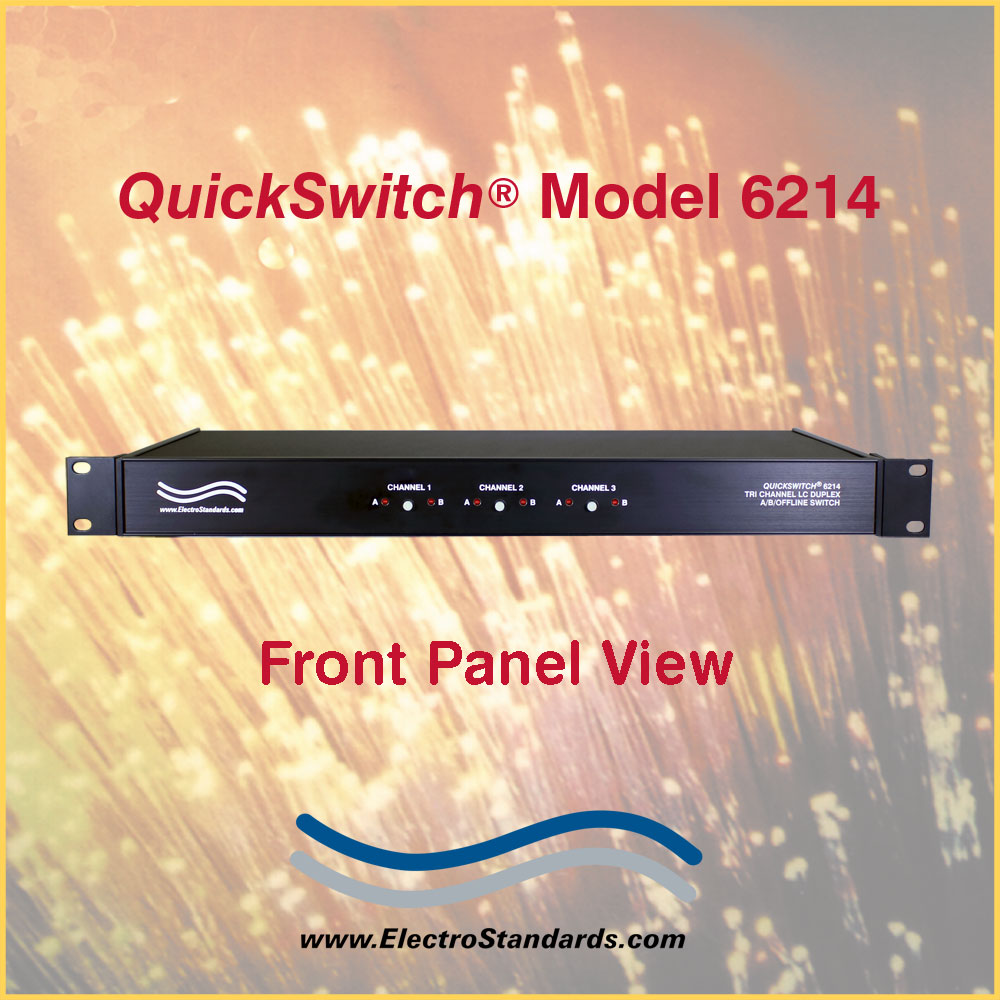

  • FRONT PANEL CONTROLS: (3) Manual pushbuttons allow local switching.
  • DISPLAY: (6) Front panel LED's display switch position and power status.
  • REMOTE: (1) DB9 female connector on rear panel accepts contact closure switch commands for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration 19" W x 1.75" H x 10.67" D. (48.3 x 4.5 x 27.2 cm)
  • WEIGHT: Approximately 5.6 lbs. (2.6 kg)

QuickSwitch® Model 6214 Tri-Channel LC Duplex A/B/OFFLINE Switch with Contact Closure Remote

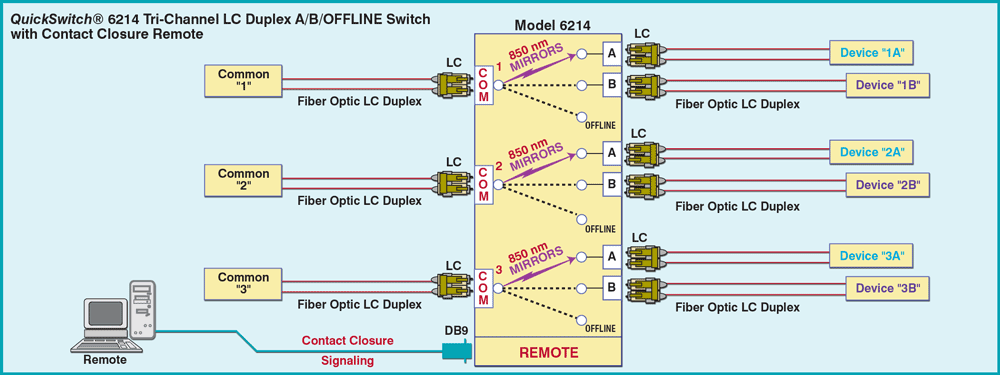

The application drawing illustrates three independent channels or A/B/OFFLINE Switching. Each channel has an LC Duplex COMMON port with access to Device 1, Device 2 or an OFFLINE position. The DB9 Remote port allows the user to control the unit via Contact Closure Commands.

QuickSwitch® 6214 Tri-Channel LC Duplex A/B/OFFLINE Switch with Contact Closure Remote

FEATURES:

  • Each of three channels allows quick connection to any one of two LC Duplex devices from one COMMON port.
  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology and supports Gigabit data rates.
  • When power is lost, all channels revert to the Offline position.
  • When power is restored, all channels remain in the Offline position until commanded otherwise.
  • “OFFLINE” switch position stops any an all data throughput for the unit.
  • Local control via front panel pushbuttons.
  • Individual control of each channel.
  • The Remote port accepts dry contact closure commands for switch position.
  • Front panel LED’s display present position and power status.
  • All fiber ports are LC Duplex, Multi-mode, 50/125 micron, and support a wavelength of 850nm.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
  • Custom length rigorously tested and certified, LC duplex fiber optic cables available for your switch installation.

The QuickSwitch® 6214 Tri-Channel LC Duplex A/B/Offline Switch with Contact Control Remote allows a device connected to the “COM” port access to the “A” or “B” port for each of its three channels.  Alternately, the unit can be switched to its OFFLINE position and totally isolate connection to the “A” and “B” ports. The QuickSwitch® 6214 fits in a standard 19” rack, taking 1U of rack space.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.  Switch position state may be attained via the front panel LED’s.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

TO READ THE ARTICLE EITHER CLICK THE LINK OR APPLICATION ICON AT TOP OF PAGE: "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf. You need Acrobat Reader to view the file.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.

Electro Standards can supply all your Fiber Optic Cable requirements.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.
