Catalog # 306240 - Model 6240 POF A/B Fiber Switch with Serial RS232 Remote

Click image to enlarge

Base Price:

$1,120.00

Catalog No:

306240

Model No:

6240

Fiber Transmission Distance:

75 m (250 ft.) (POF)

Product Type:

Switches: Fiber Optic

Positions:

Cable Type/Port Connector:

POF, Plastic Optical Fiber (HP Versatile Link)

Channels per Switch Chassis:

Electronic Switches/Power Required:

QuickSwitch® Fiber Optic

Remote Control:

RS232 Serial

Configuration:

Desktop

Fiber Mode:

Multimode

Fiber Type:

Duplex

Remote Port:

DB9

Local Control:

Pushbutton

Speed:

Up to 1 Mbps

Wavelength Nano:

660 nm (red)

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

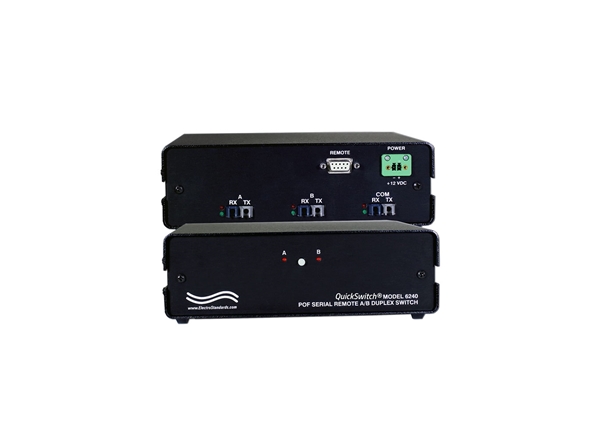

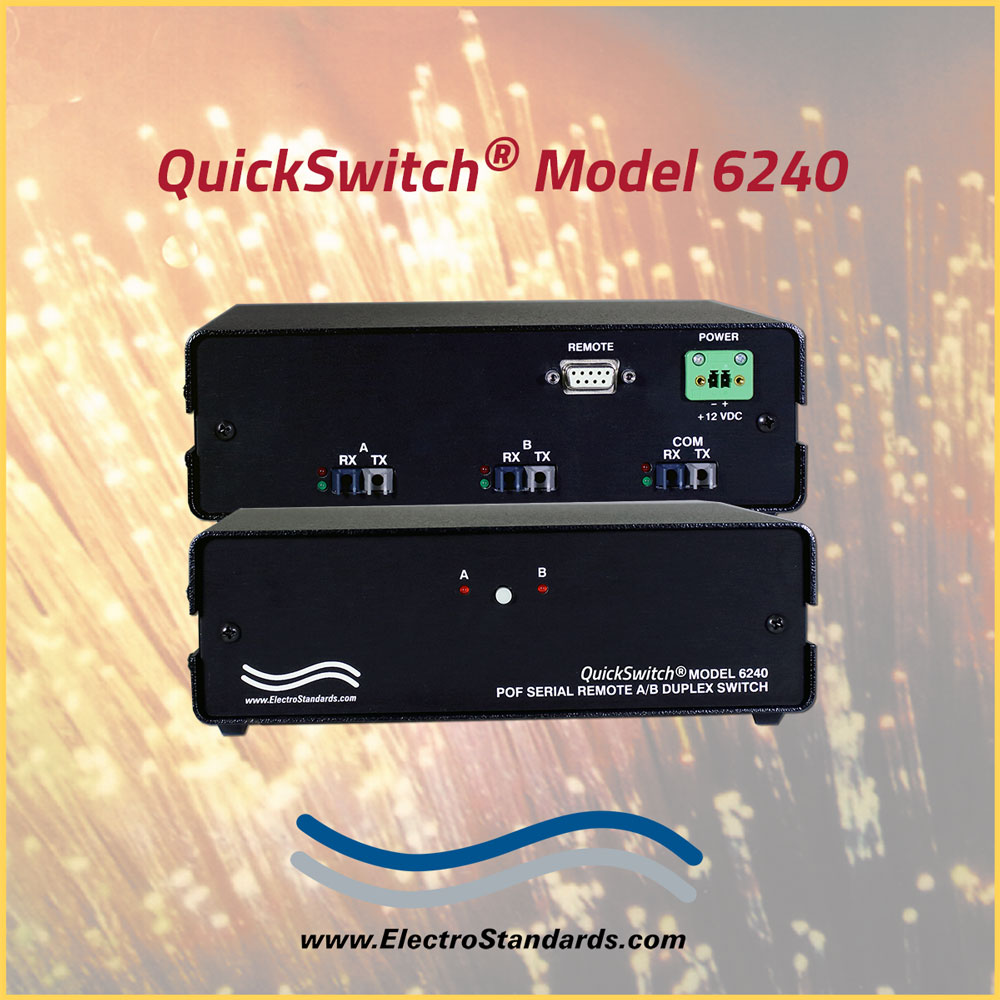

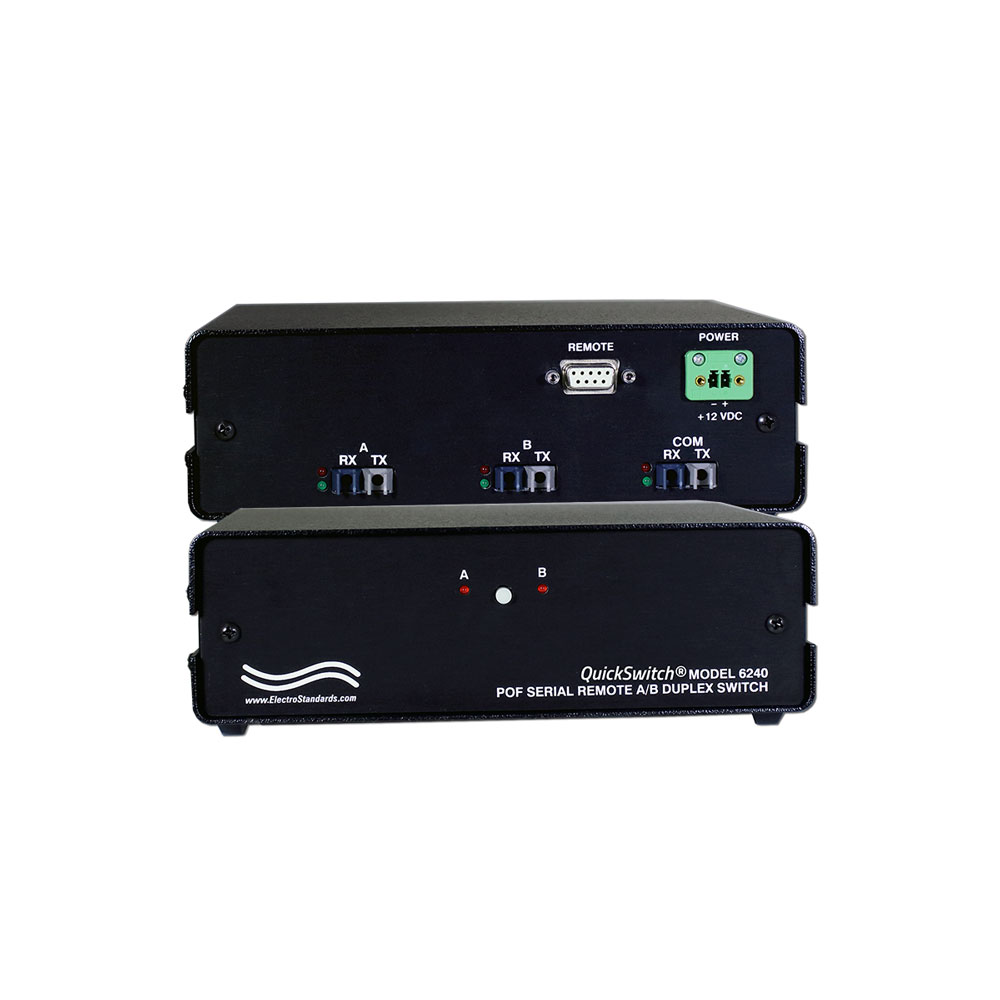

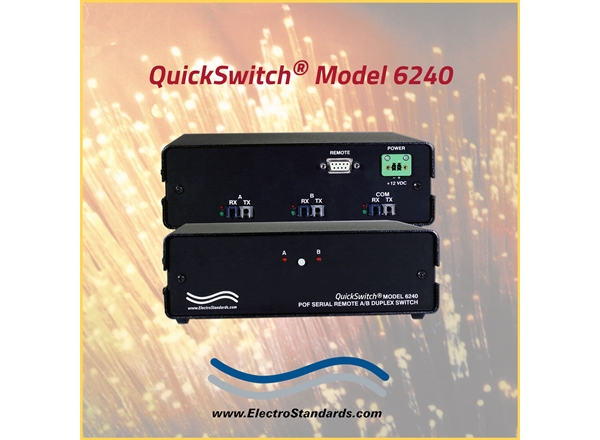

QuickSwitch® 6240 POF A/B Switch with Serial Remote Control

Switch ANY POF interface device to share or backup.

SPECIFICATIONS:

PORT CONNECTORS: (3) POF Interface Duplex RX/TX labeled A, B and COMMON.

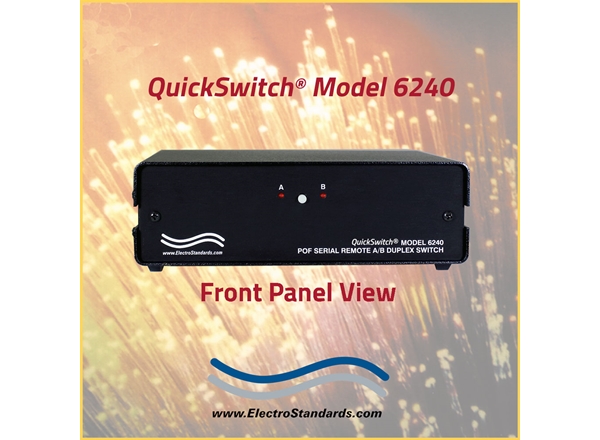

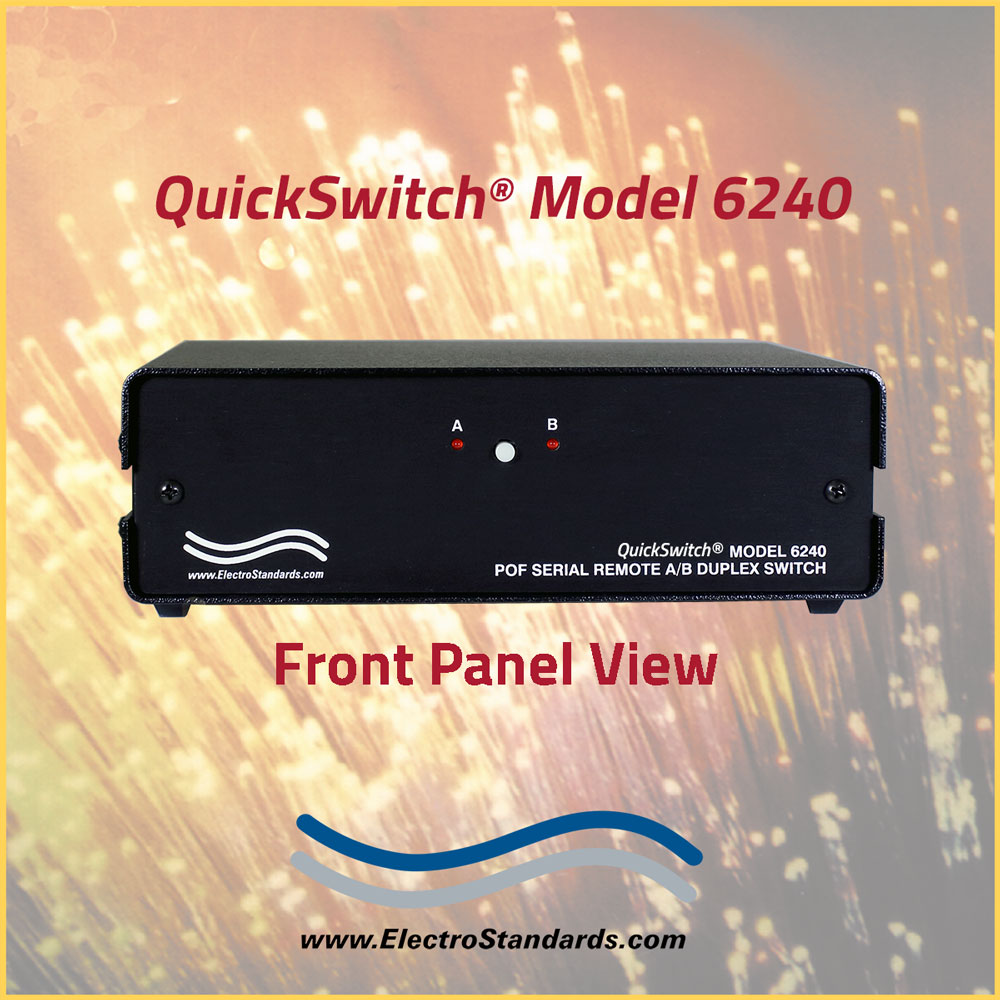

FRONT PANEL CONTROL: (1) Manual pushbutton
allows local switching.
DISPLAY: (2) Front panel LED’s display switch position and power status.

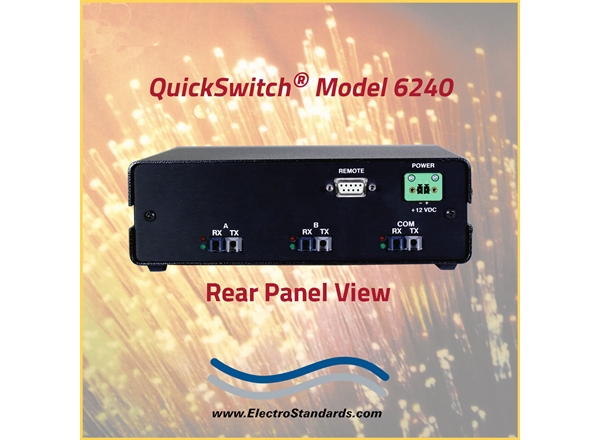

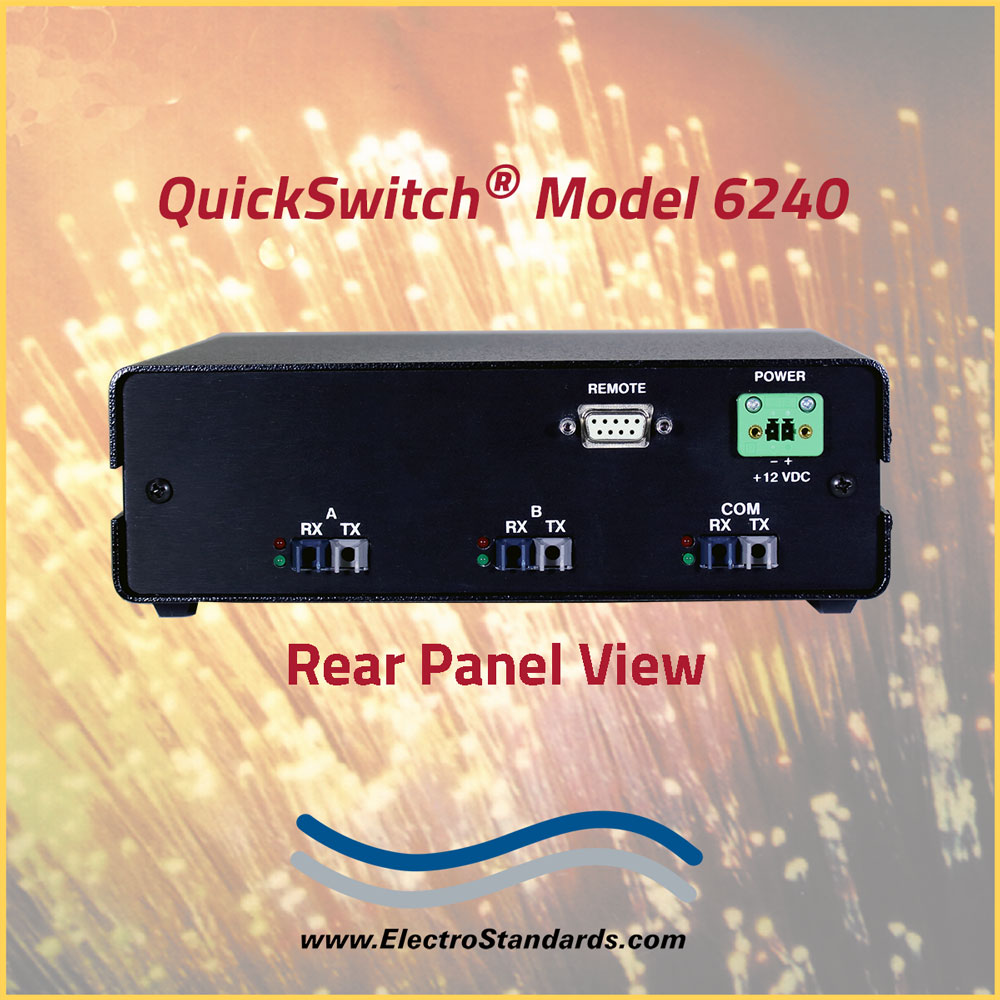

REMOTE CONTROL: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data Remote Control operation.
POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: Desktop 8.15” W x 2.45” H x 7.27” D.(20.8 x 6.3 x 18.5 cm).
WEIGHT: Approximately 1.9 lbs. (0.9 kg)

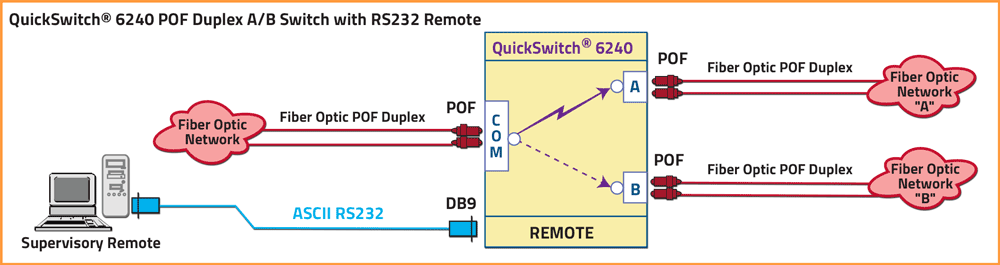

QuickSwitch® 6240 POF Duplex A/B Switch Application with RS232 Remote Control

The QuickSwitch® 6240 is a Single Channel POF Duplex A/B Switch. The COMMON Port has access to Fiber Optic Network A when in the A position.
The Fiber Optic Network B is connected when the Model 6240 is in the B Position..
The DB9 Remote port accepts ASCII RS232 Serial Commands to allow the user to remotely control switch position.

FEATURES:

Allows access to two POF Duplex RX/TX devices from one COMMON POF Duplex RX/TX device.
The switch ports are transparent to all data.
If power to the Model 6240 is lost, the switch will maintain its present position but will not continue to pass data.
Upon power restore, the unit will remain in the position it was in at power down.
Front panel pushbutton control.
Remote RS-232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, as well as, query firmware version number, query serial number and enable/disable autosend of switchpositions.
Speed up to 1 Mbps
POF Interface Duplex RX/TX A, B and COM ports.
Fiber Wavelength: 660 nm (red)
Transmission Distance: 75 m (250 ft.) (POF)
Front panel LED’s display present position and power status.

The Quickswitch® Model 6240 POF A/B Duplex Switch with RS-232 Remote allows the user the capability of sharing a single port interface device, connected to the “COMMON” port, among two other devices, connected to the “A” and “B” ports, with remote access functionality. The Model 6240 is packaged in a slim desktop style enclosure.
The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9 Female Serial Interface Remote port located on the rear of the unit. The front panel LED display indicates the switch position and the unit power status.

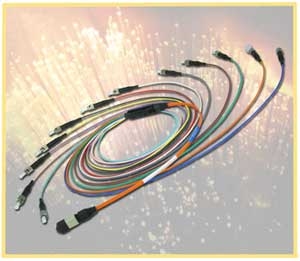

Electro Standards can supply all your Network Cable requirements. Click here to reach our FIBER OPTIC CABLES Webpage, or our COPPER NETWORK CABLES Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
