Catalog # 307304 - Model 7304 2-Channel RJ45/RJ48 T1Interface A/B Switch

    Model 7304 2-Channel RJ45/RJ48 T1 Interface A/B SwitchModel 7304 2-Channel RJ45/RJ48 T1 Interface A/B SwitchModel 7304 2-Channel RJ45/RJ48 T1 Interface A/B SwitchModel 7304 2-Channel RJ45/RJ48 T1 Interface A/B SwitchModel 7304 2-Channel RJ45/RJ48 T1 Interface A/B Switch
Click image to enlarge

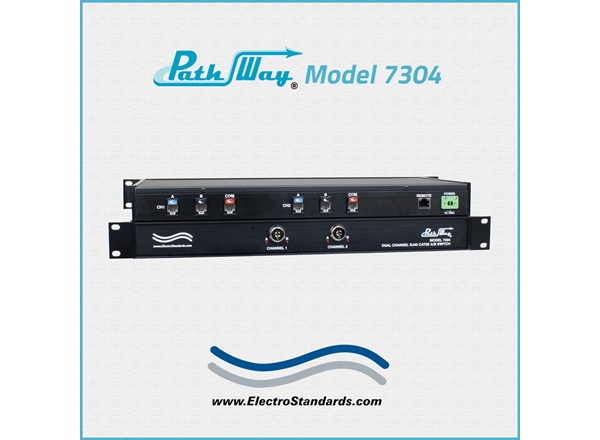

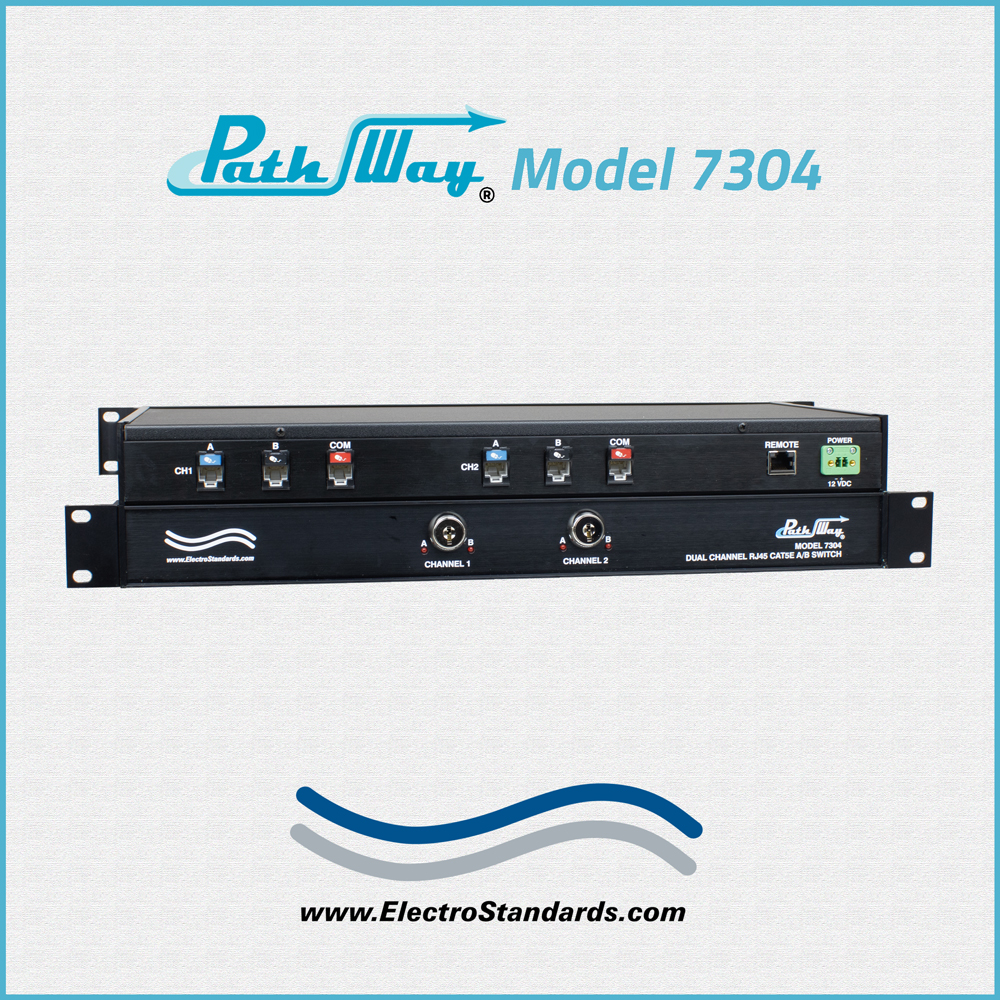

    • Model 7304 2-Channel RJ45/RJ48 T1 Interface A/B Switch
    • Model 7304 2-Channel RJ45/RJ48 T1 Interface A/B Switch
    • Model 7304 2-Channel RJ45/RJ48 T1 Interface A/B Switch
    • Model 7304 2-Channel RJ45/RJ48 T1 Interface A/B Switch
    • Model 7304 2-Channel RJ45/RJ48 T1 Interface A/B Switch
Base Price:
$2,690.00
Catalog No: 307304
Model No: 7304
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45, RJ48
Channel Control:Simultaneous Channel Control
Remote Control:Ethernet
Configuration:Rackmount
Remote Port:RJ45, DB9
Local Control:Pushbutton

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch, RJ45/48 T1
Model 7304 Dual Channel RJ45/48 Cat5e T1 Interface A/B Switch with Telnet and GUI

  • Certified for Cat5e Compliance!

SPECIFICATIONS:

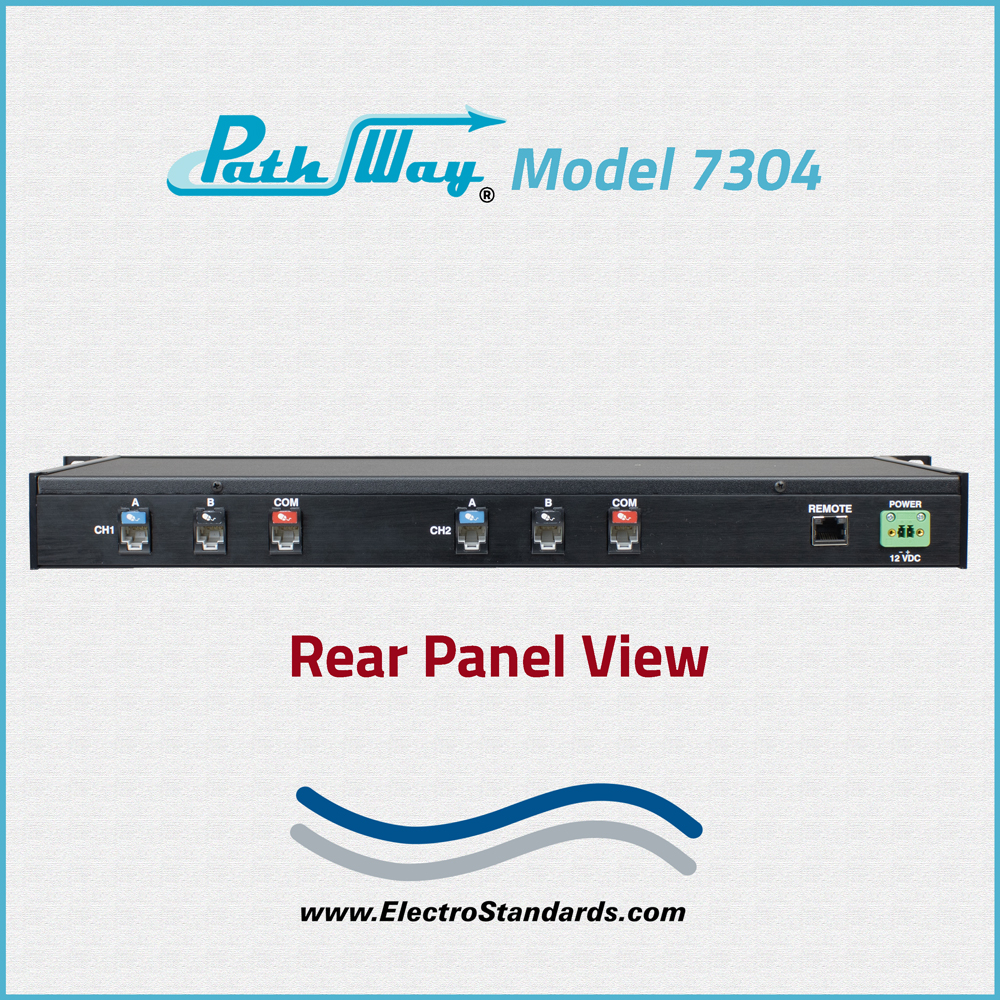

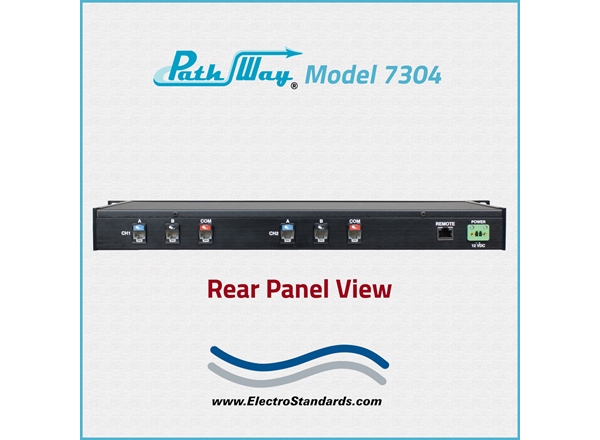

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON for each of two channels.

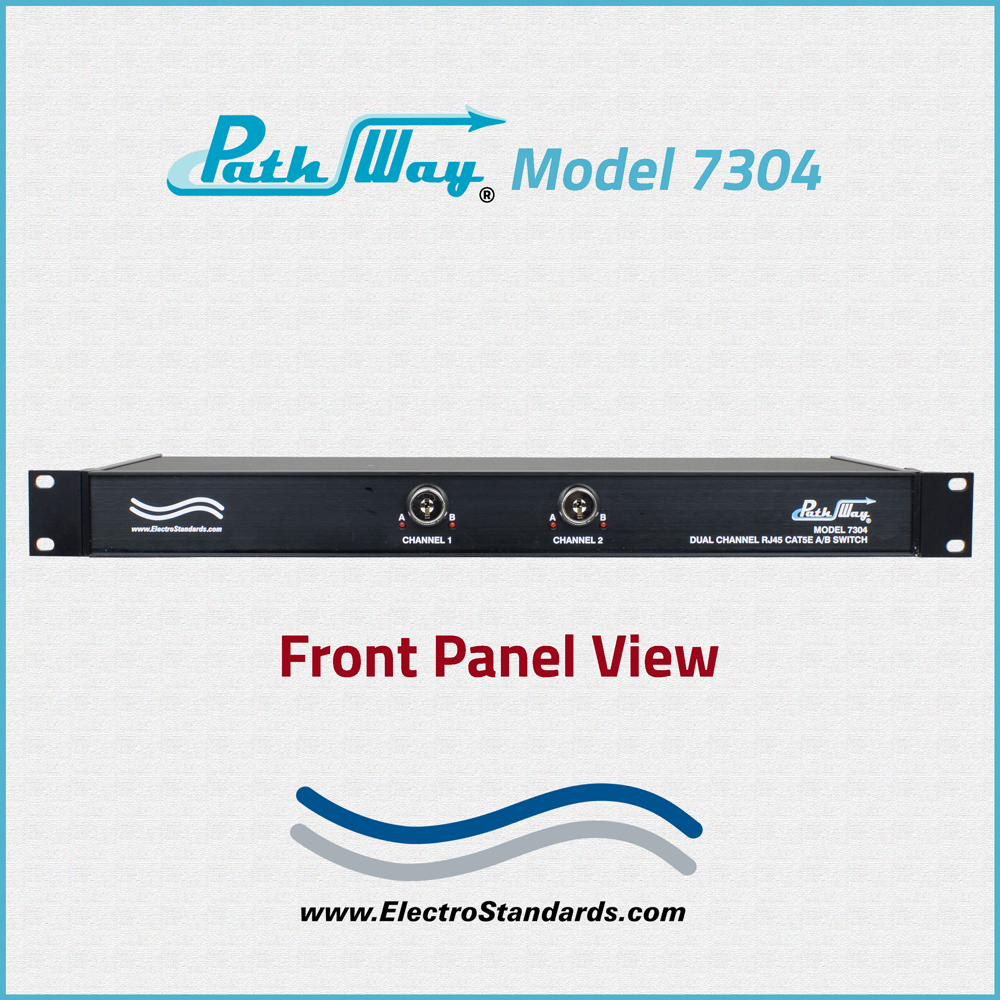

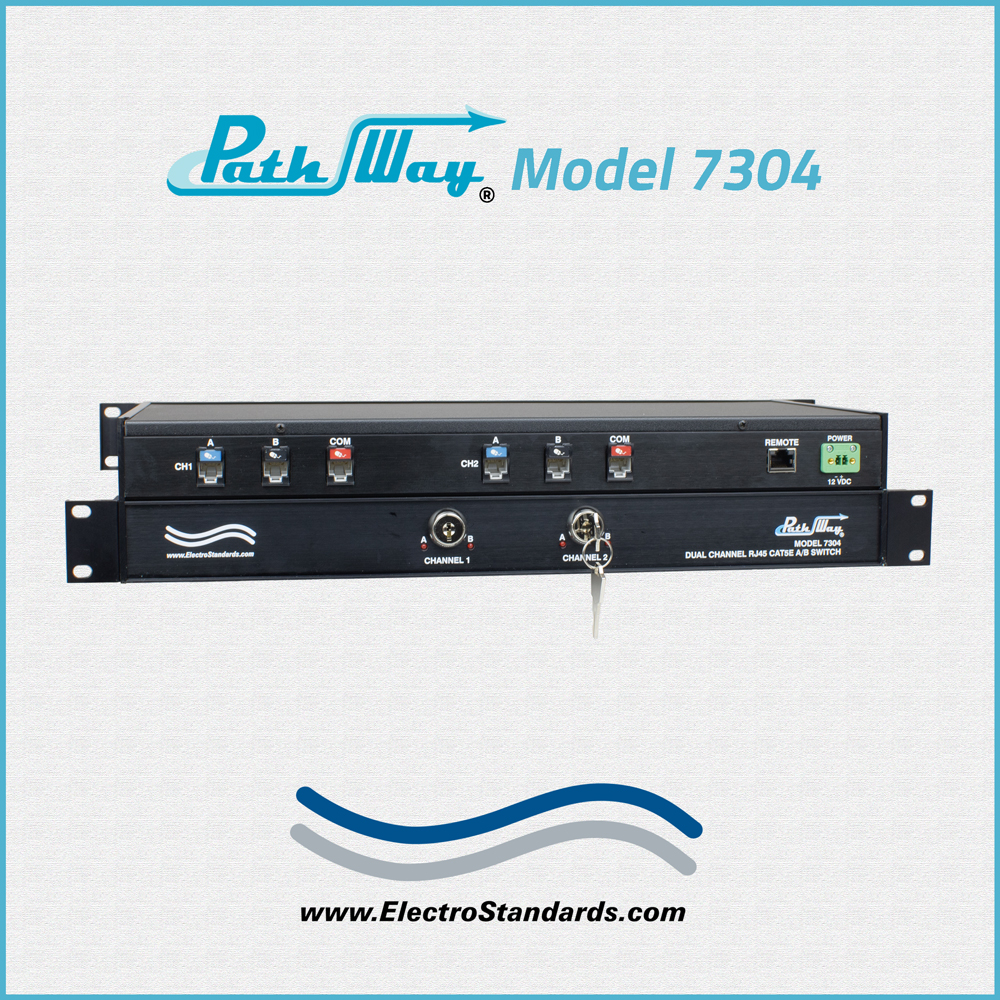

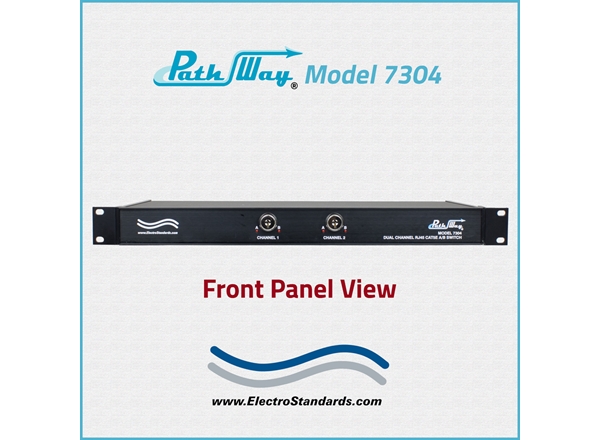

  • FRONT PANEL CONTROL: (2) Manual keylocks allow independent switching for each channel
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) RJ45 (F) connector on rear panel accepts 10/100 Base-T LAN Ethernet uses both TELNET commands and a GUI Interface for Remote Control operation.
  • POWER: UL Approved 100VAC/240VAC, 500 Ma to the unit, has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration,
  • 19.0" W x 1.75" H x 8.32" D. (48.3 x 4.4 x 21.2 cm)
  • WEIGHT: Approximately, 4.5 lbs. (2.0 kg)

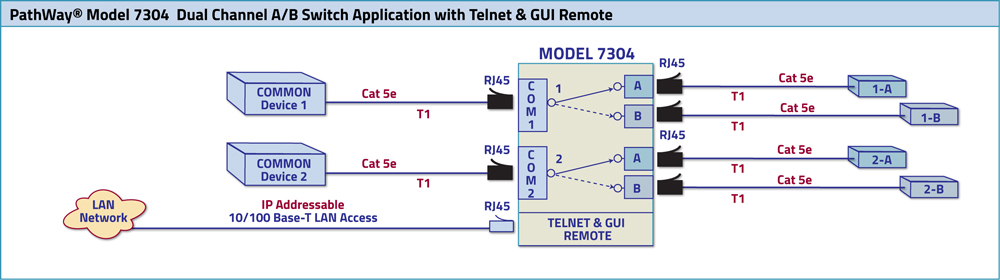

PathWay® Model 7304 Dual Channel T1 Simultaneous Switching Application

The drawing illustrates two channels of simultaneous switching. Each channel shows a COMMON device connected to an RJ45 COMMON port accessing among two other RJ45/48 T1 interface devices connected to ports A and B.  The switch has two remote ports, an RJ45 10/100 Base-T Lan Ethernet access or the use of a DB9 port that accepts contact closure signaling. The switch can be controlled using the Graphical User Interface.

PathWay Model 7365 Dual Channel A/B Switch Application w/Telnet & GUI, & Contact Closure

FEATURES:

  • Each channel allows access to two RJ45/48 T1 networks from one COMMON networks or device.
  • Front panel control via two keylocks provides independents switching of each channel.
  • Remote control via Telnet command interface and Graphical User Interface.
  • Control of the switch position form 10/100 Base-T LAN Ethernet environment.
  • Certified for Cat5e Compliance.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45/48 interface are switched via break-before-make electromechanical relays.
  • Switch maintains position on power loss and continues to pass data.
  • Front panel LED's display present position and power status.

The PathWay® Model 7304 allows the user the capability of sharing a single device connected to the "COMMON" port among two other devices connected to the "A" and "B" ports, for each channel, with remote access functionality. Local control is accomplished via two front panel manually operated keylock switches providing independent switching of each channel. Remote control access is accomplished using an Ethernet 10/100 Base-T connection and either Telnet commands or graphical user interface (GUI).

OPTION: WIDE RANGE POWER MODULE, Cat No. 517277

CE, RoHS, and UL listed table mount power module, 100 VAC/240 VAC, 50Hz-60Hz can be ordered for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.  Click Accessories tab to view.

RJ45 vs RJ48:  RJ45 and RJ48 use the same eight-pin modular connector, differing only in the way they are wired (the pin selection/pairing).  The Model 7304 switches all eight pins of the RJ45 connector, thereby accommodating any wiring scheme.

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE (GUI) SOFTWARE

CHANGING POSITION AND LOCK STATUS

To change the switch position, click on the radio button "A",or "B" as desired.  Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" or "Unlocked" radio buttons. See Figure 1.

QUERYING THE STATUS OF THE UNIT

Once connected, the GUI will stay “up-to-date” on the current position and status of the unit. Any changes that are made outside of the GUI, such as by pushbutton, will be reflected in the GUI. These changes will cause the radio buttons of the GUI to automatically change to show the new status. The GUI will report the source of the most recent change in the bottom left of the panel. See Figure1.

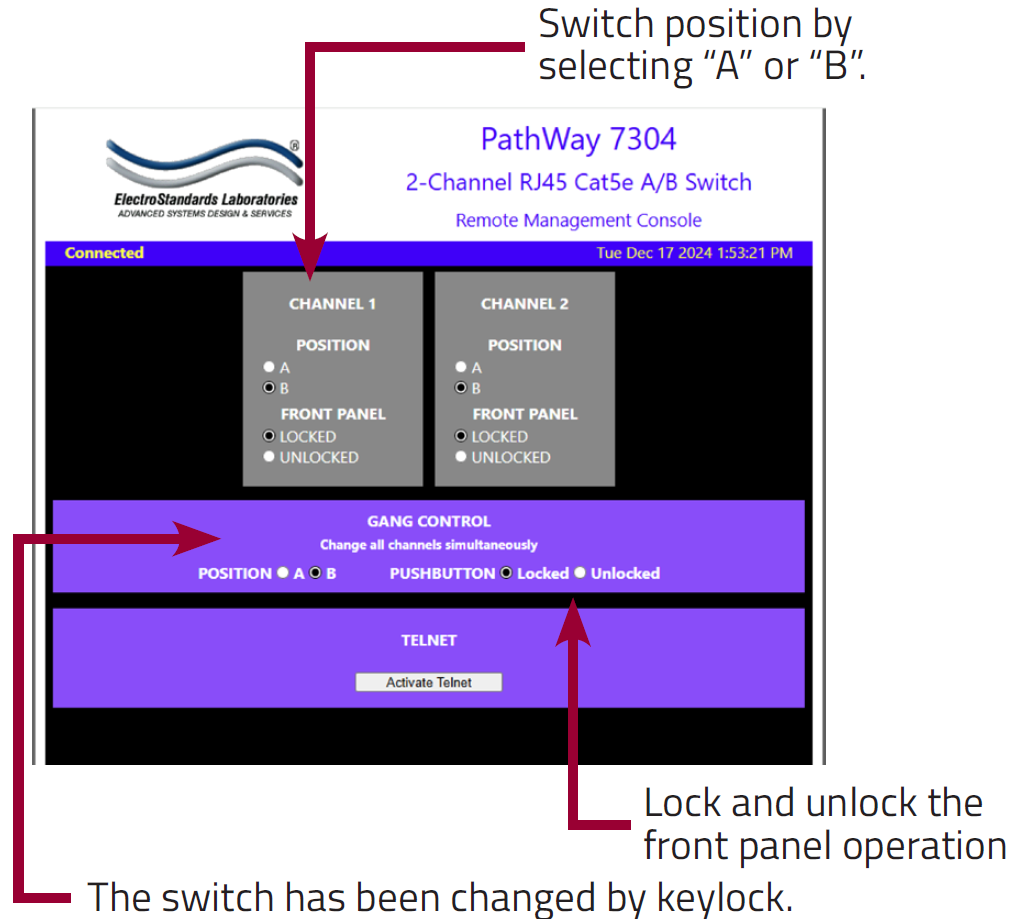

Figure 1: Change the position and lockout from the GUI. The GUI is alerted to changes in the unit status.

GUI SOFTWARE FEATURES

  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7304 Dual Channel RJ45/48 T1 A/B Switch System.
  • Users can change the login password and/or switch's IP address.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

This is the switch you need. It has been field-proven! Reliable! It comes complete with Tech Support.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
