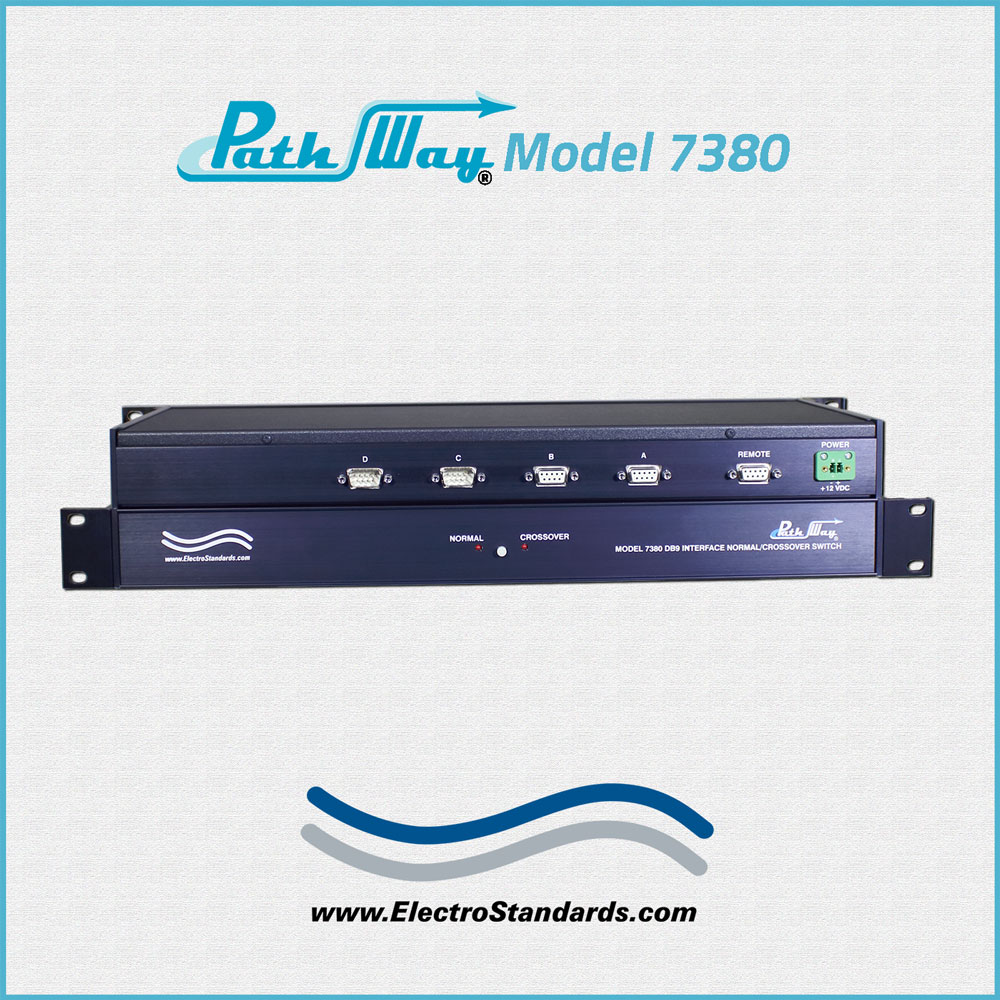

Catalog # 307380 - Model 7380 DB9 Normal / Crossover Switch, RS232 Remote Control

Click image to enlarge

Base Price:

$1,936.00

Catalog No:

307380

Model No:

7380

Power:

Wall mount power module 12VDC, 500mA

Product Type:

Switches: Copper

Positions:

Normal/Crossover

Cable Type/Port Connector:

DB9 Switch Ports

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Remote Control:

RS232 Serial

Configuration:

Rackmount

Pins Switched:

Custom Wired

Remote Port:

DB9

Local Control:

Pushbutton

Qty

Add to Cart

DB9 Interface Normal/Crossover Switch
"Straight Connection" to "Exchange Connection"

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Model 7380 DB9 Normal / Crossover Switch with RS232 Serial Remote Port

Designed for switching between data sources to either of two destinations.
Just push the button and go from "STRAIGHT CONNECTION" to "EXCHANGE CONNECTION".

SPECIFICATIONS:

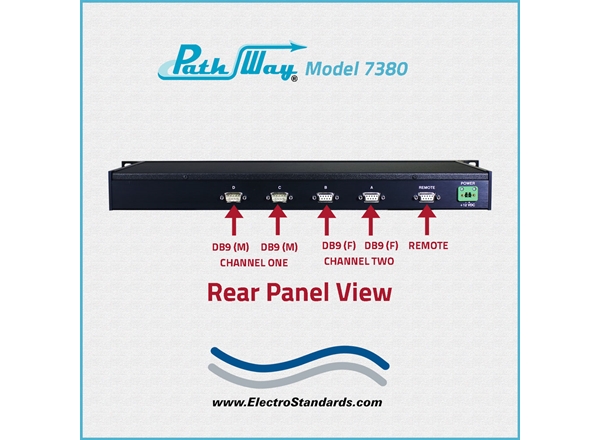

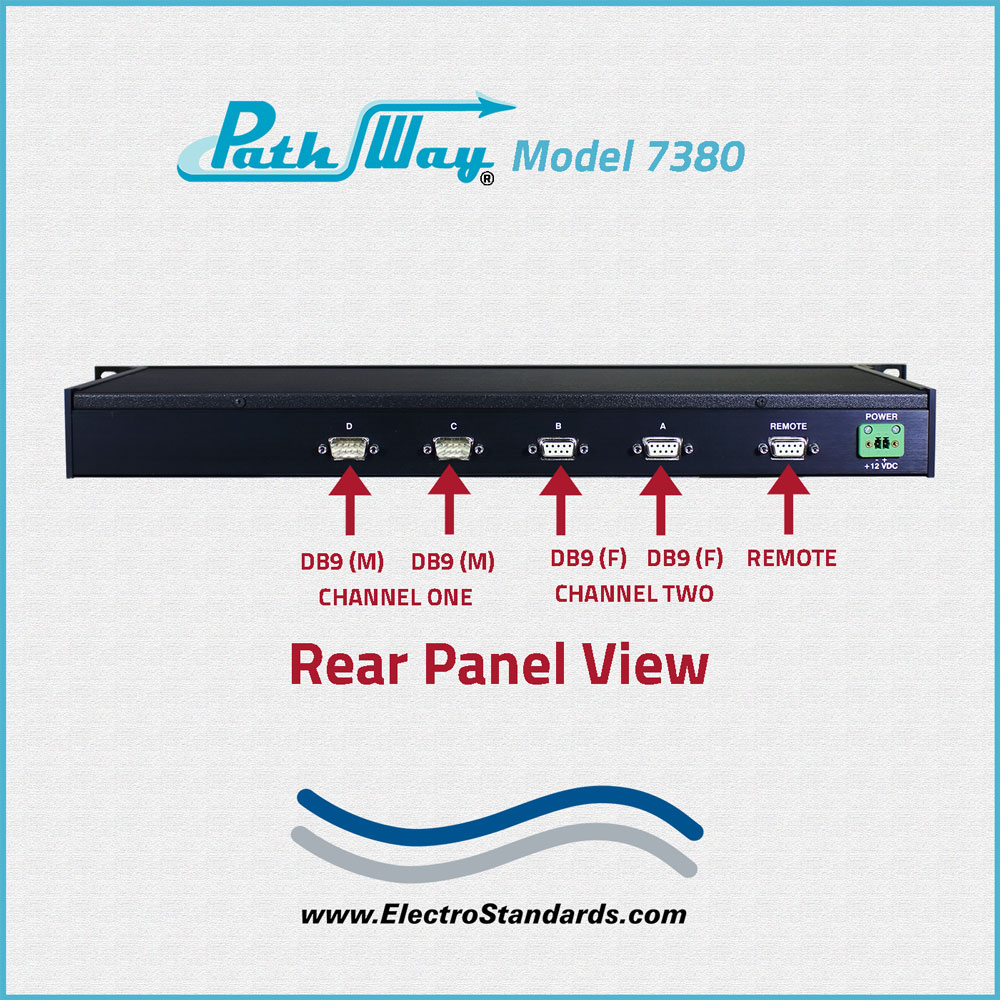

PORT CONNECTORS: (4) DB9 port connectors labeled A, B, C, and D on rear panel.

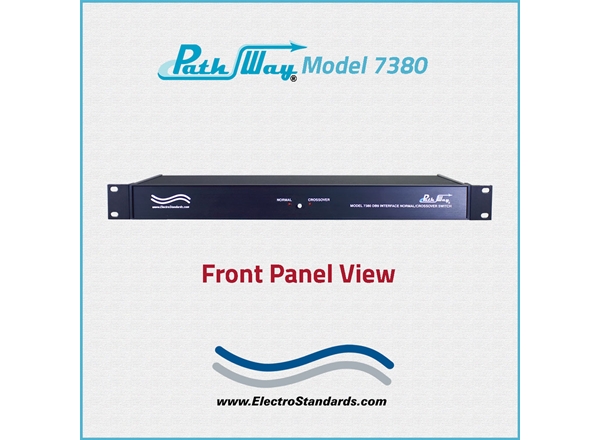

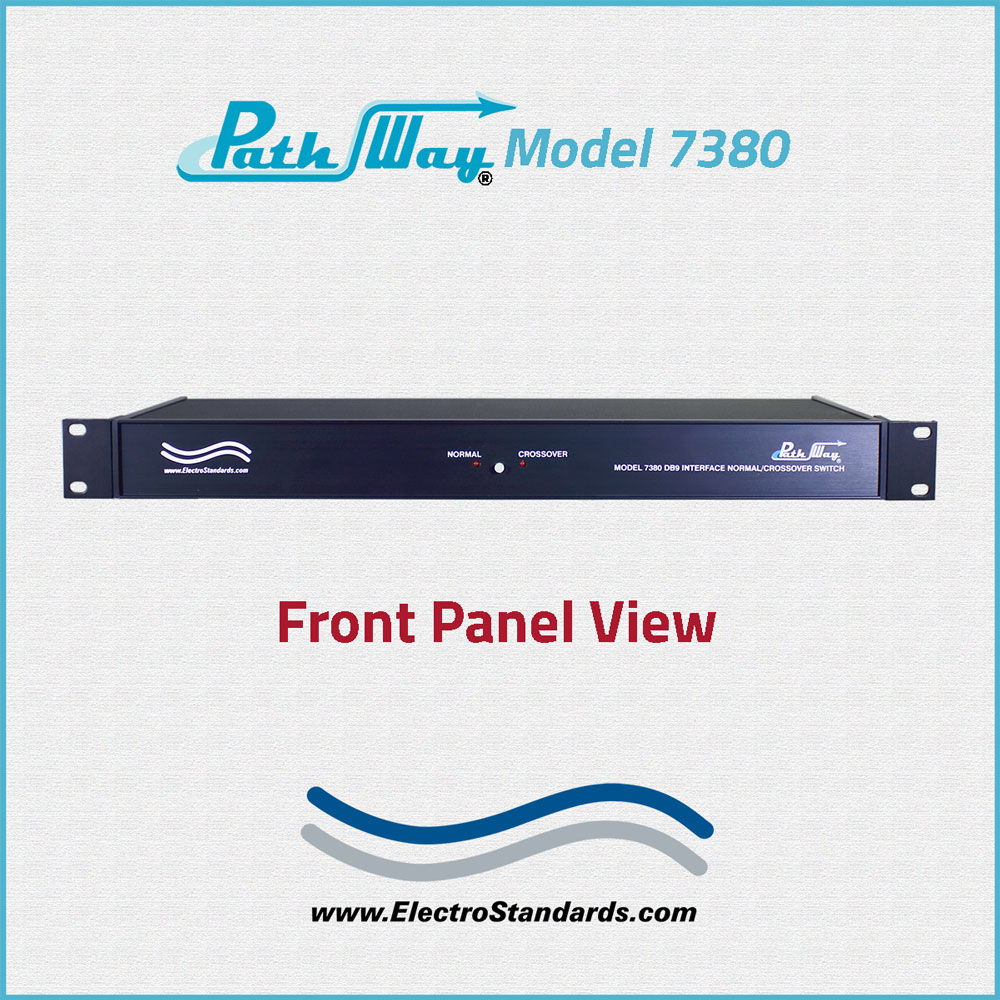

CONTROL: (1) Front-panel pushbutton allows local selection of switch position, "NORMAL" or "CROSSOVER".
DISPLAY: (2) LED's on front panel indicate switch position and power status.
REMOTE CONTROL: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control Operation.
POWER: UL Approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12VDC to 500mA to the unit. Has 2-prong, US non-polarized plug.
DIMENSIONS: 19.0" W x 1.75" H x 8.13" D. (48.3 X 4.5 X 20.7 cm)
WEIGHT: Approximately 4.6 lbs. (2.1 kg)

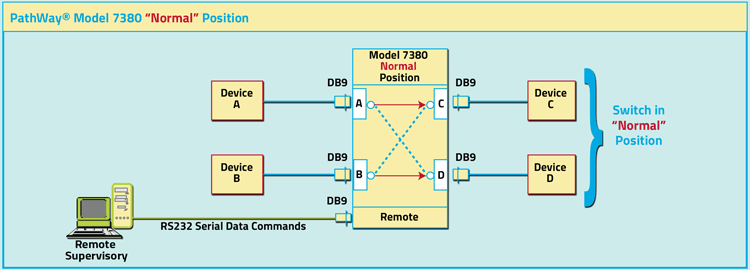

PathWay® Model 7380 "NORMAL" Position Switch Application Diagram.

The diagram shows the "STRAIGHT CONNECTION", where Device A is connected to Device C and Device B is connected to Device D.
The DB9 Remote ports accepts RS232 Serial ASCII commands

Model 7380 A/B/C/D Switch Normal Crossover Switch

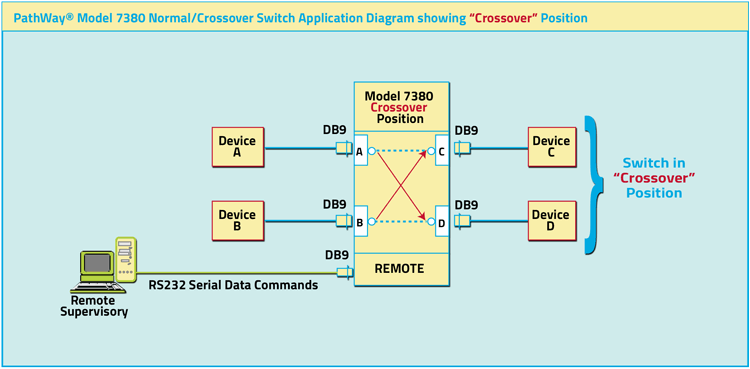

PathWay® Model 7380 "CROSSOVER" Position Switch Application Diagram.

The diagram shows the "EXCHANGE CONNECTION", where Device A is connected to Device D and Device B is connected to Device C.
The DB9 Remote ports accepts RS232 Serial ASCII commands

Model 7380 A/B/C/D Switch Crossover Switch

FEATURES:

Switch allows selection between NORMAL and CROSSOVER position.
Front Panel LED's display switch position and power status.
Six pins of the DB9 interface used for the A, B, C, and D ports are custom wired for noise cancelling with pairing as follows:
- DB9 pin 1 & pin 6
- DB9 pin 3 & pin 8
- DB9 pin 5 & pin 9
Chassis GRD to pin 4 bussed through
DB9 ports wired straight through: 1-to-1, 2-to-2, thru 9-to-9
The switch ports are transparent to all data.
In NORMAL position, Port A is connected to Port C, Port B is connected to Port D (A>C and B>D).
In CROSSOVER position, Port A is connected to Port D, Port B is connected to Port C (A>D and B>C).
Select either locally via front panel pushbutton or remotely via RS232 Serial ASCII commands to the DB9 Remote on the rear panel.
Shielding of electromechanical relays.
Switch maintains position during power loss and continues to pass data.
Switch powers up in the last known position.

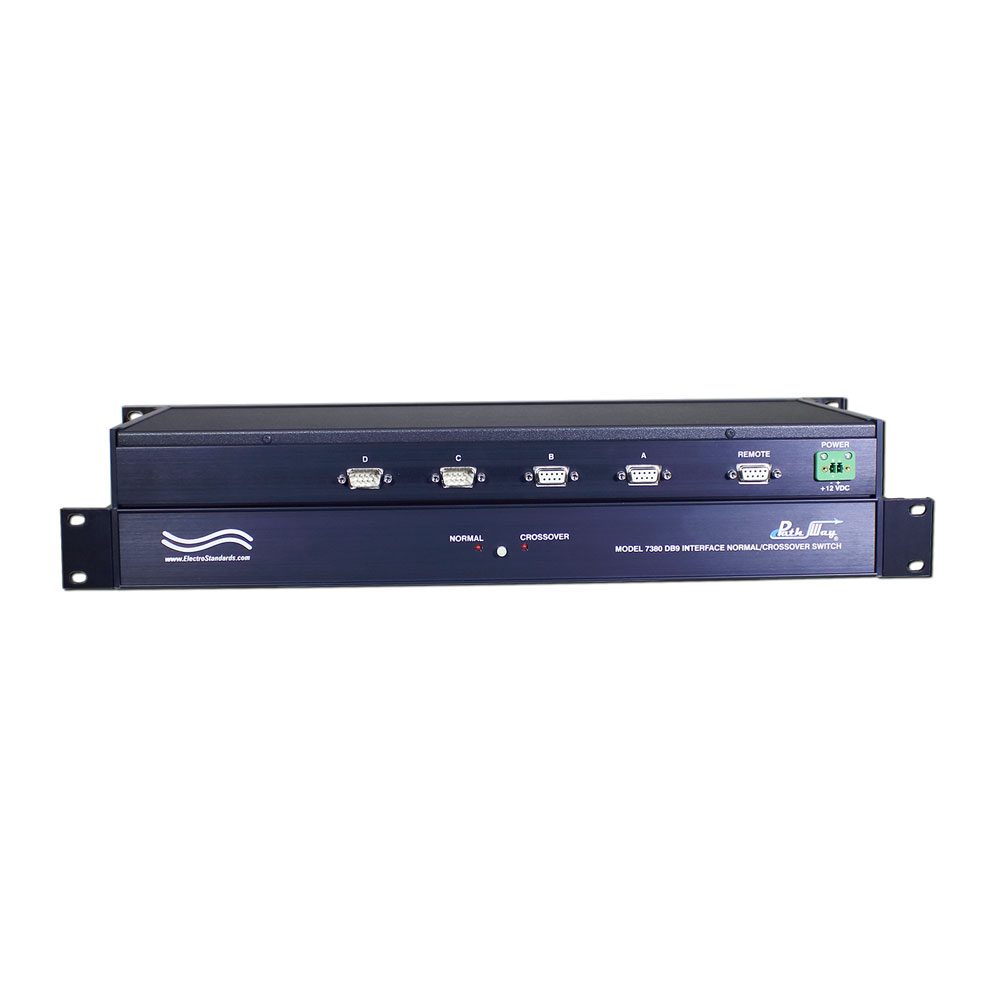

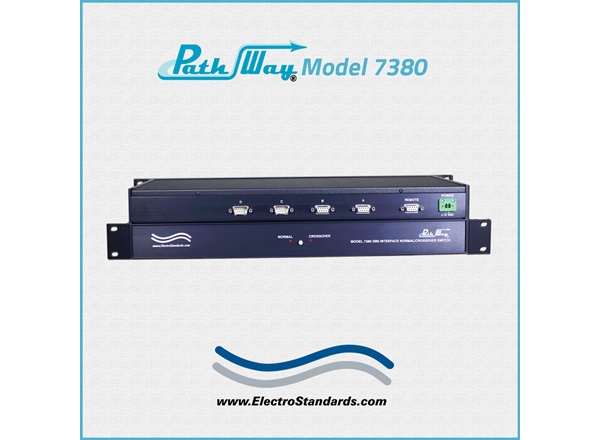

The PathWay® Model 7380 DB9 Crossover Switch with Serial Remote supports connections between four devices, connected to the A, B, C, and D ports in either a "Normal" or "Crossover" configuration. The Model 7380 may be controlled manually via a front panel pushbutton or remotely from an RS232 Serial Remote port located on the rear of the unit.

Switch position status may be attained via the front panel LED display or the DB9 Remote RS232 port located on the rear of the unit.

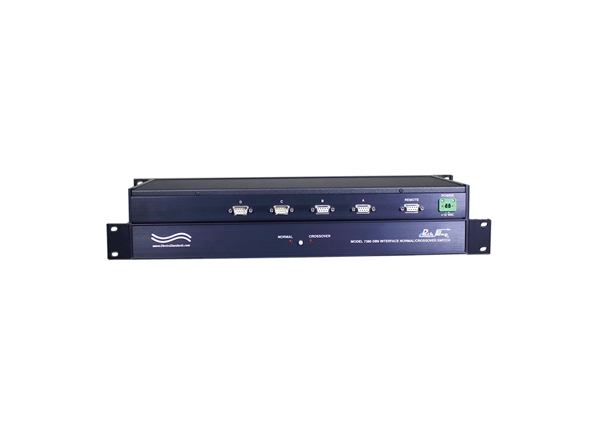

The Model 7380 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
