Catalog 307400, Model 7400 9-Channel A/B Multi-Interface PoE Interface; 3 Channels Audio (4-Pin 3.5mm), 3 Channels RJ45 Cat5e, 3 Channels HDMI, with RS232 Remote

    9-Channel A/B Mulit-Interface PoE Switch9-Channel A/B Mulit-Interface PoE Switch9-Channel A/B Mulit-Interface PoE Switch9-Channel A/B Mulit-Interface PoE Switch
Click image to enlarge
    • 9-Channel A/B Mulit-Interface PoE Switch
    • 9-Channel A/B Mulit-Interface PoE Switch
    • 9-Channel A/B Mulit-Interface PoE Switch
    • 9-Channel A/B Mulit-Interface PoE Switch
Base Price:
$6,063.00
Catalog No: 307400
Model No: 7400
Product Type:Switches: Copper
Positions:2
Switch Application:Audio/Video Switching
Cable Type/Port Connector:HDMI, RJ45, 4-Pin 3.5mm
Channels per Switch Chassis:9
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:RS232 Serial
Compliance/Standards:802.3af & 802.3at, Cat5e, PoE
Configuration:Rackmount
Remote Port:DB9
Local Control:Pushbutton
Feature:PoE, Power over Ethernet

Add to Cart
  • Certified for Cat 5e compliance.
  • Certified for PoE 802.3af & 802.3at compliance.
  • HDMI Supports 1080p.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

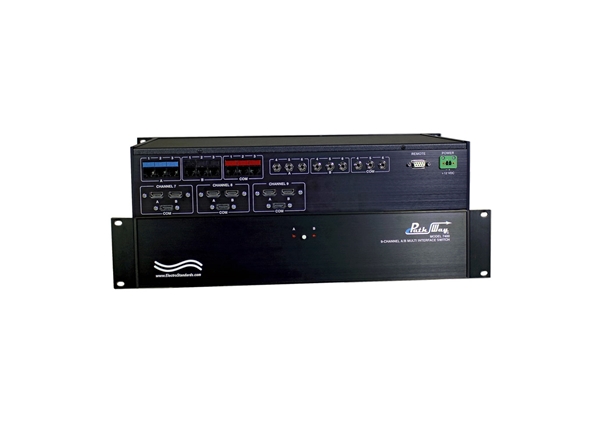

PathWay® Model 7400 9-Channel A/B Multi-Interface Switch:
(3) 4-Pin 3.5mm Audio, (3) RJ45 Cat5e, and (3) HDMI Video Switch with RS232 Remote, PoE Interface

  • Quickly and easily switch all nine channels (Data, Audio and Video) simultaneously!

  • Ideal for conference room applications that require switching video cameras to codec or display units.

  • Ideal for conference room applications that employ smart cameras have an HDMI Video Channel, on Ethernet port to control camera movement, an audio port for integrated sound.

SPECIFICATIONS:

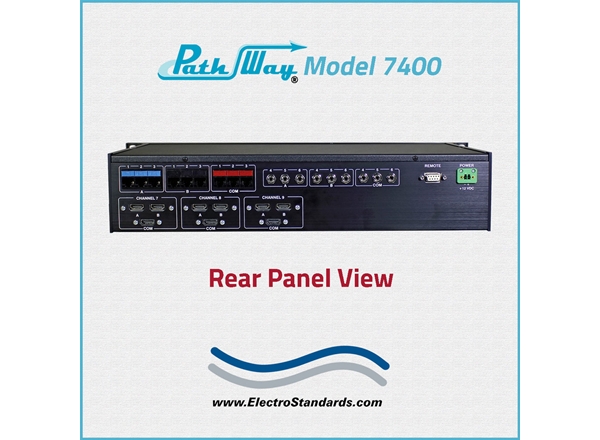

  • PORT CONNECTORS:

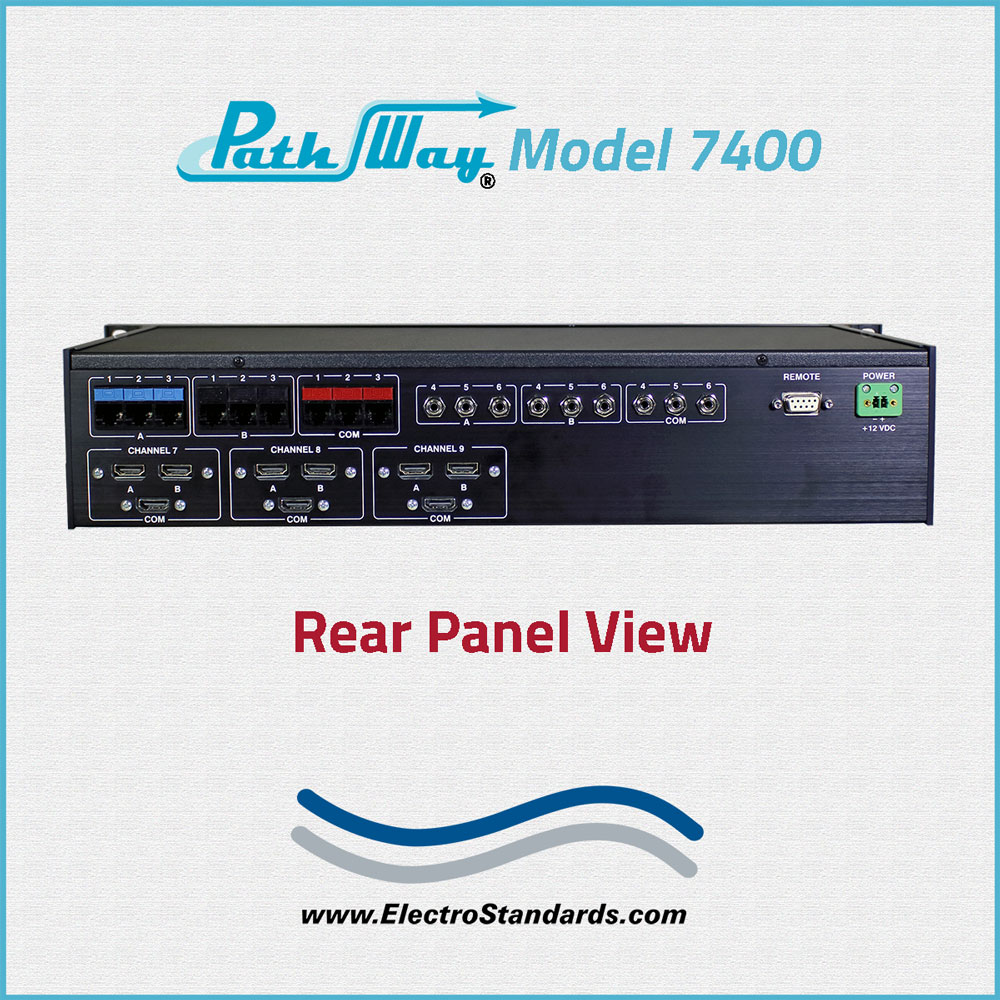

    • (9) RJ45 Cat5e female connectors; three labeled A, B, and COMMON for each channel
    • (9) 4-Pin 3.5mm connectors; three labeled, A, B, and COMMON for each channel.
    • (9) HDMI connectors; three labeled, A, B, and COMMON for each channel.

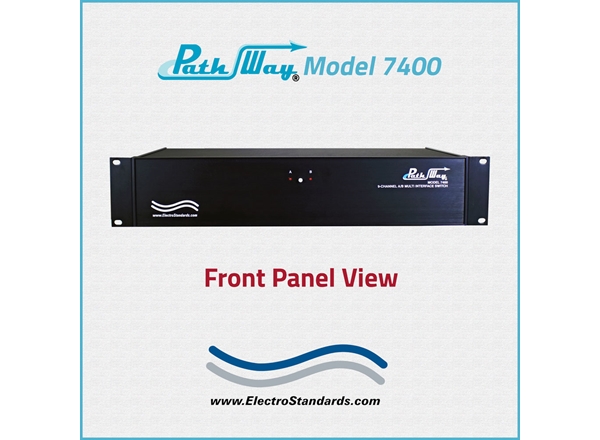

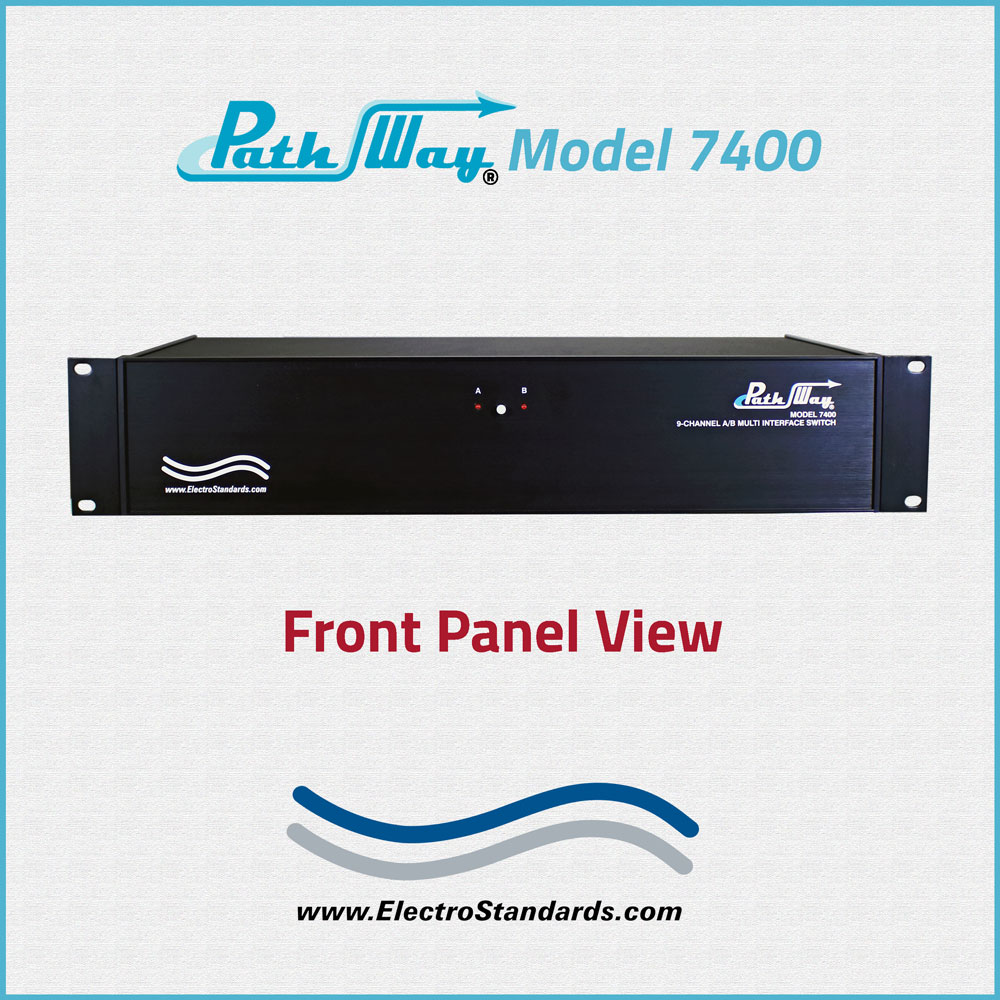

  • FRONT PANEL CONTROL: (1) Manual Pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED’s display switch position and power status.
  • REMOTE PORT: (1) DB9 female connector on rear panel accepts RS232 Serial Data for Remote Control operation.
  • POWER: UL approved wall mount 100VAC-240VAC, 50Hz-60Hz power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug
  • DIMENSIONS: 19.0” W x 3.5” H x 10.2” D (48.3 x 8.9 x 26.0 cm)
  • WEIGHT: Approx. 6.8 lbs. (3.1 kg)

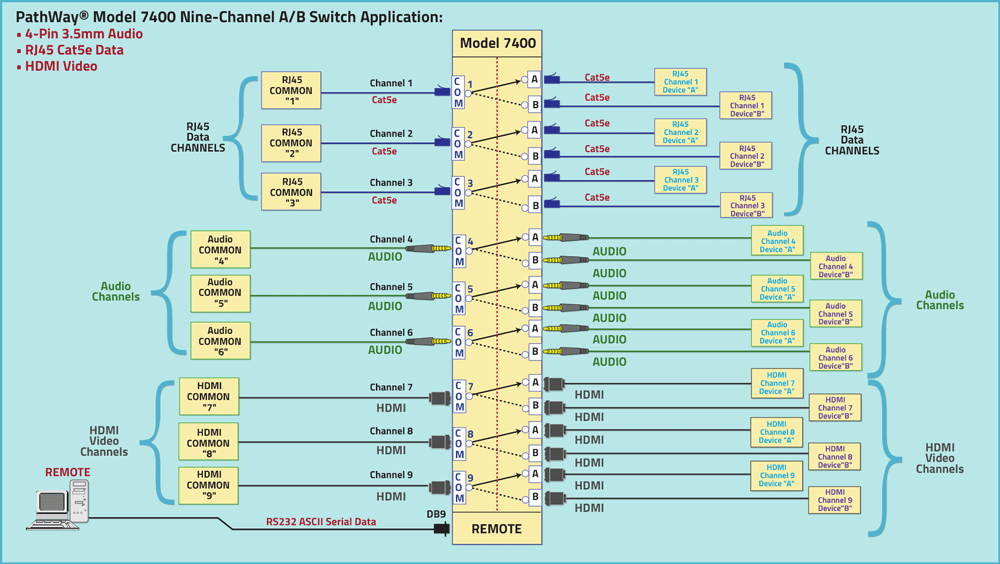

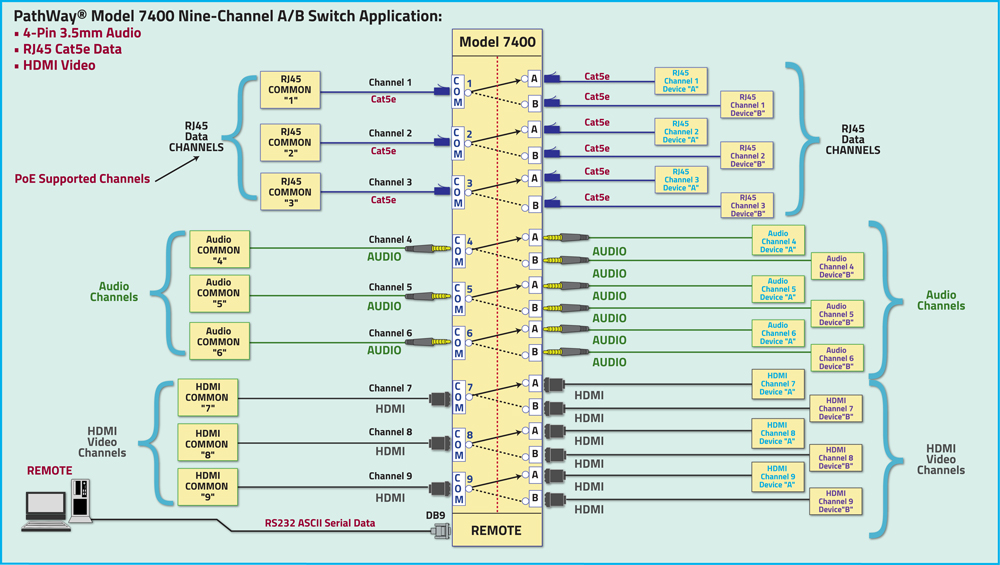

PathWay® Model 7400 9-Channel A/B Multi-Interface Switch Application with RS232 Remote Control:

The Model 7400 has a total of nine A/B Channels:

  • Simultaneously Switch from A position to B position of from B position to A position for all nine channels simultaneously.
  • (3) 4-Pin 3.5mm Audio
  • (3) RJ45 Cat5e PoE 802.3af & 802.3at compliant
  • (3) HDMI Video

PathWay Model 7400 9-Channel Multi-Interface A/B Switch Application

FEATURES:

  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • All 4 leads of the 4-Pins 3.5mm are switched via break-before-make electromechanical relays.
  • All (19) pins of the HDMI interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data for the 3.5mm and RJ45 Cat5 ports.
  • On power loss, the HDMI Video Channels remain in present position, but shut down and do not pass signals.
  • Upon power up, switch remains in last known position.
  • Front panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Simultaneous control of channels.
  • Front panel LED’s display the present position and power status.
  • Certified for Cat 5e compliance.
  • Certified for POE 802.3af & 802.3at compliance.
  • HDMI supports 1080p.
  • Ideal for Power Over Ethernet (PoE) Audio & Video Camera Network Installations.

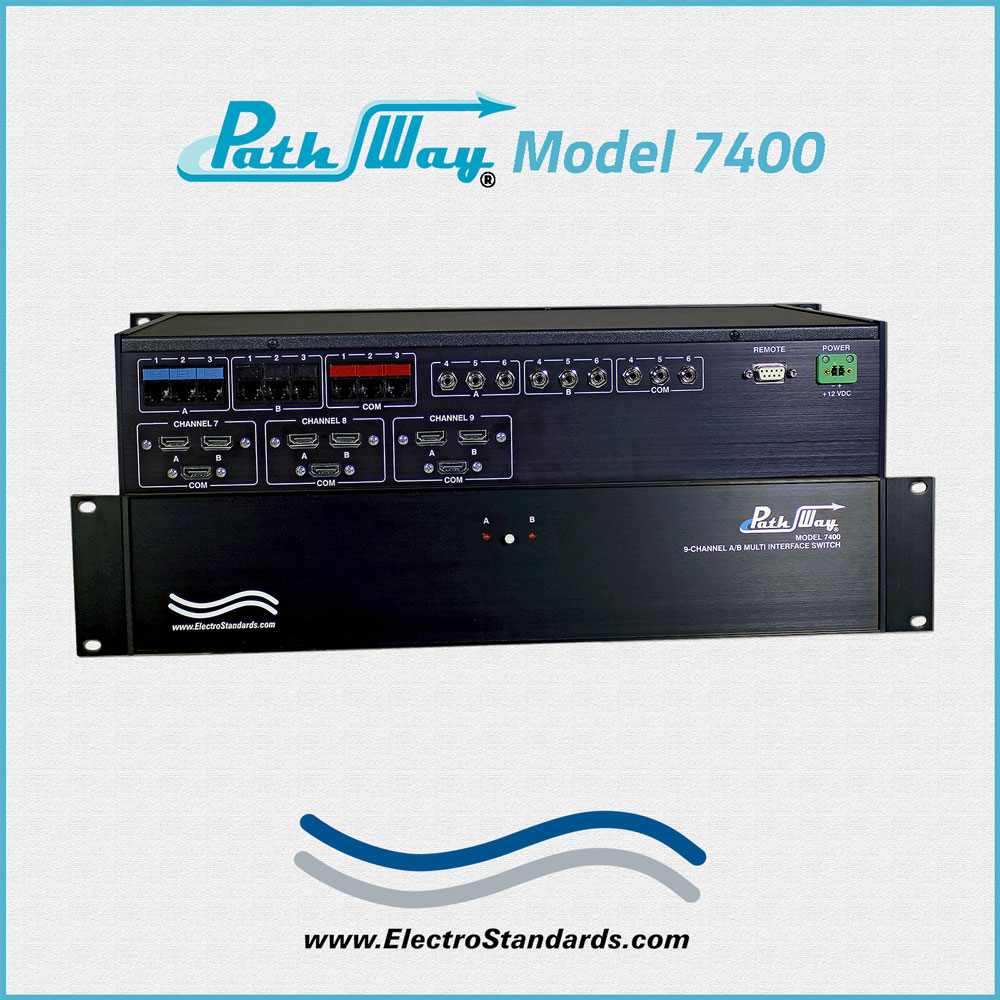

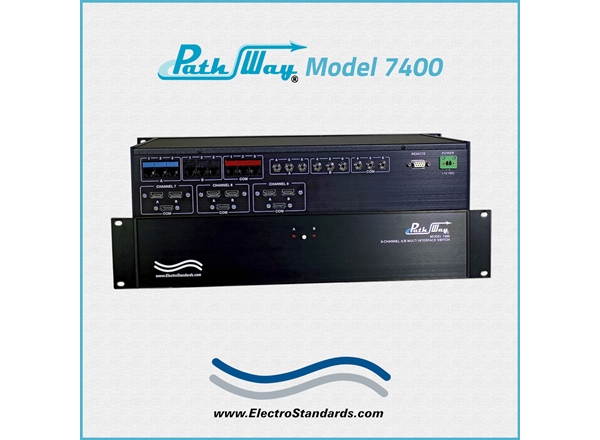

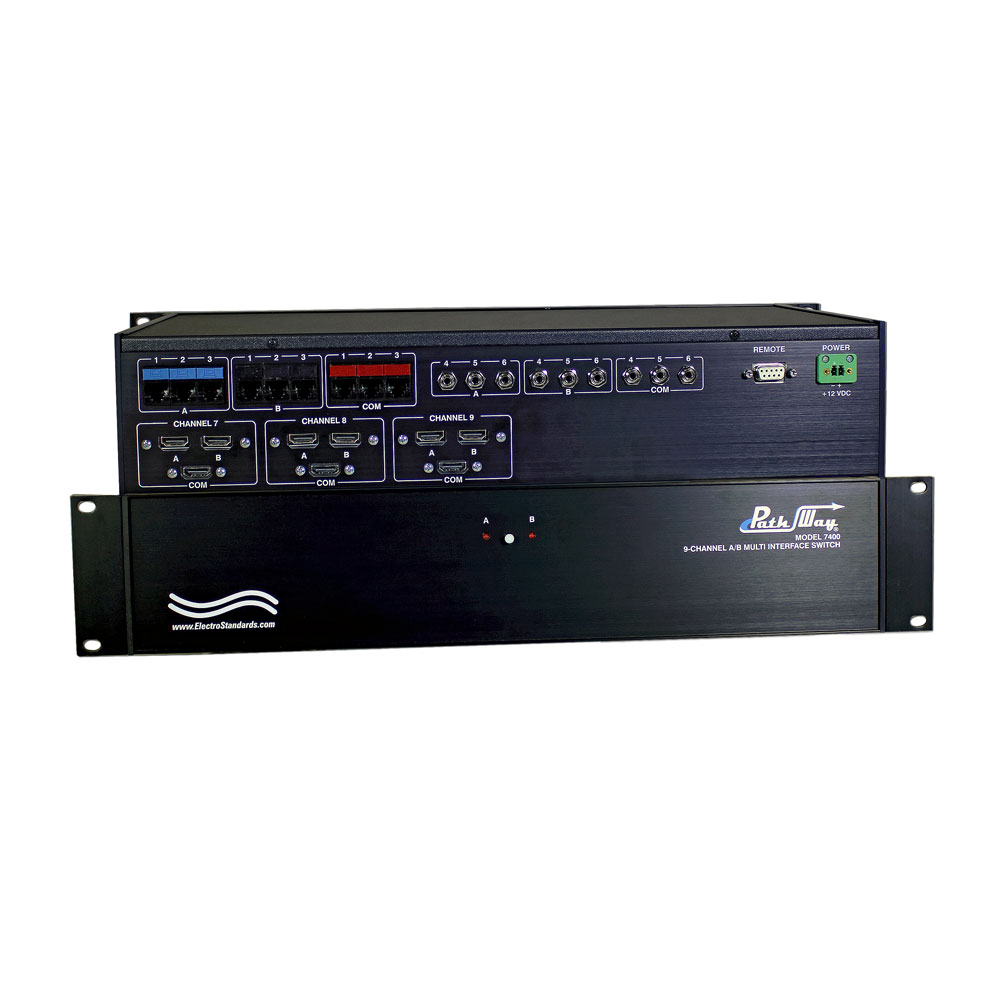

The PathWay® Model 7400 9-Channel A/B Multi Interface Switch: (3) RJ45 Cat5e, (3) 4-Pin 3.5 mm, and (3) HDMI with RS232 Remote allows the user the capability of sharing a single port RJ45, Cat5e, 3.5mm, and/or HDMI interface device, connected to the “COMMON” port, among two other devices, connected to the “A” and “B” ports. The Model 7400 is enclosed in a 2U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

The switch may be controlled manually via a front panel pushbutton or remotely from an RS232 Serial port located on the rear of the unit.  Switch position status may be attained via the front panel LED display, or the Remote RS232 Serial port located on the rear of the unit.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
