Model 7420 RJ45 CAT5 A/B Switch, See Model 7345, Replaces Model 7420 Catalog # 307420

    Model 7420 RJ45 CAt5 A/B SwitchModel 7420 RJ45 CAt5 A/B SwitchModel 7420 RJ45 CAt5 A/B SwitchModel 7420 RJ45 CAt5 A/B Switch
Click image to enlarge
    • Model 7420 RJ45 CAt5 A/B Switch
    • Model 7420 RJ45 CAt5 A/B Switch
    • Model 7420 RJ45 CAt5 A/B Switch
    • Model 7420 RJ45 CAt5 A/B Switch
Base Price:
Call for Price
Catalog No: 307420
Model No: 7420
Product Type:Switches: Copper
See Model 7345:See Model 7345, Replaces Model 7420
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Compliance/Standards:Cat5
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

See Model 7345, Replaces Model 7420

Path Way® Remotely Controllable Network Switch, Cat5

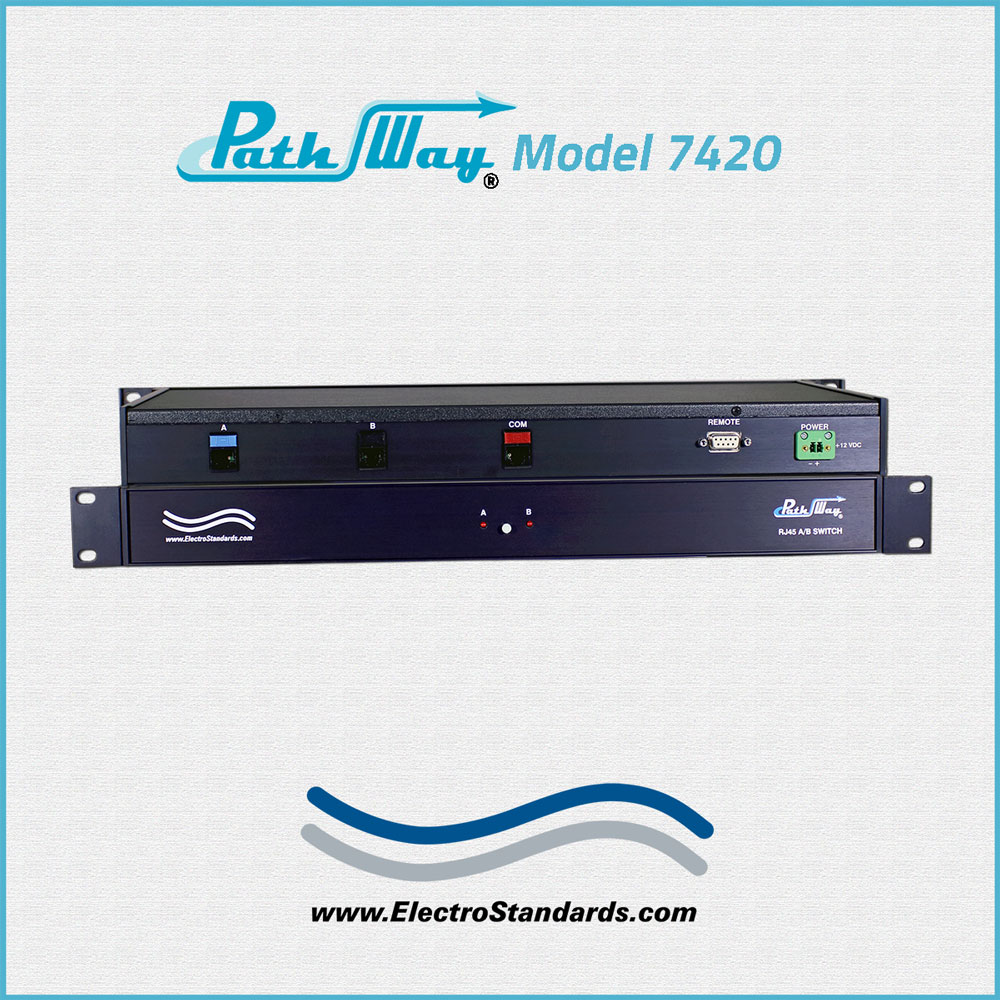

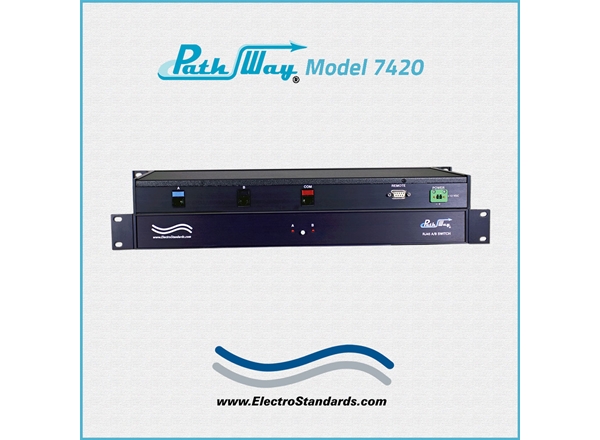

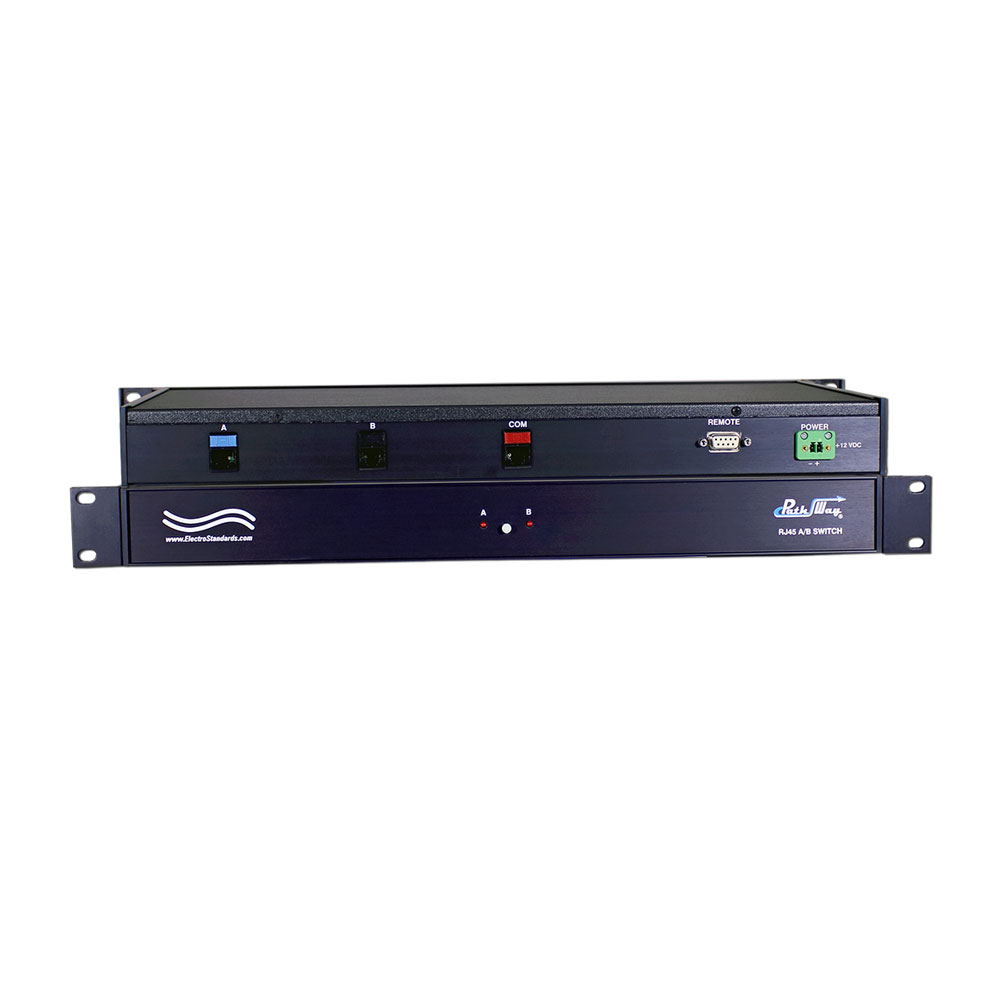

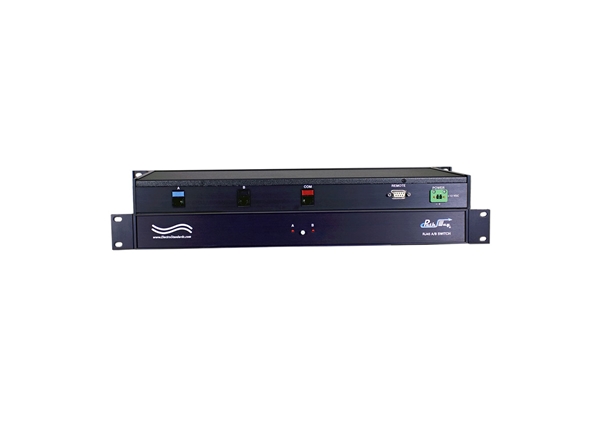

Model 7420 RJ45 Cat5 A/B Switch with Remote Control Port

  • Switches all 8 pins. Allows compatibility with All RJ45 Interfaces.

SPECIFICATIONS:

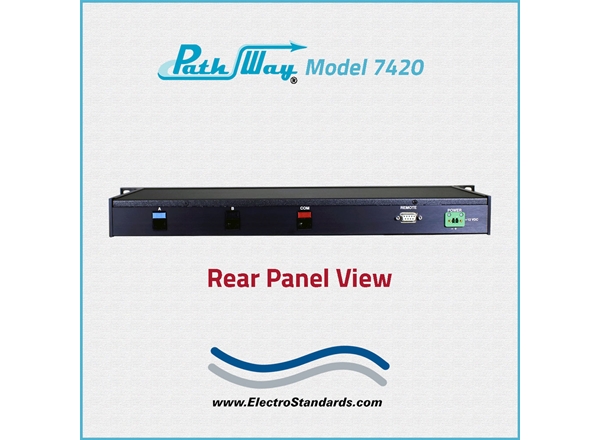

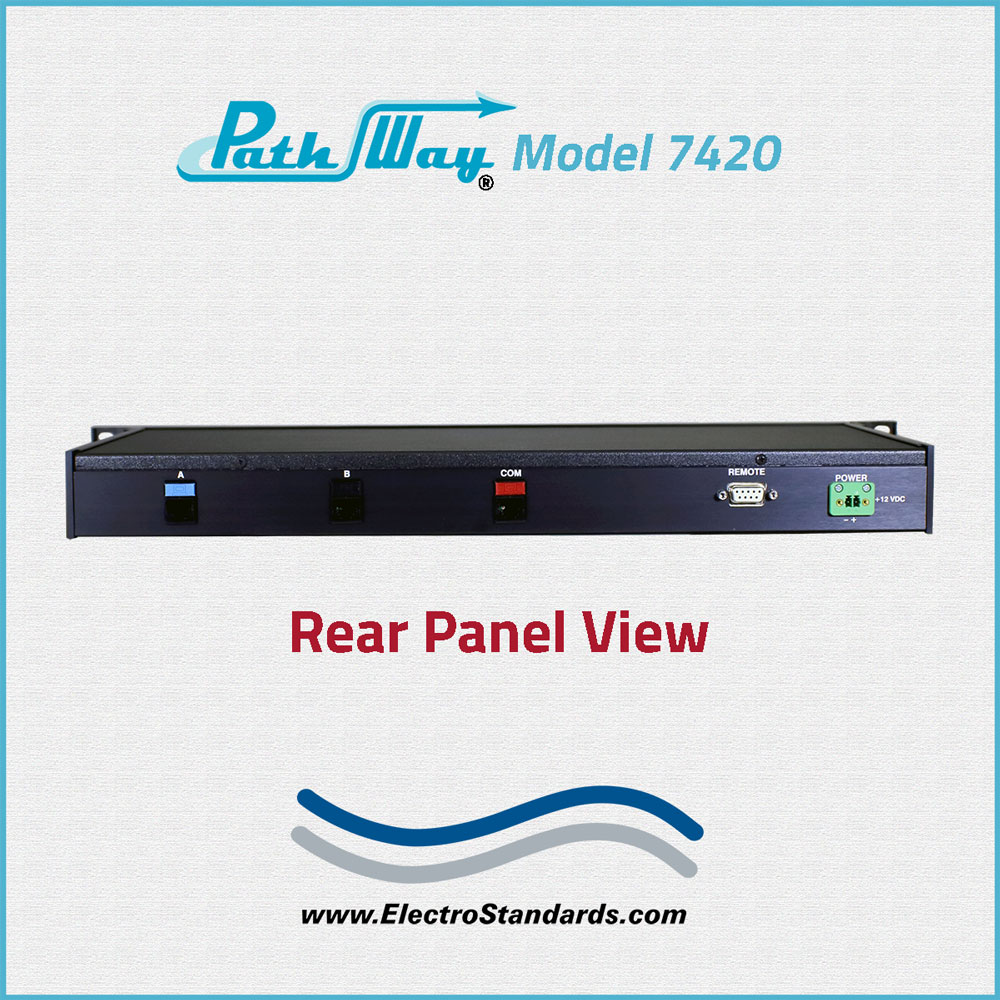

  • PORT CONNECTORS: (3) RJ45 (F) Connectors labeled A, B and COM.

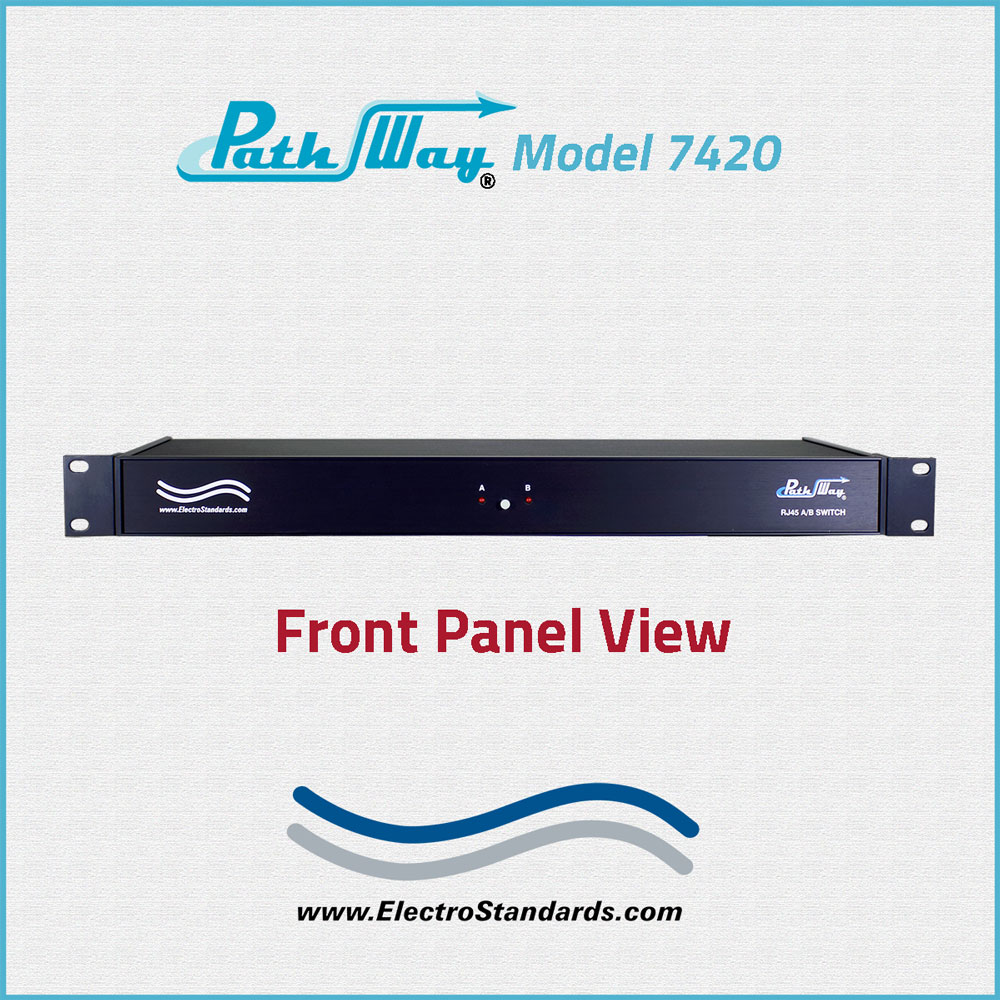

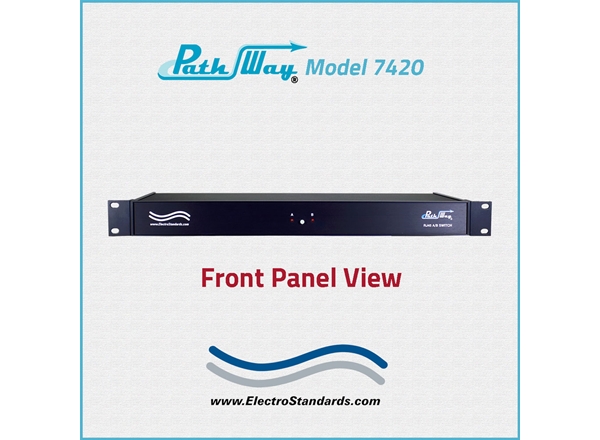

  • FRONT PANEL CONTROL: Pushbutton on front panel for local switch control.
  • DISPLAY: (2) Front panel Red LED's indicate switch position and power status.
  • REMOTE CONNECTOR: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 8.1" D (48.3 x 4.4 x 20.6 cm)
  • WEIGHT: Approximately 4.2 (1.9 kg)

PathWay® Model 7420 RJ45 Cat5 A/B Switch with RS232 Remote Control Application:

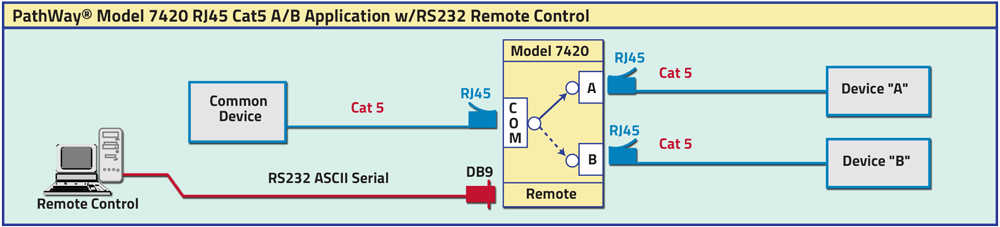

The diagram illustrates a COMMON device connected to the RJ45 COMMON port with access to two other devices or networks connected to the RJ45 A and B ports, respectively. A DB9 Remote Port can be used to control the unit remotely via RS232 Serial Commands.
