401-943-1164 / US & Canada Toll Free: 877-943-1164

Catalog # 309085R - Model 9085R RJ45 CAT5e, RoHS & REACH Compliant A/B Switch, DIN, 24VDC Barrier Remote

    RJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACHRJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACHRJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACHRJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACHRJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACH
Click image to enlarge
    • RJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACH
    • RJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACH
    • RJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACH
    • RJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACH
    • RJ45 CAT5e A/B Switch, DIN, Barrier Remote, RoHS, REACH
Base Price:
$882.00
Catalog No: 309085R
Model No: 9085R
Product Type:Switches: Copper
Interface:RJ45
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Remote Control:Voltage Control
Compliance/Standards:Cat5e, RoHS, REACH
Configuration:DIN Rail Mount
Pins Switched:8
Remote Port:Terminal/Barrier Strip
Local Control:None

Add to Cart
  • Cat5e, RoHS, and REACH Compliant.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Cat5e Remotely Controllable Network Switch, 24 VDC

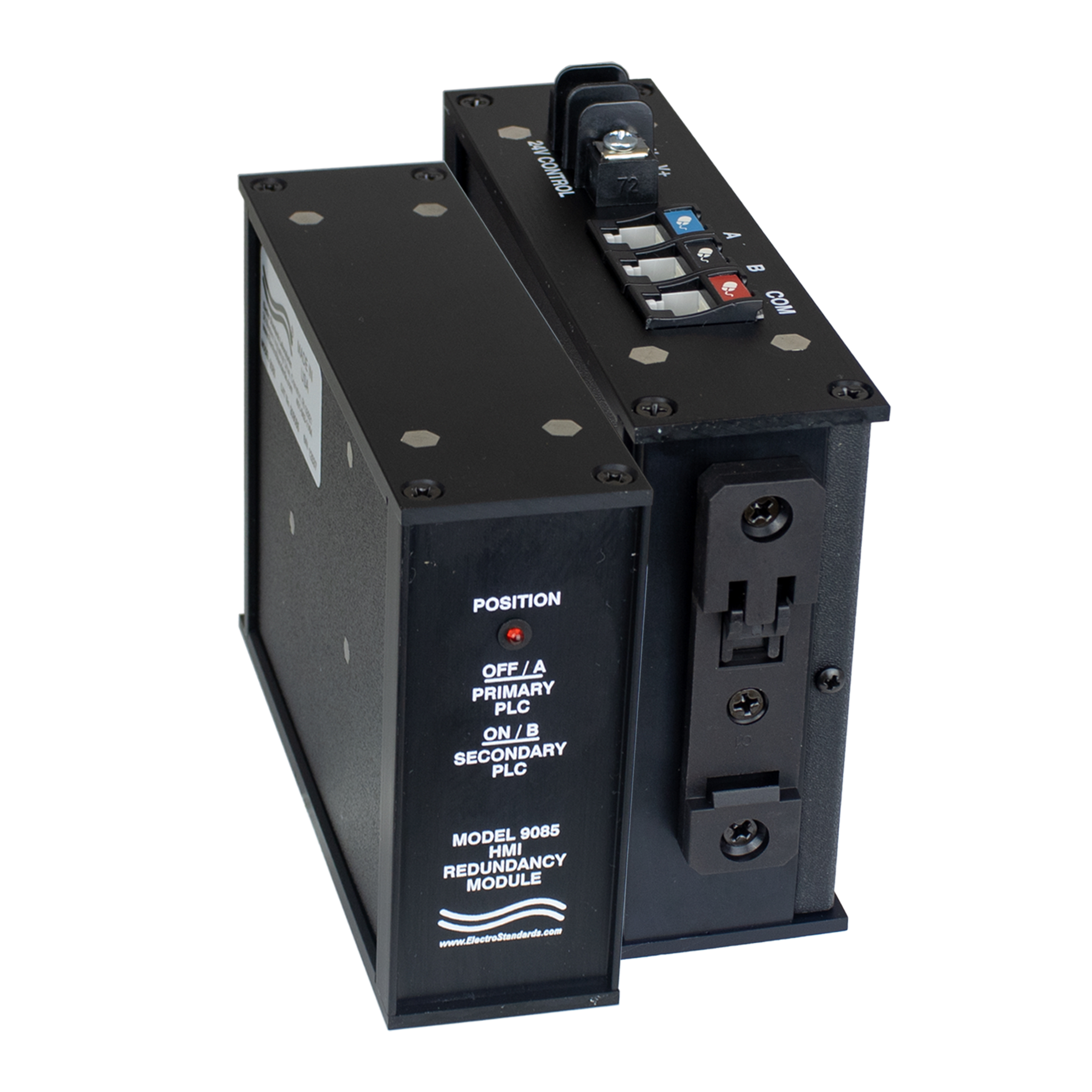

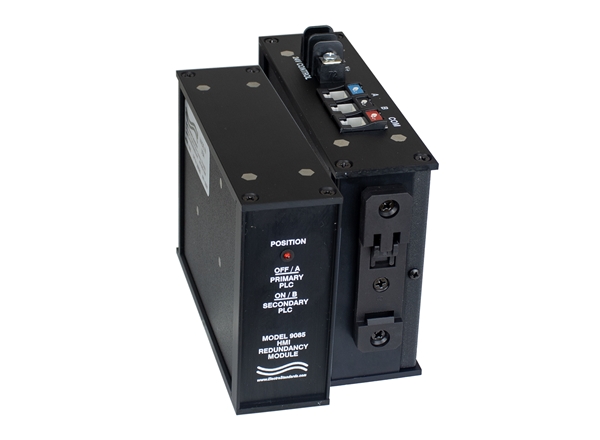

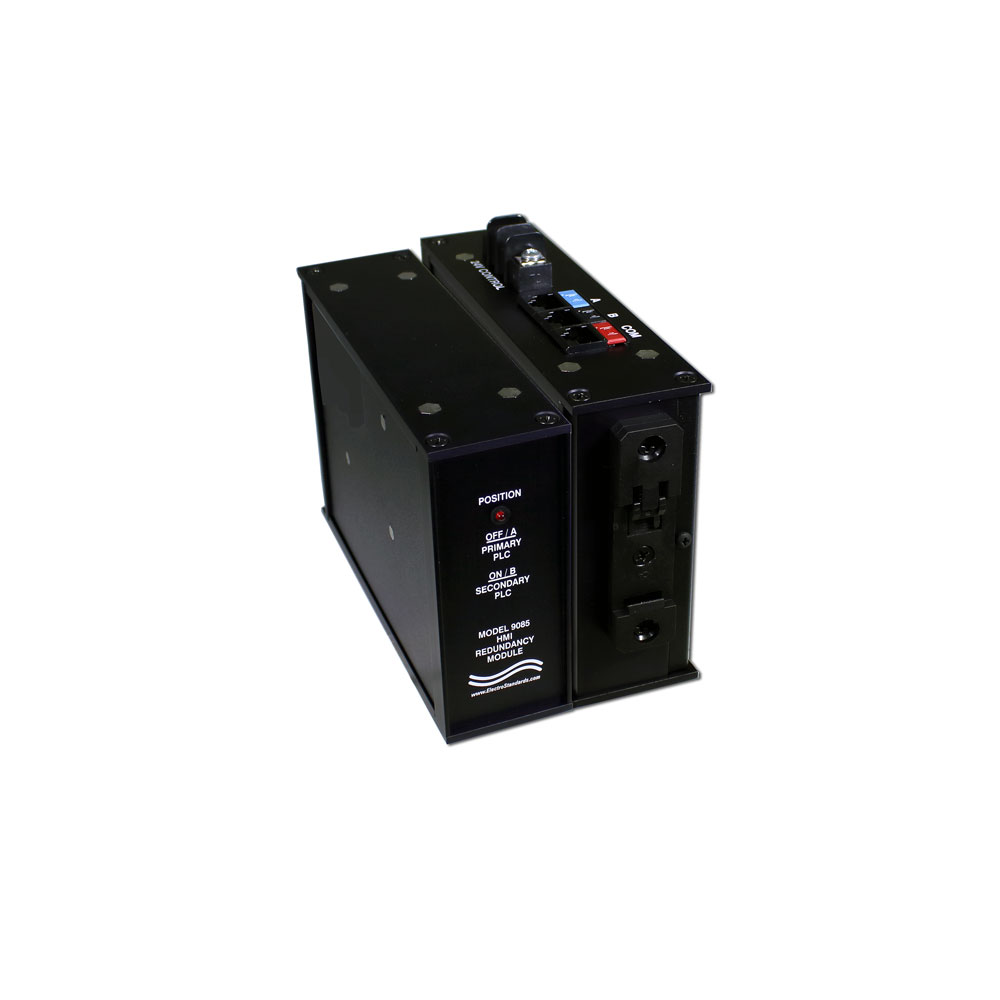

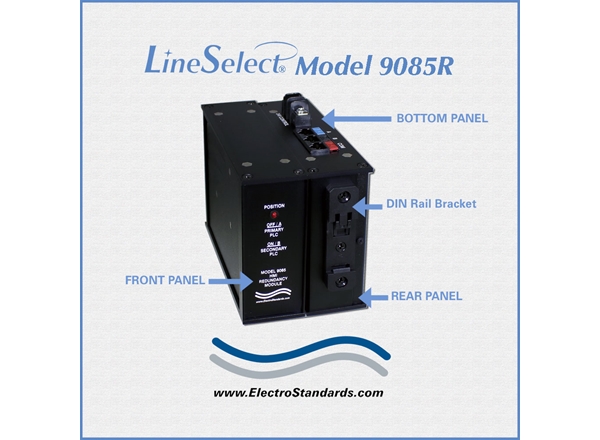

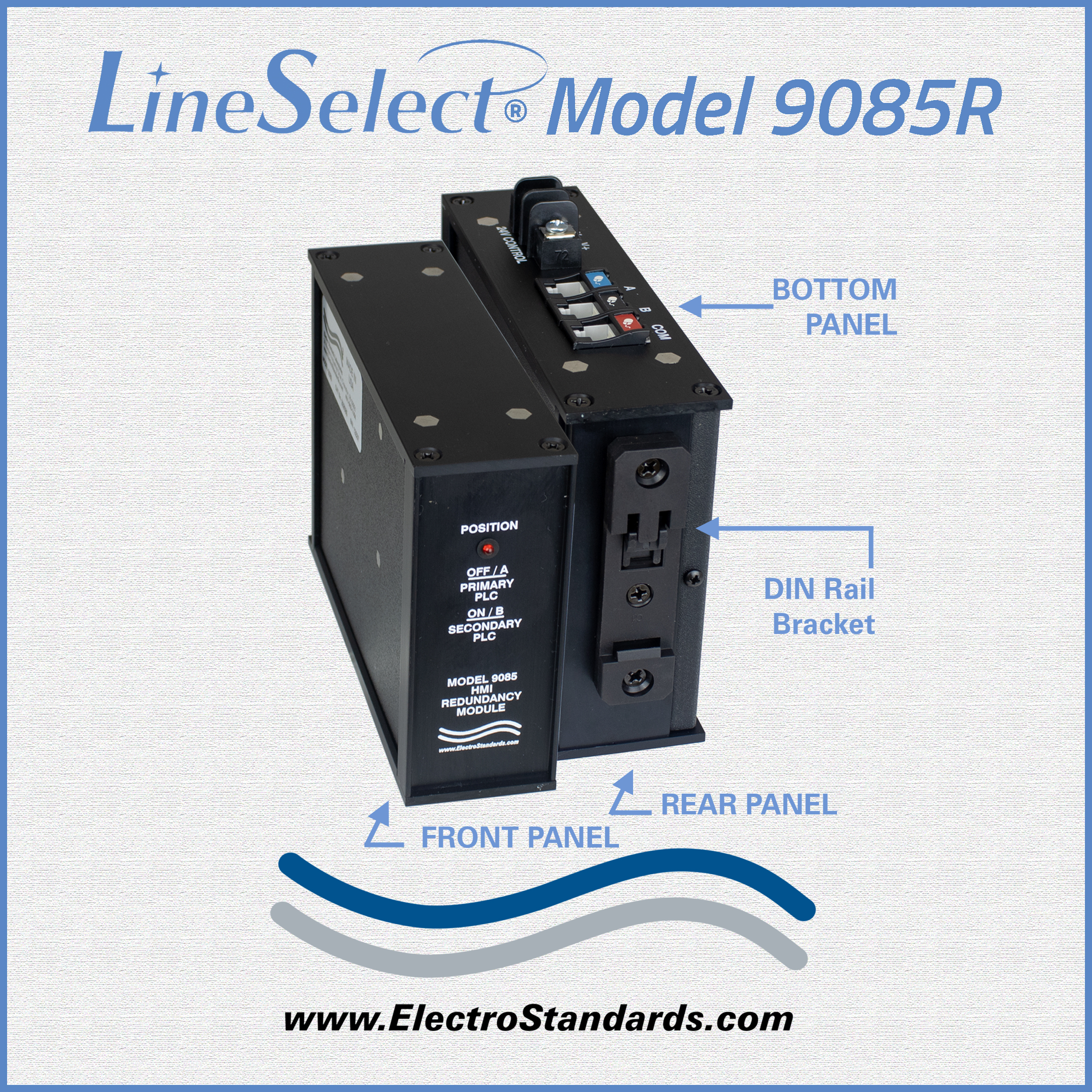

LineSelect® Model 9085R RJ45 A/B Switch, Remotely Controllable DIN Rail Mounted, Cat5e, RoHS and REACH Compliant

  • Convenient DIN rail mounting

  • Ideal for use in process control systems requiring switching between multiple Programmable Logic Controllers (PLC's)

SPECIFICATIONS:

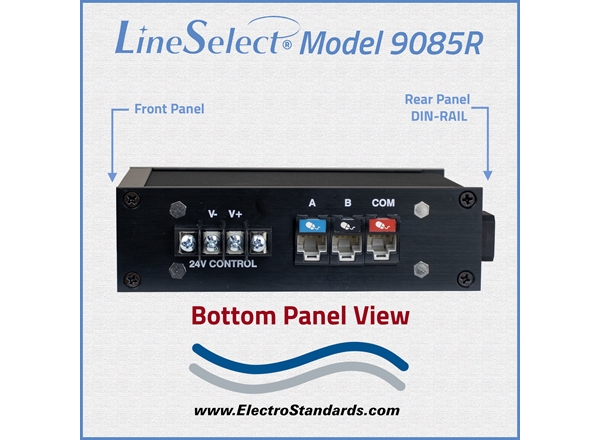

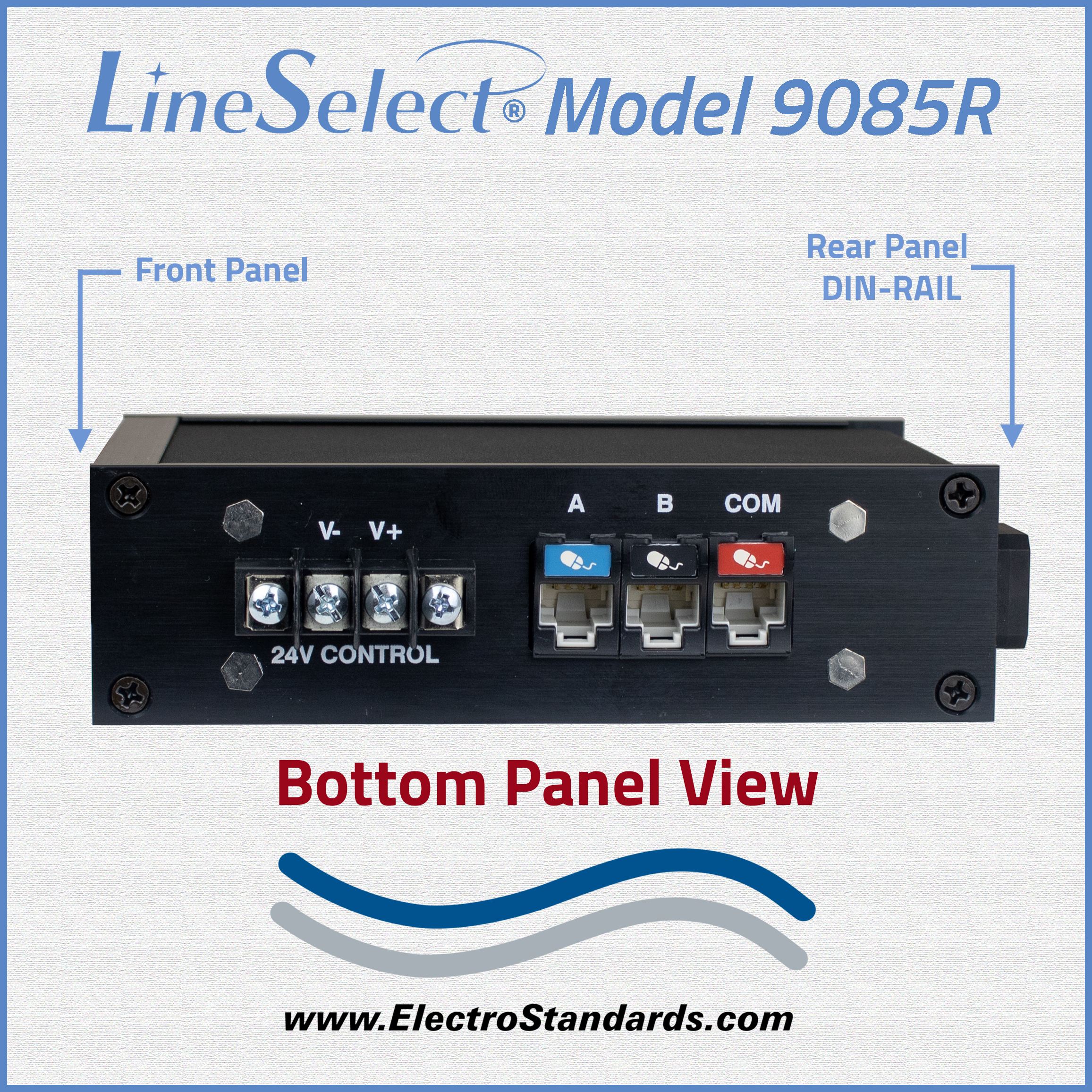

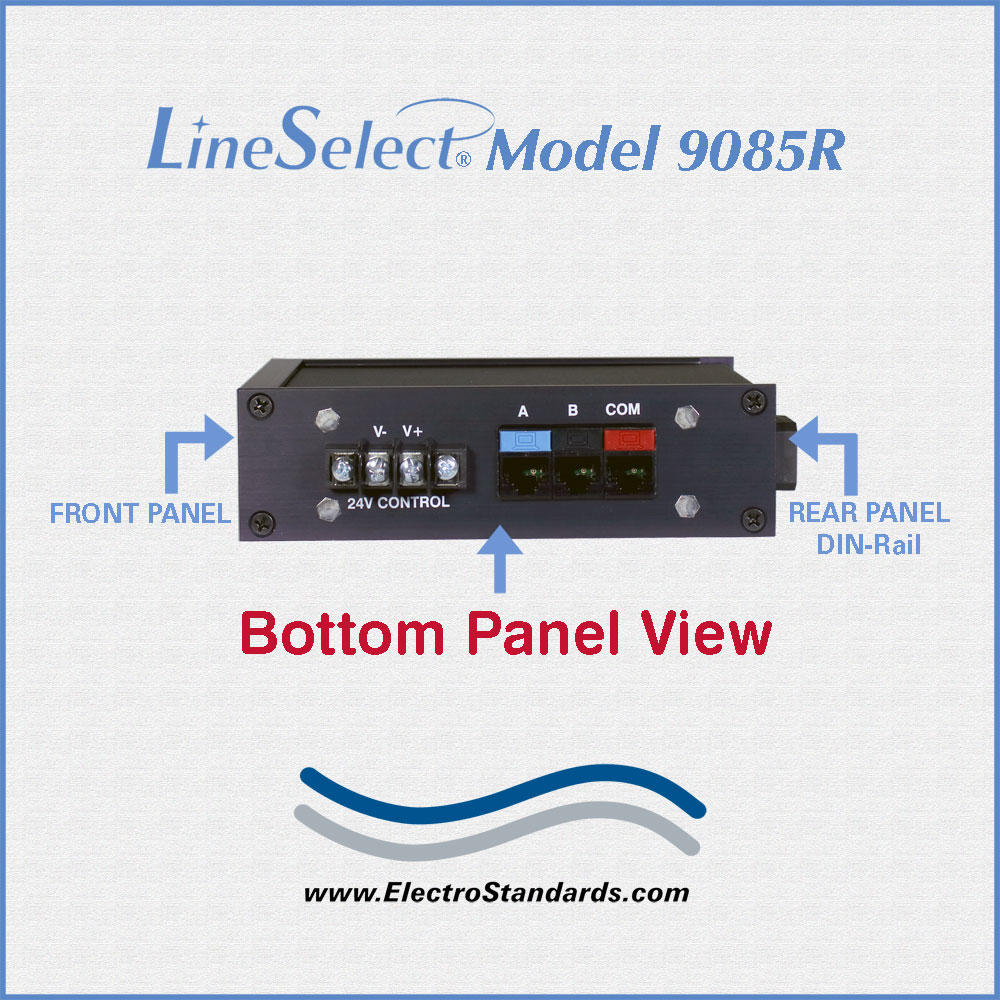

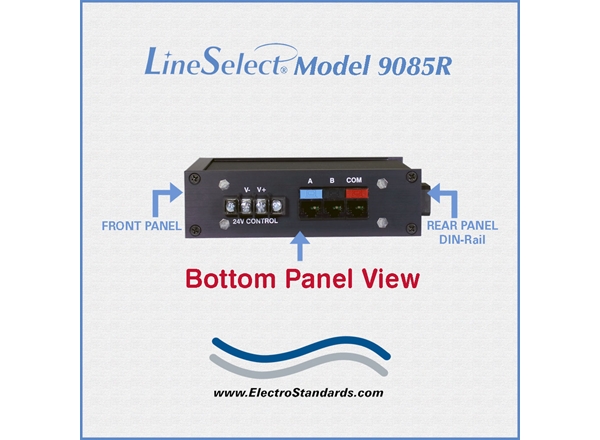

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
  • CONTROL PORT: (1) Barrier strip accepts 24 VDC, 50mA control signal to switch unit between its "A" and "B" position.

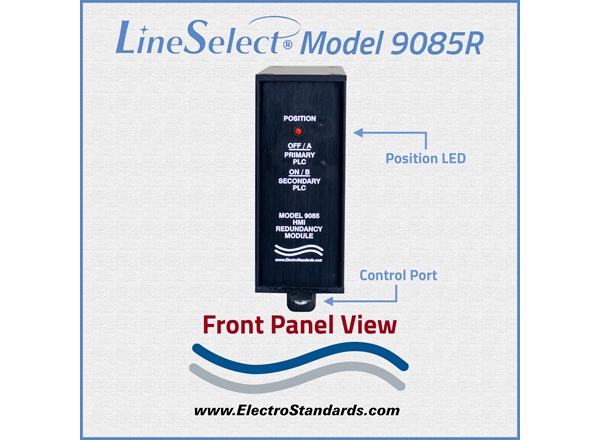

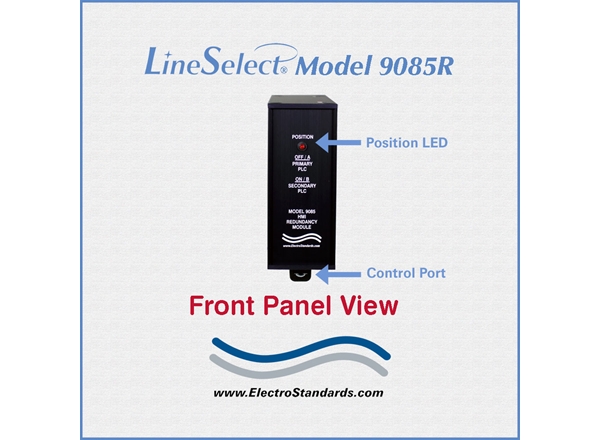

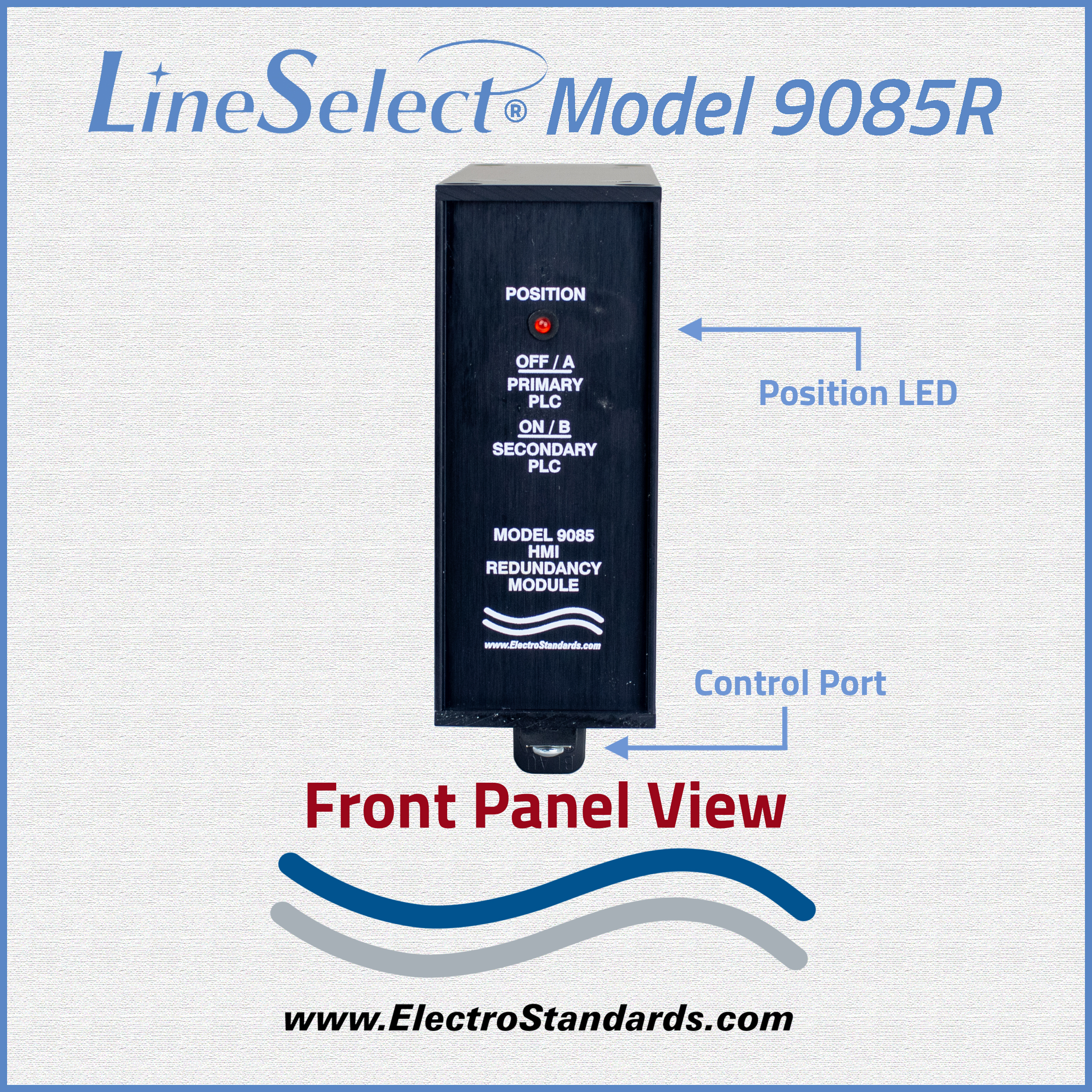

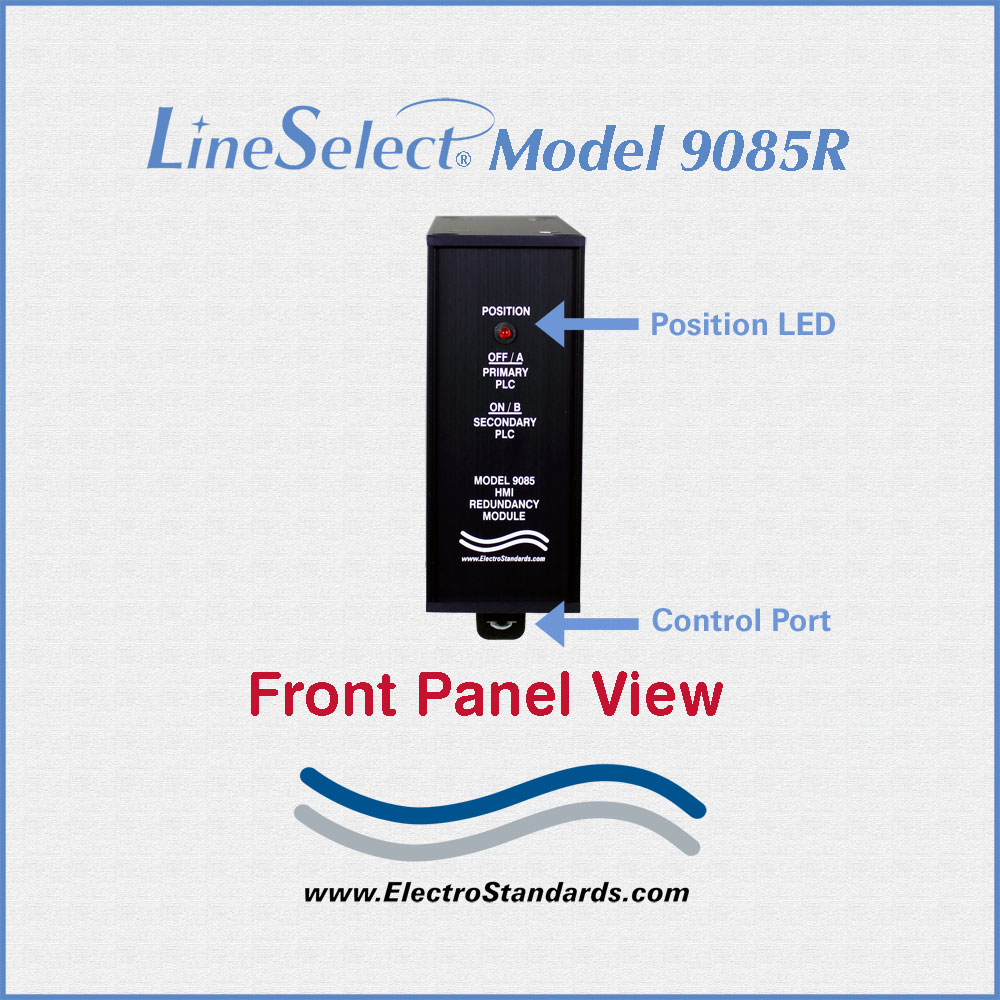

  • DISPLAY: (1) Front panel LED displays switch position.
  • DIMENSIONS: DIN Rail Mount Package: 1.75"W x 4.25"H x 6.0"D. (4.4 x 10.8 x 15.2 cm)
  • WEIGHT: Approximately 1.1 lbs. (0.5 kg)

CAT5E, RoHS and REACH Compliant RJ45 A/B SWITCH APPLICATION:
Ideal for use in process control systems requiring switching between multiple Programmable Logic Controllers.

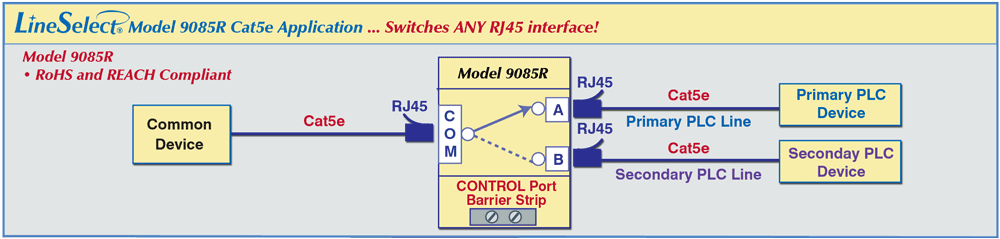

The drawing illustrates a COMMON device connected to the RJ45 COMMON port accessing the Primary PLC Device connected to the A port. There is a Secondary PLC device connected to the B port which can be accessed by applying 24 VDC to the CONTROL Port Barrier Strip.

LineSelect® Model 9085 A/B RJ45 Cat5e application

FEATURES:

  • Allows (1) COMMON RJ45 port to be shared among either of (2) RJ45 ports A and B.
  • Controlled by 24VDC signal applied to Control Port.
  • Switches all 8 leads of the RJ45 interface via break-before-make electromechanical relays.
  • Certified for category 5e compliance.
  • RoHS, and REACH, compliant

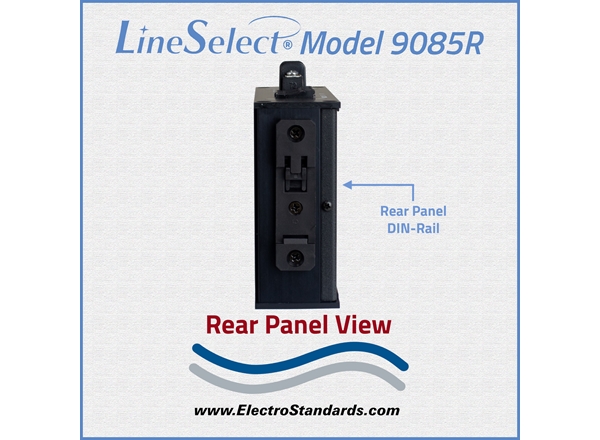

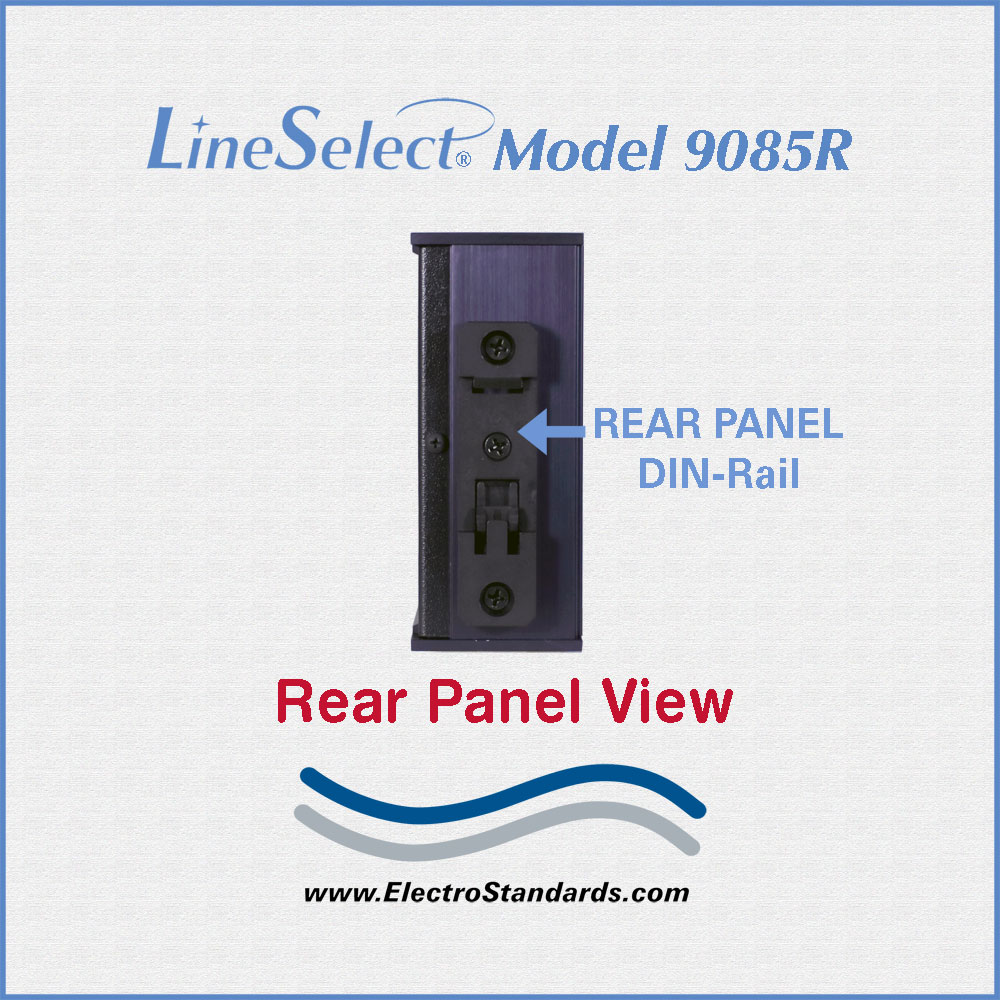

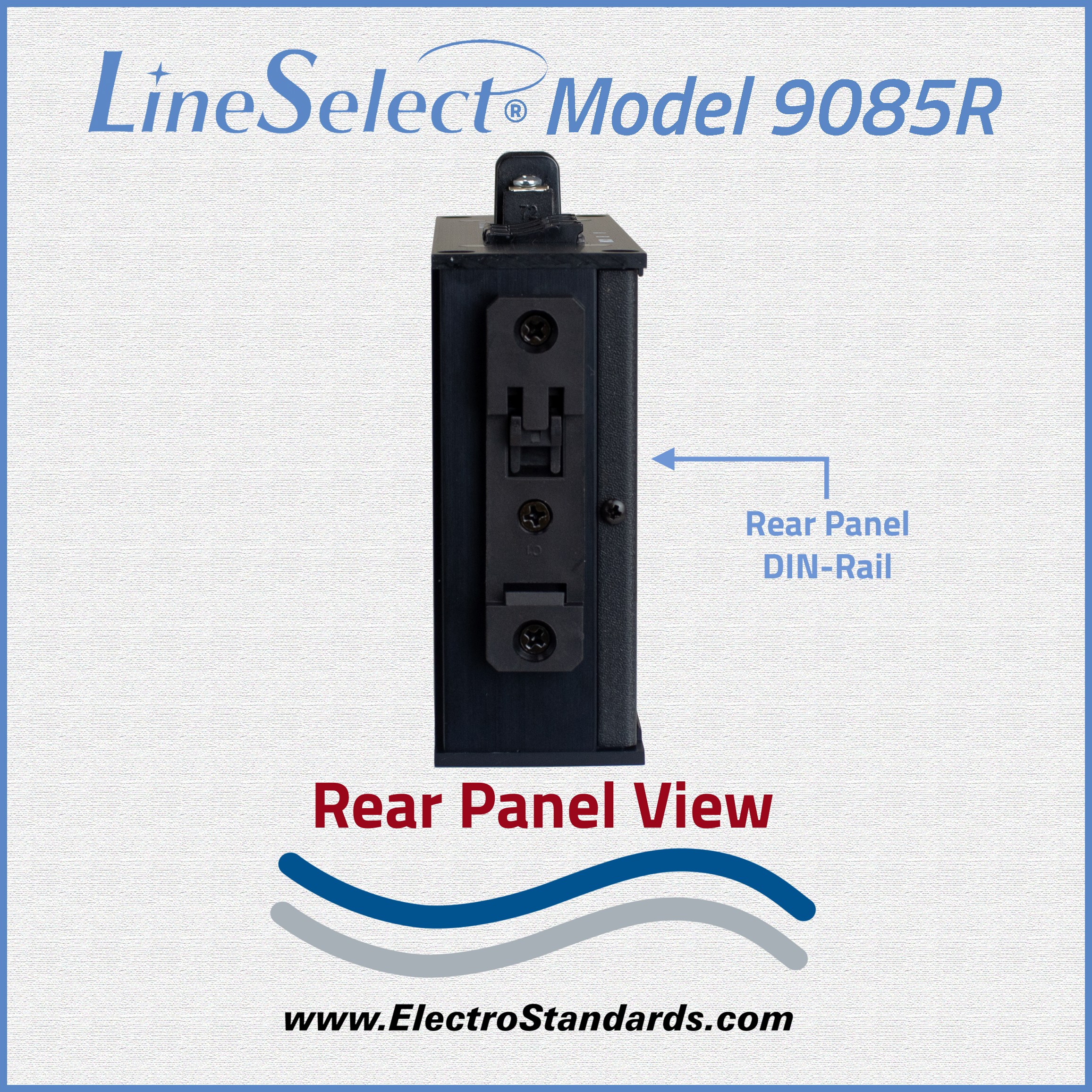

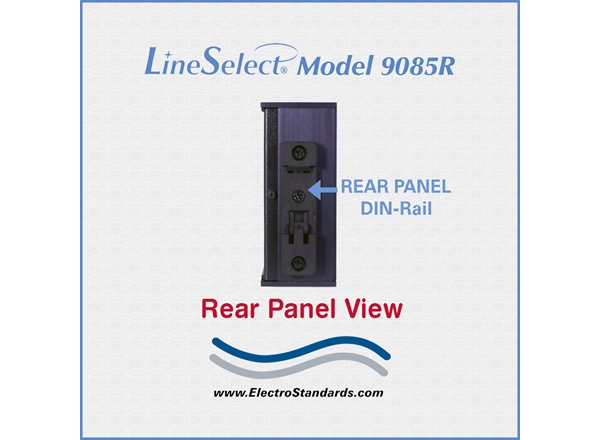

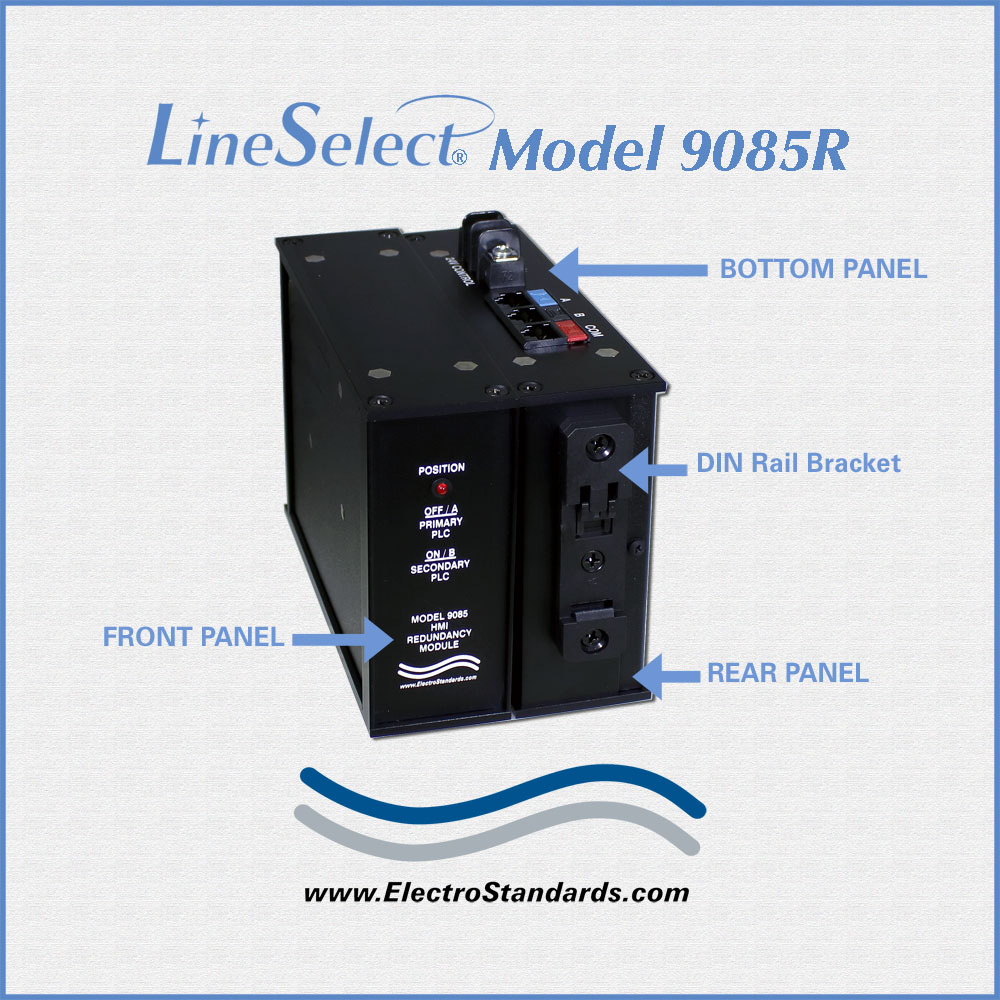

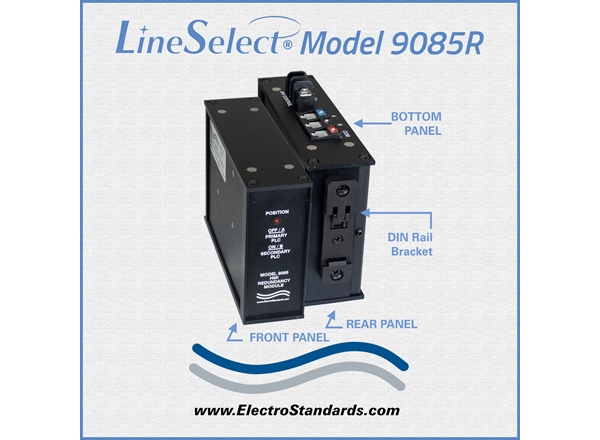

  • DIN rail bracket on rear panel.

INTRODUCTION:

The LineSelect® Model 9085R RJ45 A/B switch allows the user to access two RJ45 devices connected to its A and B ports with one RJ45 device connected to its COMMON port.  The unit is controlled by the presence or absence of a 24VDC signal applied to its Control Port.  The LineSelect® Model 9085R switch is easily integrated as a system component by utilizing its rear panel DIN rail mounting bracket.

OPERATION:

When 24VDC is not applied to the Control Port, the unit will be in the "A" position and the POSITION LED will be OFF.  When 24VDC is applied to the Control Port, the unit will be in its "B" position and the POSITION LED will be ON.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Available Combo Deals

No thanks!
