DB25 4-Position Audio Switch with Removable Brackets for Flexible Network Installations

FOR IMMEDIATE RELEASE

 Electro Standards Laboratories (ESL), Cranston, RI, introduces Model 8460 DB25 Audio Interface 4-Postion Switch with removable brackets. The Internal wiring between the switch and the DB25 port connectors incorporates twisted pairs to accommodate the pin/signal listing of THX audio signals. This switch allows the user to reroute data between any one of four DB25 devices to one COMMON device with the simple turn of a selector switch. Idea for THX Audio Interface Applications!

The Model 8460 incorporates a high-quality sealed switch with self-wiping precious metal contacts. All 25 pins of the DB25 interface are switched via break-before-make rotary switch.  Internal wiring is paired to minimize audio signal crosstalk for THX signal assignment at the DB25 interface.

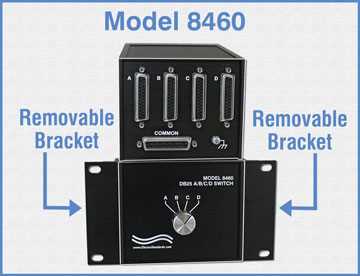

The Model 8460 is packaged in a compact, all metal black box case that provides EMI/RFI shielding and is ruggedized to withstand vibration encountered in mobile/motion applications. The packaging includes removable rackmount brackets for easy installations. All port shields are grounded to the chassis. A rear-panel chassis stud accepts a spade lug for secure grounding.

To view more about the Model 8460, visit the product webpage at http://www.electrostandards.com/ProductDetail/?productid=2562

For further information on Electro Standards’ switches, call 401-943-1164, eslab@ElectroStandards.com, or www.ElectroStandards.com.
