Easily Integrate the LineSelect Model 9082 2-Position Network Switch as a System Component

Electro Standards Laboratories of Cranston, Rhode Island has been in the electronics business over 45 years and has developed several product lines of cyber-physical electronic products throughout the years. The model 9082 is the newest addition to the LineSelect product line and is certified for Cat5e compliance. This unit offers quick access to any two Cat5e RJ45 networks and is equipped with a DIN-rail mounting bracket, and barrier strip monitor port. As a part of the LineSelect product line, the model 9082 is a manual switch and operates with no power required!

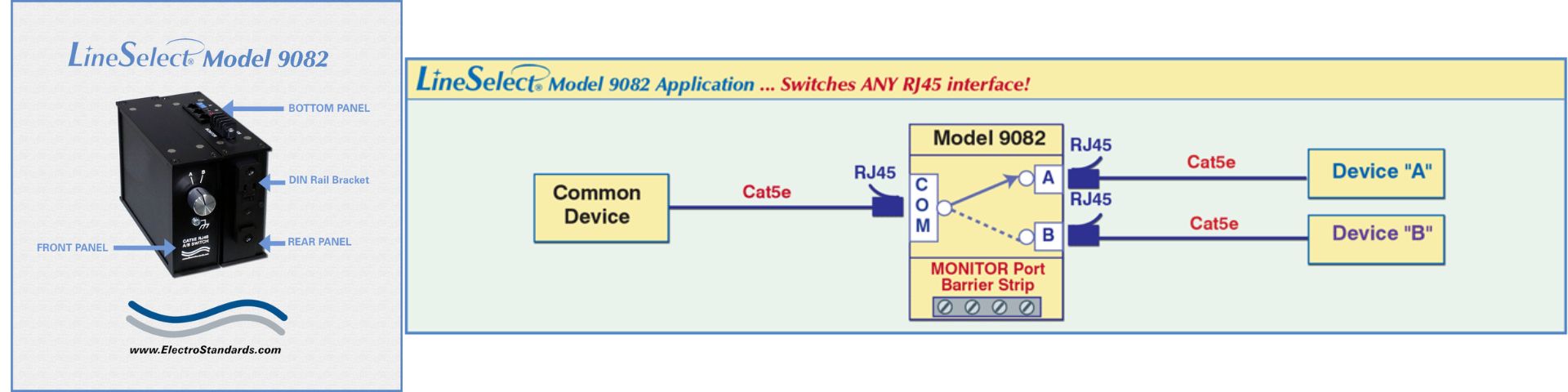

This LineSelect switcher allows a quick connection from one COMMON RJ45 port to be shared among either of two RJ45 ports, A or B. The switch position will be indicated by the front panel rotary knob or via the monitor port on the bottom panel. Monitor switch position via the three contacts of the mini barrier strip MONITOR port. The unit is controlled manually via the front panel mounted rotary selector knob. This make-before-break rotary knob switches all eight leads of the RJ45 interface simultaneously. The model 9082 RJ45 Cat5e switch is easily integrated as a system component by utilizing its rear panel DIN rail mounting bracket. Ideal for use in process control systems and manufacturing operations management.

This manual switchbox is contained in a shielded aluminum enclosure with DIN rail mount package, 1.75”W x 4.25”H x 6.0”D. The model 9082 is designed and equipped to switch ANY RJ45 interface. For further technical specifications pertaining to this switch, please see the product specifications sheet linked to the M9082 product listing on the Electro Standards website. If this product sounds like something that could help improve any current or future applications for your business and would like to speak with one of our attentive and motivated salespersons or engineering staff, please feel free to reach out via the contact us page or chat feature on our website. Do you need a custom design for your application? If so, our experts can help you, and please submit a custom product request form here: https://www.electrostandards.com/support/custom-product-request/. Stayed tuned on Electro Standards Labs News page for other new product announcements.
