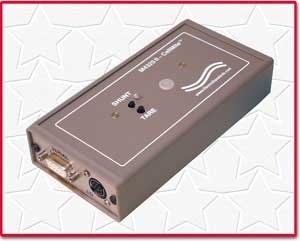

M4325 New Low-Cost, Mini-Sized, Super-Smart Digital Signal Conditioner!



Electro Standards Laboratories, Cranston, RI, has just announced that their new Low-Cost, Mini-Sized, Super-Smart Digital Signal Conditioner, Model 4325, is currently in production. This unit is available in a small, 5.5” x 2.75” x 1.2” size, or as an even smaller board that can be built into a load cell.



This Super-Smart Digital Signal Conditioner connects directly to a standard strain gauge transducer such as a load cell or extensometer, and generates a +/-10V analog output along with a serial digital output suitable for connection to a computer. The Super-Smart Model 4325 can compensate for transducer nonlinearities using its integrated six-point calibration capability not found in standard signal conditioners.



This compact Model 4325 is ideally suited for in-situ transducer conditioning and distributed process measurements. Its multi-drop RS232 serial port and simple command set allow for connection of multiple units in a serial network configuration. Features include nonvolatile memory for parameter and calibration storage, ability to select between two transducers, multi-point and mV/V calibration, remote sense excitation, and 24-bit internal resolution with 16-bit analog output. This unit is field-programmable for software updates.



For more information contact Dr. Raymond Sepe of Electro Standards Laboratories, 401-943-1164, email rsepe@ElectroStandards.com.



The Model 4325 has been featured in Sensors & Transducers e-Digest:
http://www.sensorsportal.com/HTML/DIGEST/september_04/Intelligent_signal_conditioner.htm



Dr. Raymond B. Sepe Jr.

Electro Standards Laboratories

36 Western Industrial Drive

Cranston, RI 02921 USA

Tel: 401-943-1164

Fax: 401-946-5790

EML: rsepe@ElectroStandards.com
