Overview

6-Channel Fiber Transmitter, Unidirectional Interface Converter

  • Copper Serial Input channels: 2-Channels RS422 Differential / 4-Channels RS232

INTRODUCTION:

The Model 4044 is a high speed 6-Channel ST Fiber to Copper Serial Uni-directional Interface Converter. Typical operating speeds are up to 10 Mbps for RS422; 115.2 Kbps for RS232.

FEATURES:

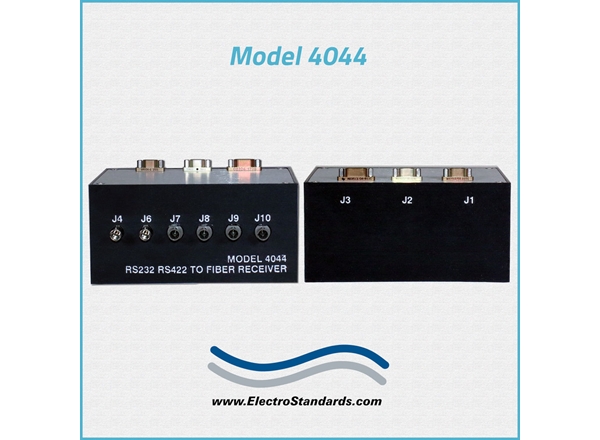

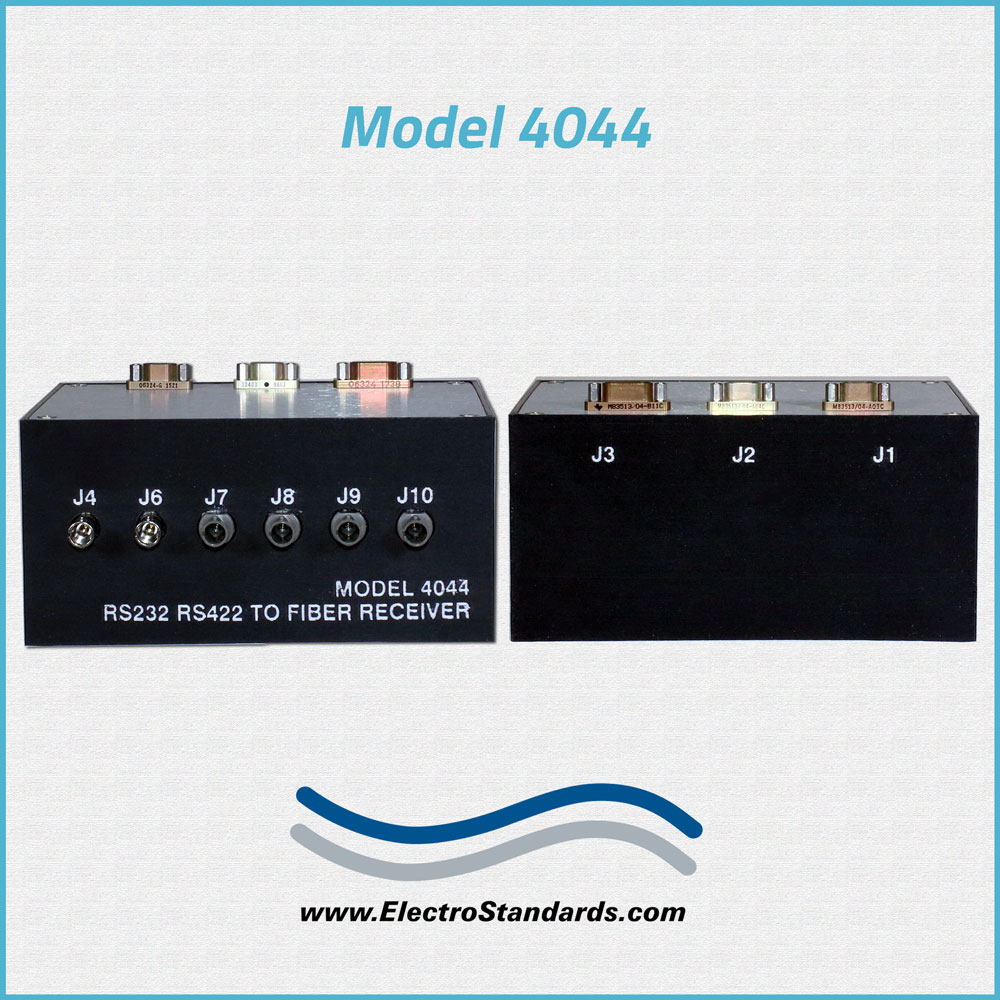

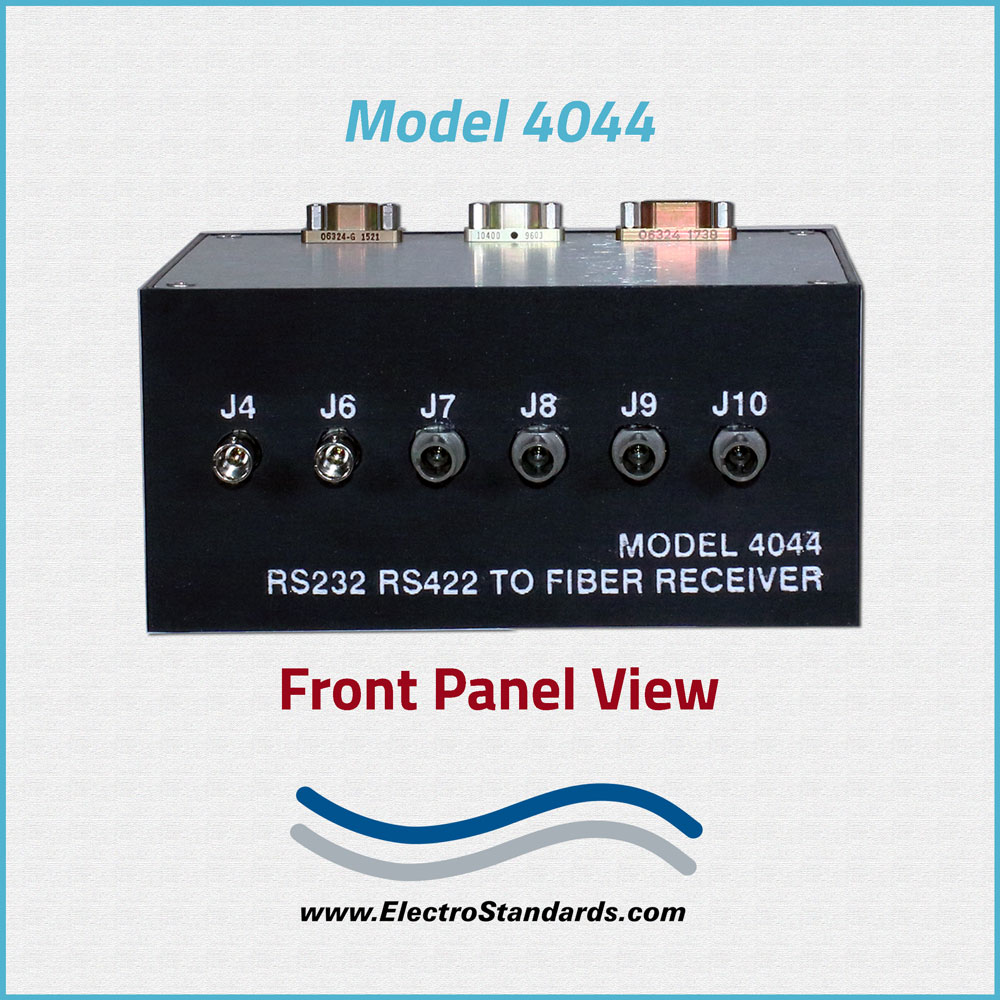

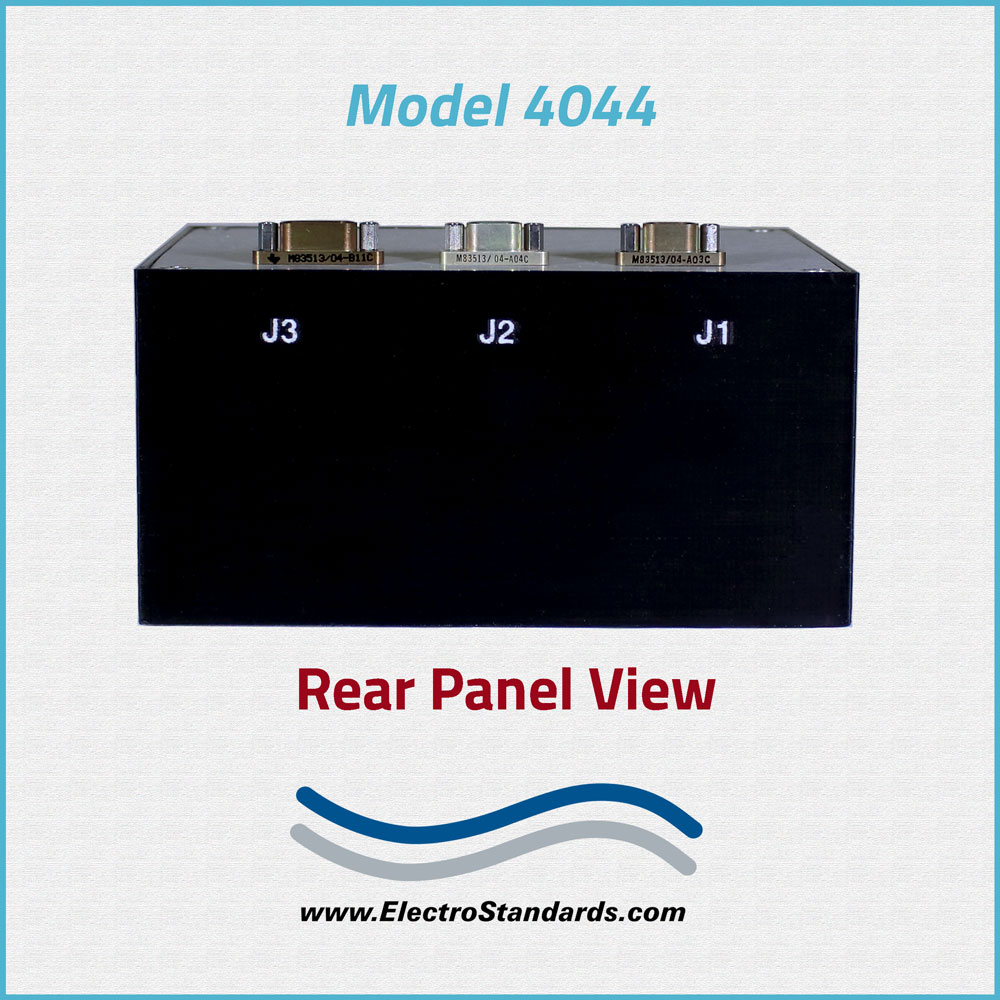

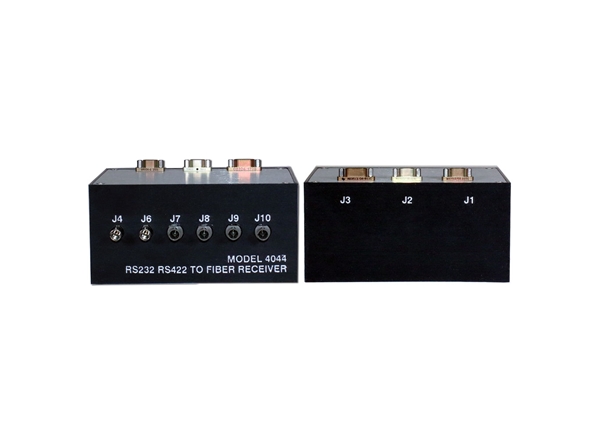

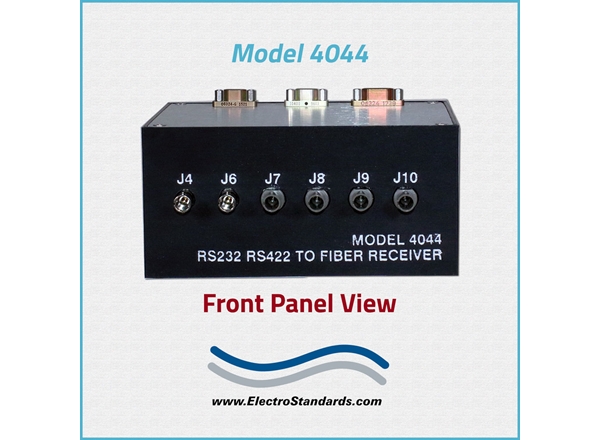

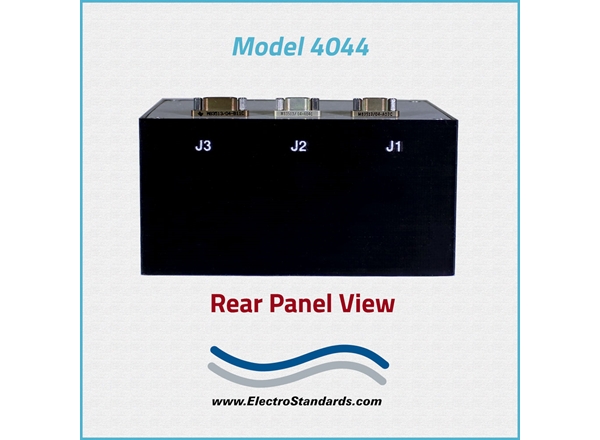

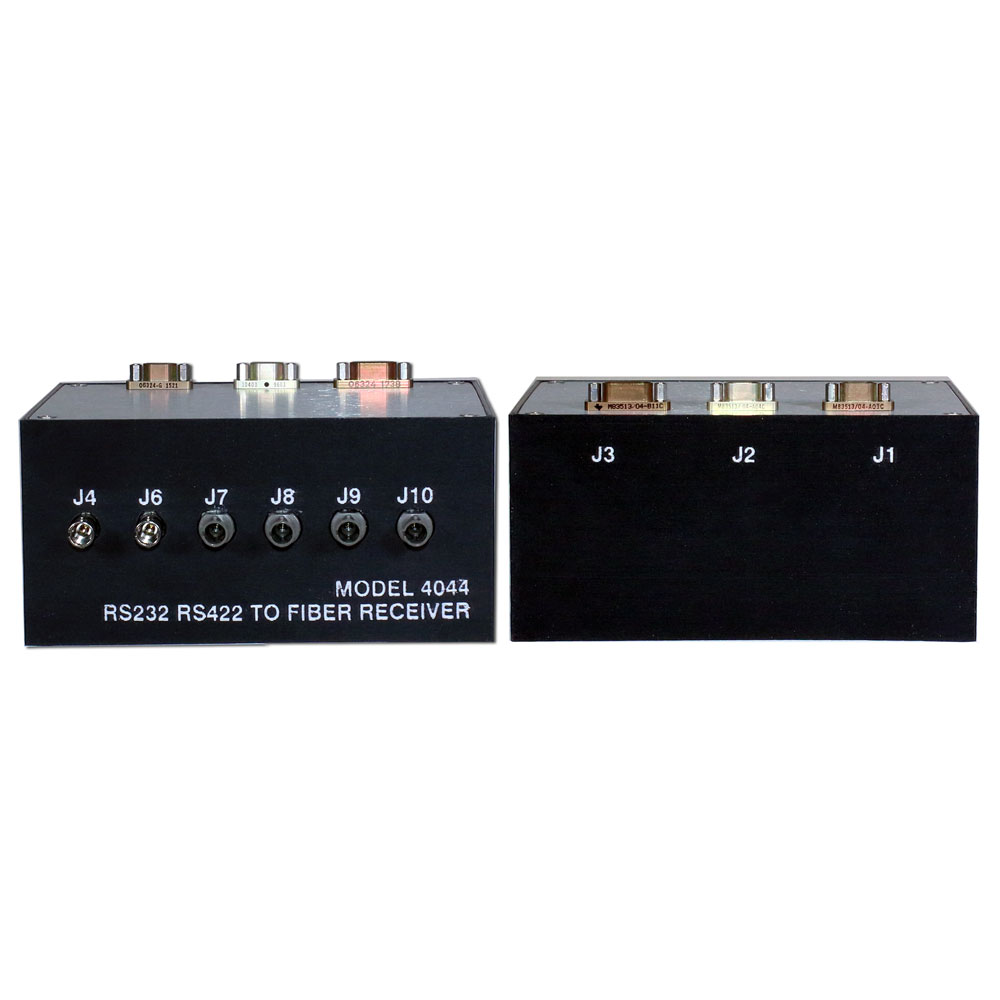

Model 4044 converts ST Duplex Fiber to Copper; 2-Channels; two channels (CH1, CH2) RS422 over a single 9-pin microD port (J2); 4-channels (J7, J8, J9) & 1-channel (J10) RS422 over a single 15-pin microD port (J3).
Supports constructing an optically isolated high speed communication link between connected devices.
Typical operating speeds are up to 10 Mbps for RS422 to fiber conversion, and 115.2 Kbps for RS232.

SPECIFICATIONS:

Optical Interface:

  • TX Power: 12 dBm
  • RX Sensitivity: -27.5 dBm
  • Wavelength: 850 nm, multimode
  • Fiber Size: Accepts 50/125 µm, 62.5/125 µm, or 100/140 µm

Fiber Polarity:

  • Logical 0 = Light ON/OFF: User Selectable via Jumper
  • Logical 1 = Light ON/OFF: User Selectable via Jumper

Copper Interface:

  • 2 Channels RS422
  • 4 Channels RS232
  • Bit Rate (nom.):
  • RS422: up to10 Mbps
  • RS232: up to 115.2 Kbps

Operating Environment:

  • 40°C to 85°C

Copper Connectors:

  • Copper I/O: RS422, 9-CNT J2 MicroD, Pin Connector: (M83513/03-A09N)
  • Copper I/O: RS232/RS422, 15 CNT J3 MicroD, Pin Connector: (M83513/03-B09N)

Glass Fiber Connectors:

  • Fiber optic ports Connectors ports (J7, J8, J9), 115.2 Kbps
    supporting RS232 over Fiber for speeds up to 115.2 Kbps.
  • Fiber optic connectors ports (J4, J6, J10), are high speed supporting
    10 Mbps RS422 over Fiber.

Power Connector:

  • Supply Voltage: (9.9 - 35) VDC
  • 9-Socket- J1; M83513/04-A09N

Mechanical:

  • Size:  5” x 4.71” x 2.83” [127mm x 119.6mm x 71.9mm]
  • Weight:  0.921 Lbs. [0.421kg]

Ground Relationship / Configuration:

  • RS232: Signal GND tied to digital GND, both isolated from Chassis GND.
    RS422 Channels: 1000 Ohm impedance between Signal GND and
    and Digital GND, both isolated from Chassis GND

APPLICATION:

The converter provides an industrial solution for applications requiring a single point-to-point or a communication link over short and long distances. Application include: PC-to-PC long distance communications, factory automation, data collection devices, barcode readers, time clocks, scales, data entry terminals, ATM’s and serial communications in harsh environments.
The Model 4044 is designed to operate from -40°C to 85°C. The unit features ESD protection circuitry on the copper interfaces.  The power input is protected from transients, as well as, over voltage and over current. The converter is designed to operate from 9.9 VDC to 35 VDC, via the 9-pin microD connector.

6-Channel Fiber Transmitter, Unidirectional Interface Converter Web Application

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network interface converters call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch
