Overview

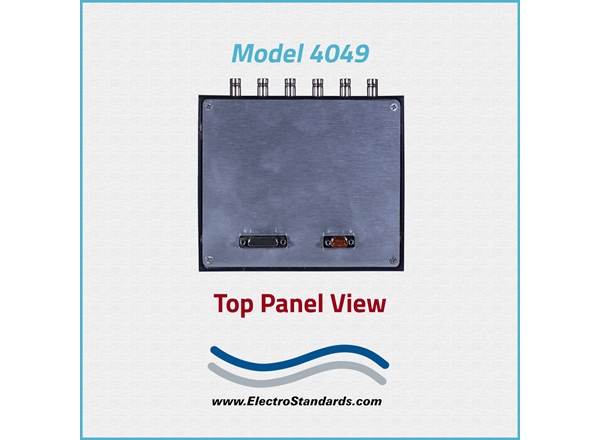

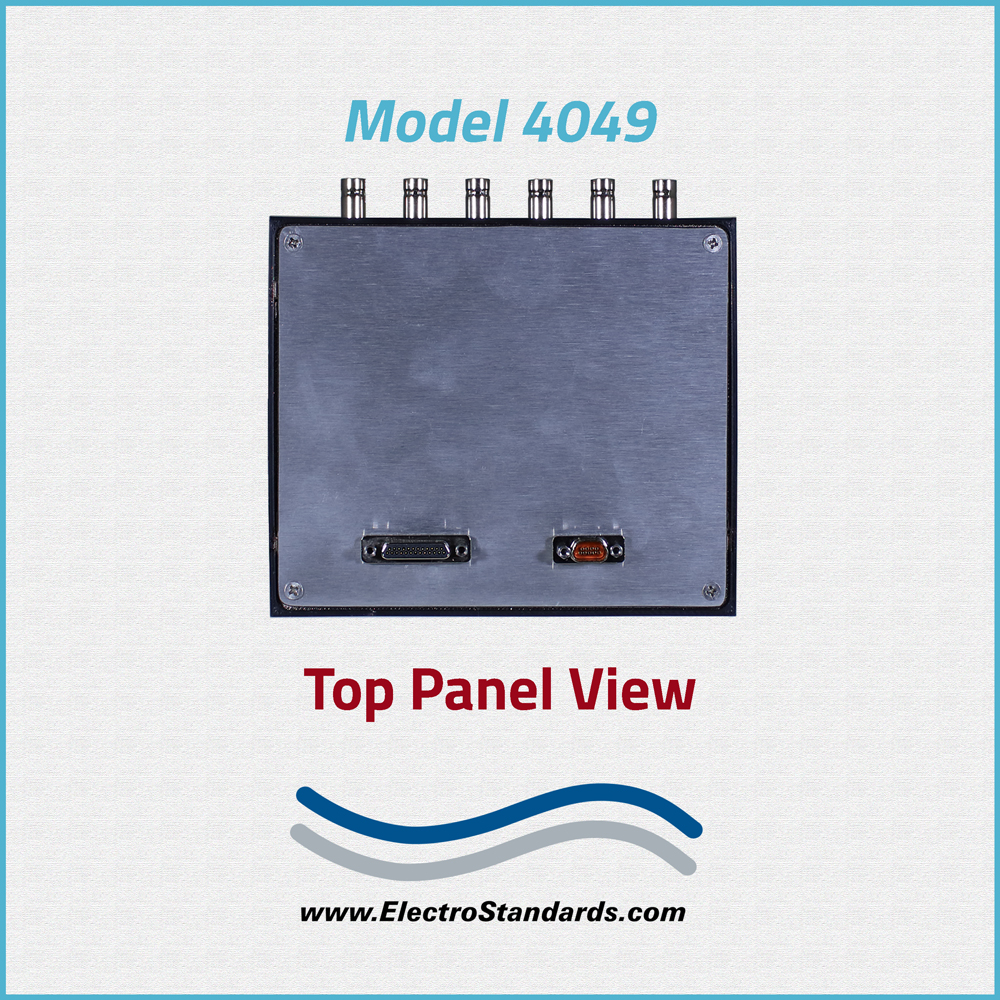

6-Channel ST Fiber Receiver Unit, Unidirectional Interface Converter

Copper Interface: RS422, 9-CNT Micro-D, socket connector (J2) (M83513/01-DN)

INTRODUCTION:

The Model 4049 is a high speed 6-Channel ST Fiber to Copper Serial Uni-directional Interface Converter. Typical operating speeds are up to 10 Mbps for RS422.

FEATURES:

The Model 4049 is designed to operate from -40Cº to 85ºC. The unit features ESD protection circuitry on all copper interfaces. The power input is protected from over voltage and over current transients. The Model 4049 converter can be powered from a power source ranging from 9.9 VDC to 35VDC via the 9-Pin Micro-D connector. The unit features ESD protection circuitry on the copper interfaces.

SPECIFICATIONS:

Copper Connectors:

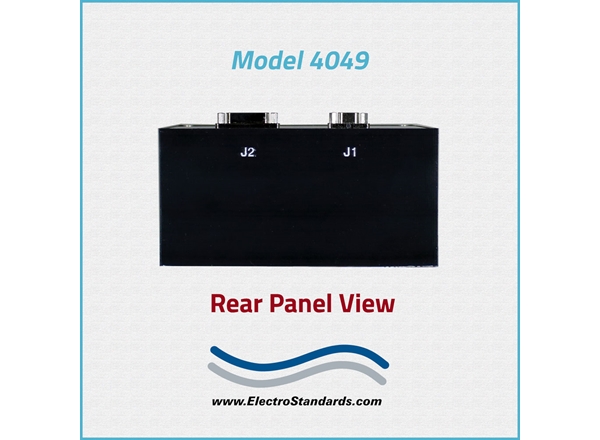

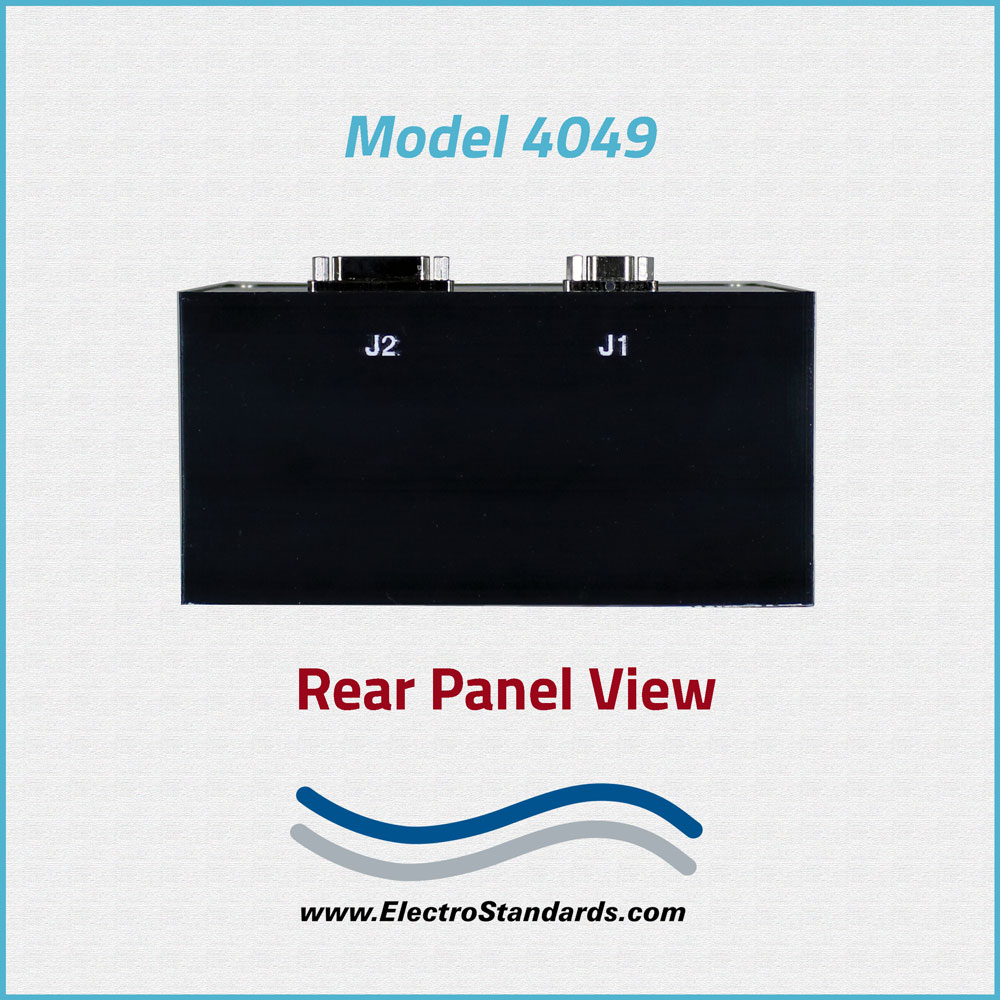

Copper I/O: RS422, 9-CNT J2 Micro-D Pin Connector: (M83513/01-DN)

Glass Fiber Connectors:

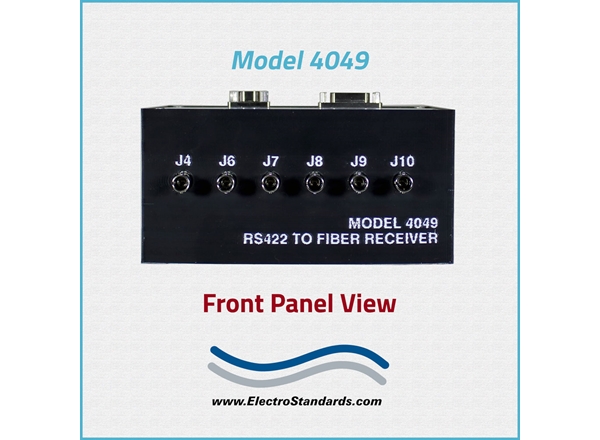

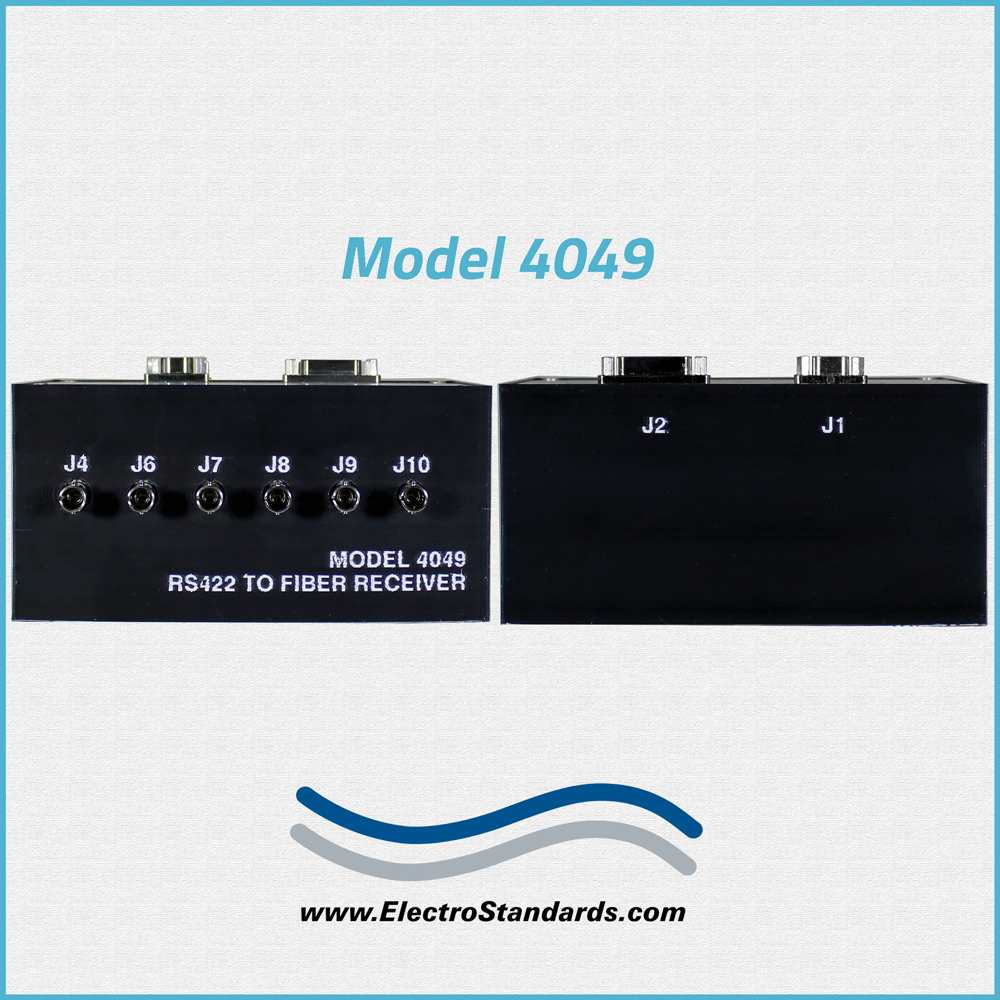

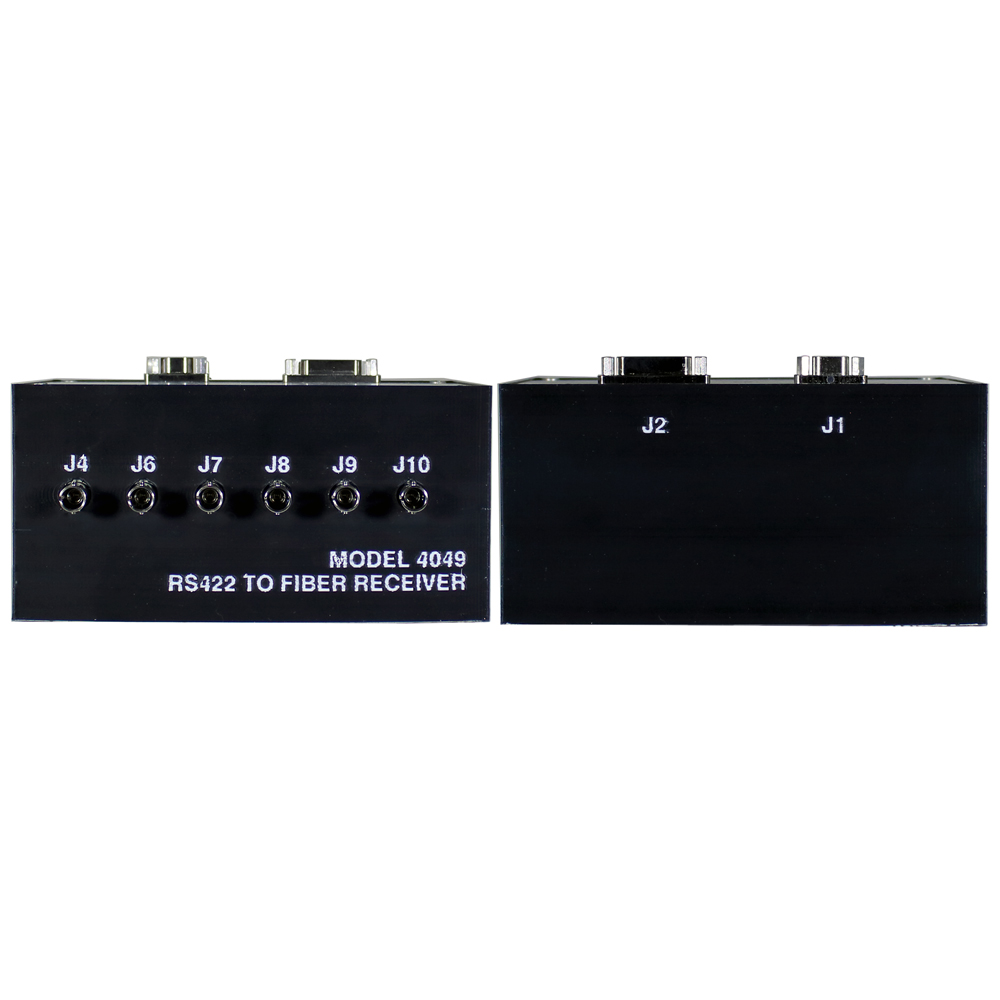

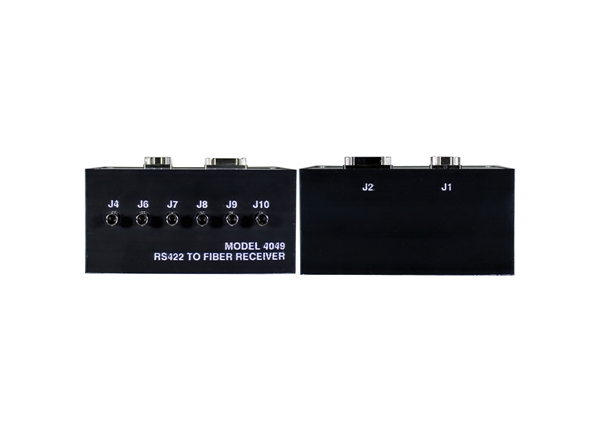

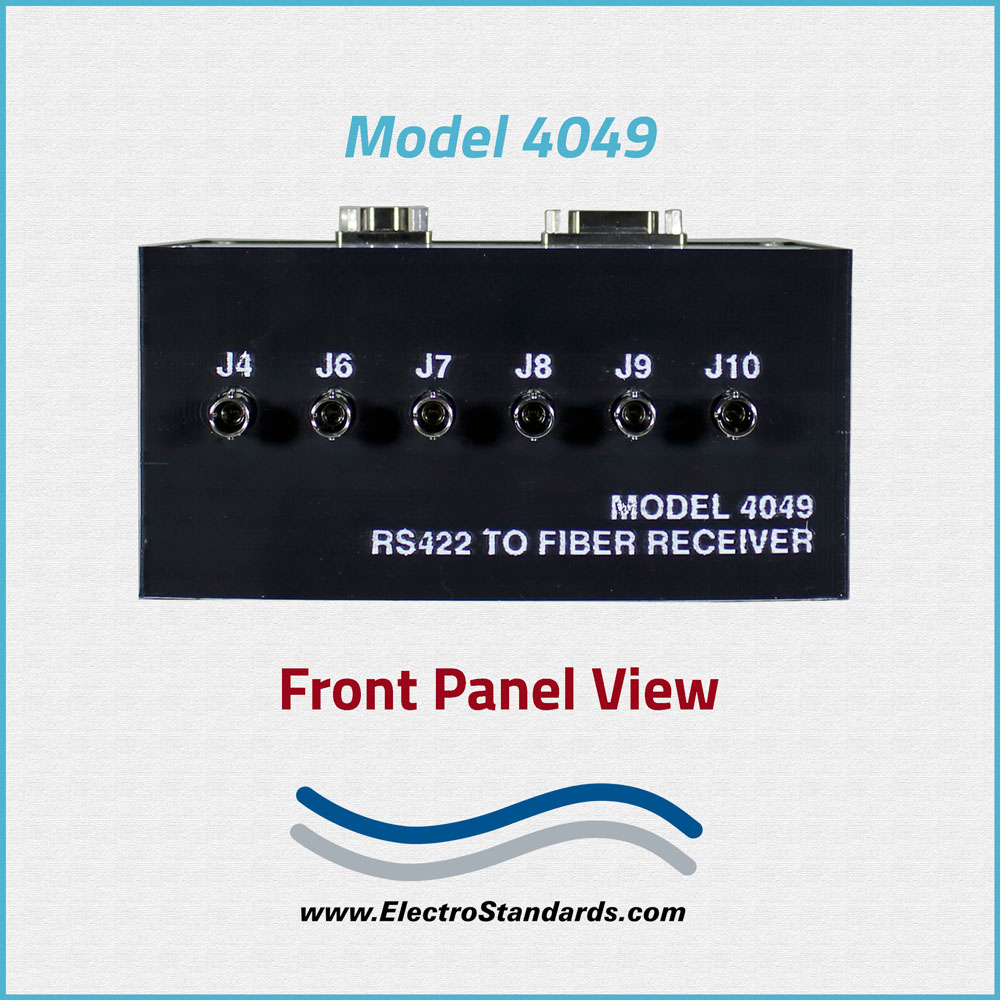

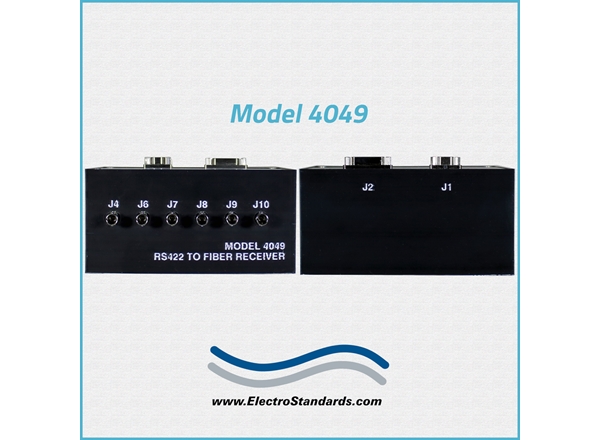

(6) ST Fiber Optic connectors for Ports (J4, J6, J7, J8, J9, and J10) supporting RS422 over fiber for high speeds up to 10 Mbps

Copper Interface:

RS422,9-CNT Micro-D, socket connector (J2) (M83513/01-DN).

Optical Interface:

TX Power: 12 dBm
Optical Budget: 15 dB
Wavelength: 850nm, multimode
Fiber Size: Accepts 50/125 µm, 62.5/125 µm, or 100/140 µm

Fiber Polarity:

Logical 0 = Light ON/OFF: User Selectable via Jumper
Logical 1 = Light ON/OFF: User Selectable via Jumper

Operating Environment:

40°C to 85°C

Bit Rate (nom.):

RS422: up to 10 Mbps.

Network Configurations:

RS422 Point-to-Point

Power:

Input Power: 9.9 VDC to 35VDC
Connector: 9-CNT Micro-D, (Socket connector (M83513//02-AN)
Connections: Pin 9 (VCC), Pin 5 (GND)

Mechanical:

Size: 5” x 4.71” x 2.83” [127mm x 119.6mm x 71.9mm]
Weight: 0.843 Lbs. [0.383 kg]

Ground Relationship / Configuration:

1000 Ohm impedance between Signal GND and Digital GND, both isolated from Chassis GND.

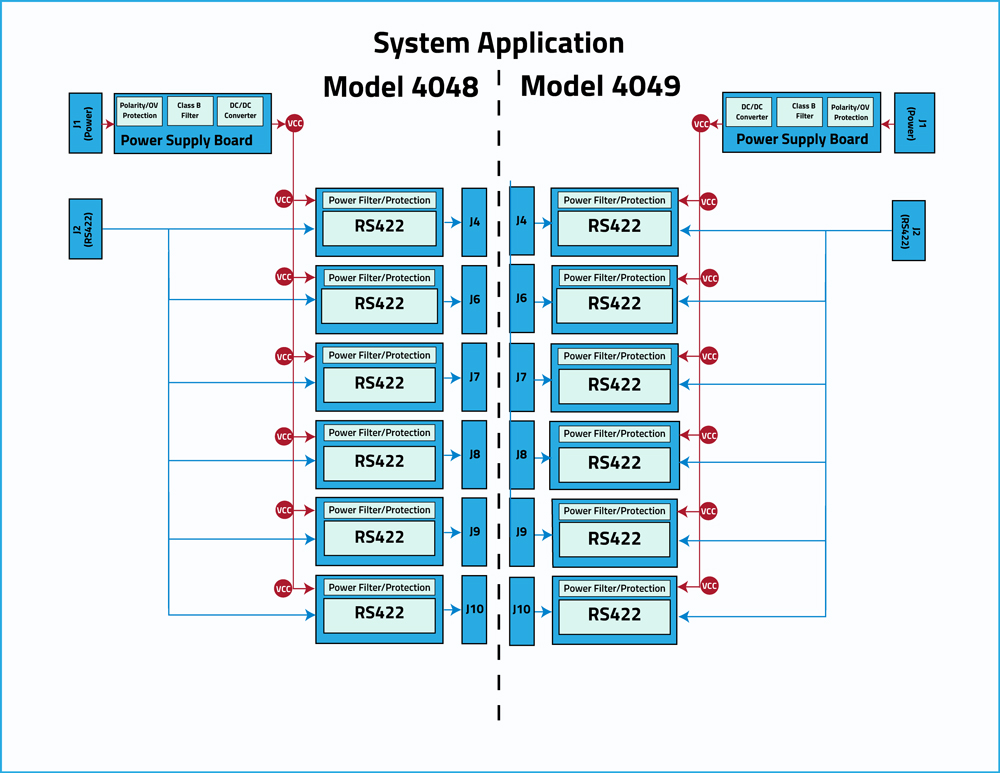

APPLICATION:

The converter provides an industrial solution for applications requiring a single point-to-point or a communication link over short and long distances. Application include PC-to-PC long distance communications, factory automation, data collection devices, barcode readers, time clocks, scales, data entry terminals, ATM’s and serial communications in harsh environments.
