* Cat5e Simultaneous Control * Catalog # 303234 - Model 7234 4-Channel RJ45 A/B Switch

    Model 7234 4-Channel RJ45 A/B SwitchModel 7234 4-Channel RJ45 A/B SwitchModel 7234 4-Channel RJ45 A/B SwitchModel 7234 4-Channel RJ45 A/B Switch
Click image to enlarge

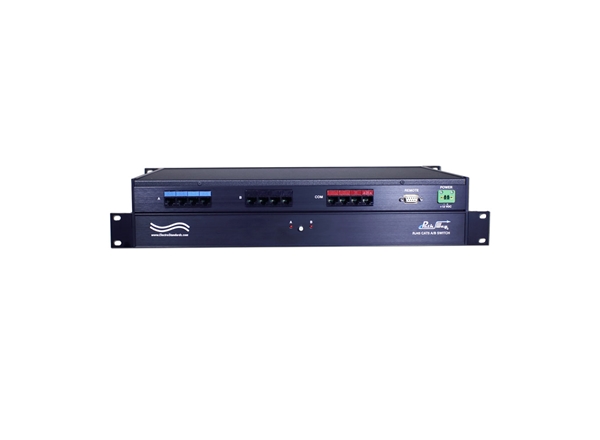

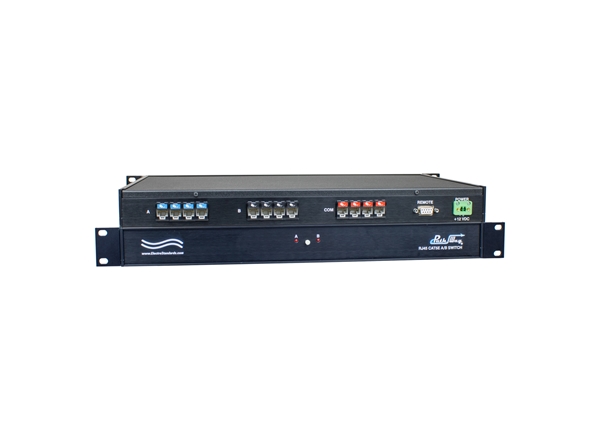

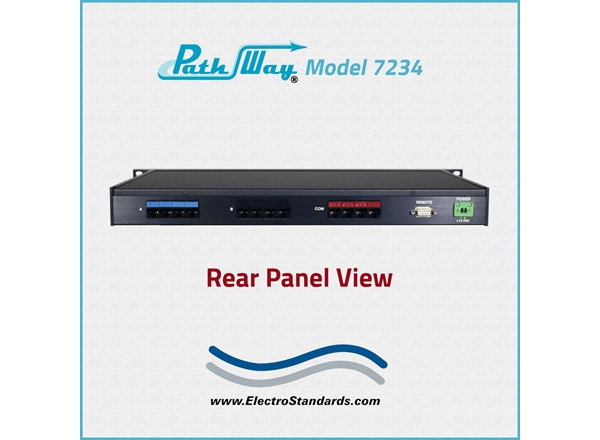

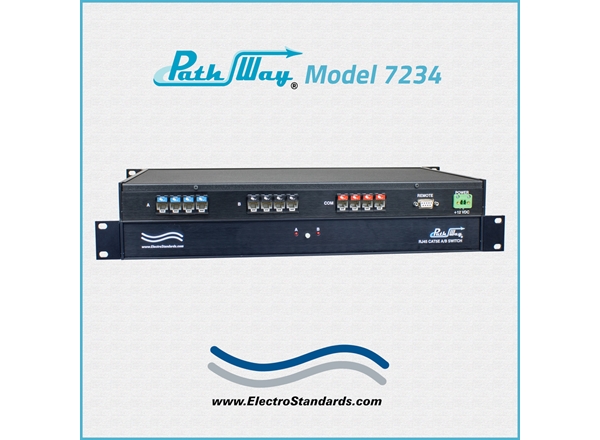

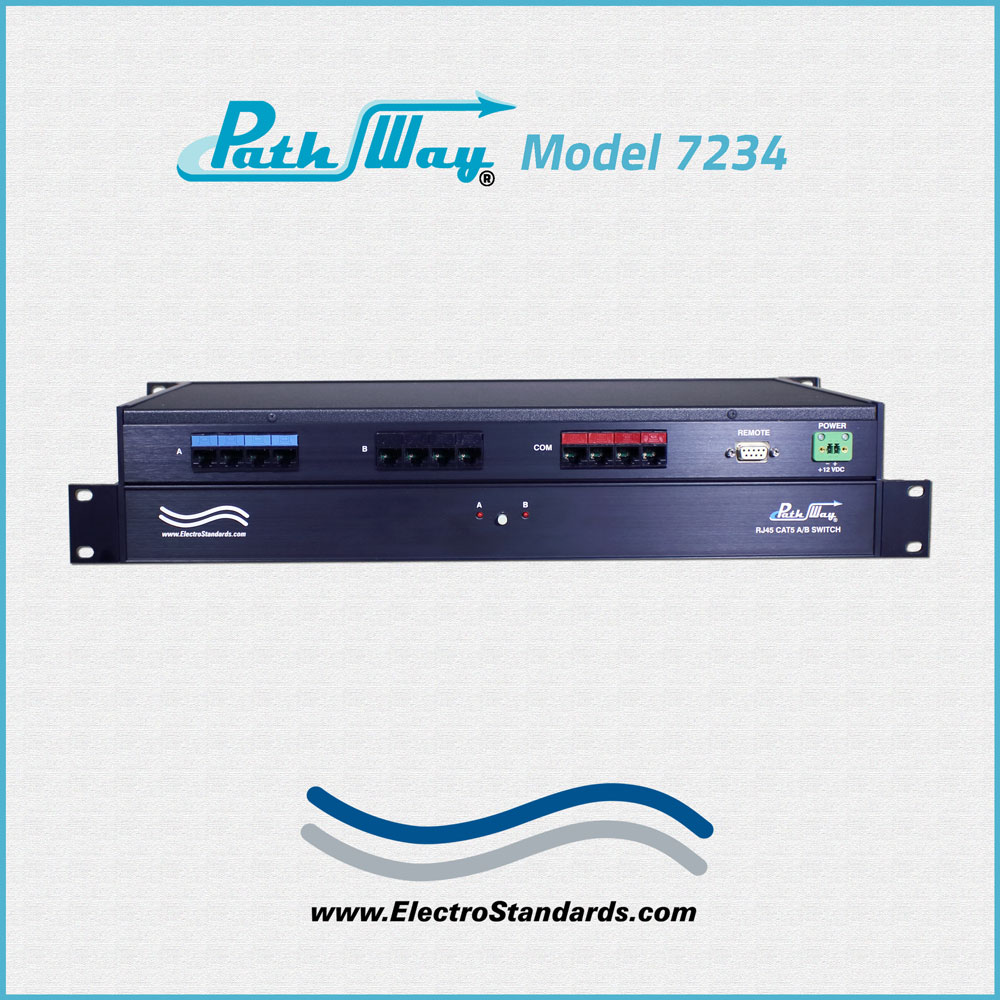

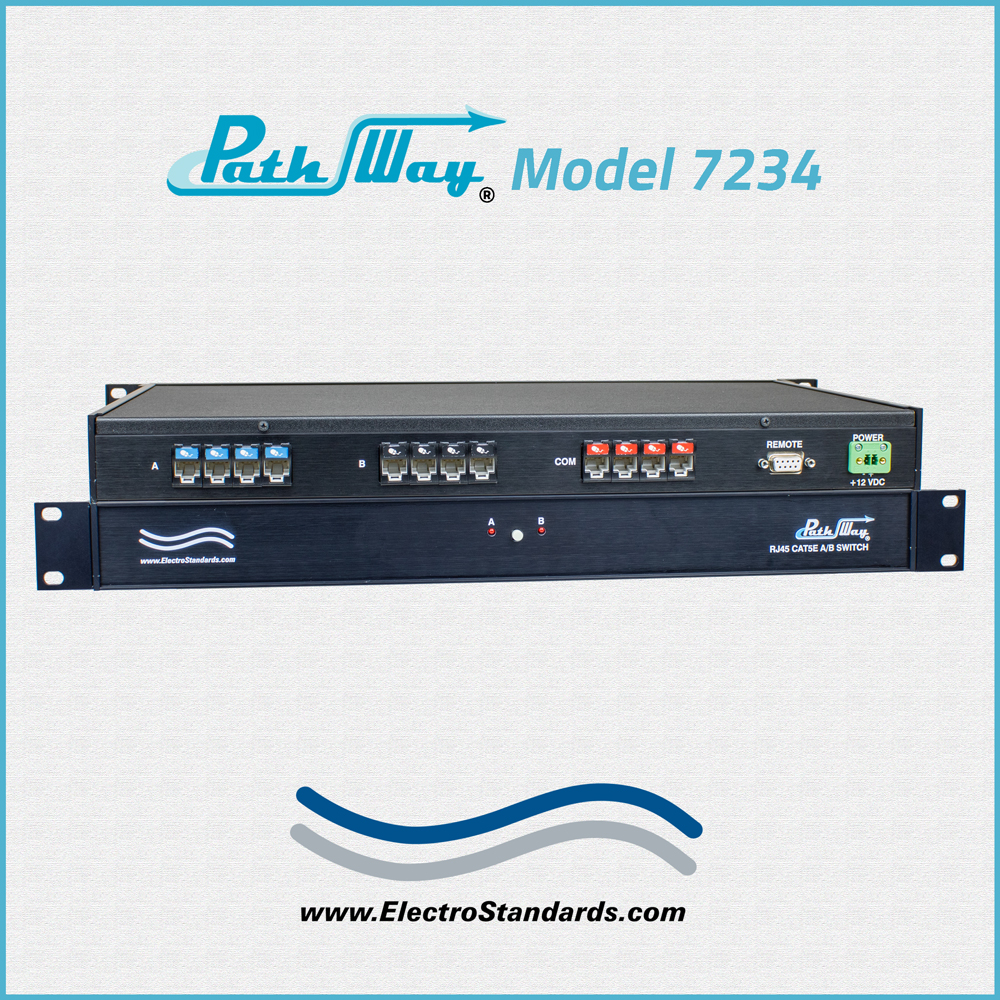

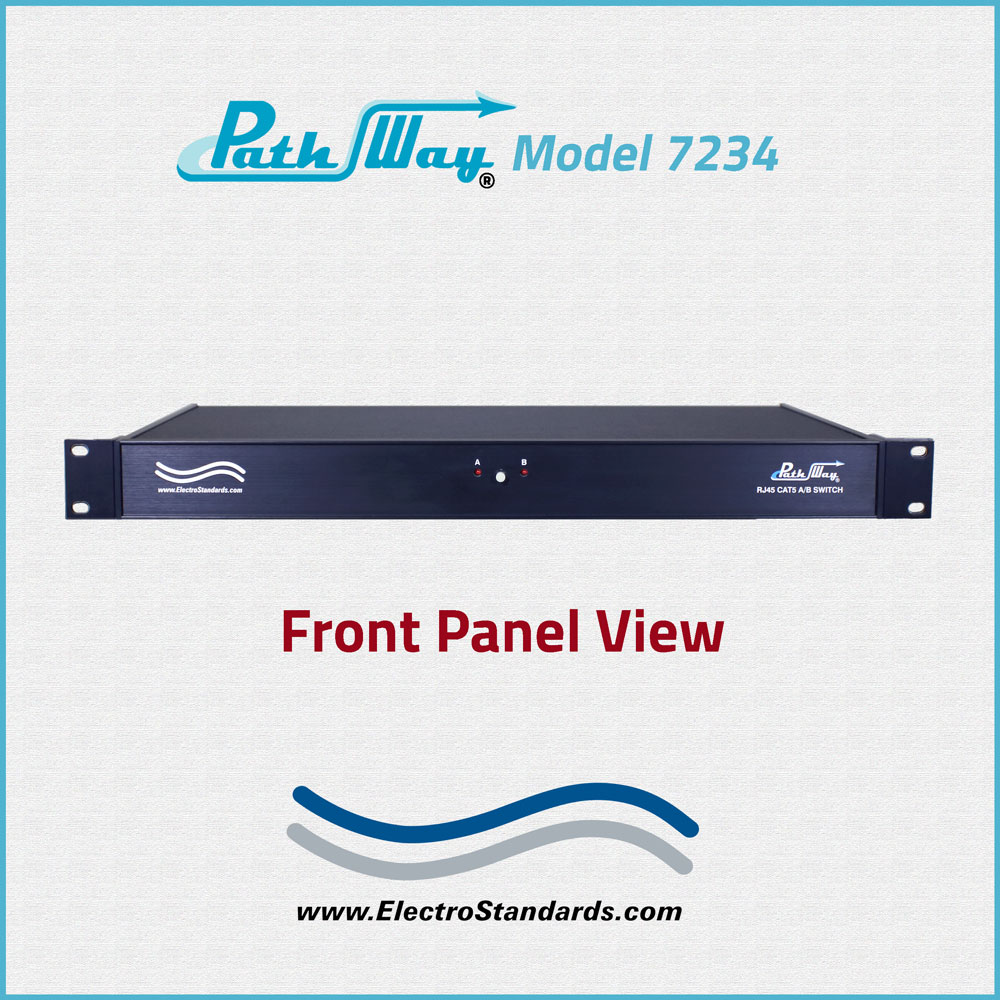

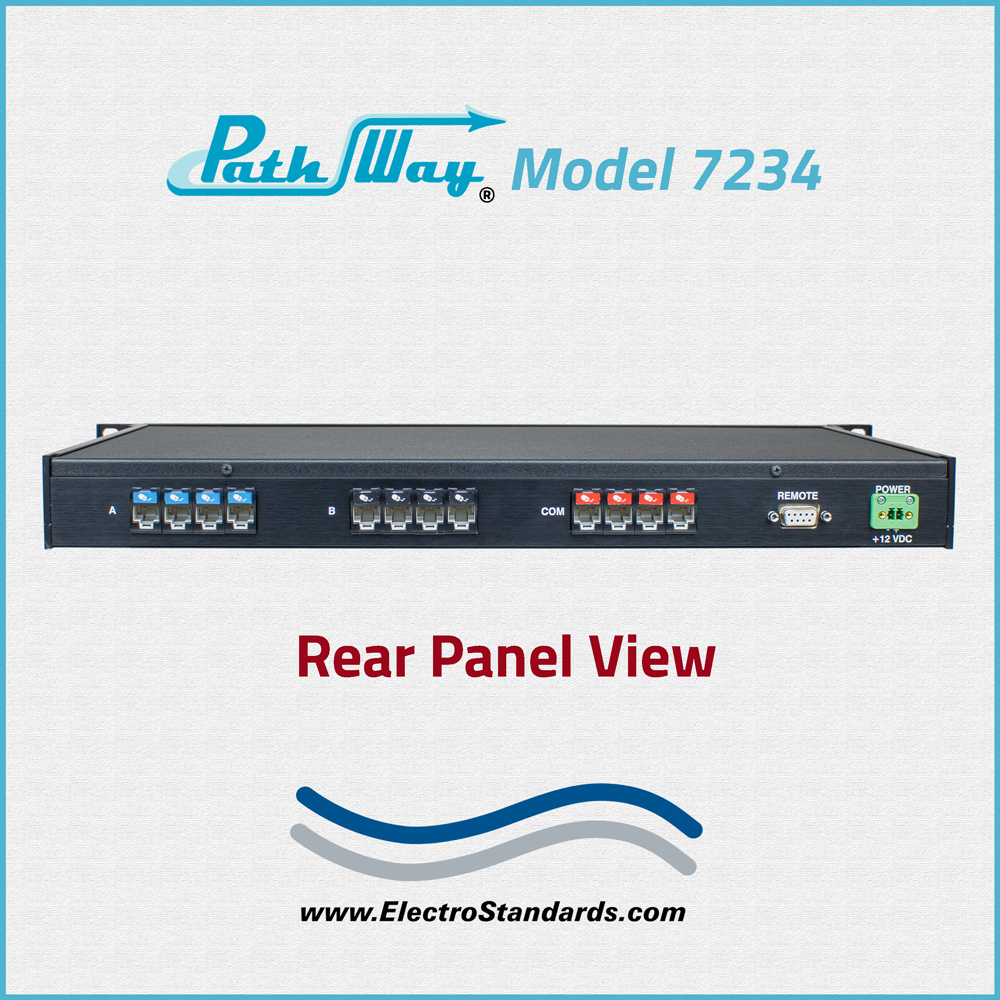

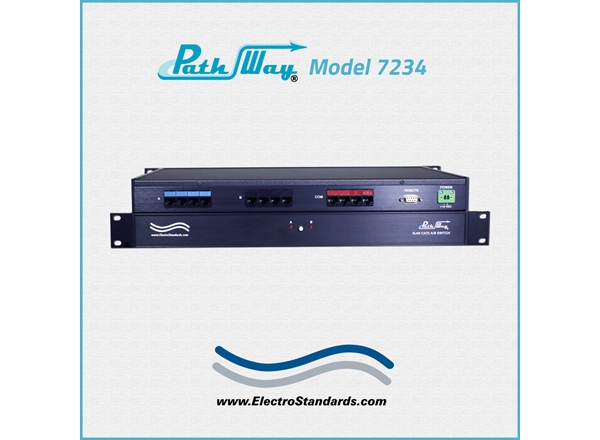

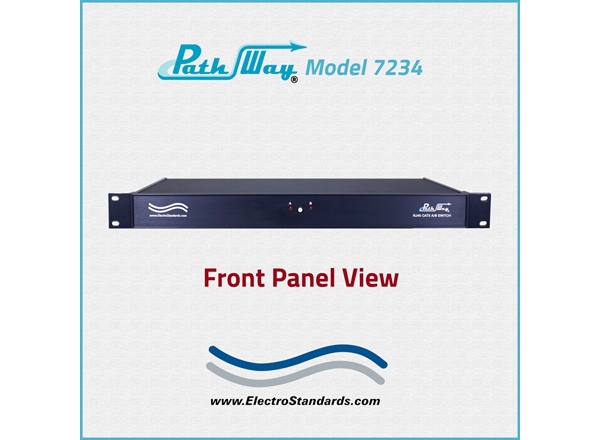

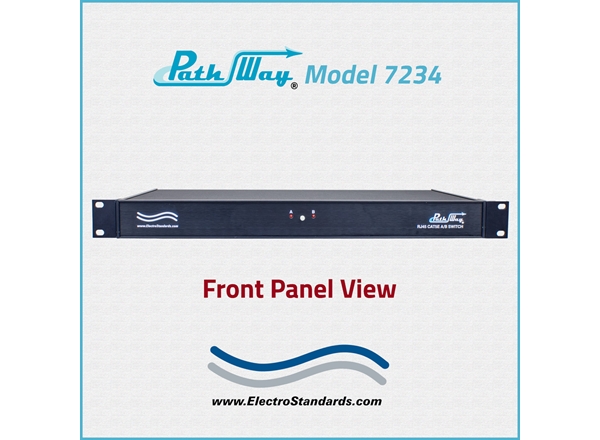

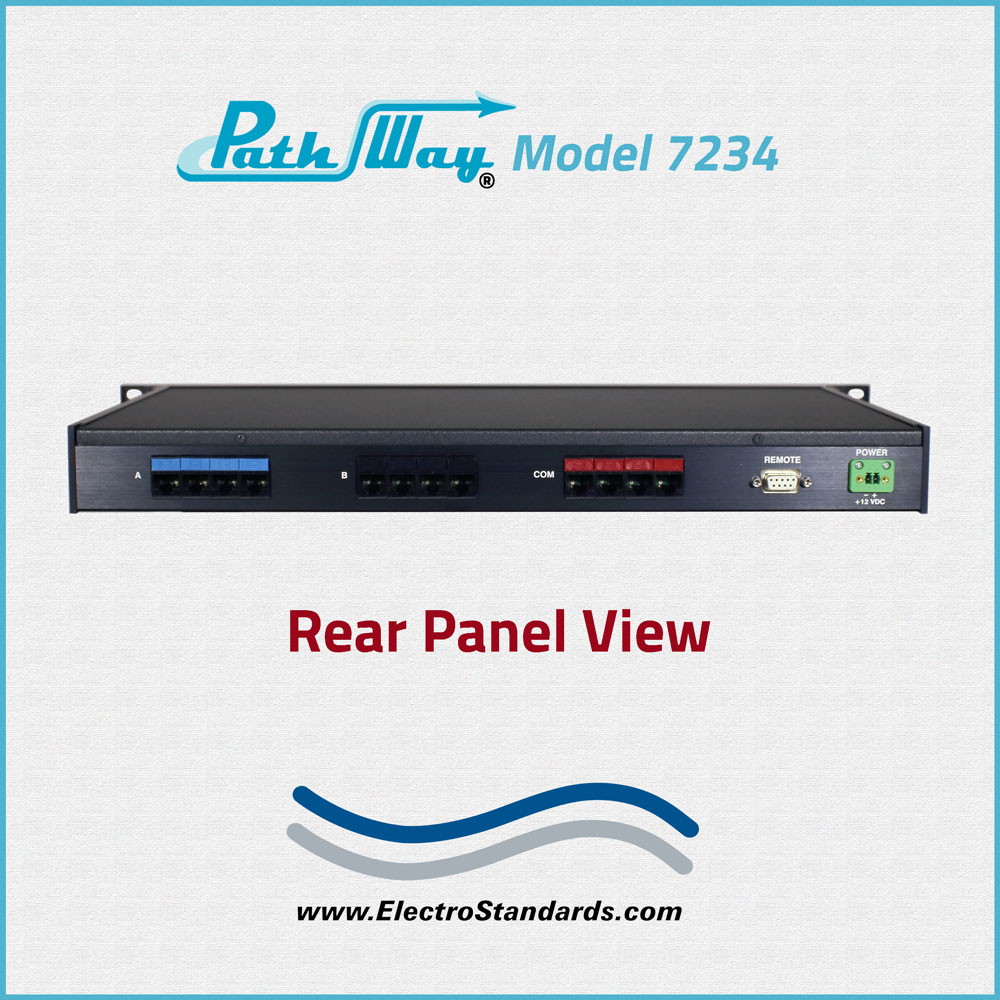

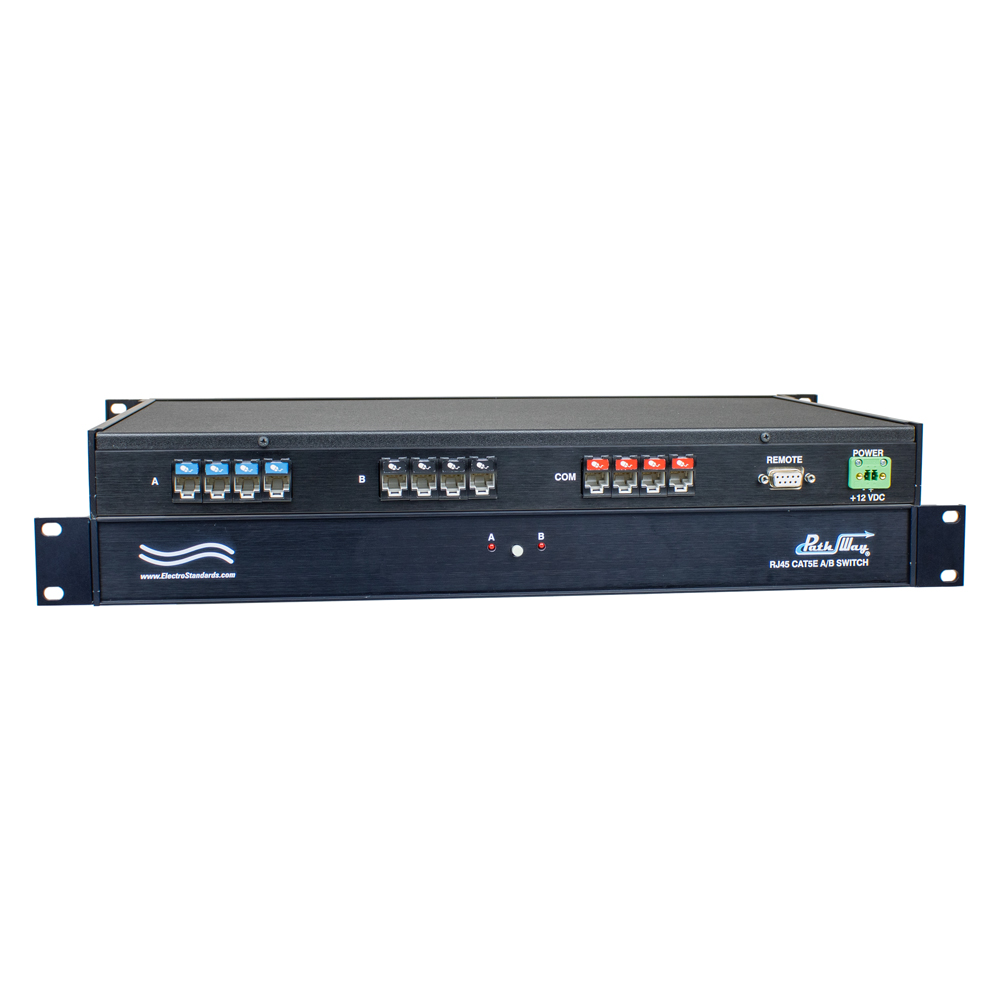

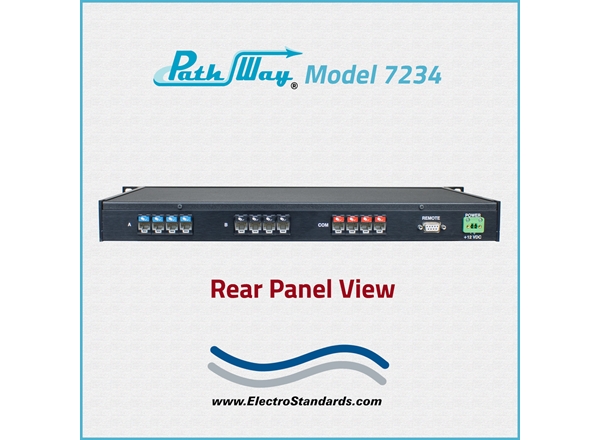

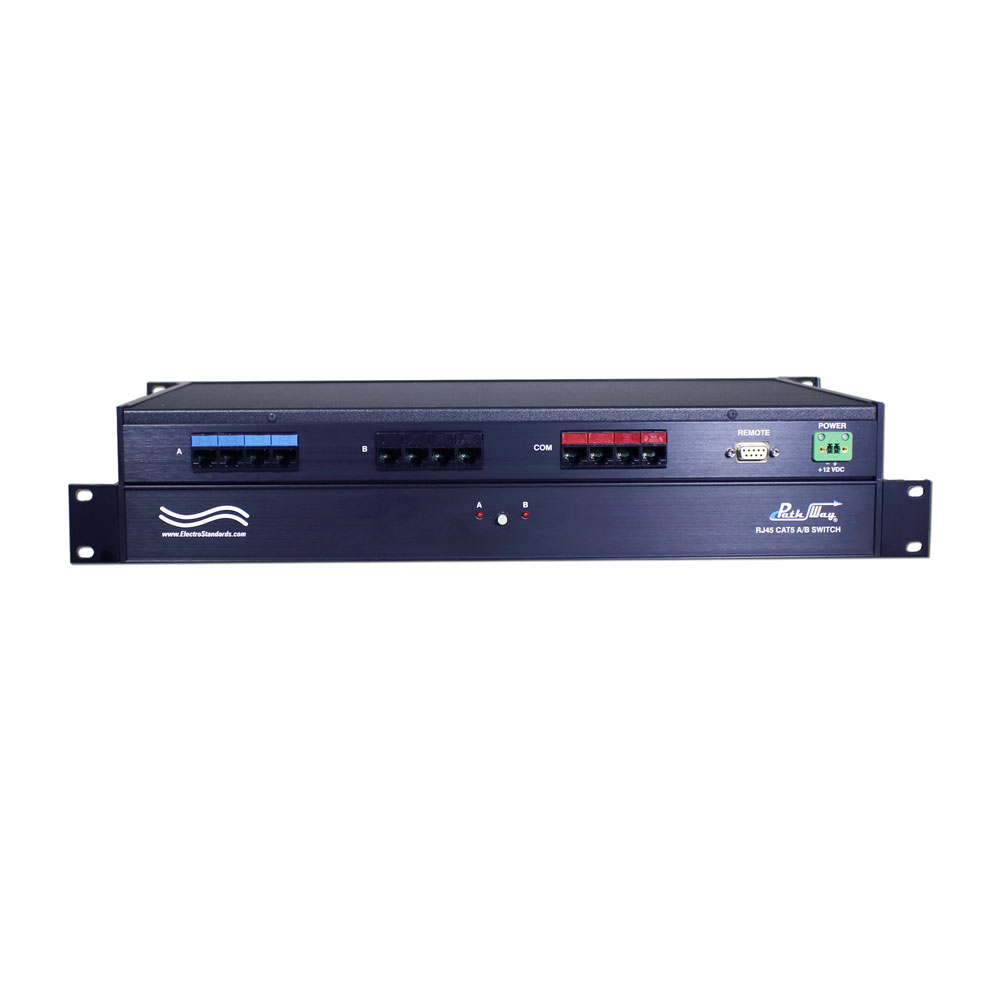

    • Model 7234 4-Channel RJ45 A/B Switch
    • Model 7234 4-Channel RJ45 A/B Switch
    • Model 7234 4-Channel RJ45 A/B Switch
    • Model 7234 4-Channel RJ45 A/B Switch
Base Price:
$2,487.00
Catalog No: 303234
Model No: 7234
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:4
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8 per 4 channels - 32 total
Remote Port:DB9
Local Control:Pushbutton
Feature:Multi Interface/Triple Channel/Remote Control
Protocol:Dry contact logic

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

PathWay®

Path Way® Remotely Controllable Network Switch, RJ45
Model 7234 Quad-Channel RJ45 Cat5e A/B Switch with Remote Control Port

  • Quickly and easily switch all four RJ45 channels simultaneously!

SPECIFICATIONS:

  • PORT CONNECTORS: (12) RJ45 female connectors; three labeled A, B, and Common for each channel.

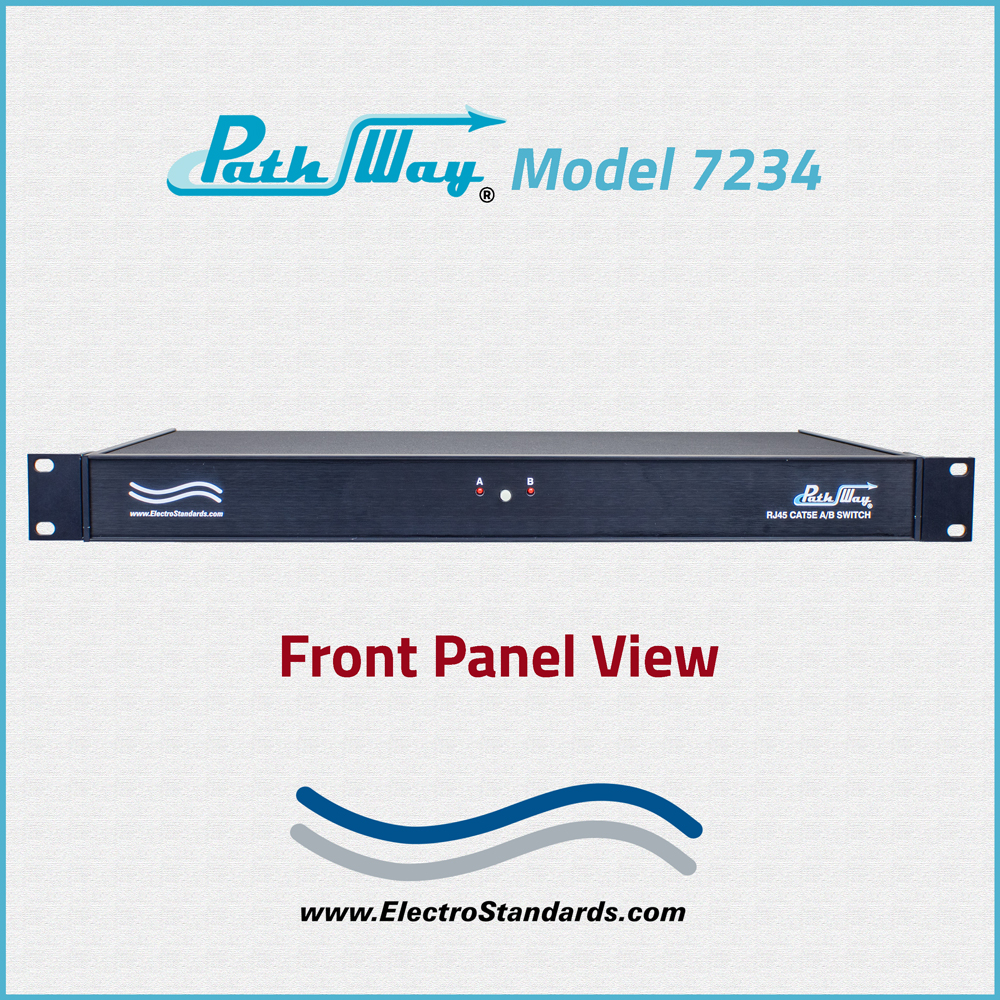

  • FRONT PANEL CONTROL: (1) Manual Pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts dry contact closure switch commands for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0"W x 1.75"H x 8.0"D (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approx. 4.9 lbs. (2.2 kg)PathWay® Model 7234 Quad Channel Cat5e RJ45 A/B Application with Contact Closure Remote Control:

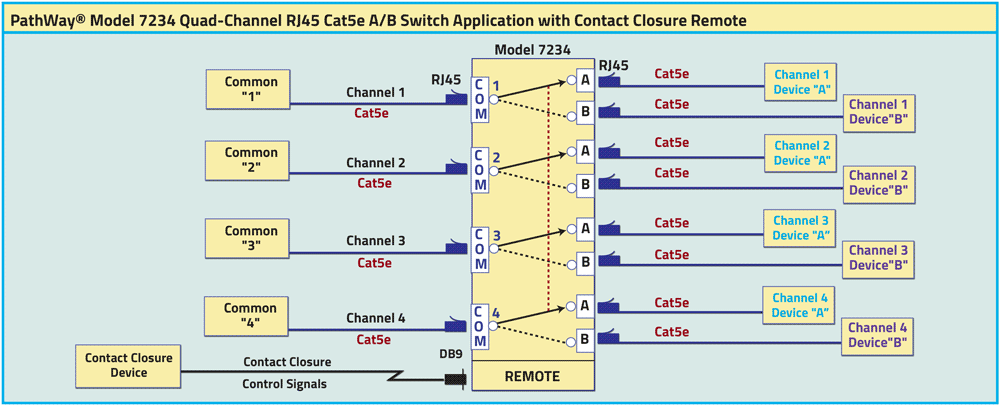

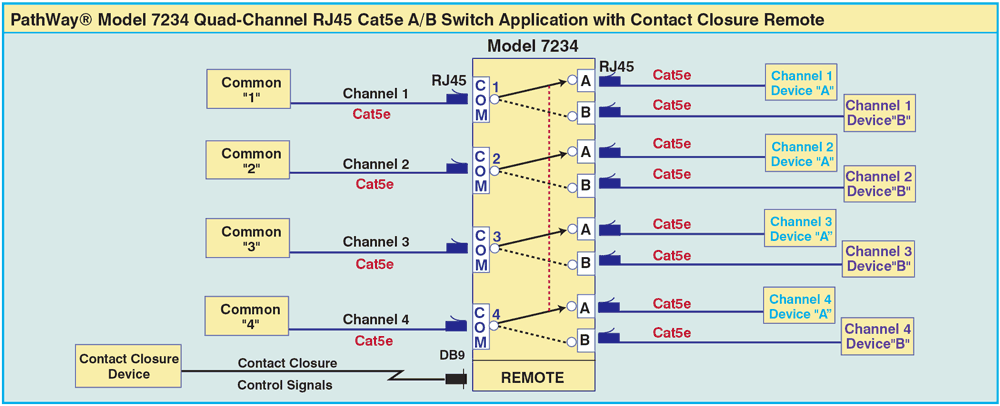

Model 7234 allows the user to simultaneously switch all four Cat5e RJ45 channels. The drawing illustrates for each channel a COMMON device connected to the COMMON port accessing two separate devices.
