Catalog # 306195 - Model 6195 SC Duplex A/B/C/D Fiber Switch

    SC Duplex A/B/C/D Fiber SwitchSC Duplex A/B/C/D Fiber SwitchSC Duplex A/B/C/D Fiber SwitchSC Duplex A/B/C/D Fiber Switch
Click image to enlarge
    • SC Duplex A/B/C/D Fiber Switch
    • SC Duplex A/B/C/D Fiber Switch
    • SC Duplex A/B/C/D Fiber Switch
    • SC Duplex A/B/C/D Fiber Switch
Base Price:
$7,945.00
Catalog No: 306195
Model No: 6195
Product Type:Switches: Fiber Optic
Positions:4
Cable Type/Port Connector:SC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:RS232 Serial
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:50/125
Fiber Type:Duplex
Remote Port:DB9
Local Control:Pushbutton
Mirror Technology:OO
Feature:Switching time less than 1 msec.
Speed:Giga
Wavelength Nano:850

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

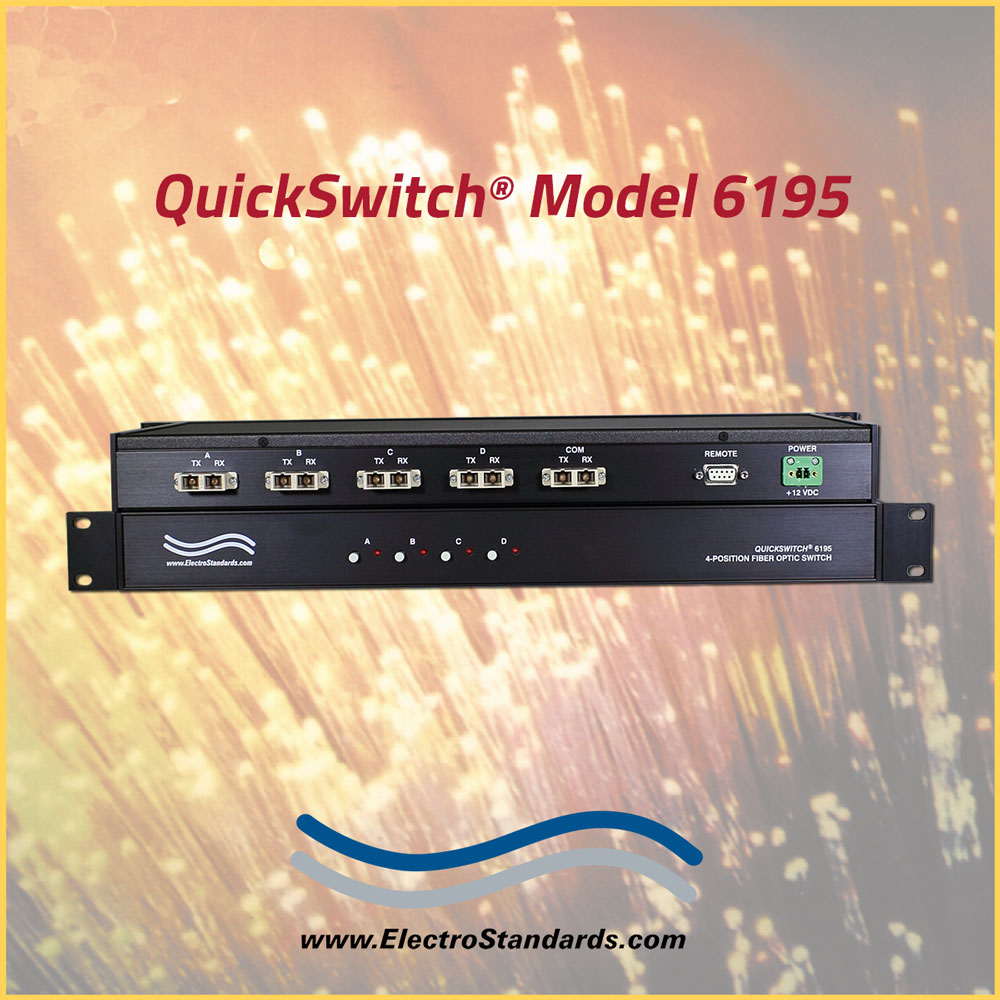

QuickSwitch® 6195 All-Optic SC Duplex A/B/C/D Switch with Serial Remote Control

  • Ideal for secure systems and networks applications.

SPECIFICATIONS:

  • PORT CONNECTORS: (5) SC Duplex Fiber Optic connectors, A, B, C, D and COMMON.

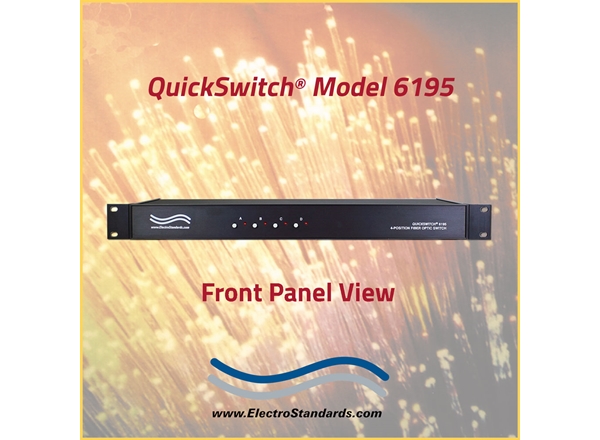

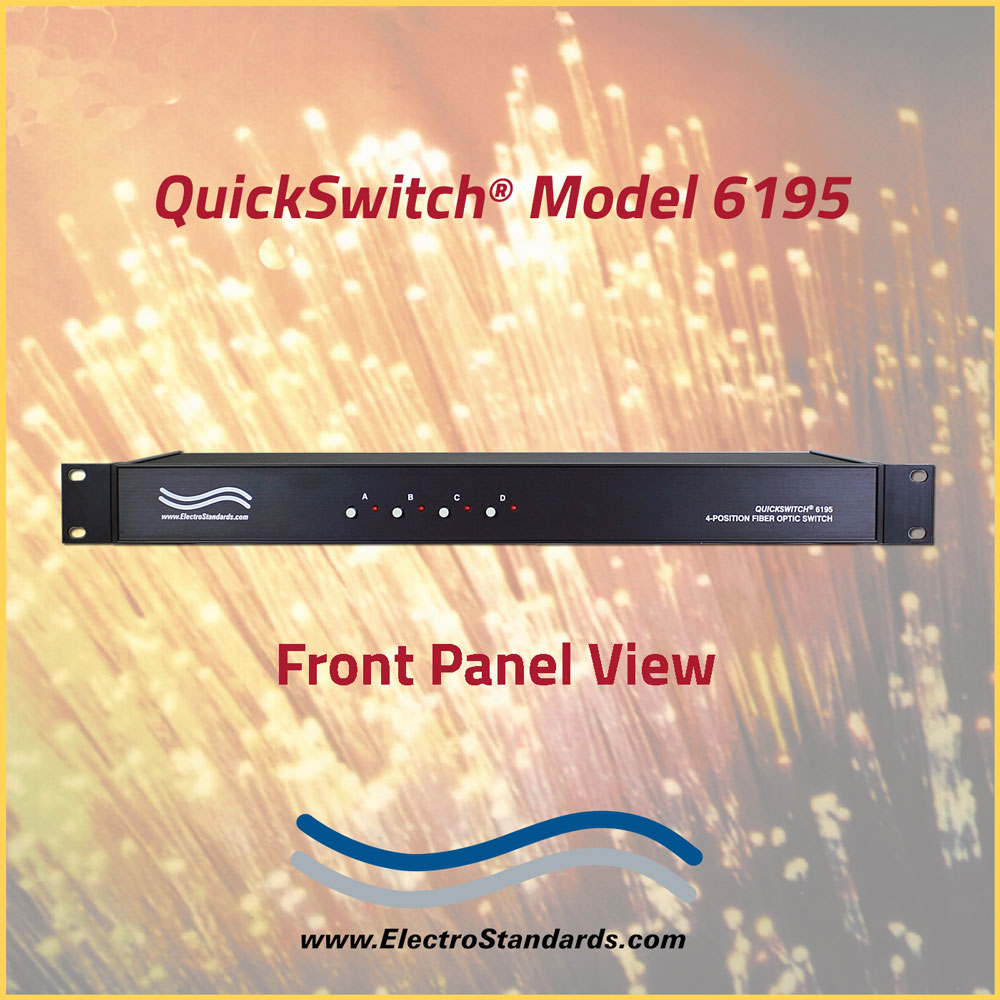

  • FRONT PANEL CONTROLS: (1) pushbutton allows local switching.
  • DISPLAY: (4) Front panel LED's display switch position and power status.

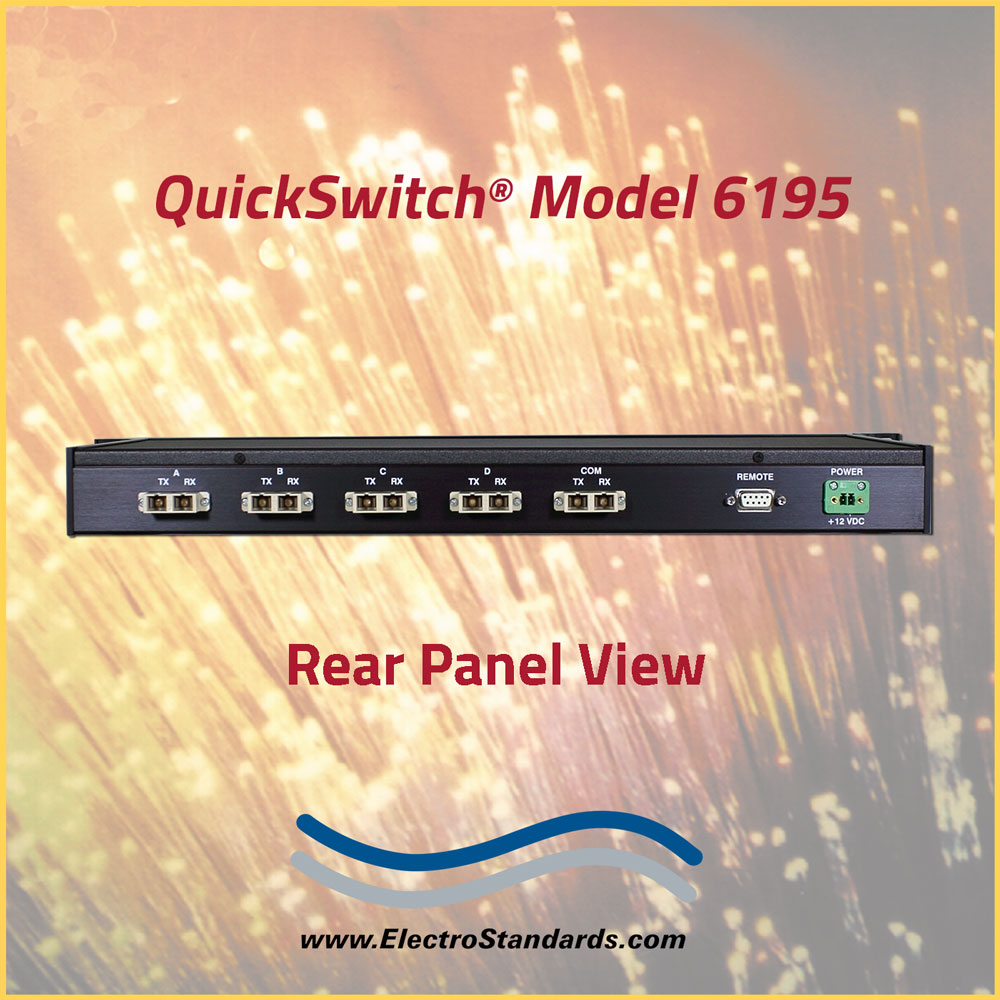

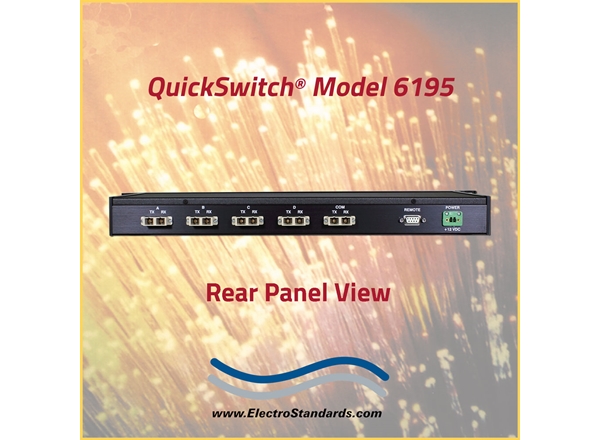

  • REMOTE: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial data for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • FIBER SIZE: 50/125 micron
  • WAVELENGTH: 850 nm
  • DIMENSIONS: 19" W x 1.75" H x 8.82" D. (48.3 x 4.5 x 22.5 cm)
  • WEIGHT: Approximately 4.7 lbs. (2.2 kg)

QuickSwitch® SC Duplex A/B/C/D Application w/ Serial Remote control:

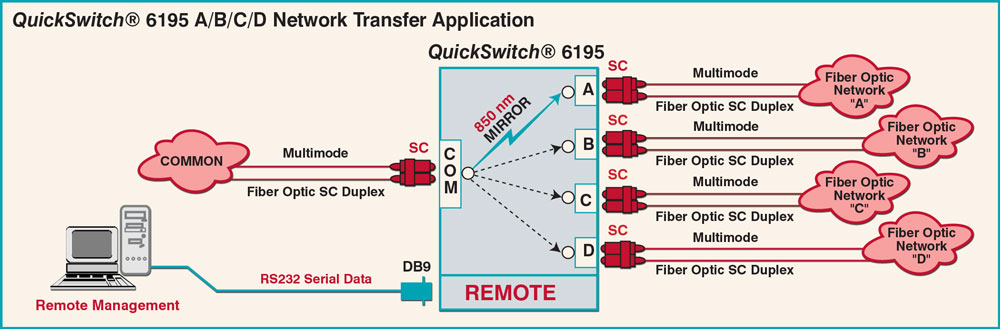

The drawing illustrates a device connected to the SC Duplex COMMON port sharing among four fiber optic networks connected to the Fiber Optic SC Duplex A, B, C, and D ports.  The DB9 Remote port can be used for Remote Management of the QuickSwitch® 6195 via ASCII RS232 Serial Data commands.

QuickSwitch® 6195 A/B/C/D Application

FEATURES:

  • Access any one of four separate fiber optic networks from one computer.
  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology and supports Gigabit data rates.
  • Front panel pushbutton control.
  • Retains last switch position in the event of power loss and continues to pass data.
  • When power is restored, unit will power up to the "A" position.
  • Remote Control RS232 ASCII command interface that allows the user to control switch position, lockout front panel operations, and obtain switch status, as well as, query firmware version number, query serial number and enable/disable autosend of switch positions.
  • Front panel LED's display the present position and power status.
  • All A, B, C, D and COM ports are SC Duplex Multi-mode 50/125 micron and support a wavelength of 850 nm.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
  • Custom length rigorously tested and certified SC fiber optic cables available for your switch installation.
  • Municipalities, schools, government: This product is on GSA Schedule!

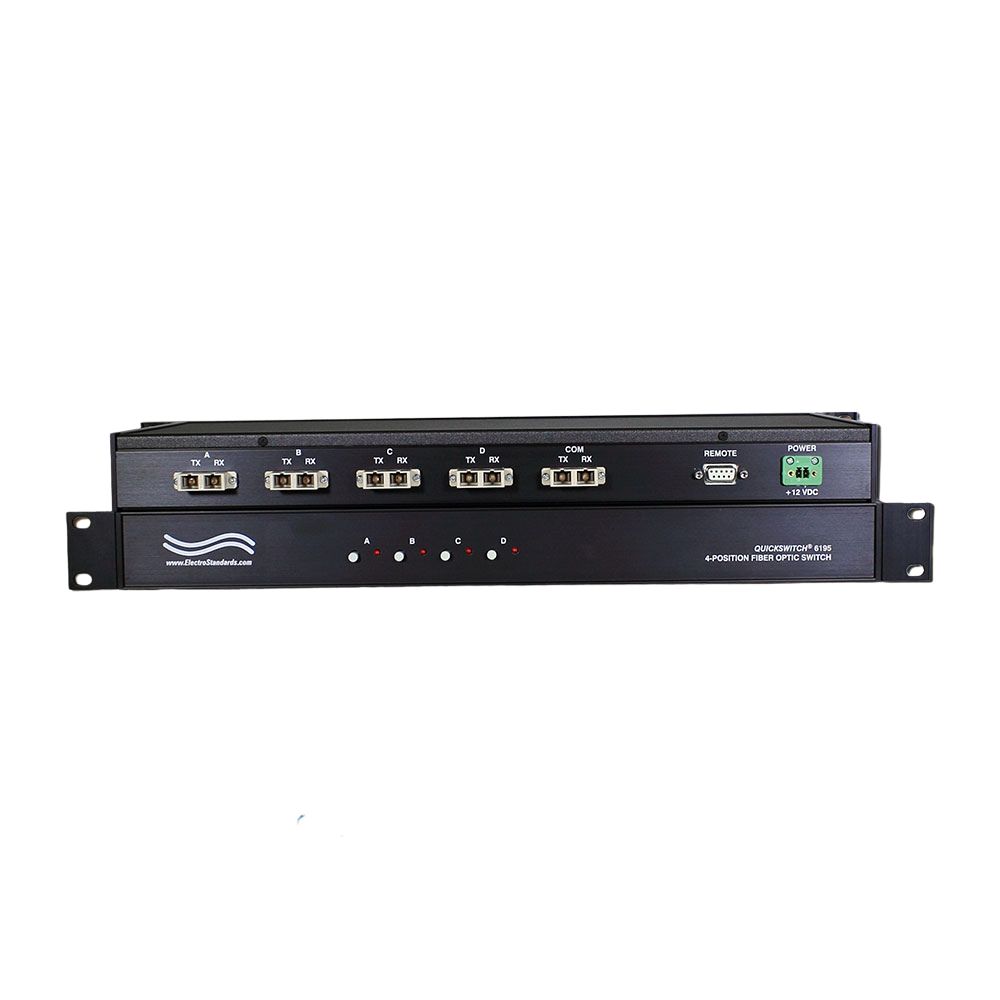

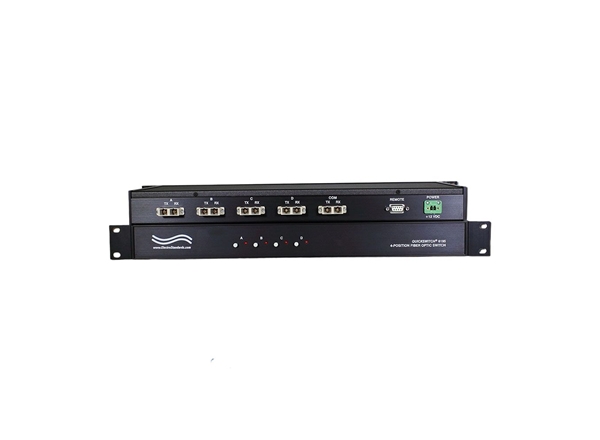

QuickSwitch® 6195 SC Duplex A/B/C/D Fiber Optic Network Switch with Serial Remote Control allows a fiber optic device connected to the SC duplex COMMON connector of the unit to access any of four fiber optic networks connected to the A/B/C/D ports. The switch position can be changed either by the front panel pushbutton, or by a device connected to the Remote port located on the rear panel.

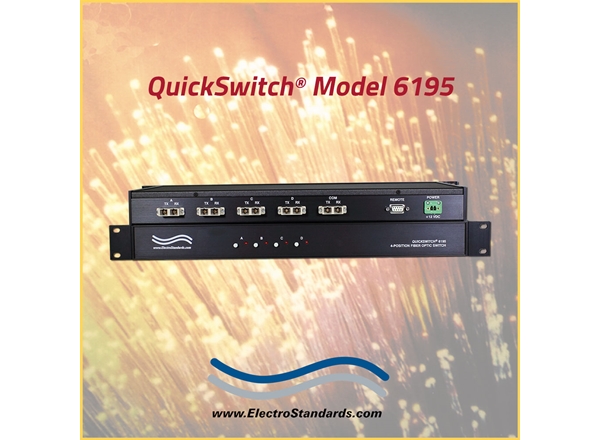

Remote access can be accomplished by RS232 commands sent via the Remote Serial Port.  Users can remotely monitor status and control switch functions.  The QuickSwitch® 6195 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19" rack.
