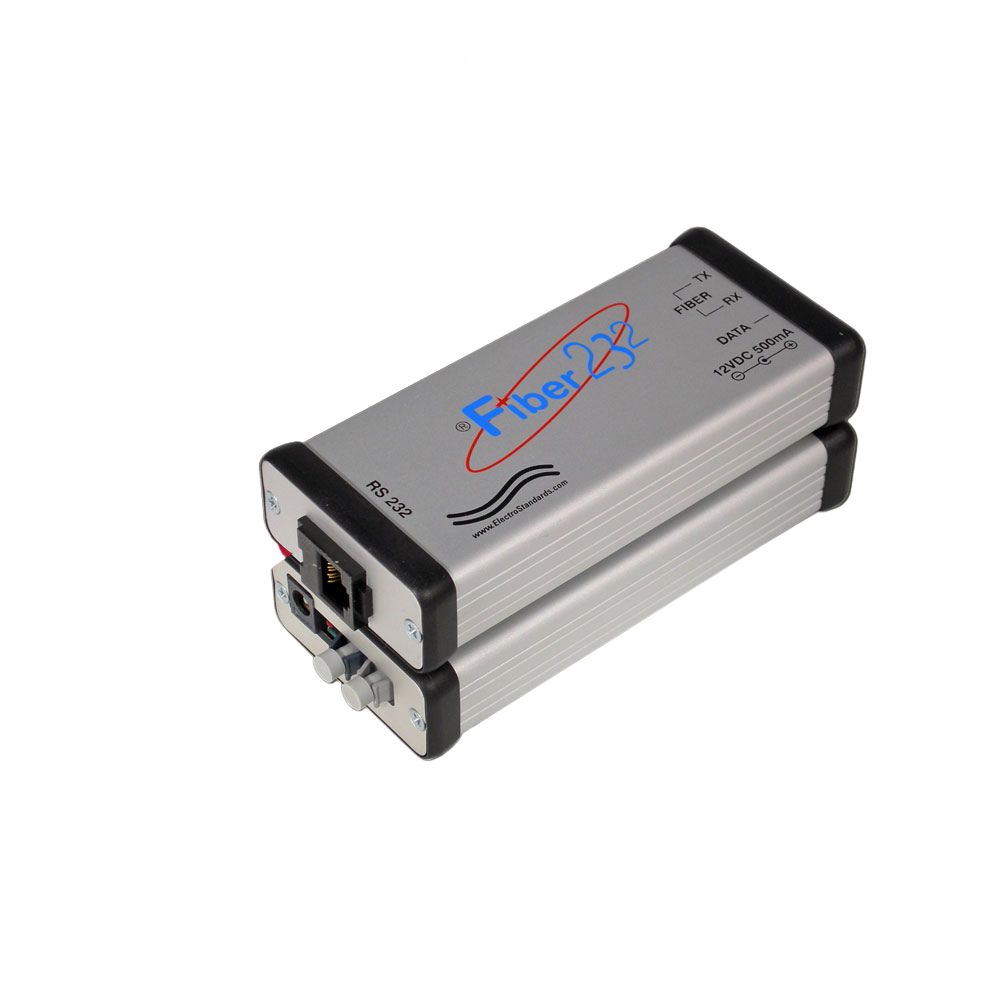

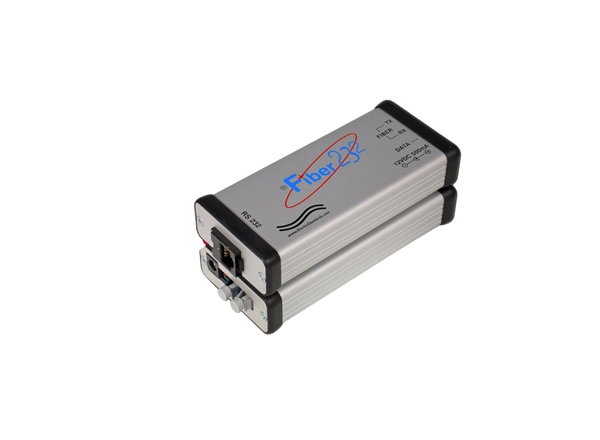

304137 - Model 4137 POF Plastic Optical Fiber to RS232 Converter Links Computers to Terminals/Machinery

Click image to enlarge

Base Price:

$404.00

Catalog No:

304137

Model No:

4137

Product Type:

Interface Converter

Converter Port Connector:

POF, Plastic/Versatile Link, RJ45

Conversion Type:

POF/Plastic/Polymer Fiber, RS232

Configuration:

Desktop

Speed:

Up to 120 Kbps (enhanced RS232)

Wavelength Nano:

660 nm (red)

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Fiber 232® Model 4137 HP Versatile Link Fiber to RS232 Converter

Allow Connection of POF (Plastic Optical Fiber) Linked Terminals to RS232 Port of Controller
Provides Electrical-to-Optical, Optical-to-Electrical Conversion
Ideal for Casinos, Laboratories, or Other Networks Linking Terminals & Machines to Computer/Controller

SPECIFICATIONS:

Data Transfer Rate: up to 120 Kbps (enhanced RS232).
Fiber Transmission Distance: 75m (250 ft.) using TC 1000 W type plastic fiber cable.
RS232 Transmission Distance: Greater than 15 m (50 ft.).
Optical Fiber Connectors: HP/Agilent Versatile Link
RS232 Connector: RJ45 Female on Model 4137 HP Fiber / RS232 Converter.
See Model 4139 HP Fiber / RS232 Converter for a DB9 connector.
Optical Cable Type: 1mm plastic optical film.
Optical Wavelength: 660 nm (red).
External Power Supply: 120 VAC, 60 Hz wall mount power supply is included with each unit (Cat No 523520).
Dimensions: 5.5" x 2.25" x 1.0" (139mm x 57mm x 25mm).
Weight: 0.5 lb. (226 grams).
Status Display: Red LED.

Model 4137 Interface Converter Application:

The HP VersaLink Fiber to RS232 Converters are used to connect fiber optic linked Video Lottery Terminals to a controller having an RS232 interface port. While RS232 is a versatile communication standard, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields. Additionally, the ports of the connected terminals are protected from damage by potential differences (ground variations) that often exist between them.

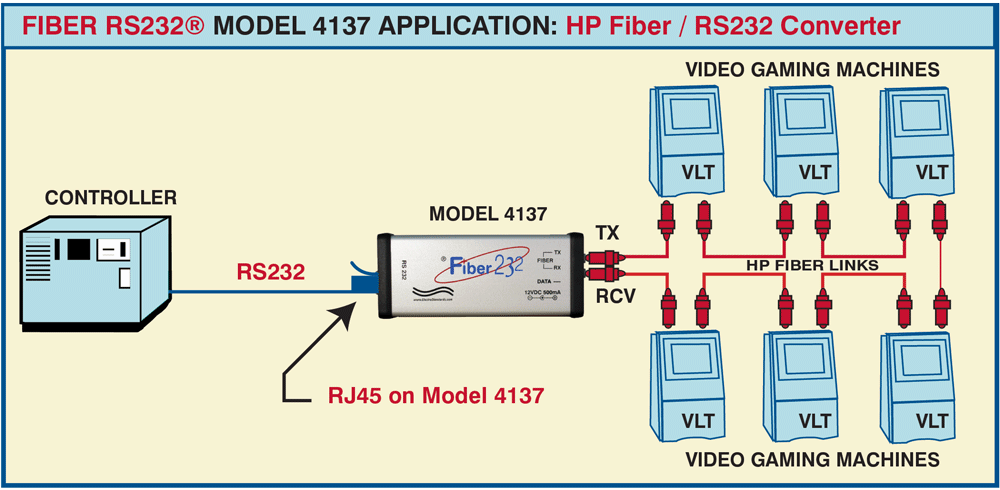

HP FIBER / RS 232 CONVERTER APPLICATION FOR CASINO NETWORKS LINKING VIDEO LOTTERY TERMINALS & VIDEO GAMING MACHINES.

The illustration shows a Controller connected to the Model 4137 RJ45 port and Video Gaming Machines linked to the HP/Agilent Versatile Link connectors via HP Versatile Link Plastic Core Cables.

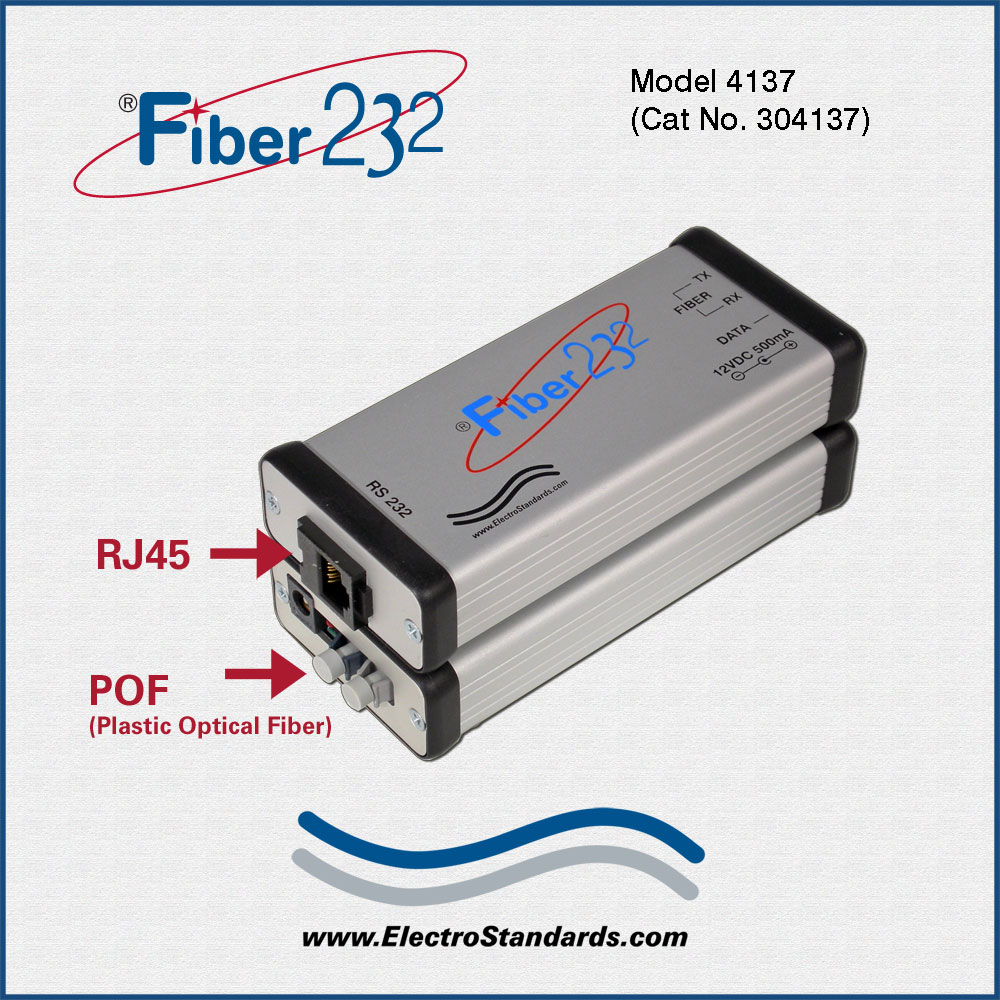

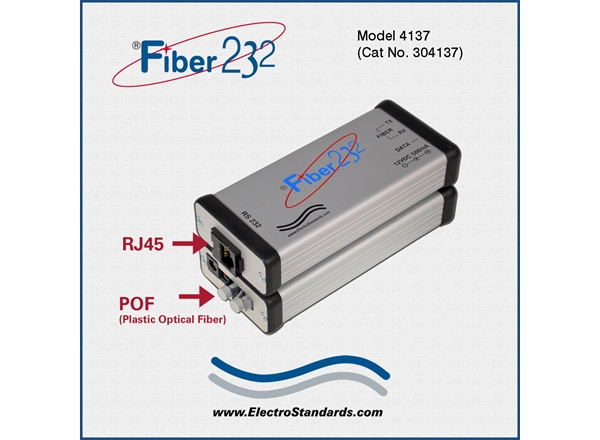

Fiber 232 Model 4137 POF to RJ45 RS232

Model 4137 HP Fiber to RS232 Converter Features:

RS232 connection via an RJ45 connector.
Converts RS232 Serial Communication Interface to HP Versatile Link Plastic Core Cable.
Provides full galvanic isolation (no metallic connection) between connected devices.
Full duplex connection between HP Versatile Link fiber optic interface device or network and an RS232 interface.
Allows the interference-free fiber optical transfer of data to be utilized by the device having an RS232 interface device.
Data transfer rate up to 120 Kbps (enhanced RS232).
Fiber connections via two standard Versatile Link connectors.
Maximum Link distance: greater than 500 meters (1640 feet) with 2.00 mm Hard Clad Silicon Fiber Cable.
Provided with external wall-mount power supply, UL approved.
The Model 4137 media converter is ideal for casino data networks.

RS232 Signals
Model 4139 DTE	Model 4139 DCE	Model 4137	Signal	Signal Direction
DB9 Pin#	DB9 Pin#	RJ45 Pin#	Signal	Signal Direction
2	3	4	RXD	← IN
3	2	1	TXD	→ OUT
5	5	5	REF/GND

Please check out Model 4139, Cat No 304139 HP Fiber to RS232 interface Converter via an RJ45 connector.

Please check out our HP Versalink Plastic Core Cables and Interface Converters on our Related products tab.
HP VERSATILE LINK PLASTIC CORE CABLES
LENGTH	CATALOG NUMBER
10 FEET	986625-010
20 FEET	986625-020
30 FEET	986625-030
40 FEET	986625-040
Custom length HP Fiber Cables Available Order: Catalog Number 986625 - Length (in feet)

Please check out our HP Versalink Plastic Core Cables and Interface Converters.

To view more of Electro Standards' Media Converters, click here: Interface Converters.

Electro Standards can supply all your Network Cable requirements. Click here to reach our FIBER OPTIC CABLES Webpage, or our COPPER NETWORK CABLES Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one-year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
