986625-040 - POF VersaLink Plastic Core Cable 986625-040

    Plastic Core Cable 986625-040Plastic Core Cable 986625-040
Click image to enlarge
    • Plastic Core Cable 986625-040
    • Plastic Core Cable 986625-040
Base Price:
$48.00
Catalog No: 986625-040
Model No: Versalink 986625-040
Product Type:Cable Assemblies: Fiber Optic POF/Versalink
Cable Type/Port Connector:POF, Plastic Optical Fiber (HP Versatile Link)
Polarity:M/M
Length, Ft.:40

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

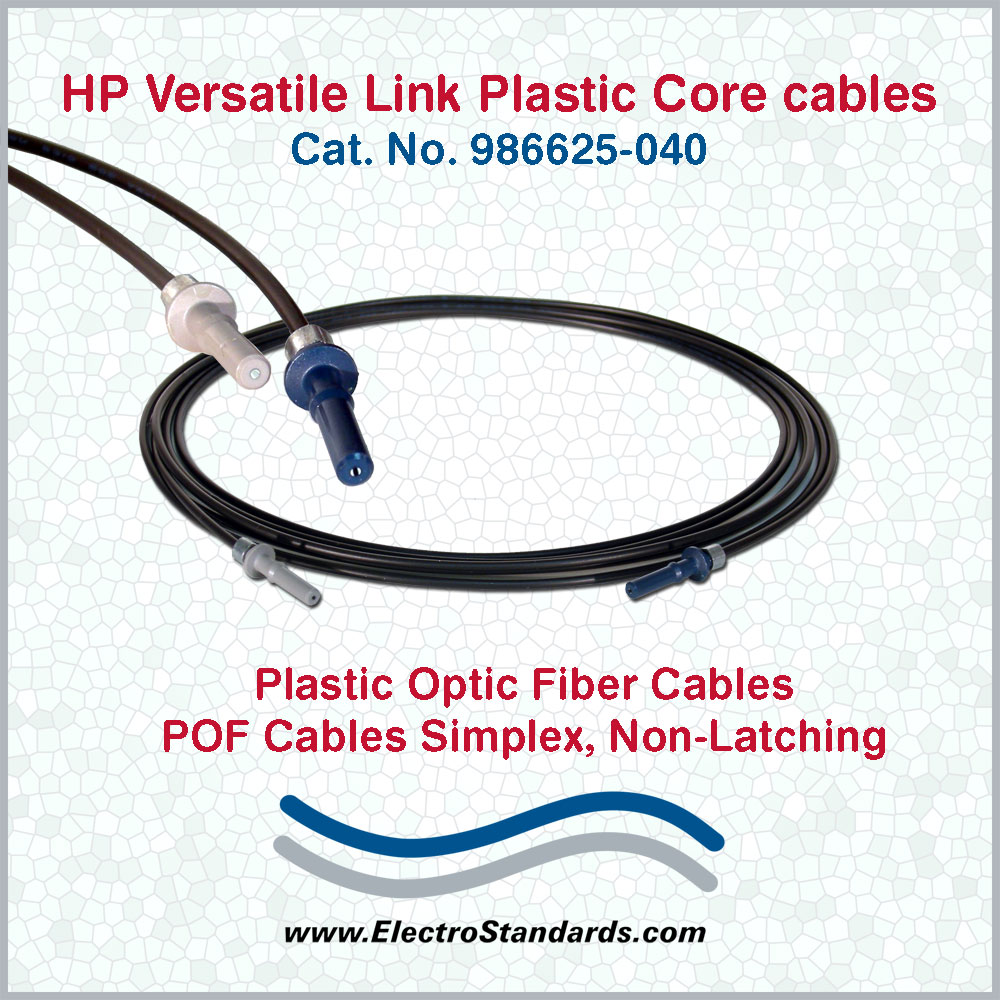

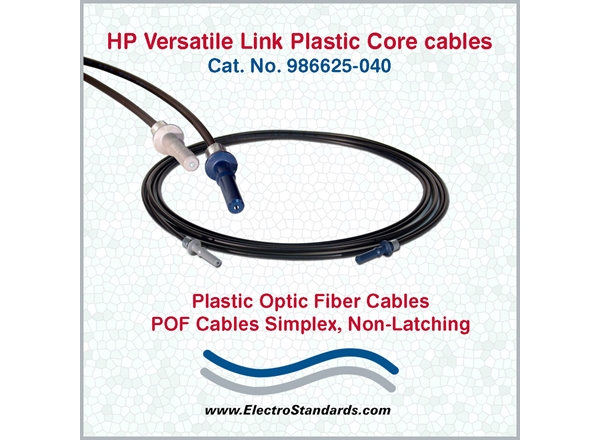

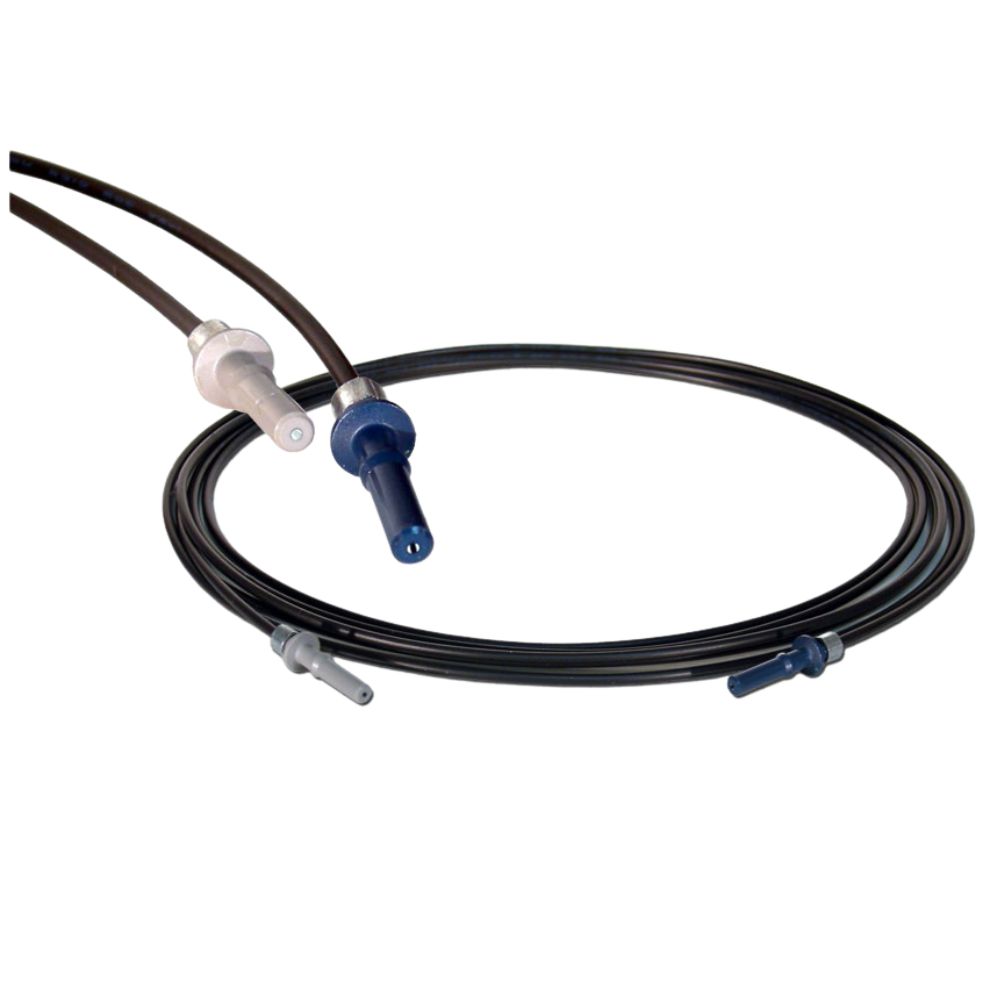

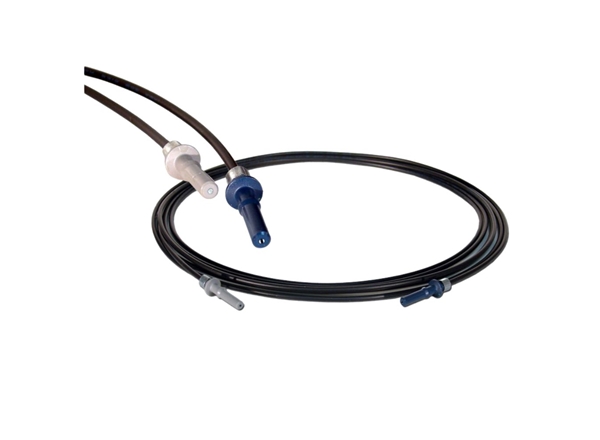

POF Versatile Link Plastic Core Fiber Optic Cables, MM, 40'

  • Ideal for Casino / Gaming VLT Network Applications
  • Ideal for Medical Applications

 Plastic Optic Fiber cables in custom lengths.

 SIMPLEX, NON-LATCHING
VersaLink Plastic Optical Fiber (POF) Patch Cords feature the Versatile Link (VersaLink) connectors providing ready made solutions for rapid installations for any industrial or commercial application utilizing the Avago Technologies Versatile Link transceivers.  Cables are available in standard and custom lengths.  Although this specification refers to simplex non-latching patch cords, Versalink cables can be simplex or duplex cable featuring either latching or non-latching connectors.


The simplex cables are constructed with a single step-index plastic optical fiber sheathed in a black polyethylene jacket.  The duplex cables are constructed with two step-index plastic optical fibers sheathed in a black polyethylene jacket.

FEATURES:

  • All patch cord is manufactured with 1mm diameter plastic optical fiber.
  • Compatible with Avago Versatile Link family of connectors and fiber optic components.
  • Direct replacement for Avago part number HFBR-EU550.
  • Simplex, non-latching connector.
  • UL-rated fiber cable and connections.
  • Connector terminations are crimped and epoxied for maximum retention.
  • Terminations are polished to a 1 µm finish to ensure high coupling efficiency.
  • Standard and custom lengths available.

 APPLICATIONS:

  • Industrial data links for factory automation and plant control.
  • IntraSystem links (board-to-board, rack-to-rack)
  • Telecommunications switching systems
  • Computer-to-peripheral data links (PC bus extension)
  • Proprietary LANS
  • Digitized video
  • Medical instruments
  • High voltage isolation
  • Gaming Terminal Networks
  • For use with ESL Fiber/RS485 Converters, (Model 4127, 4129)
  • For use with ESL Fiber/RS232 Converters, (Model 4137, 4139)

Mechanical/Optical Characteristics, -40 to 85°C

Parameter  Min  Typ  Max  Unit
Cable Attenuation  0.15  0.22  0.27  db/m
Diameter, Core & Cladding  0.94  1.00  1.06  mm
Diameter, Jacket  2.13  2.20  2.27  mm
Propagation Delay Constant  --  5.0  --  ns/m
Cable Length Tolerance  -0  0   3  in.

















All ESL products are available for export.
*Prices online are subject to change and verification.
