304154 - Model 4154 POF Fiber Optic Repeater with RS232 Monitor Port

    POF Fiber Repeater with RS232 Monitor PortPOF Fiber Repeater with RS232 Monitor PortPOF Fiber Repeater with RS232 Monitor PortPOF Fiber Repeater with RS232 Monitor PortPOF Fiber Repeater with RS232 Monitor Port
Click image to enlarge
    • POF Fiber Repeater with RS232 Monitor Port
    • POF Fiber Repeater with RS232 Monitor Port
    • POF Fiber Repeater with RS232 Monitor Port
    • POF Fiber Repeater with RS232 Monitor Port
    • POF Fiber Repeater with RS232 Monitor Port
Base Price:
$486.00
Catalog No: 304154
Model No: 4154
Fiber Transmission Distance:75 m (250 ft.)
Product Type:Interface Converter
Converter Port Connector:DB9, POF, Plastic/Versatile Link
Conversion Type:POF/Plastic/Polymer Fiber, RS232
Configuration:Desktop
Feature:RS-232 Traffic Monitor Port
Wavelength Nano:660 nm (red)

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Network Media Converters

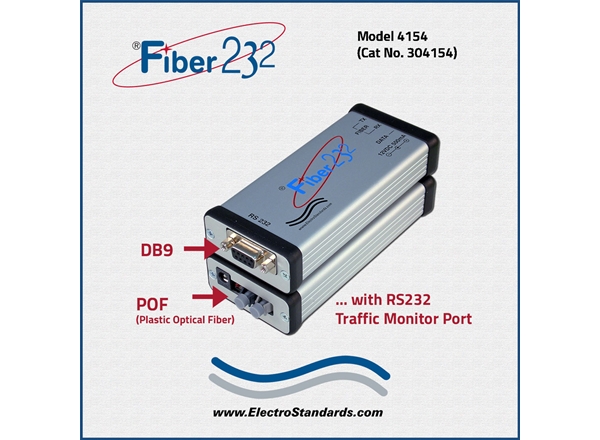

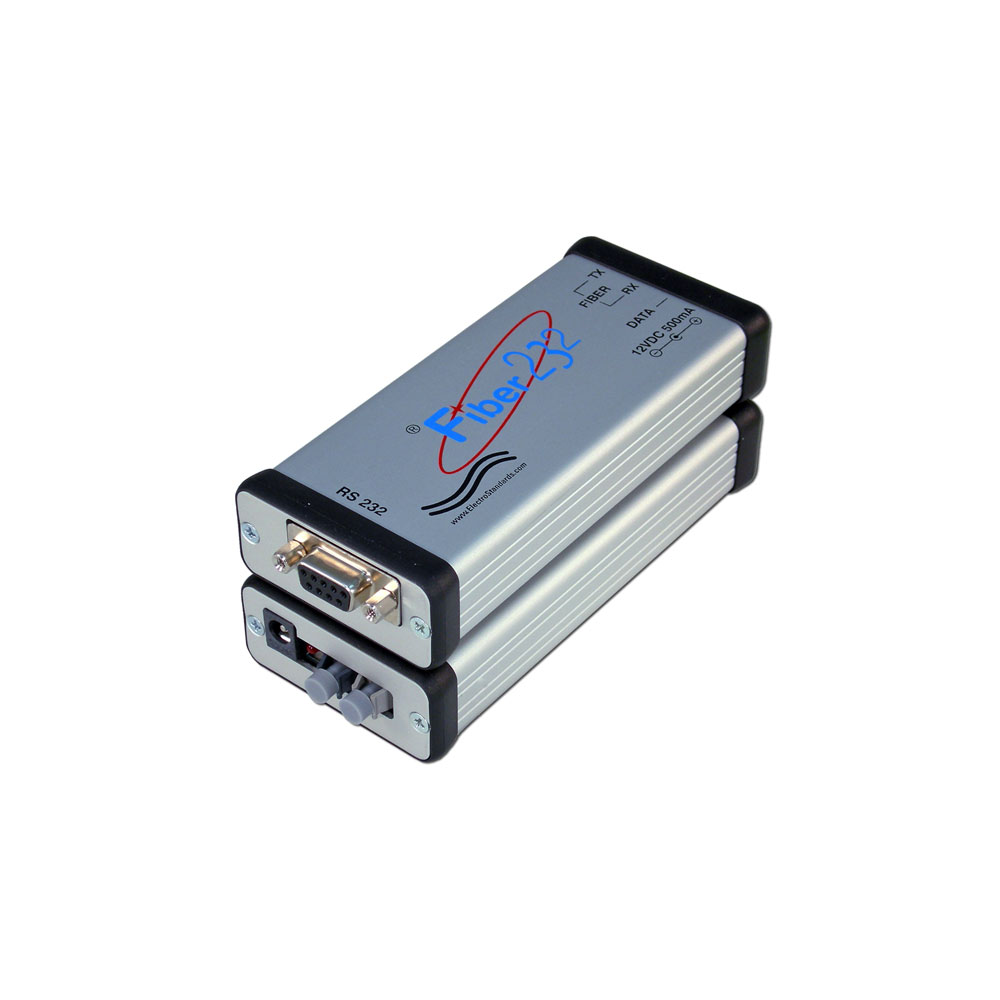

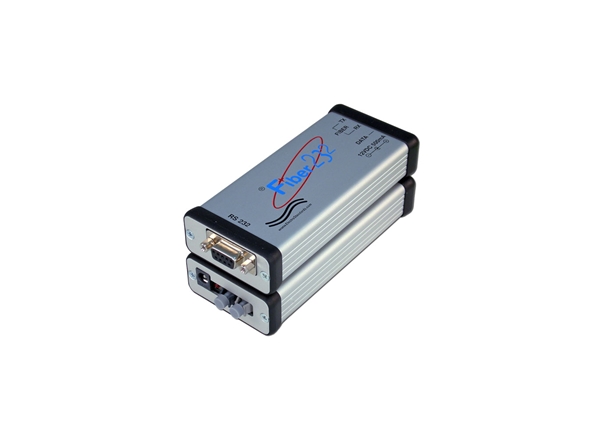

Fiber 232® Model 4154 POF Fiber Optic Repeater with RS232 Traffic Monitor Port, RoHS 2 Compliant

  • Extend and Repeat Fiber Optic Signals Over Versalink Cables.

  • Ideal for Casino Networks linking Video Lottery Terminals & Gaming Machines.

 RS232® MODEL 4154 SPECIFICATIONS:

  • Plastic Fiber: POF
    • Cable Type: 1 mm plastic optical filament
    • Wavelength: 660 nm (red)
    • Fiber Transmission Distance: 75 m (250 ft.) (POF)
  • Copper Interface:

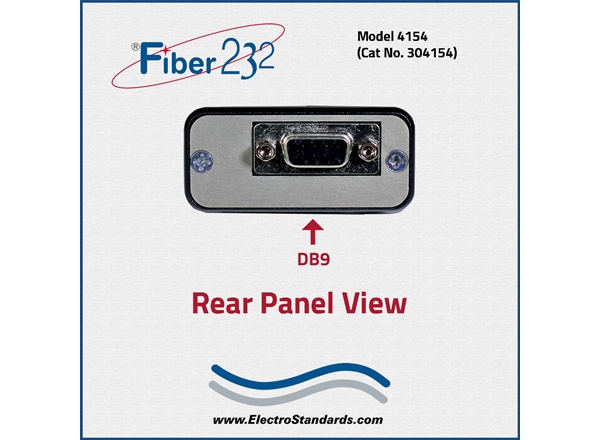

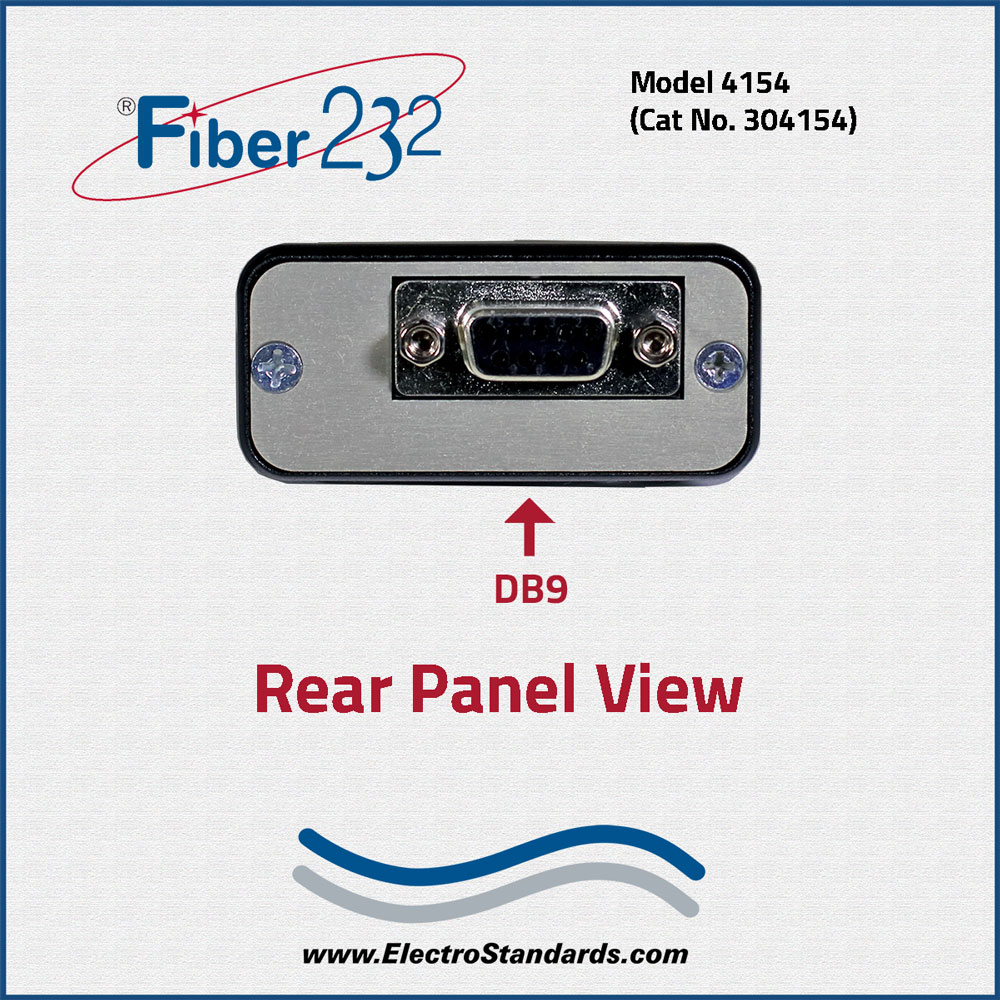

    • RS232 Connector: DB9 female
  • External Power Supply: Wall-mount power supply, included with the unit.
  • 100-240 VAC, 50/60 Hz, UL, CUL, RoHS 2 (Cat. No. 523520).
  • Dimensions: 5.5" x 2.25" x 1.0" (139mm x 57mm x 25mm).
  • Weight: 0.5 Lb. (226 grams)

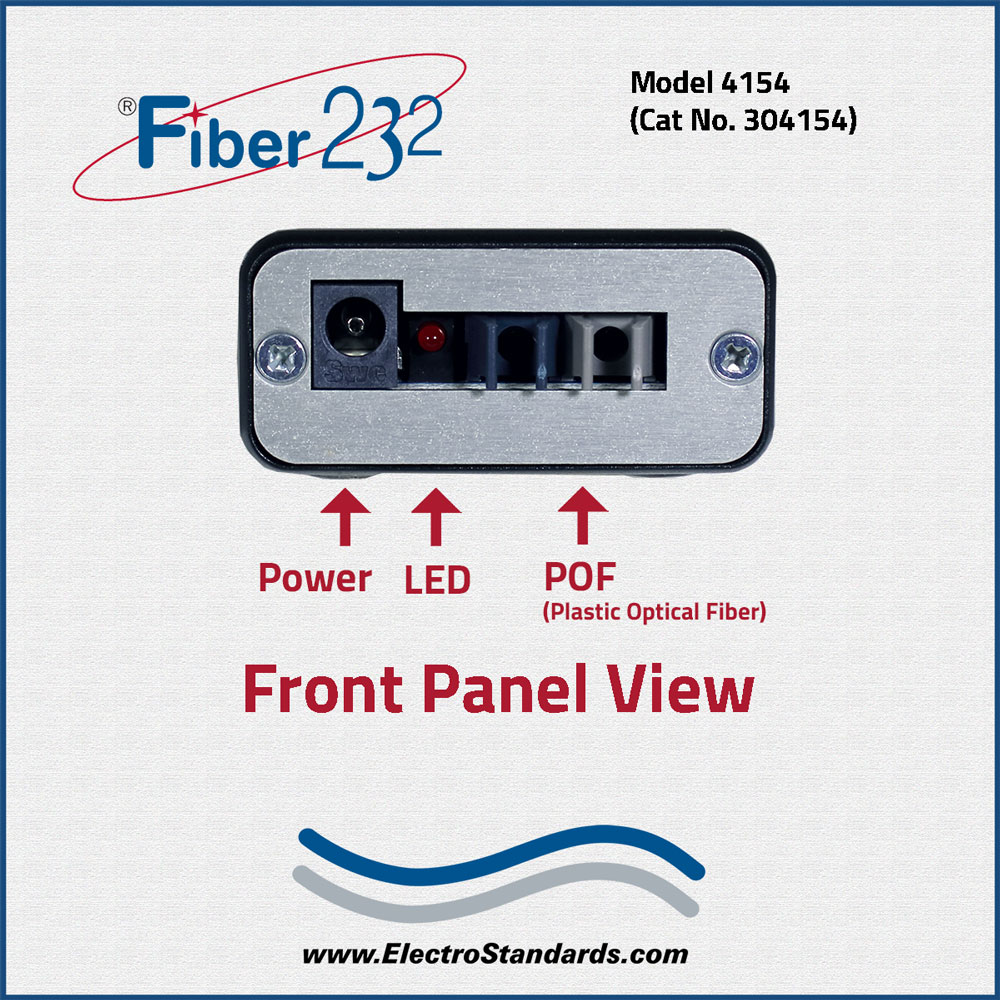

  • Status Display: Red LED

Model 4154 Fiber Optic Repeater Application:
Copper Interface to Plastic Fiber Optical (POF) to Copper Interface

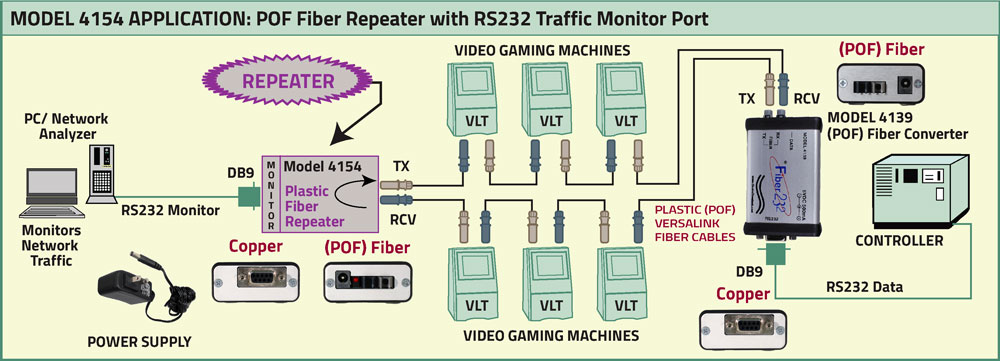

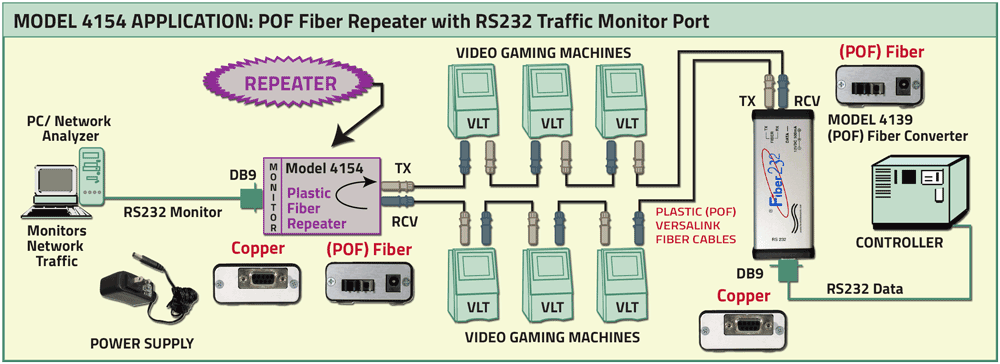

The drawing illustrates the Model 4154 POF Fiber Repeater with a DB9 copper interface connector as a monitor and two Plastic Optical Fiber Versalink connectors. The DB9 is connected to a PC / Network Analyzer. The POF Versalink connectors are linked to Video Gaming Machines. Video Gaming Machines are also linked to the two POF Fiber Optic connectors of the Model 4139. The DB9 connector of the Model 4139 is connected to the controller.

Model 4154 Application

The POF Fiber Repeater with RS232 Monitor Port is used to regenerate data signals in order to extend the range between optically linked Video Lottery Terminals. It also has the capability to monitor network traffic via an RS232 Monitor Port. The fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields.  Additionally, the RS232 monitor port is protected from damage by potential differences (ground variations) that often exist between them.

Fiber 232® MODEL 4154 FEATURES:

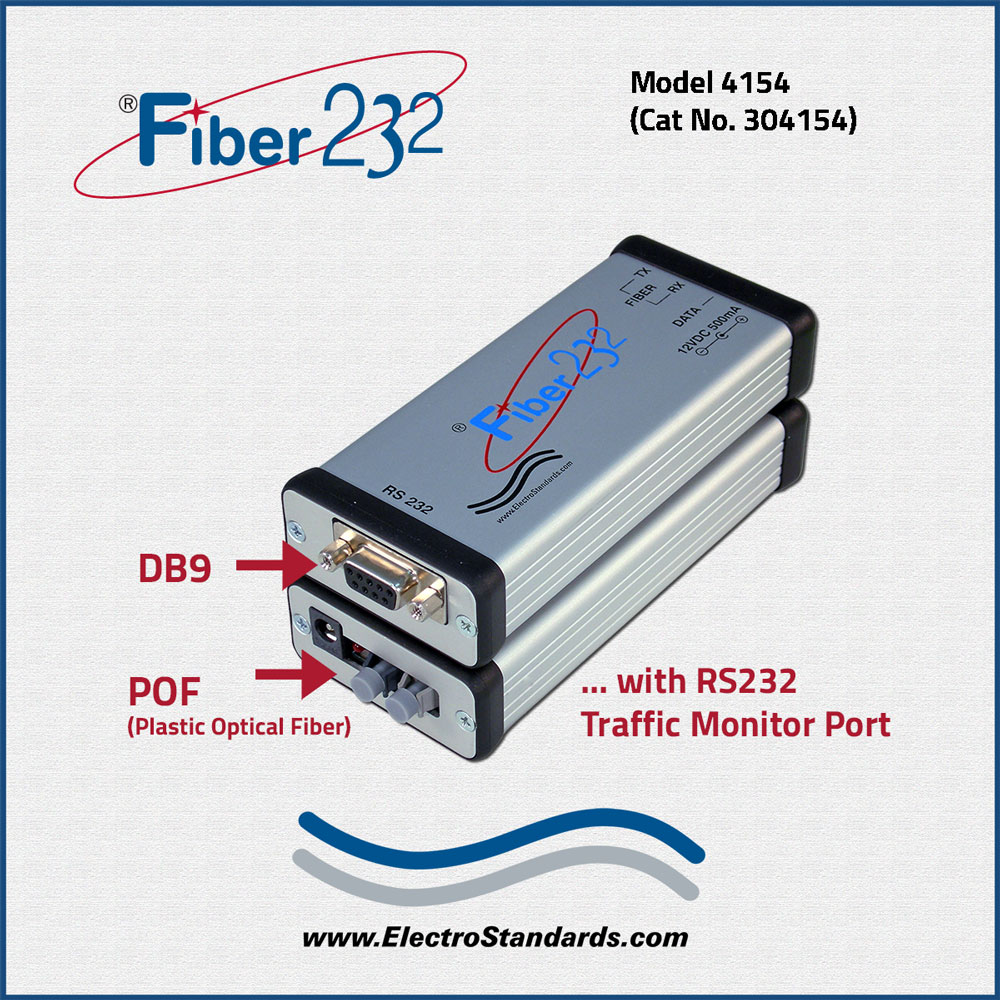

  • RS232 Traffic Monitor port via a DB9 connector.
  • Provides full galvanic isolation (no metallic connection)
  • between the fiber ports and the RS232 monitor port.
  • Allows the interference-free fiber optical transfer of data to be
  • regenerated and its range extended.
  • Plastic Fiber connections via two standard Versatile Link connectors.
  • Link distance: greater than 500 meters (1640 feet) with 2.00 mm
  • Hard Clad Silicon fiber cable.
  • Provided with external wall-mount power supply, UL approved.
  • RoHS 2 Compliant
RS-232 Signals
Model 4154
DB9 Pin # Signal                 Signal Direction
 3 RXD   «--- IN
 2  TXD  ---» OUT
 5  REF/GND
Please check out our Versalink Plastic
Core Cables and Interface Converters.

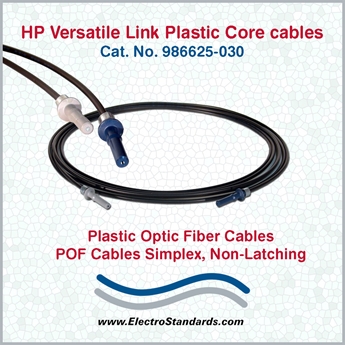

VERSATILE LINK PLASTIC CORE CABLES
 LENGTH  CATALOG NUMBER
 10 FEET  986625-010
 20 FEET  986625-020
 30 FEET  986625-030
 40 FEET  986625-040
 Custom length Plastic Fiber optic Cables Available
 Order: Catalog Number 986625 - Length (in feet)

Click the link for Plastic Optical Cables.

To view more of Electro Standards' Media Converters, click here: Interface Converters.

Electro Standards can supply all your Network Cable requirements. Click here to reach our FIBER OPTIC CABLES Webpage,  or our COPPER NETWORK CABLES Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
