LC Fiber-to-USB Converter/Extender, 4-Port Hub Model 4169, Catalog 304169

Click image to enlarge

Base Price:

$934.00

Catalog No:

304169

Model No:

4169

Product Type:

Interface Converter

Converter Port Connector:

LC, USB Type-A

Conversion Type:

Glass Fiber, USB

Configuration:

Desktop

Feature:

4-Port USB Hub, Ruggedized against shock and vibration

Speed:

up to 480 Mbps

Wavelength Nano:

850 nm, multimode

Qty

Add to Cart

Ruggedized against shock and vibration.

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

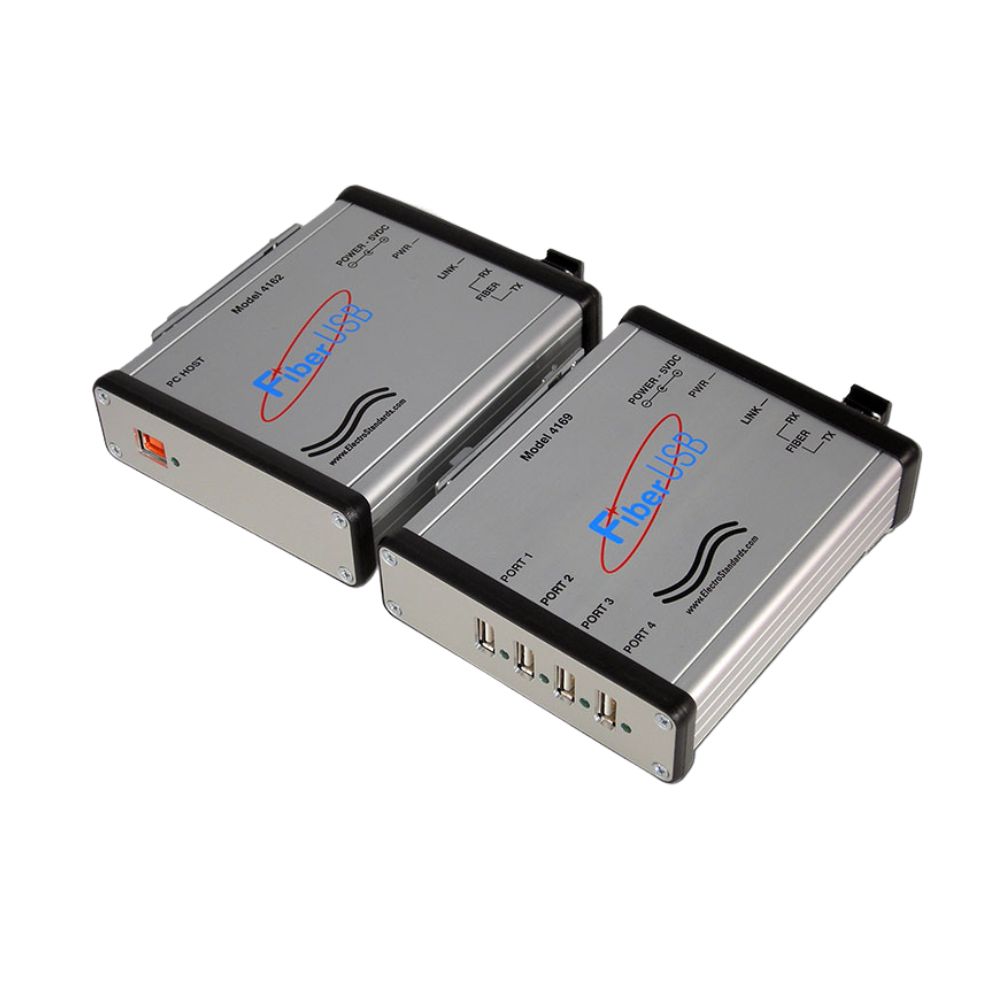

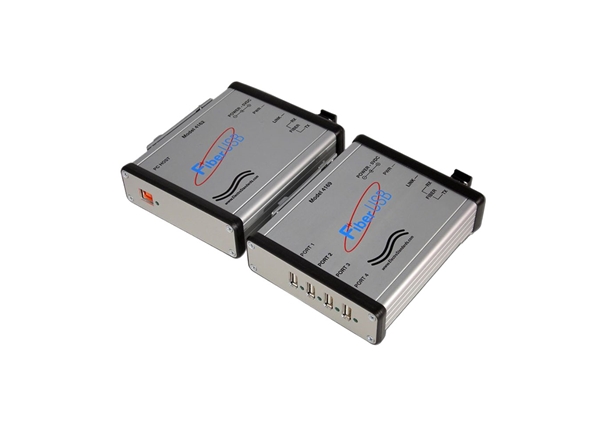

Model 4169 High Speed Ruggedized LC Fiber-to-USB Converter/Extender, 4-Port USB Hub, Desktop Configuration

Simultaneously connect up to four USB Interface Devices to your desktop PC or notebook.
High speed connection to distant USB devices over multimode fiber optic cable.

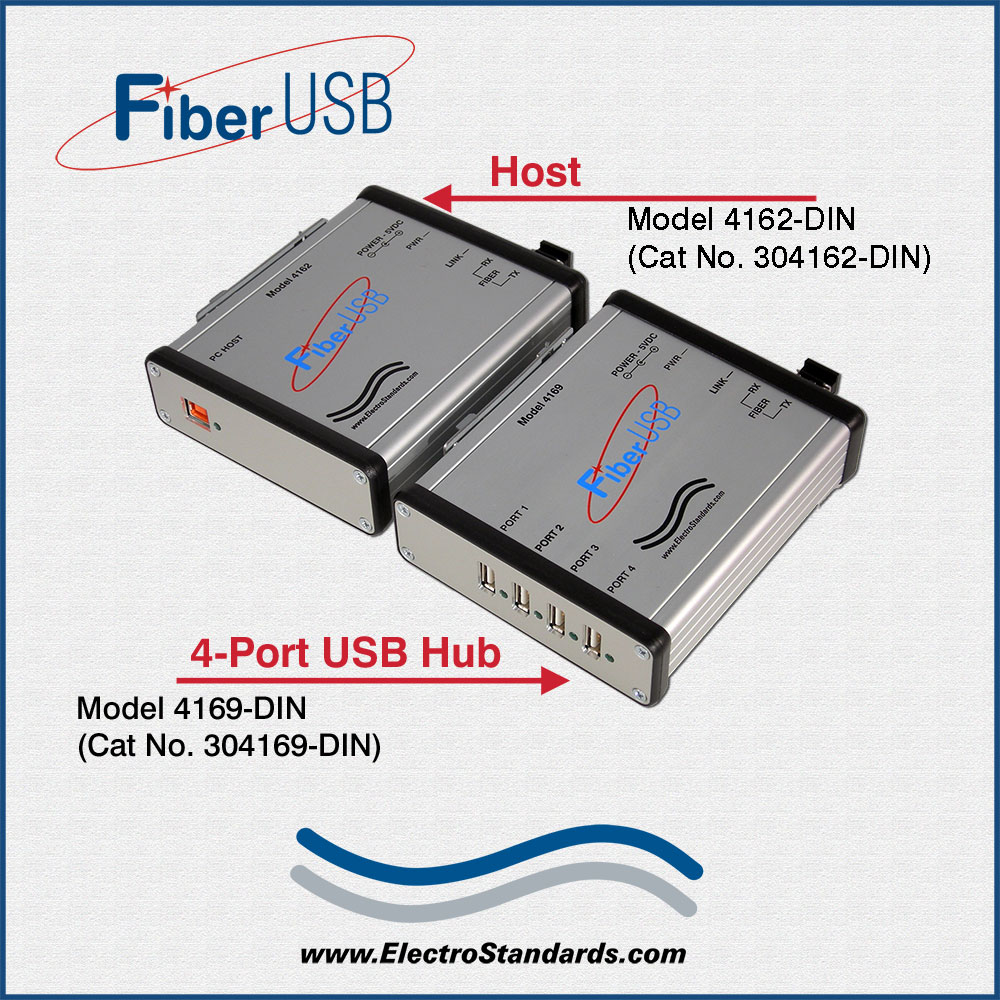

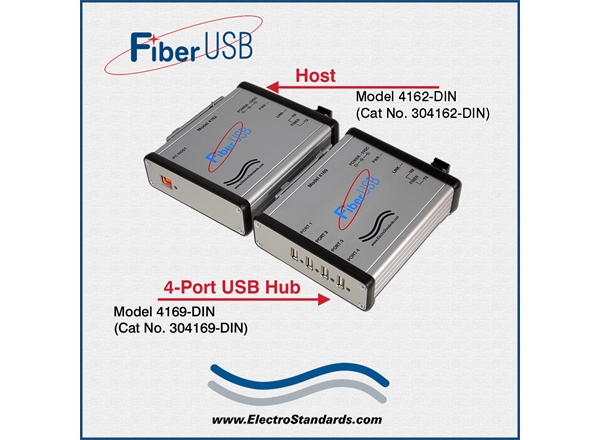

The desktop Model 4169 is a 4-Port USB Hub that works with desktop Model 4162 Host (also see related products tab for M4162 details) to comprise a Host and a Four Port USB Wired Hub that extend USB connections up to 500 meters via a high speed Fiber interface.

Two configurations are available for each model
(see Related Products tab):
(1) Model 4162 Host Desktop Unit, for applications requiring an enclosure.
(2) Model 4162-DIN Host Unit for applications requiring mounting on a DIN rail.
(3) Model 4169 4-Port USB Hub Desktop Unit, for applications requiring an enclosure.
(4) Model 4169-DIN 4-Port USB Hub Unit for applications requiring mounting on a DIN rail.

HOST & 4-PORT USB HUB TYPICAL APPLICATION: Fiber link up to 500m (Multimode).

Typical applications include industrial control, KVM extension, remote desktop USB connections, remote USB device sharing, (printer, scanned, storage, etc.).
The unit offers true plug and play operability with support for Windows®, Mac OS®, Linux®, and support all USB device types: Control, Interrupt, Bulk, and Isochronous at up to 480 Mbps.

FEATURES:

Convert USB 2.0 compliant data from a standard PC Host interface, Model 4162, over fiber to a remote 4-Port powered USB Hub, Model 4169.
Ideal for applications involving PC communication that require high speed, secure communication, and optical isolation.
Extend USB communication in environments that are subject to high EM or RF interference that might corrupt communication over a copper interface.
Typical applications include industrial control, KVM extension, remote desktop USB connections, and remote USB device sharing such as printers, scanners and storage devices.
Units offer true plug and play operability with support for Windows®, Mac OS®, Linux®, and support all USB device types: Control, Interrupt, Bulk and Isochronous up to 480 Mbps.
Designed to operate from -0 degree C to 50 degree C (component ratings meet or exceed 0° C to 70° C).
Ruggedized against shock and vibration.
Units feature ESD protection circuitry on all copper USB I/O interfaces.
Power inputs are protected from transients and the 4-port USB Hub provides the USB standard of 500mA per port.
LEDs display Power, Fiber Link Active, Host Active (Model 4162, 4162-DIN) and Port Active (Model 4169, 4169-DIN) indicator LEDs.

SPECIFICATIONS:

USB Interface
Connectors: Model 4162 - 1x USB Type B, High Retention
Model 4169 - 4x USB Type A,
(5V @500mA/port)

                    Model 4162-DIN - 1x USB Type B, High Retention
                    Model 4169-DIN - 4x USB Type A,
                    (5V @500mA/port)

USB Data Format:
Type: USB 2.0 Compliant (Backwards compatible USB 1.1)
   Rate: Supports Low Speed (1.5 Mbps),
            Full Speed (12 Mbps), and High Speed
            (480 Mbps) USB Data transfer rates.

Fiber Interface:
Connectors: Fiber Optic LC SFP Transceiver
TX Power: -6.5 dBm (Typical)
RX Sensitivity: -21.5 dB (Typical)
Optical Budget: 14.5 dB
Max. Link Distance with 50/125 µm fiber: 500 Meters
LC/LC Duplex fiber cable - Cat. No. 986147
Max. Link Distance with 62.5/125 µm fiber: 275 Meters
LC/LC Duplex fiber cable - Cat. No. 986017
Wavelength: 850 nm, multimode

LED Indicators:
Model 4162 - Power, Fiber Link Active, Host Active
Model 4169 - Power, Fiber Link Active, Port Active

Model 4162-DIN - Power, Fiber Link Active, Host Active
Model 4169-DIN - Power, Fiber Link Active, Port Active

Input Power: Requirement
Model 4162 - 5VDC @ 2.5W
Model 4169 - 5VDC @ 15W

Model 4162-DIN - 5VDC @ 2.5W
Model 4169-DIN - 5VDC @ 15W

Power Connector:
On all models, the input power connector is a DC power jack (Circular Barrel Type).

External Power Supply
The power supply is not included with any of the units and can be ordered separately, ESL Cat. No. 524450.

Operating Environment:
Tested operation, 0°C to 50°C; component ratings
meet or exceed 0°C to 70°C.

Model 4162 Mechanical (Desktop Unit):
Model 4162, Cat No 304162
Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
Weight: Approx. 11.5 oz (327g)
Mounting: Desktop Std, DIN rail (Optional)

Model 4169 Mechanical (Desktop Unit):
Model 4169 Cat No 304169
Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
Weight: Approx. 11.5 oz (317g)
Mounting: Desktop Std, DIN rail (Optional)

Model 4162-DIN Mechanical (DIN Rail Mounted Unit):
Model 4162-DIN Cat No 304162-DIN
Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
Weight: Approx. 11.5 oz (327g)
Mounting: 2 Threaded Holes Standard, DIN rail
DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
DIN Rail Bracket Weight: 0.9 oz (25.5g)

Model 4169-DIN Mechanical (DIN Rail Mounted Unit):
Model 4169-DIN Cat No 304169-DIN
Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
Weight: Approx. 11.5 oz (317g)
Mounting: 2 Threaded Holes Standard, DIN rail
DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
DIN Rail Bracket Weight: 0.9 oz (25.5g)

USB A-B Cable (6 Ft): Included with Model 4167 / 4167-DIN is the cable ESL Cat. No. 507366 (USB Type A to USB Type B)

To view more of Electro Standards' Media Converters, click here: Interface Converters.

Electro Standards can supply all your Network Cable requirements. Click here to reach our Cables/Connectors/Adapters Webpage.

For custom network interface converters call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online Custom Product Request form.

USB Powered Option:
Available only for the Host units, See Models 4662 and 4662-DIN Host units.

All data switches, fiber optic converters, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices of Fiber Optic Interface Converters are subject to change and verification.

All ESL Fiber Optic Converters are available for export.
