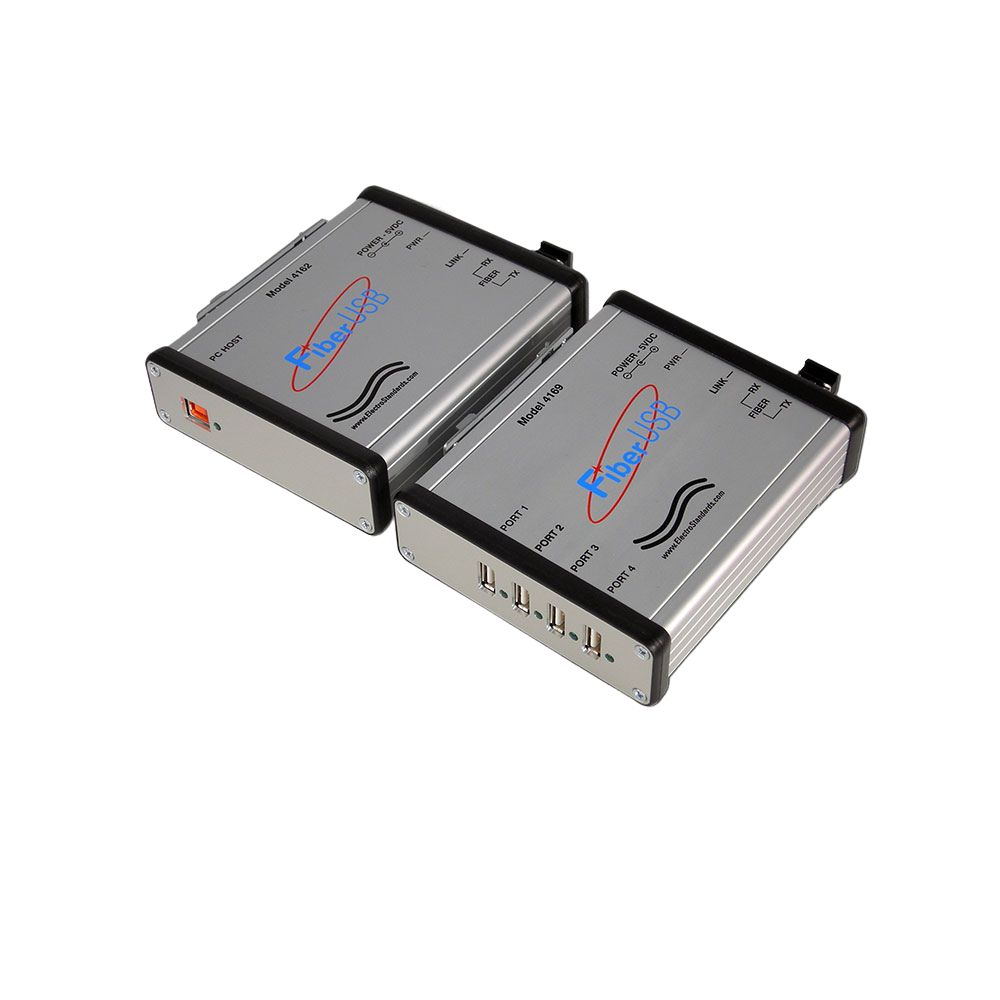

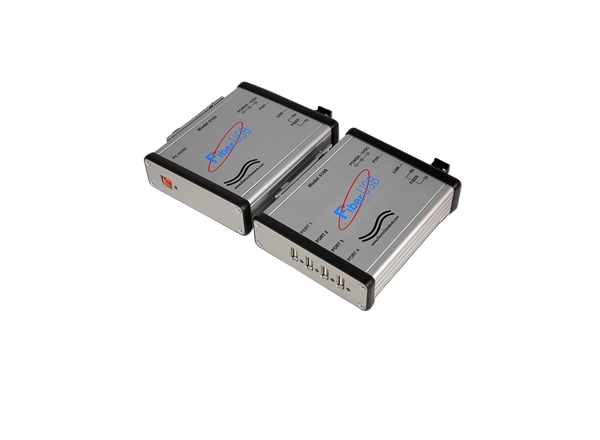

Model 4169-DIN High Speed Ruggedized LC Fiber-to-USB Converter/Extender, 4-Port USB Hub, DIN Rail Mounted

Simultaneously connect up to four USB Interface Devices to your desktop PC or notebook.
High speed connection to distant USB devices over multimode fiber optic cable.

The Model 4169-DIN is a 4-Port USBHub that works with Model 4162-DIN Host (also see related products tab for M4162-DIN details) to comprise a Host and a Four Port USB Wired Hub that extend USB connections up to 500 meters via a high speed LC Fiber interface.

Two configurations are available for each model
(see Related Products tab):
(1) Model 4162 Host Desktop Unit, for applications requiring an enclosure.
(2) Model 4162-DIN Host Unit for applications requiring mounting on a DIN rail.
(3) Model 4169 4-Port USB Hub Desktop Unit, for applications requiring an enclosure.
(4) Model 4169-DIN 4-Port USB Hub Unit for applications requiring mounting on a DIN rail.

HOST & 4-PORT USB HUB TYPICAL APPLICATION: Fiber link up to 500m (Multimode).

Typical applications include industrial control, KVM extension, remote desktop USB connections, remote USB device sharing, (printer, scanned, storage, etc.).
The unit offers true plug and play operability with support for Windows®, Mac OS®, Linux®, and support all USB device types: Control, Interrupt, Bulk, and Isochronous at up to 480 Mbps.

Model 4162-DIN / 4169-DIN host and 4-port USB Hub Typical Application.

FEATURES:

Convert USB 2.0 compliant data from a standard PC Host interface, Model 4162, over fiber to a remote 4-Port powered USB Hub, Model 4169.
Ideal for applications involving PC communication that require high speed, secure communication, and optical isolation.
Extend USB communication in environments that are subject to high EM or RF interference that might corrupt communication over a copper interface.
Typical applications include industrial control, KVM extension, remote desktop USB connections, and remote USB device sharing such as printers, scanners and storage devices.
Units offer true plug and play operability with support for Windows®, Mac OS®, Linux®, and support all USB device types: Control, Interrupt, Bulk and Isochronous up to 480 Mbps.
Designed to operate from -0 degree C to 50 degree C (component ratings meet or exceed 0° C to 70° C).
Ruggedized against shock and vibration.
Units feature ESD protection circuitry on all copper USB I/O interfaces.
Power inputs are protected from transients and the 4-port USB Hub provides the USB standard of 500mA per port.
LEDs display Power, Fiber Link Active, Host Active (Model 4162, 4162-DIN) and Port Active (Model 4169, 4169-DIN) indicator LEDs.

SPECIFICATIONS:

USB Interface
Connectors: Model 4162 - 1x USB Type B, High Retention
Model 4169 - 4x USB Type A,
(5V @500mA/port)

Model 4162-DIN - 1x USB Type B, High Retention
Model 4169-DIN - 4x USB Type A,
(5V @500mA/port)

USB Data Format:
Type: USB 2.0 Compliant (Backwards compatible USB 1.1)
   Rate: Supports Low Speed (1.5 Mbps),
            Full Speed (12 Mbps), and High Speed
            (480 Mbps) USB Data transfer rates.

Fiber Interface:
Connectors: Fiber Optic LC SFP Transceiver
TX Power: -6.5 dBm (Typical)
RX Sensitivity: -21.5 dB (Typical)
Optical Budget: 14.5 dB
Max. Link Distance with 50/125 µm fiber: 500 Meters
LC/LC Duplex fiber cable - Cat. No. 986147
Max. Link Distance with 62.5/125 µm fiber: 275 Meters
LC/LC Duplex fiber cable - Cat. No. 986017
Wavelength: 850 nm, multimode

LED Indicators:
Model 4162 - Power, Fiber Link Active, Host Active
Model 4169 - Power, Fiber Link Active, Port Active

Model 4162-DIN - Power, Fiber Link Active, Host Active
Model 4169-DIN - Power, Fiber Link Active, Port Active

Input Power: Requirement
Model 4162 - 5VDC @ 2.5W
Model 4169 - 5VDC @ 15W

Model 4162-DIN - 5VDC @ 2.5W
Model 4169-DIN - 5VDC @ 15W

Power Connector: On all models, the input power connector is a DC power jack (Circular Barrel Type).

External Power Supply
The power supply is not included with any of the units and can be ordered separately:
Model 4169-DIN ESL Cat. No. 522878.

Operating Environment:
Tested operation, 0°C to 50°C; component ratings
meet or exceed 0°C to 70°C.

Model 4162 Mechanical (Desktop Unit):
Model 4162, Cat No 304162
Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
Weight: Approx. 11.5 oz (327g)
Mounting: Desktop Std, DIN rail (Optional)

Model 4169 Mechanical (Desktop Unit):
Model 4169 Cat No 304169
Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
Weight: Approx. 11.5 oz (317g)
Mounting: Desktop Std, DIN rail (Optional)

Model 4162-DIN Mechanical (DIN Rail Mounted Unit):
Model 4162-DIN Cat No 304162-DIN
Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
Weight: Approx. 11.5 oz (327g)
Mounting: 2 Threaded Holes Standard, DIN rail
DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
DIN Rail Bracket Weight: 0.9 oz (25.5g)

Model 4169-DIN Mechanical (DIN Rail Mounted Unit):
Model 4169-DIN Cat No 304169-DIN
Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
Weight: Approx. 11.5 oz (317g)
Mounting: 2 Threaded Holes Standard, DIN rail
DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
DIN Rail Bracket Weight: 0.9 oz (25.5g)

USB A-B Cable (6 Ft): Included with Model 4167 / 4167-DIN is the cable ESL Cat. No. 507366 (USB Type A to USB Type B)

To view more of Electro Standards' Media Converters, click here: Interface Converters.

Electro Standards can supply all your Network Cable requirements. Click here to reach our Cables/Connectors/Adapters Webpage.

For custom network interface converters call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online Custom Product Request form.

USB Powered Option:
Available only for the Host units, See Models 4662 and 4662-DIN Host units.
