Catalog # 304261 Model 8408 KVM 2-Position

Click image to enlarge

Base Price:

$419.00

Catalog No:

304261

Model No:

8408

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

HD15 Switch Ports, Mini-DIN

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Configuration:

Desktop

Local Control:

Rotary Knob

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

KVM Manual Network Switch, Rotary Switches

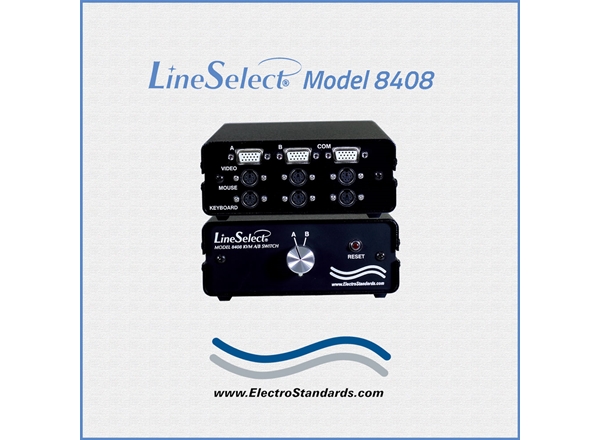

LineSelect® Model 8408 PS/2 Keyboard, VGA Monitor & PS/2 Mouse A/B Manual Data Network Switch

Sharing Switch adds, flexibility to Keyboard, Monitor, Mouse Networks
Field Proven, Highly Reliable!

SPECIFICATIONS:

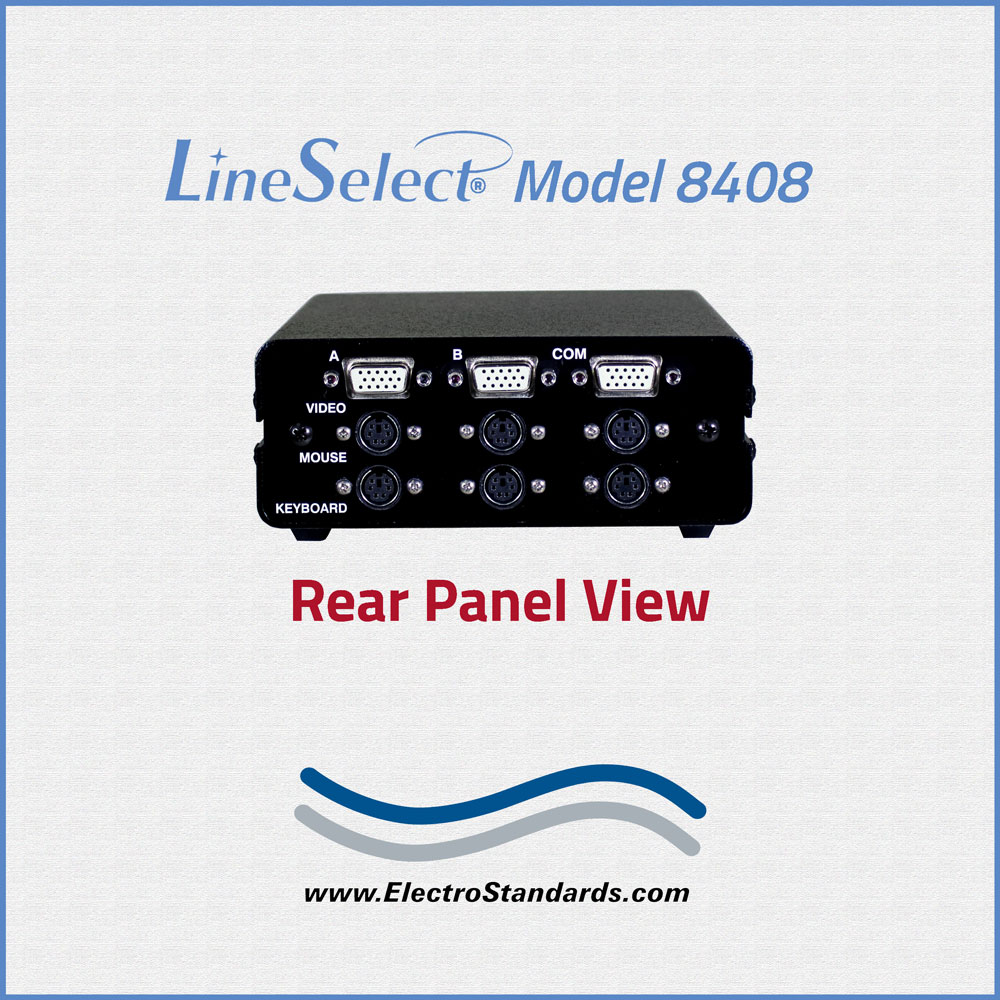

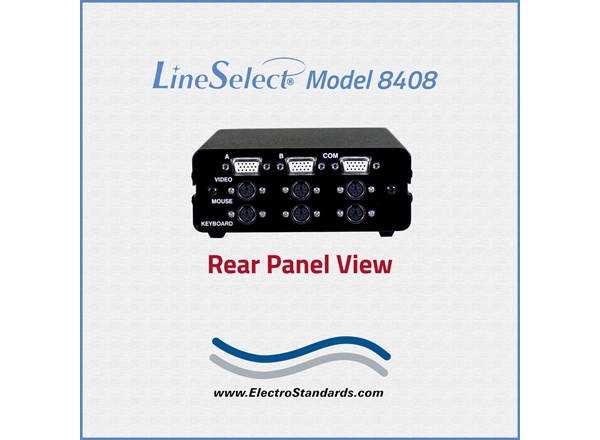

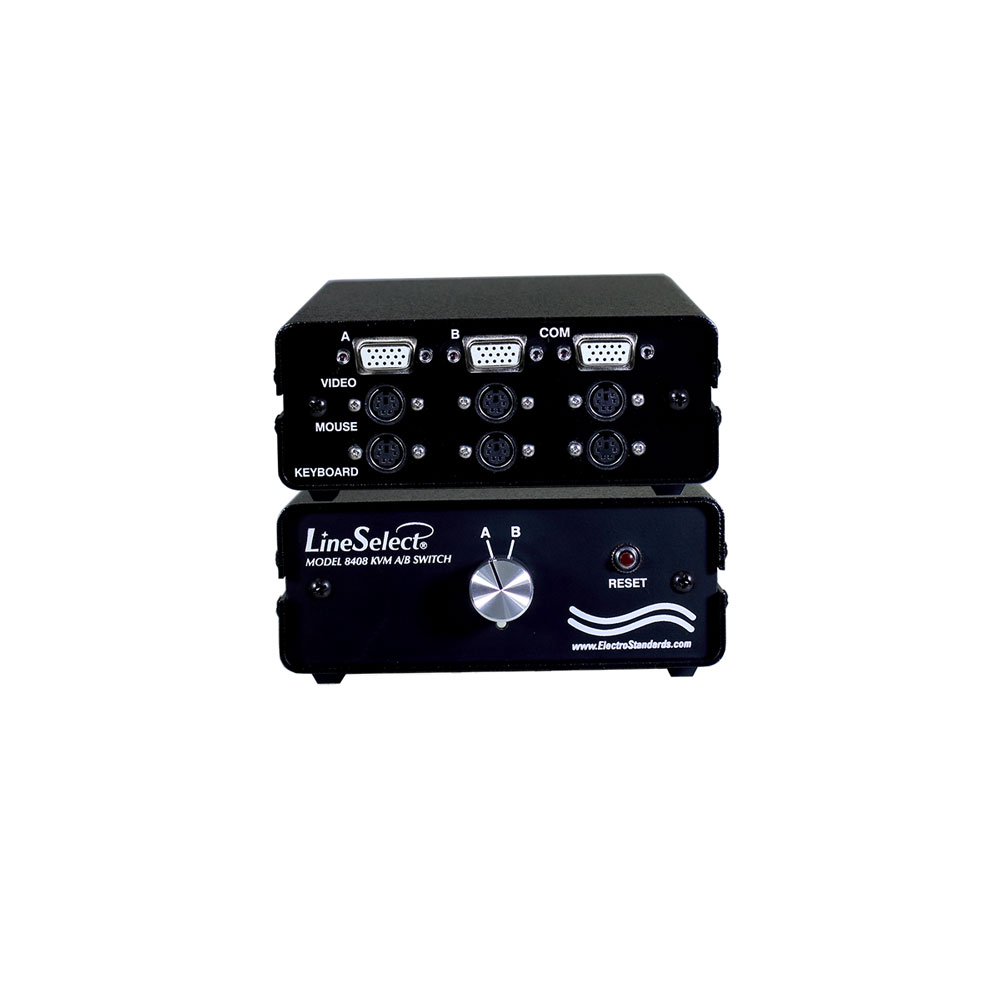

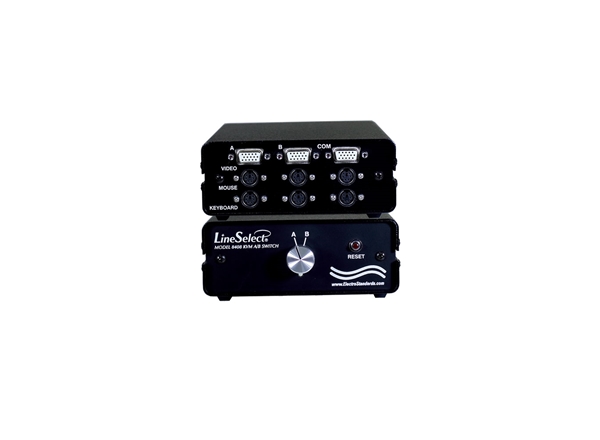

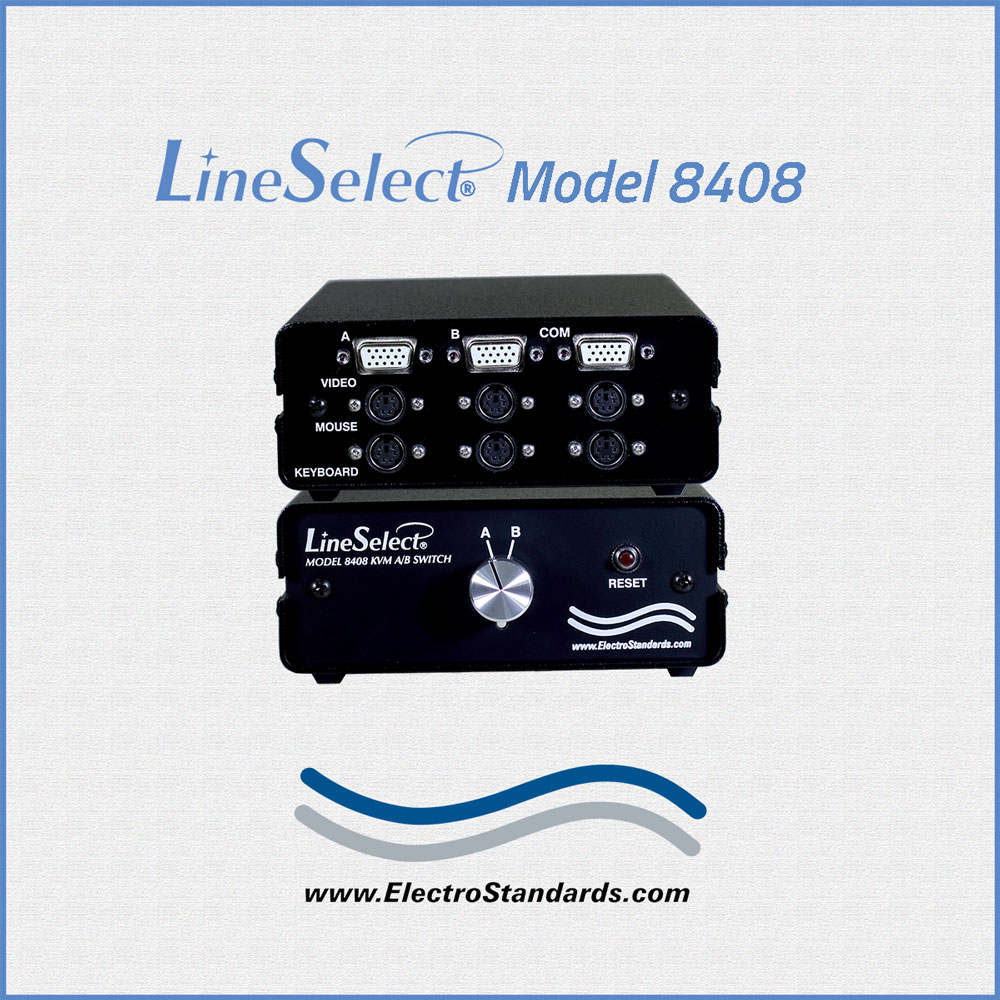

PORT CONNECTORS:
- (3) HD15 (F) connectors (VGA Monitor Interface) labeled A, B, and COM
- (3) 6-Pin MiniDIN (F) connectors (PS/2 Mouse)
- (3) 6-Pin MiniDIN (F) connectors (Keyboard Interface).

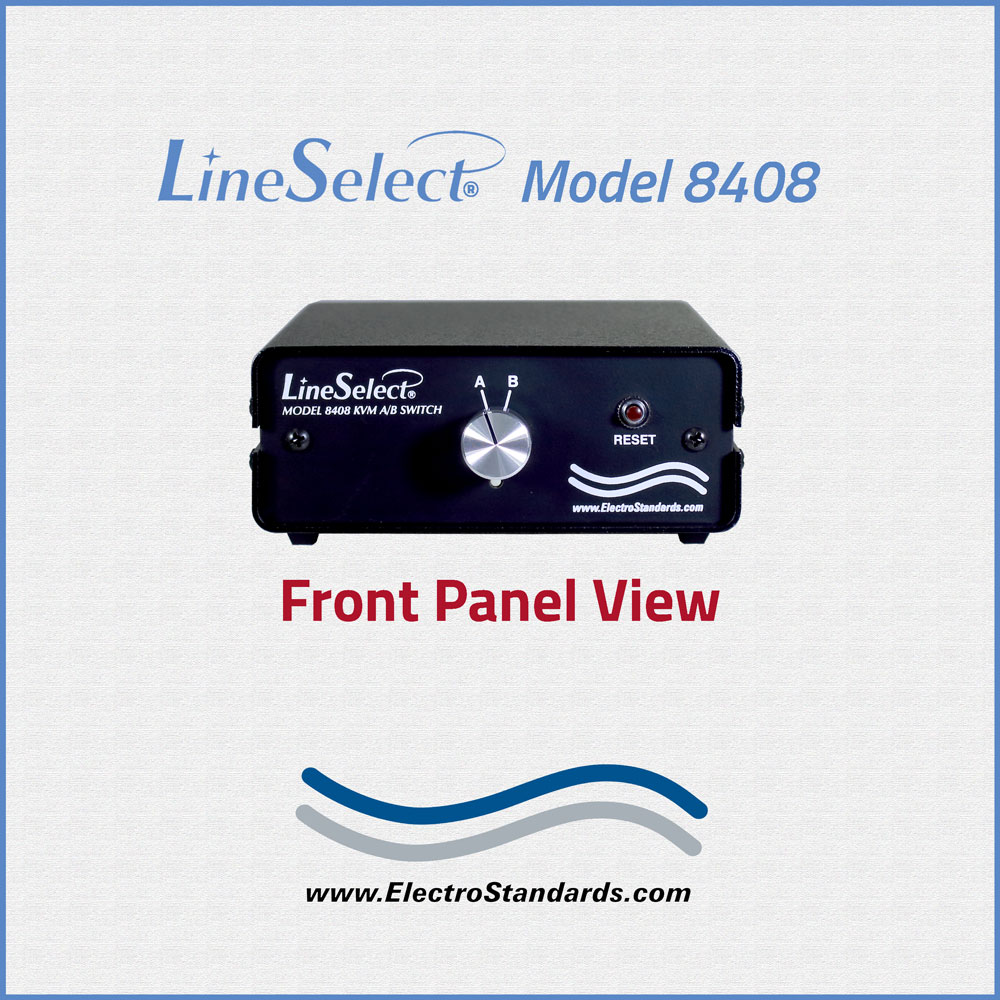

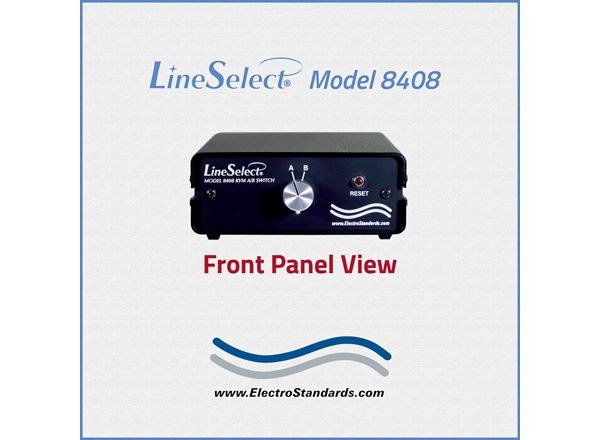

FRONT PANEL CONTROL:
- (1) Rotary switch on front panel selects A or B position.
- 1 Manual reset button.
POWER: No power required. Manually operated.
DIMENSIONS: 5.43” W x 2.25” H x 7.85” D. (13.8 x 5.8 x 20.0 cm)
WEIGHT: 1.3 lbs. (0.6 kg)

PS/2 KEYBOARD, VGA MONITOR, & PS/2 MOUSE APPLICATION:

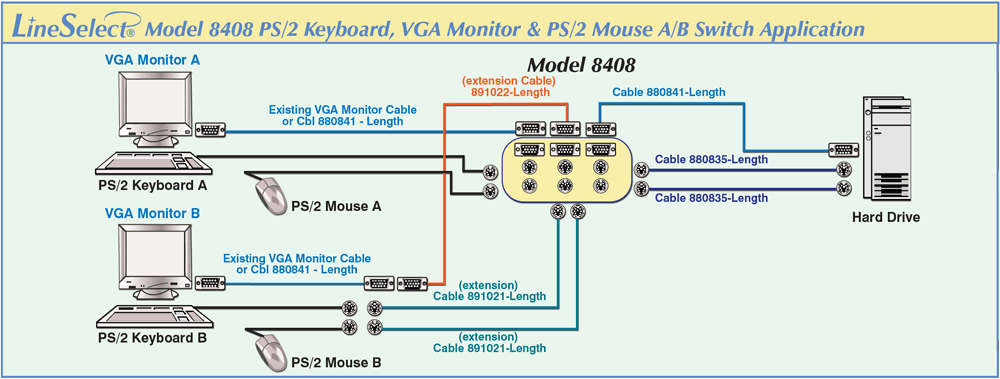

The diagram illustrates a PS/2 computer connected to the Model 8408. The hard drive is allowed access to (PS/2 Keyboard A, VGA Monitor A, and PS/2 Mouse A) or to select (PS/2 Keyboard B, VGA Monitor B, and PS/2 Mouse B) setup by selecting one of two switch positions on the Model 8408.

LineSelect KVM Switch, PS/2 Keyboard, VGA Monitor, & PS/2 Mouse

The LineSelect® Model 8408, PS/2 Keyboard, Monitor and Mouse A/B Switch is designed to allow access from one PS/2 computer to two locations having a keyboard, monitor, and mouse. Alternately, the M8408 can also be used where two PS/2 computers need to be shared among one keyboard, monitor and mouse location. A front panel selector allows easy switching of the shared device. No external power required with the Model 8408 Manual Data Network Switch.

State cable length when ordering.

Part Number Description

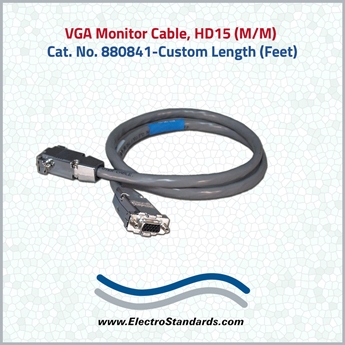

880841 Any Length/Feet, VGA Monitor Cable, HD15 (M/M)

891022 Any Length/Feet, VGA Extension Cable HD15 (M/F)

880835 Any Length/Feet, PS/2 Keyboard/Mouse/Extension Cable, Mini DIN-6 (M/M)

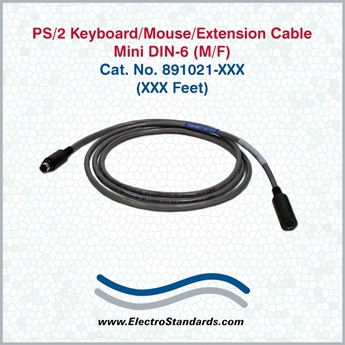

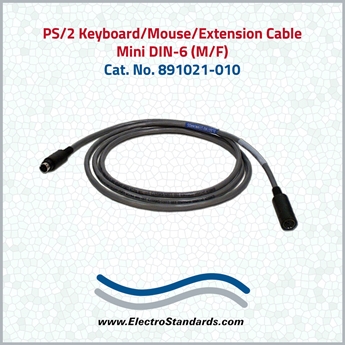

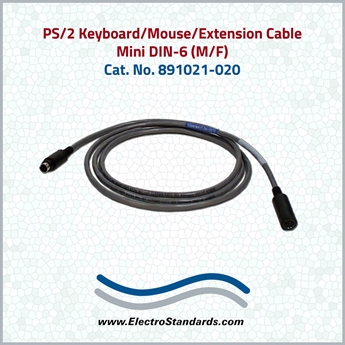

891021 Any Length/Feet, PS/2 Keyboard/Mouse/Extension Cable, Mini DIN-6 (M/F)

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur, equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
