DB9 Manual Network Switch, Rotary Switch

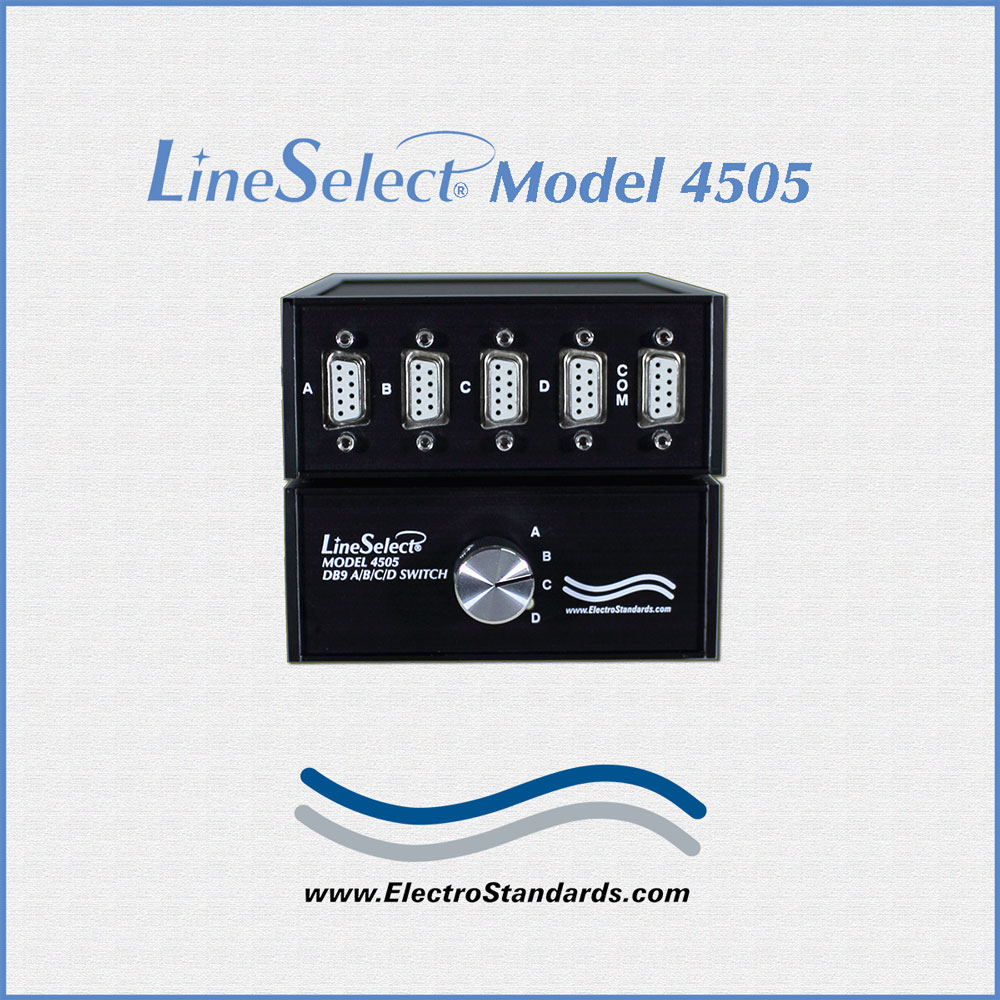

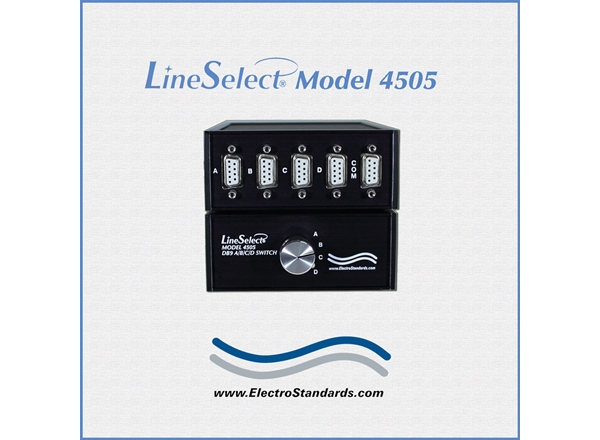

Model 4505 DB9 A/B/C/D Switch with Manual Operation

• Ideal for device-sharing applications; Applicable to ANY DB9 interface devices

SPECIFICATIONS:

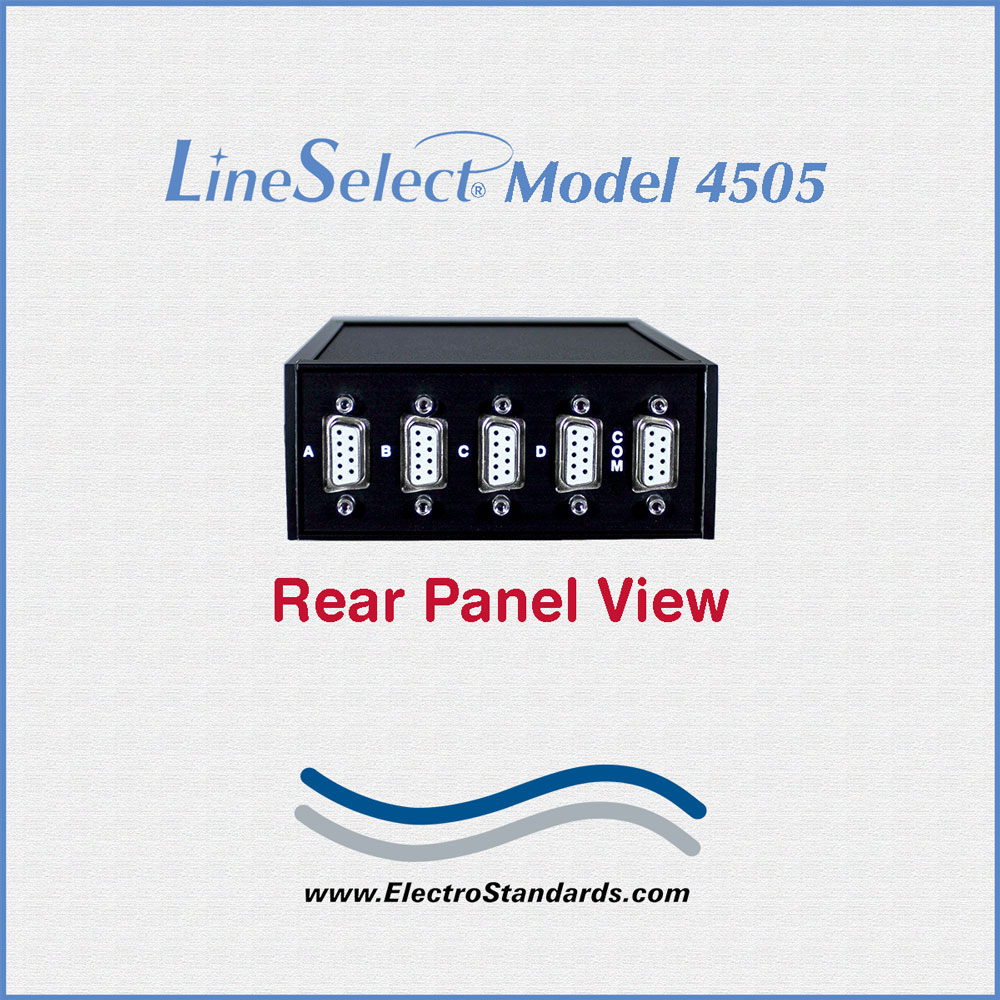

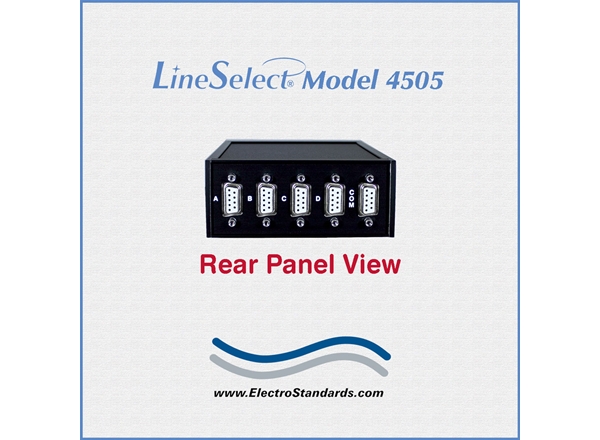

• PORT CONNECTORS: (5) DB9 female connectors labeled A, B, C, D, and COMMON.

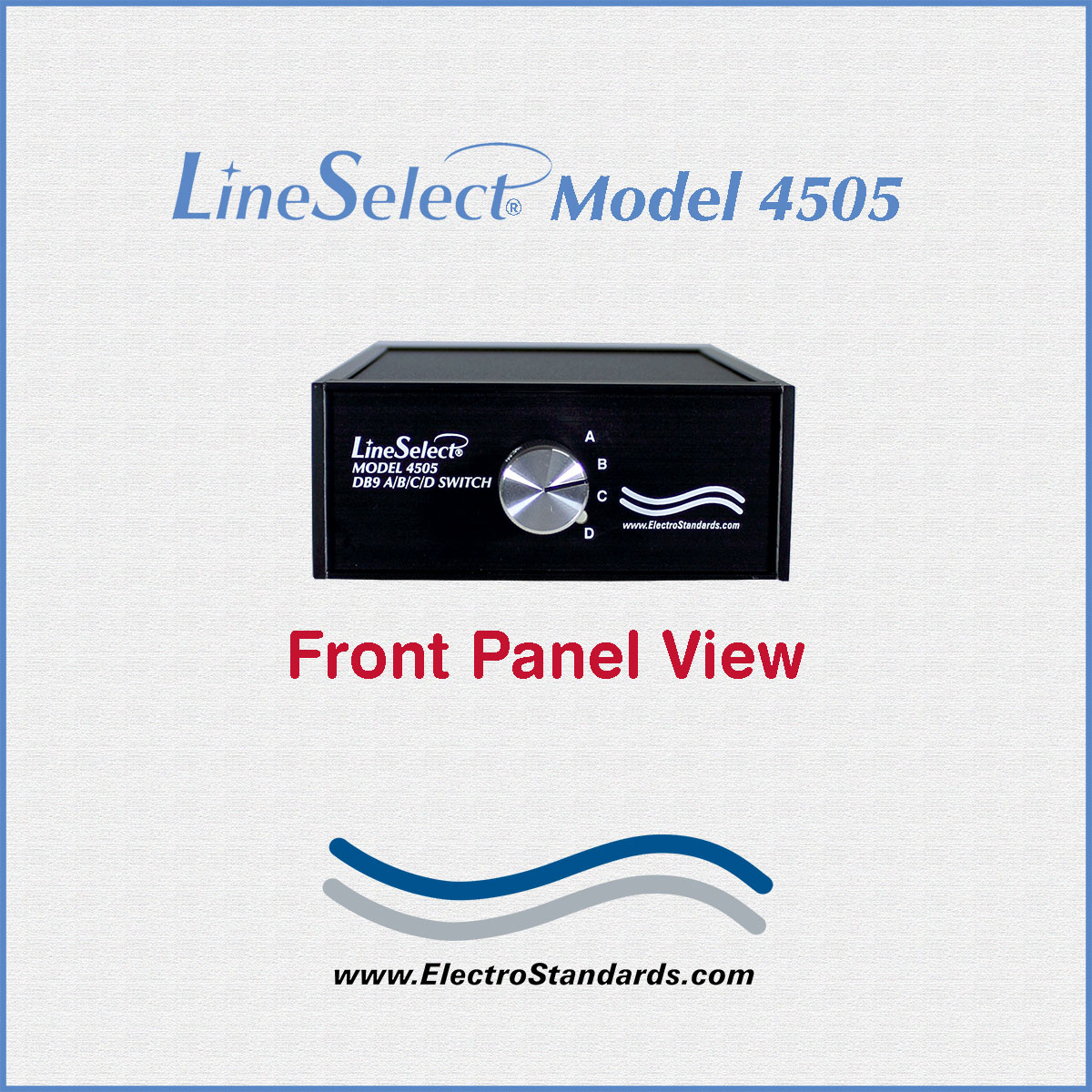

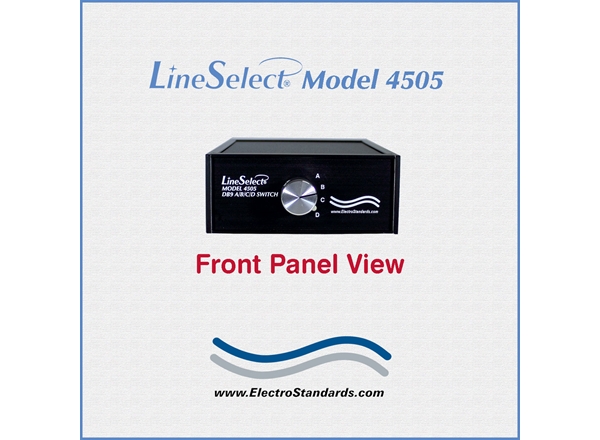

• FRONT PANEL CONTROL: (1) Front panel rotary switch allows selection of switch position.
• POWER: No power required. Manually operated.
• DIMENSIONS: 4.19" W x 1.86" H x 6.73" D. (10.7 x 4.19 x 17.1 cm)
• WEIGHT: Approximately 1.2 lbs. (0.6 kg)

LineSelect® Model 4505 Manually Operated DB9 A/B/C/D Switch Application:

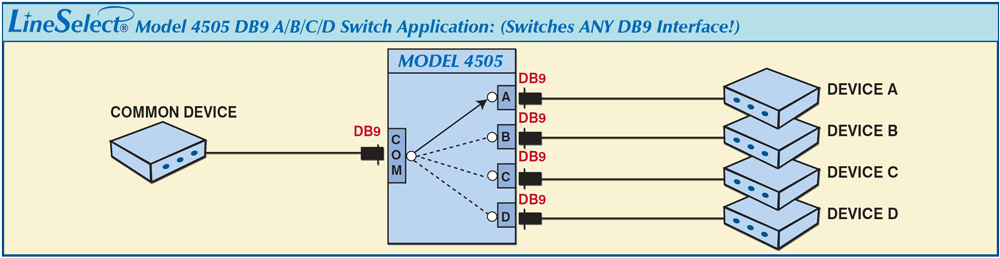

The drawing illustrates a four-position switch that is manually operated via front panel rotary knob. A COMMON device connected to the DB9 COMMON port has access to any one of four DB9 interface devices connected to the four DB9 ports labeled A, B, C and D via the front panel rotary switch selector knob.

 FEATURES:

• Allows quick connection to any one of four devices from one COMMON device.
• High quality sealed switch with self-wiping contacts.
• The switch ports are transparent to all data.
• All (9) pins of the DB9 interface are switched via break-before-make rotary switch.
• Eliminates the need to plug and unplug cables.
• Manual operation, no power required.
• Attractive all metal, black box packaging provides EMI/RFI shielding.
• Lifetime warranty against manufacturing defects.
• Custom length DB9 cables available for your switch installation.

The LineSelect® Model 4505 DB9 A/B/C/D Switch allows the user to reroute data between any one of four devices to one COMMON device with the simple rotation of a selector switch.  All nine pins of the DB9 interface are supported. No need to plug and unplug interconnection cables thereby eliminating connector wear and/or errors when reconfiguring networks. The LineSelect® Model 4505 is packaged in a slim desktop style enclosure.
