304662 - 4662 Fiber-to-USB Converter/Extender, Host

Click image to enlarge

Base Price:

$906.00

Catalog No:

304662

Model No:

4662

Product Type:

Interface Converter

Converter Port Connector:

LC, USB Type-B

Conversion Type:

Glass Fiber, USB

Configuration:

Desktop

Feature:

USB Powered

Speed:

up to 480 Mbps

Wavelength Nano:

850 nm, multimode

Qty

Add to Cart

USB Powered.

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

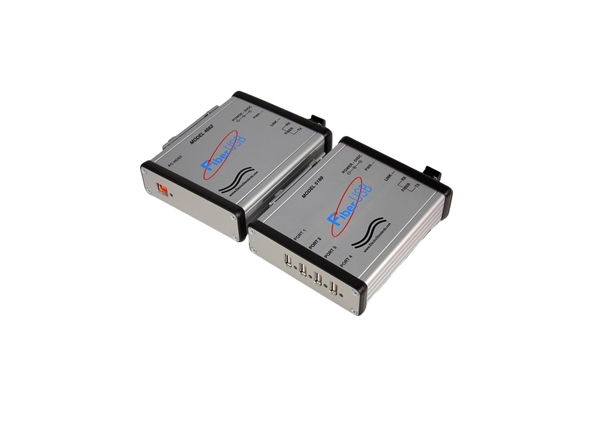

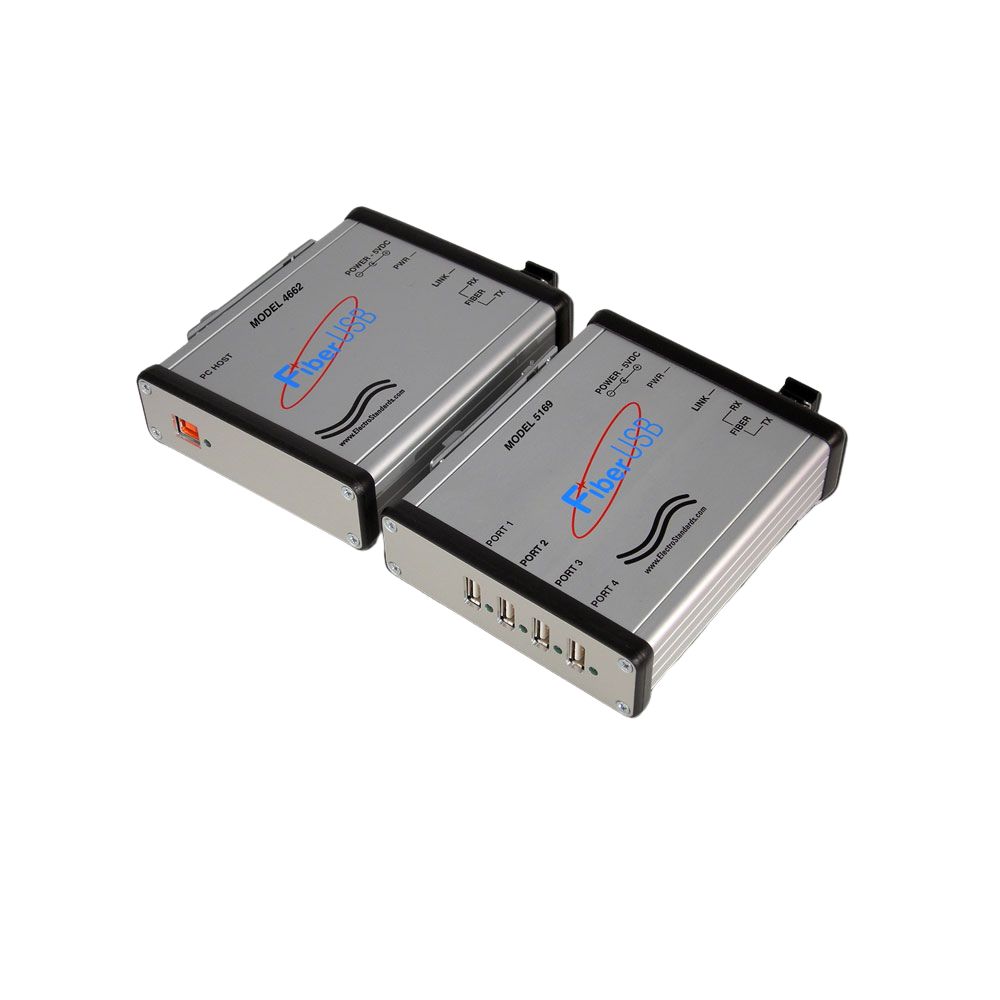

Model 4662 High Speed Fiber-to-USB Converter/Extender, Host, DIN Rail Mounted

Simultaneously connect four USB Interface Devices to your desktop PC or notebook.
High speed connection to distant USB devices over multimode fiber optic cable.

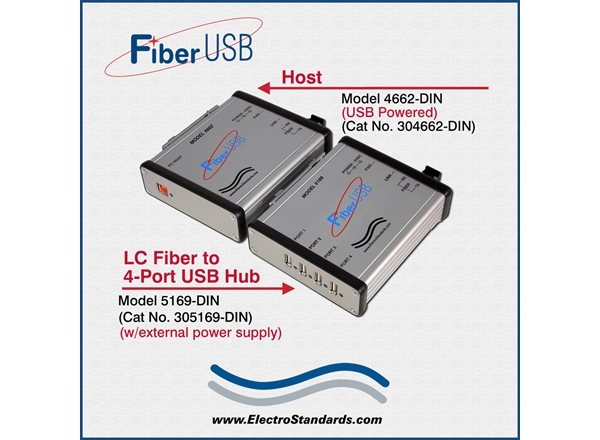

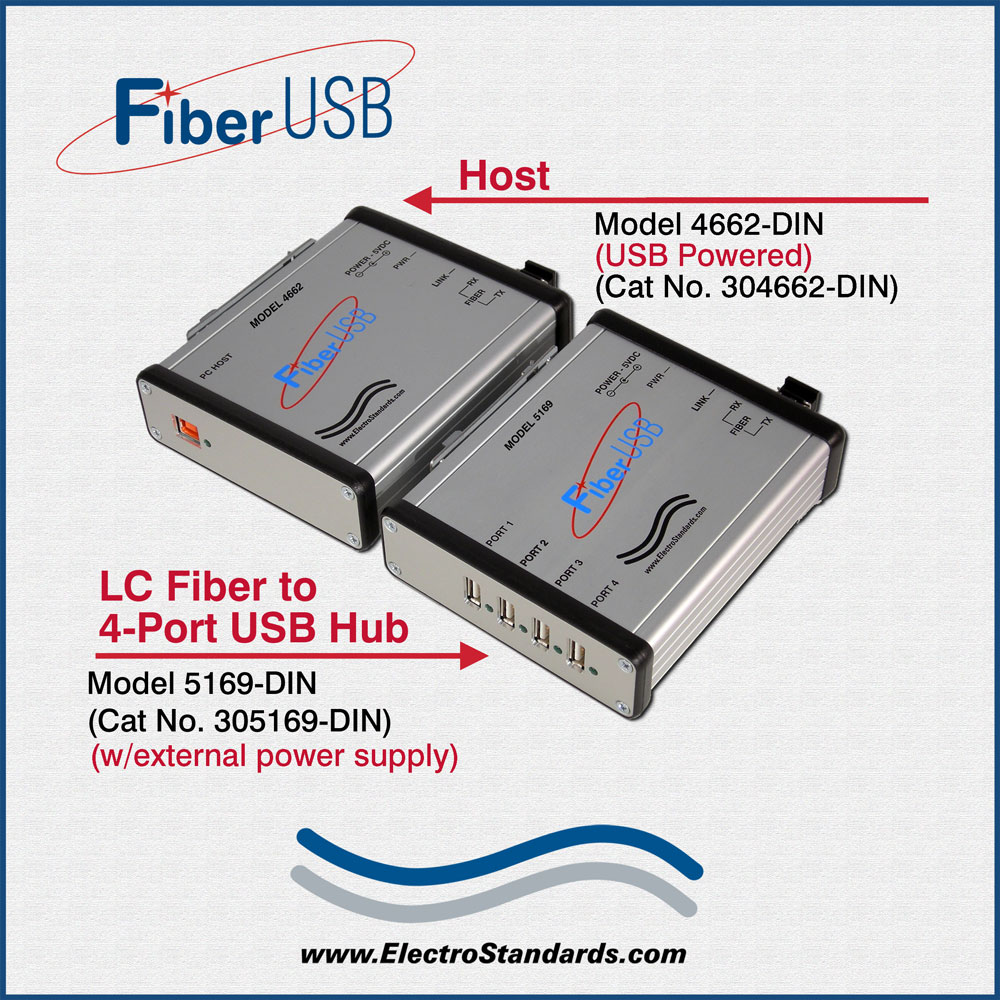

The desktop Model 4662-DIN is a USB Powered Host that works with desktop Model 5169-DIN 4-Port USB Hub (also see related products tab for M5169-DIN details) to comprise a USB Powered Host and a Four Port USB Wired Hub that extend USB connections up to 500 meters via a high speed Fiber interface.

Two configurations are available for each model

Model 4662 Host Desktop Unit, for applications requiring an enclosure. (USB Powered)
Model 4662-DIN Host Unit for applications requiring mounting on a DIN rail. (USB Powered)
Model 5169 4-Port USB Hub Desktop Unit, for applications requiring an enclosure. (w/external power supply)
Model 5169-DIN 4-Port USB Hub Unit for applications requiring mounting on a DIN rail. (w/external power supply)

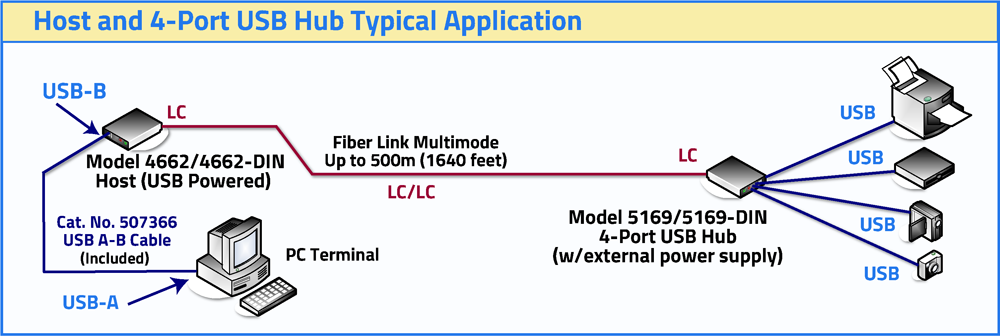

TYPICAL APPLICATION: Fiber link up to 500m (Multimode).

Model 4662-DIN USB Powered Host and Model 5169 4-Port Hub w/external Power Supply

USB A-B Cable (6 Ft): Included with Model 4662 / 4662-DIN is the cable ESL Cat. No. 507366 (USB Type A to USB Type B)

FEATURES:

Convert USB 2.0 compliant data from a standard PC Host interface, Model 4662, over fiber to a remote 4-port powered USB Hub, Model 5169.
Ideal for applications involving PC communication that require high speed, secure communication, and optical isolation.
Extend USB communication in environments that are subject to high EM or RF interference that might corrupt communication over a copper interface.
Typical applications include industrial control, KVM extension, remote desktop USB connections, and remote USB device sharing such as printers, scanners and storage devices.
Units offer true plug and play operability with support for Windows®, Mac OS®, Linux®, and support all USB device types: Control, Interrupt, Bulk and Isochronous up to 480 Mbps.
Designed to operate from -0 degree C to 50 degree C (component ratings meet or exceed 0° C to 70° C).
Units feature ESD protection circuitry on all copper USB I/O interfaces.
Power inputs are protected from transients and the 4-Port USB Hub provides the USB standard of 500mA per port.
LED display Power, Fiber Link Active, Host Active (Model 4662, 4662-DIN) and Port Active (Model 5169, 5169-DIN) indicator LED's.

SPECIFICATIONS:

USB Interface
Connectors: Model 4662 - 1x USB Type B, High Retention
Model 5169 - 4x USB Type A,
(5V @500mA/port)

                    Model 4662-DIN - 1x USB Type B, High Retention
                    Model 5169-DIN - 4x USB Type A,
                    (5V @500mA/port)

USB Data Format:
Type: USB 2.0 Compliant (Backwards compatible USB 1.1)
   Rate: Supports Low Speed (1.5 Mbps),
            Full Speed (12 Mbps), and High Speed
            (480 Mbps) USB Data transfer rates.

Fiber Interface:
Connectors: Fiber Optic LC SFP Transceiver
TX Power: -6.5 dBm (Typical)
RX Sensitivity: -21.5 dB (Typical)
Optical Budget: 14.5 dB
Max. Link Distance with 50/125 µm fiber: 500 Meters
LC/LC Duplex fiber cable - Cat. No. 986147
Max. Link Distance with 62.5/125 µm fiber: 275 Meters
LC/LC Duplex fiber cable - Cat. No. 986017
Wavelength: 850 nm, multimode

LED Indicators:
Model 4662 - Power, Fiber Link Active, Host Active
Model 5169 - Power, Fiber Link Active, Port Active

Model 4662-DIN - Power, Fiber Link Active, Host Active
Model 5169-DIN - Power, Fiber Link Active, Port Active

Input Power: Requirement
Model 4662 - 5VDC @ 2.5W
Model 5169 - 5VDC @ 15W

Model 4662-DIN - 5VDC @ 2.5W
Model 5169-DIN - 5VDC @ 15W

Power Connector: On Models 5169 and 5169-DIN, the input power connector is a DC power jack (Circular Barrel Type).

External Power Supply
An external power supply is not included with either the Model 4662 or the Model 4662-DIN Host units since they are USB-Powered. The Model 5169 and the 5169-DIN USB Hub units include a wide range UL and CE approved 100VAC/240VAC, 50Hz/60Hz table mount power module. Ideal for international application.

Operating Environment:
Tested operation, 0°C to 50°C; component ratings meet or exceed 0°C to 70°C.

Model 4662 Mechanical (Desktop Unit):
Model 4662, Cat No 304662
Size: 5.67" x 4.19" x 1.43" (14.5 x 10.7 x 3.7 cm)
Weight: Approx. 11.0 oz (310.5g)
Mounting: Desktop Std, DIN rail (Optional)

Model 5169 Mechanical (Desktop Unit):
Model 5169 Cat No 305169
Size: 5.67" x 4.19" x 1.43" (14.5 x 10.7 x 3.7 cm)
Weight: Approx. 11.4 oz (324g)
Mounting: Desktop Std, DIN rail (Optional)

Model 4662-DIN Mechanical (DIN Rail Mounted Unit):
Model 4662-DIN Cat No 304662-DIN
Size: 5.37" x 4.28" x 1.43" (14.5 x 10.7 x 3.7 cm)
Weight: Approx. 11.0 oz (310.5g)
Mounting: 2 Threaded Holes Standard, DIN rail
DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
DIN Rail Bracket Weight: 0.9 oz (25.5g)

Model 5169-DIN Mechanical (DIN Rail Mounted Unit):
Model 5169-DIN Cat No 305169-DIN
Size: 5.67" x 4.28" x 1.43" (14.3 x 10.9 x 3.7 cm)
Weight: Approx. 11.4 oz (324g)
Mounting: 2 Threaded Holes Standard, DIN rail
DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
DIN Rail Bracket Weight: 0.9 oz (25.5g)
