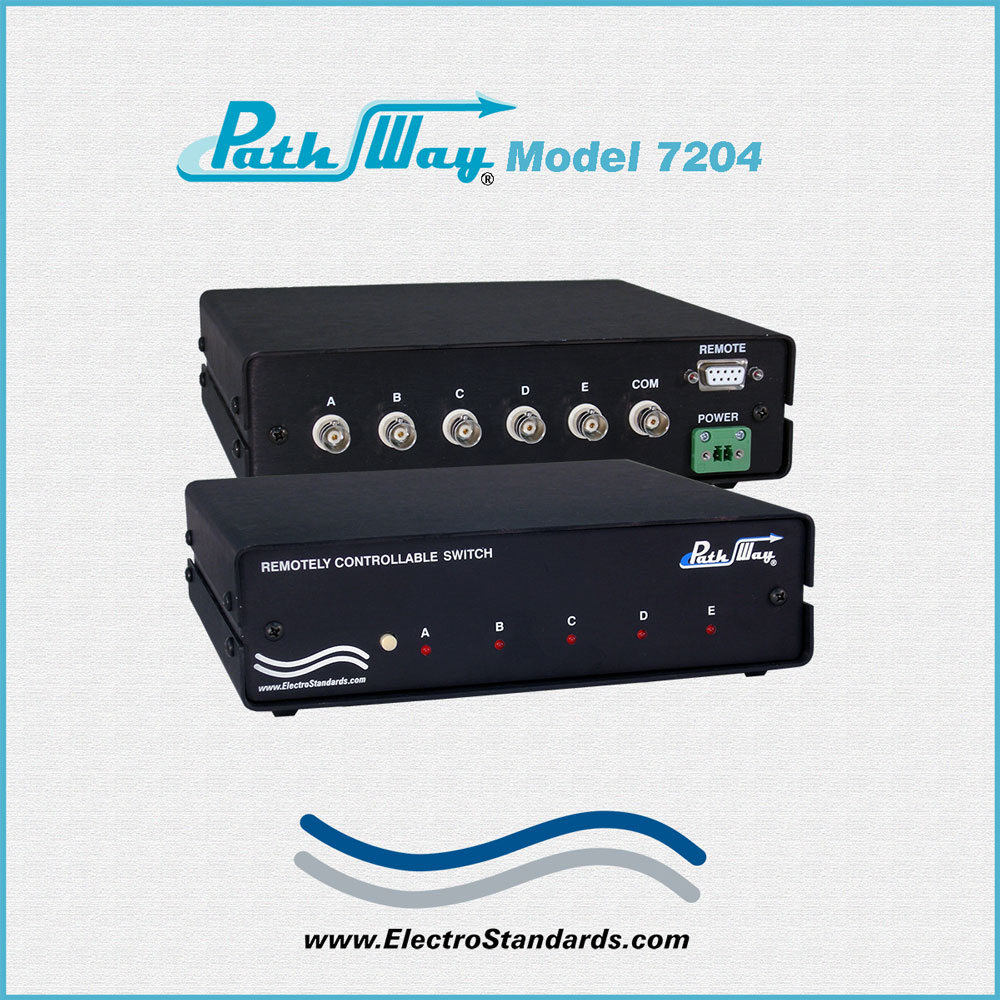

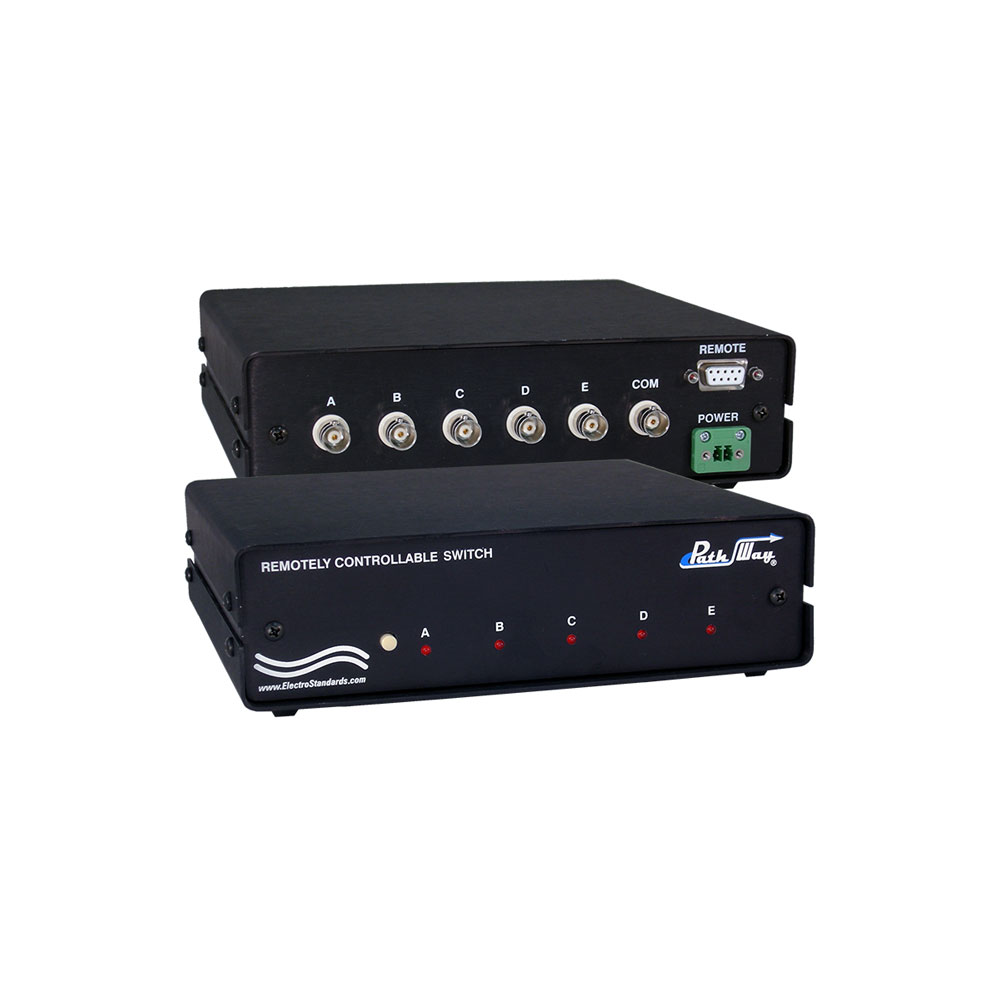

Catalog # 305075 - Model 7204 BNC 5-1 Position Switch

Click image to enlarge

Base Price:

$1,024.00

Catalog No:

305075

Model No:

7204

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

Coax Switch Ports

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Remote Control:

RS232 Serial

Configuration:

Desktop

Remote Port:

DB9

Local Control:

Pushbutton

Protocol:

ASCII

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Path Way Remotely Controllable Network Switch, BNC Coaxial

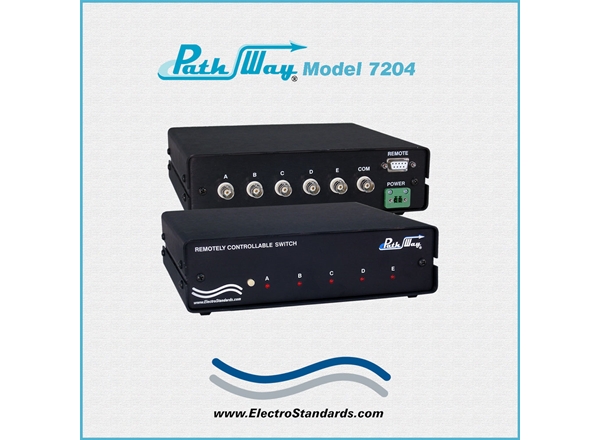

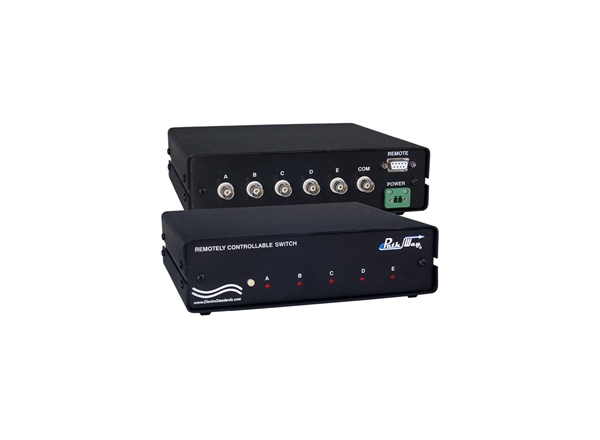

Model 7204 Remotely Controllable BNC Coaxial Interface 5-1 Switch with RS232 Remote

Ideal for data, GPS and test measurement coaxial networks!

SPECIFICATIONS:

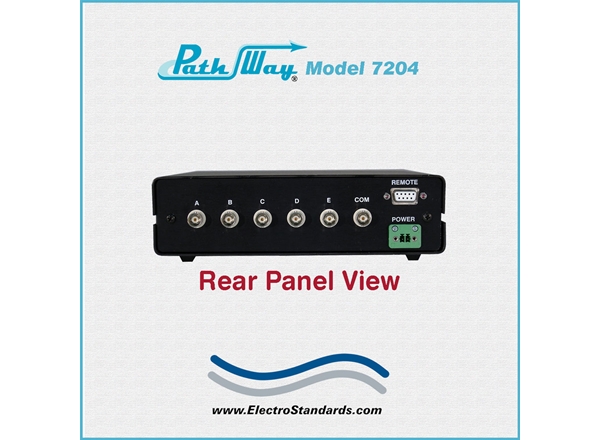

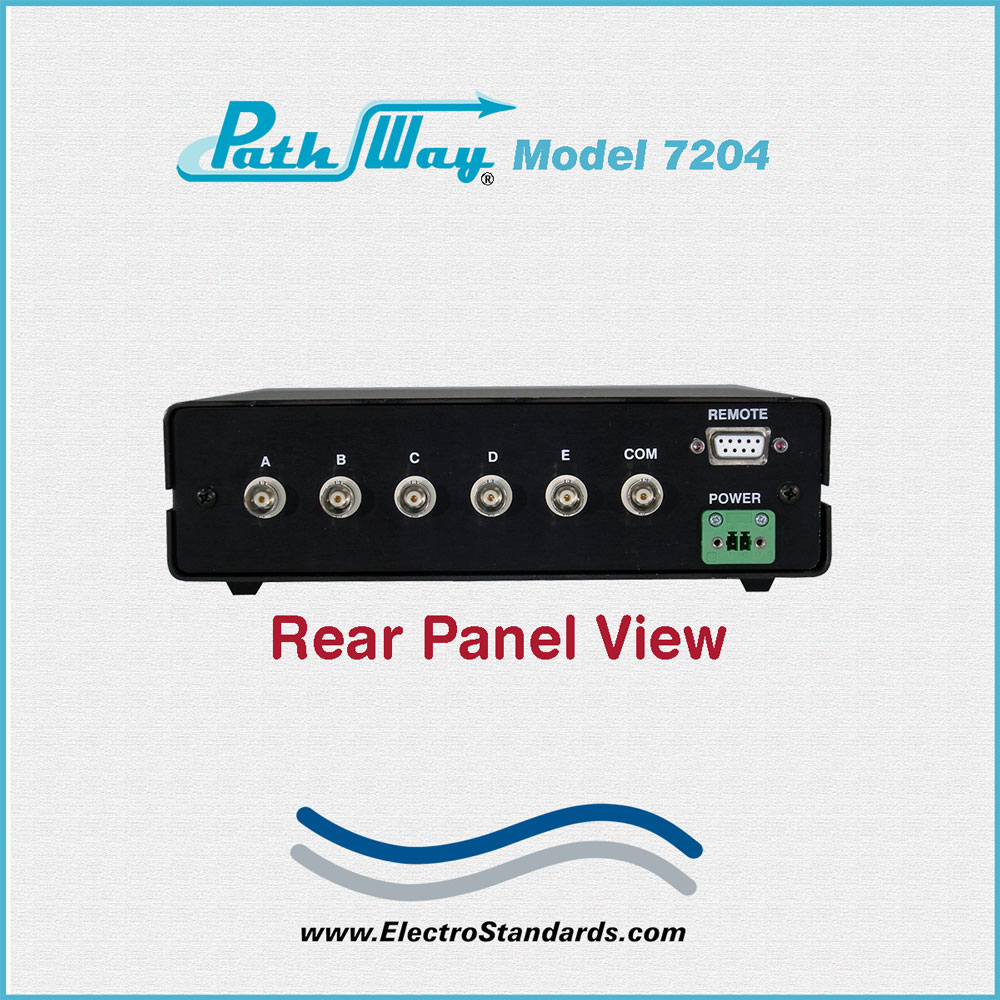

PORT CONNECTORS: (6) BNC female coaxial connectors are labeled A, B, C, D, E and COM.
REMOTE CONTROL CONNECTOR: (1) DB9 female connector labeled REMOTE accepts ACSII RS32 Serial Data for Remote Control Operation.

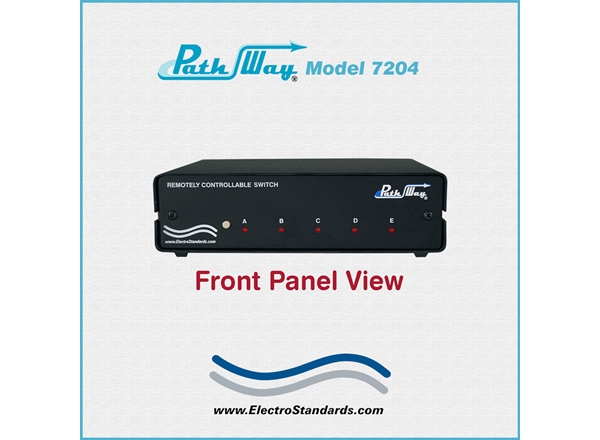

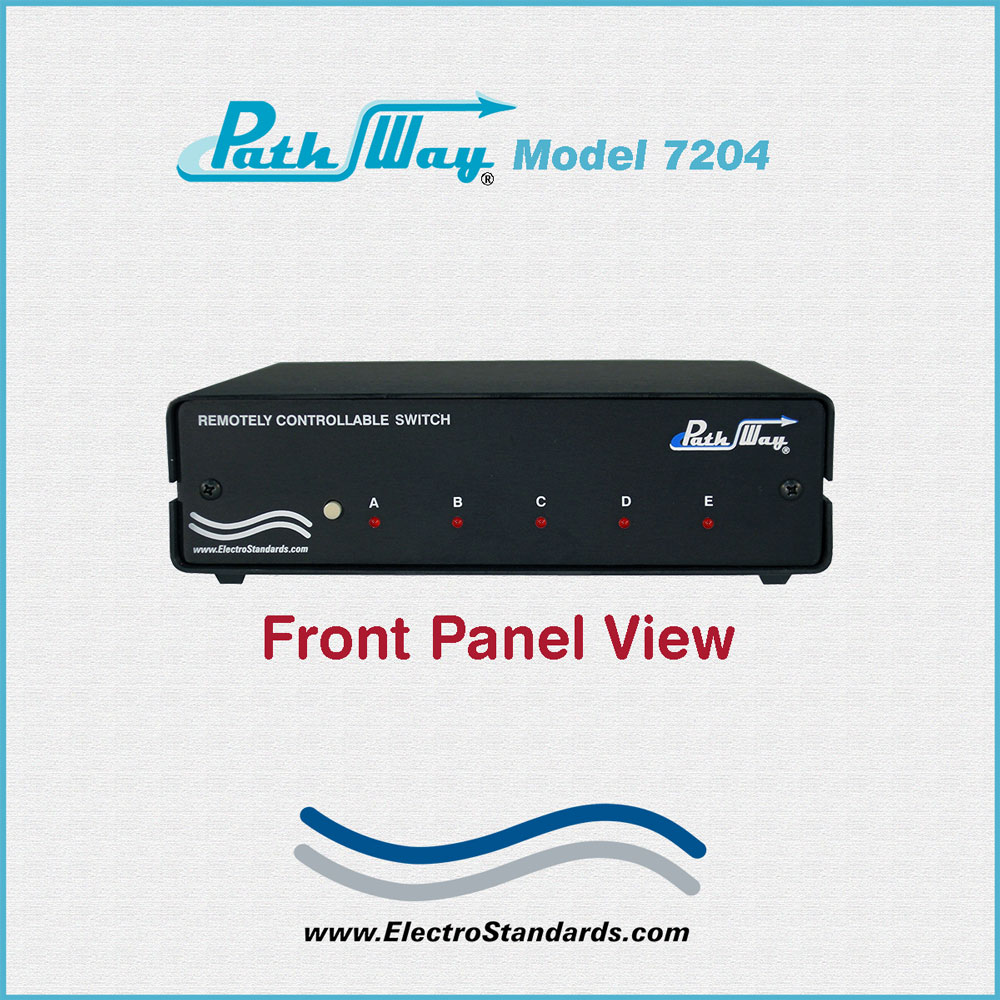

FRONT PANEL LED DISPLAY: (5) Red LED's display switch position.
POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: 8.12" W x 2.50" H x 7.65" D. [20.7 x 6.4 x 19.5 cm]
WEIGHT: Approximately 1.8 lbs. (0.8 kg)

PathWay® Model 7204 BNC Coaxial 5-to-1 Switch w/ RS232 Serial REMOTE:

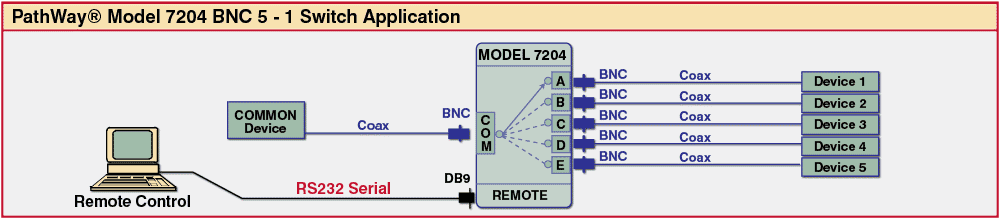

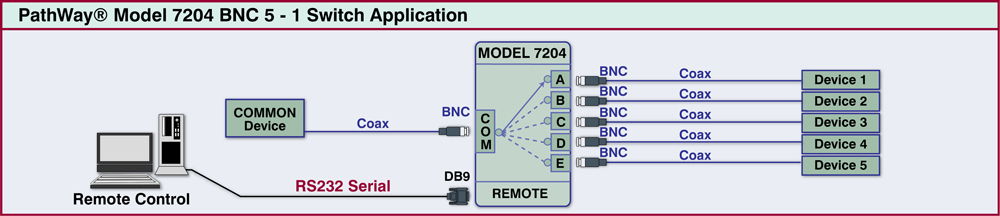

The drawing illustrates a COMMON device connected to the BNC COMMON port with access to five BNC interface devices connected to the BNC ports A, B, C, D, and E. The COMMON Device connects between any one of the five devices (Devices, A, B. C, D, and E), one device at a time via pushbutton or Remote Commands. The DB9 Remote Port can be used to control the switch remotely via ASCII RS232 Serial data commands

Model 7204 BNC 5-1 Switch

FEATURES:

Allows any of five BNC ports to connect to one common port.
The switch ports are transparent to all data.
(6) Isolated BNC connectors on rear panel. Both center pin and shell are switched via break-before-make electromechanical relays.
The unit maintains last set position on power loss and continues to pass data.
Front panel pushbutton control.
Remote RS232 ASCII commands that allow the user to control the switch position, lockout front panel operations, obtain switch status, as well as query firmware version number, query serial number and enable/disable autosend of switch positions.
Front panel LED's display present position and power status.
Attractive anodized black box packaging provides EMI/RFI shielding.
Custom length RJ-58 and Thinnet RG-58 coaxial cables available (Male to Male).
Municipalities, schools, government: This product is on GSA Schedule.

The PathWay® Model 7204 Remotely Controllable BNC Interface 5-1 Switch allows the user the capability of sharing a single BNC interface device connected to the COMMON port among 5 other devices, connected to ports A, B, C, D, and E. The Model 7204 is packaged in a slim desktop style enclosure. The switch may be controlled manually via a front panel pushbutton or remotely from an RS232 serial port located on the rear of the unit. Switch position status may be attained via the front panel LED display or the Remote RS232 serial port located on the rear of the unit.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

Check out suggested cables for use with the Model 7204 Switch.

Suggested cables for use with Model 7204 Switch
Part Number	Description

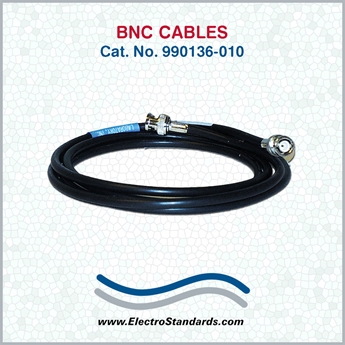

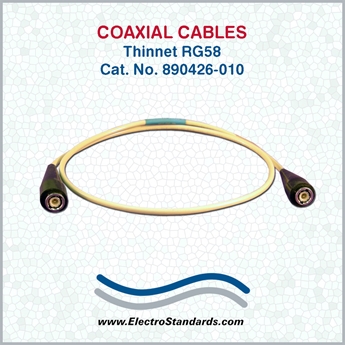

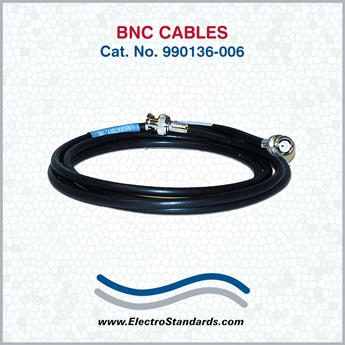

990136-006 990136-010 890426-006 890426-010	RG58 Coaxial Cable, 50 ohm, 6ft. (M/M) RG58 Coaxial, 50 ohm, 10ft. (M/M) Thinnet RG58 Coaxial Cable, 50 ohm, 6ft (M/M) Thinnet RG58 Coaxial Cable, 50 ohm, 10ft (M/M)

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7204 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
