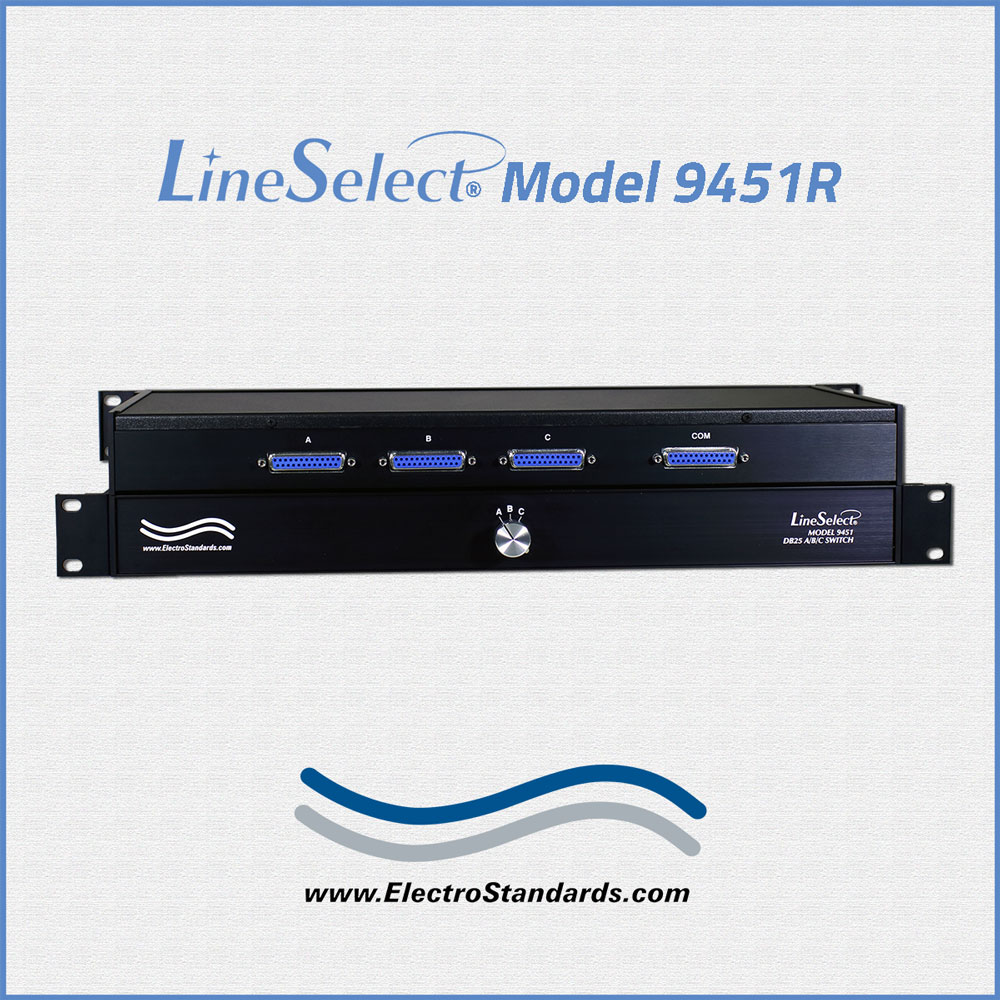

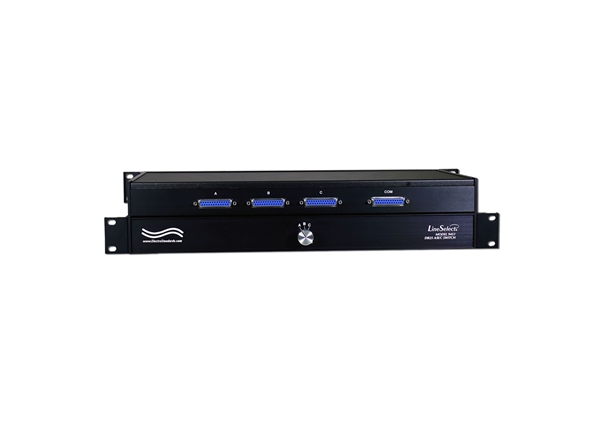

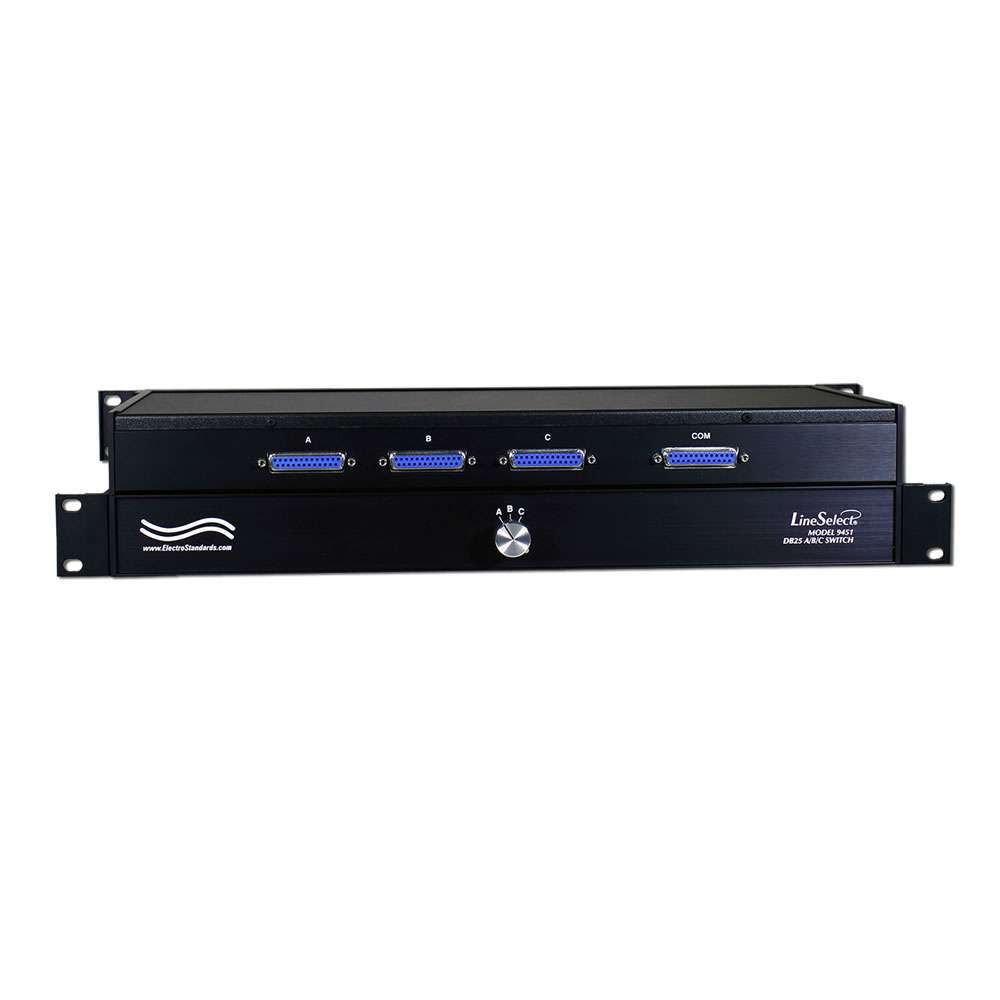

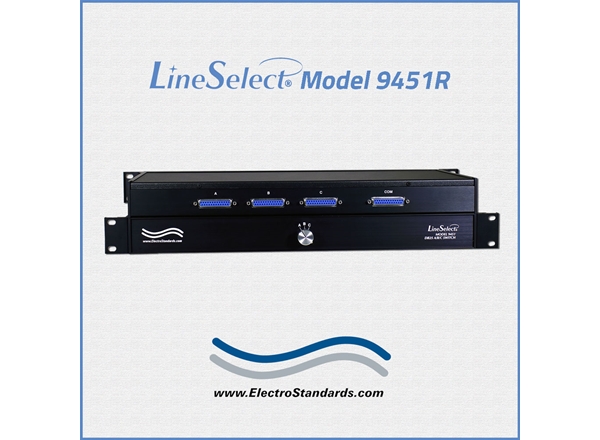

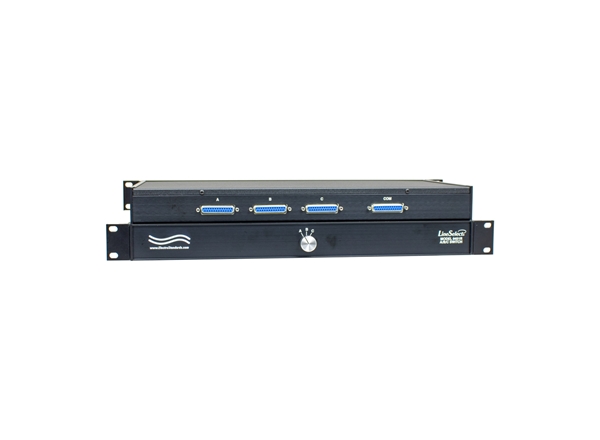

Catalog # 309451R - Model 9451R DB25 A/B/C Switch, RoHS

    Model 9451R DB25 A/B/C Switch, RoHSModel 9451R DB25 A/B/C Switch, RoHSModel 9451R DB25 A/B/C Switch, RoHSModel 9451R DB25 A/B/C Switch, RoHS
Click image to enlarge

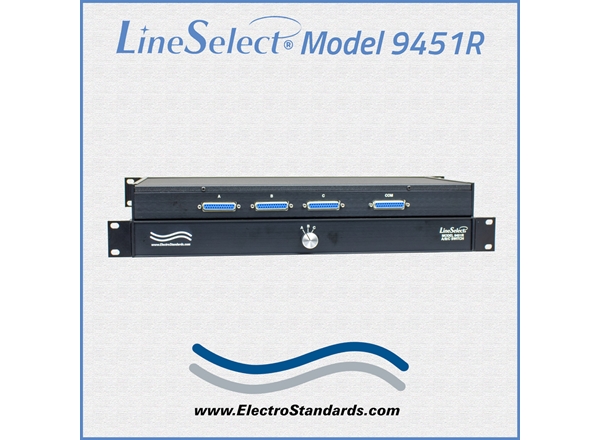

    • Model 9451R DB25 A/B/C Switch, RoHS
    • Model 9451R DB25 A/B/C Switch, RoHS
    • Model 9451R DB25 A/B/C Switch, RoHS
    • Model 9451R DB25 A/B/C Switch, RoHS
Base Price:
$676.00
Catalog No: 309451R
Model No: 9451R
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Compliance/Standards:RoHS, SVCH, REACH
Configuration:Rackmount
Pins Switched:25
Local Control:Rotary Knob

Add to Cart
  • RoHS, REACH, and SVCH compliant.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

DB25 Manual Network Switches, 3-Positions, Rotary Switches
Model 9451R DB25 A/B/C Switch, Manual Operation, Rackmount

  • Provides reliable network backup for mission critical systems.

  • Applicable to switching ANY DB25 interface devices.

SPECIFICATIONS:

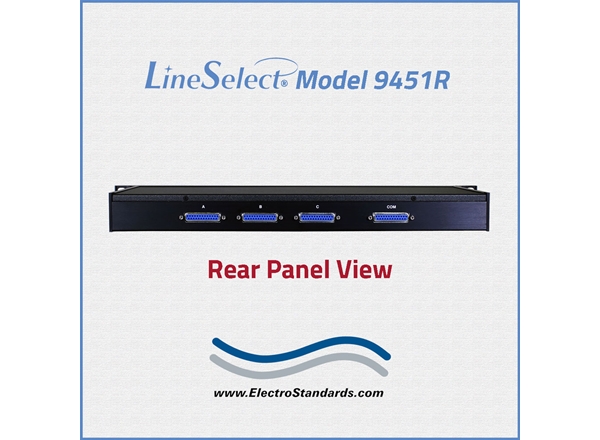

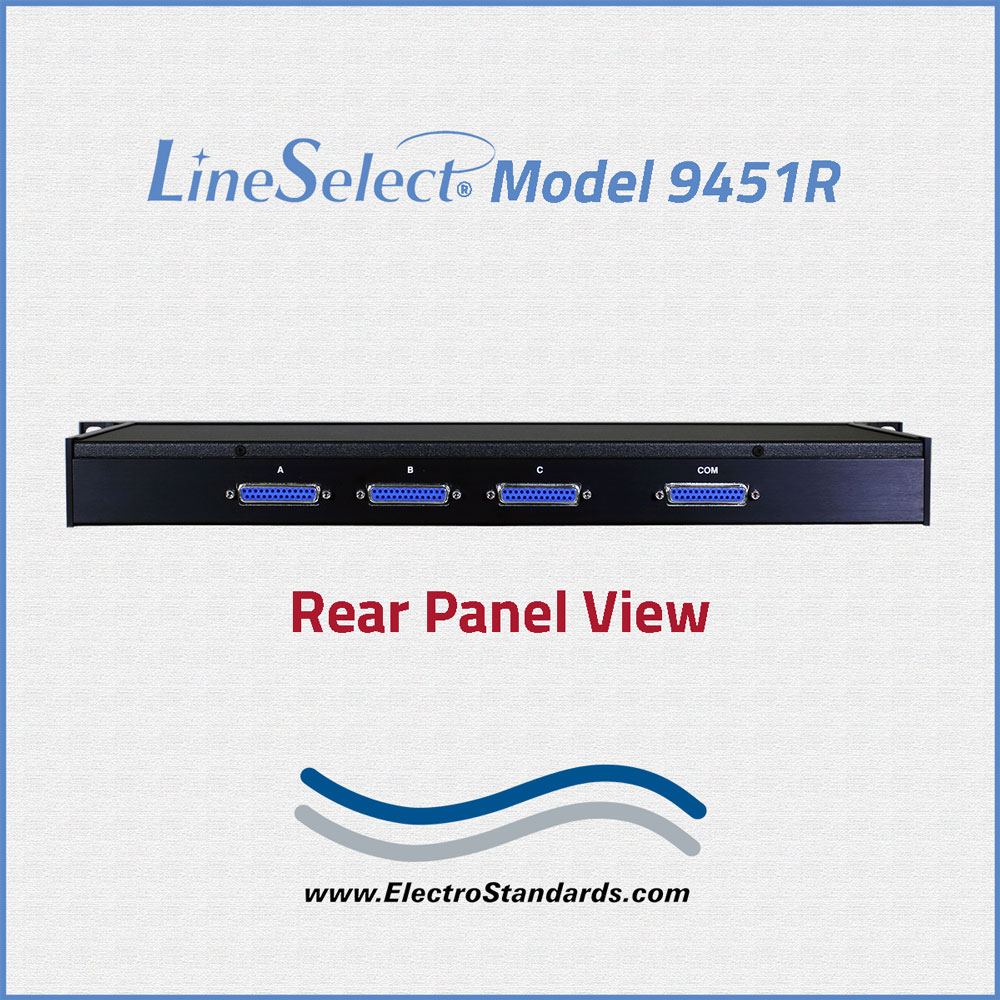

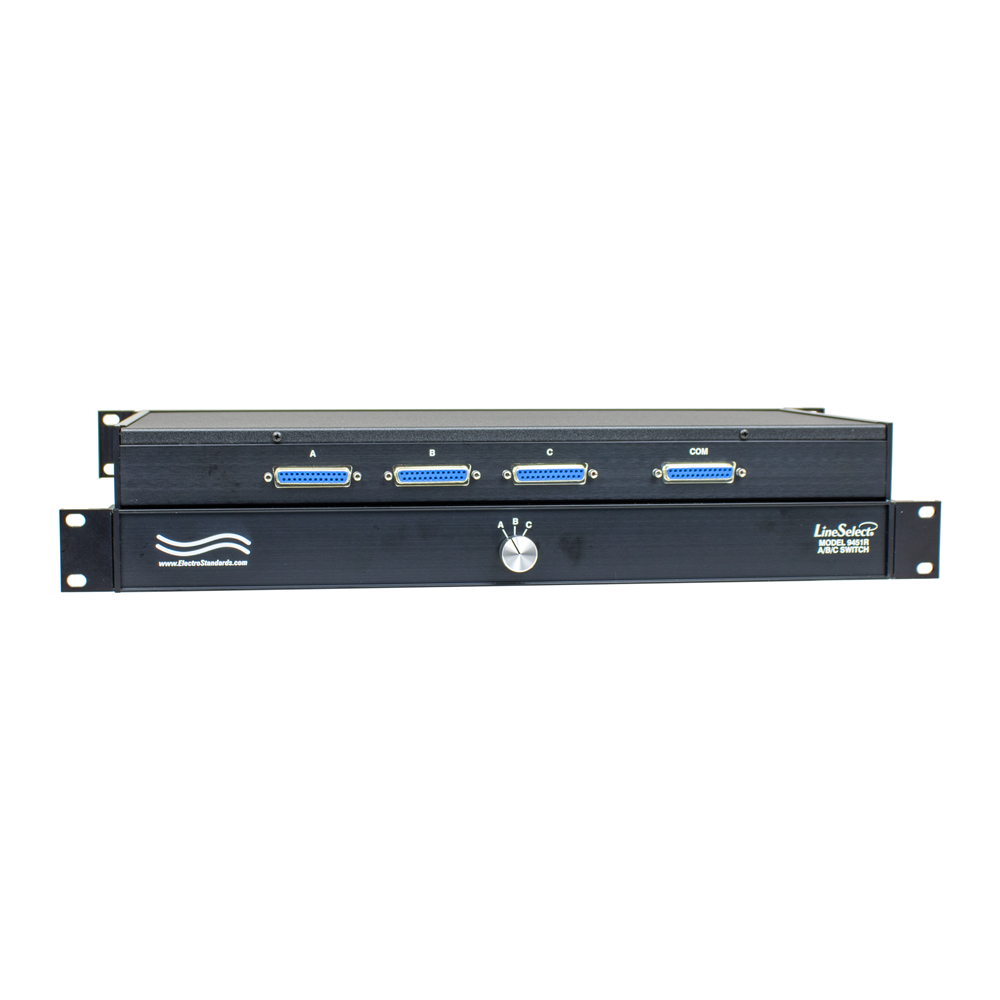

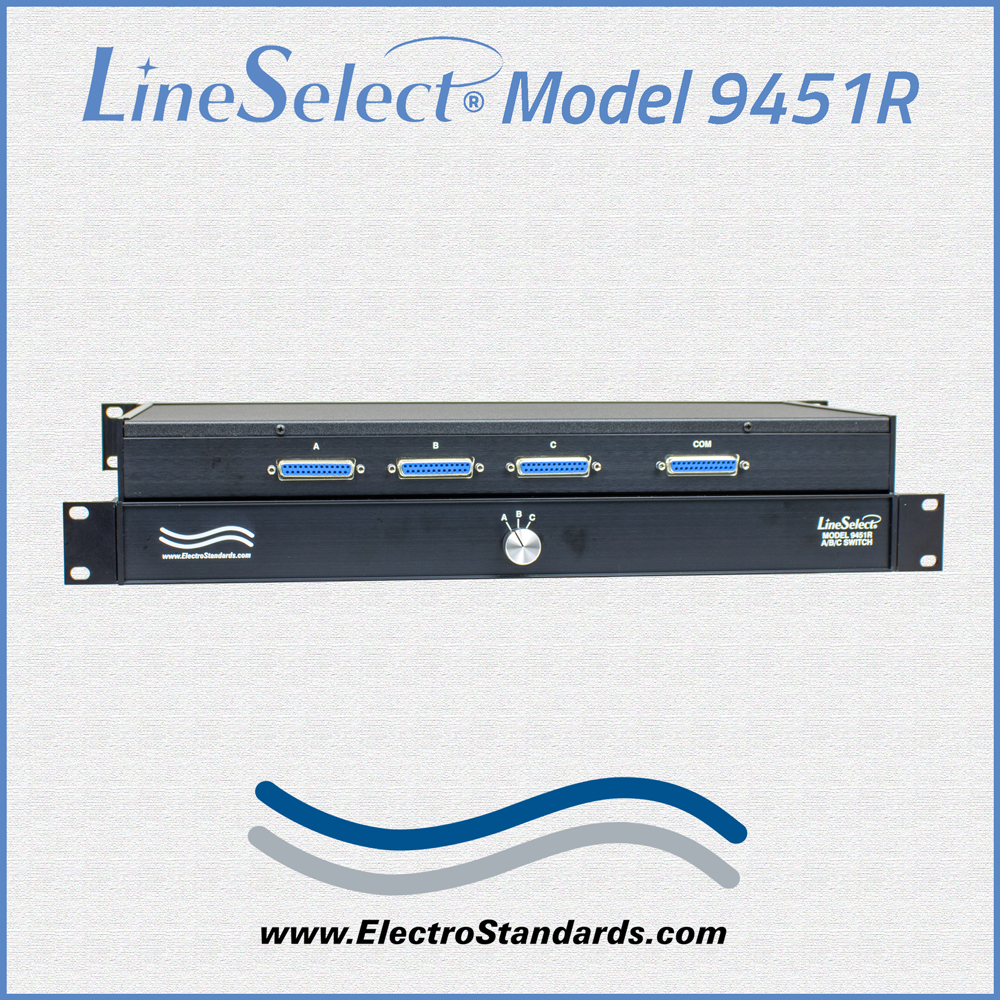

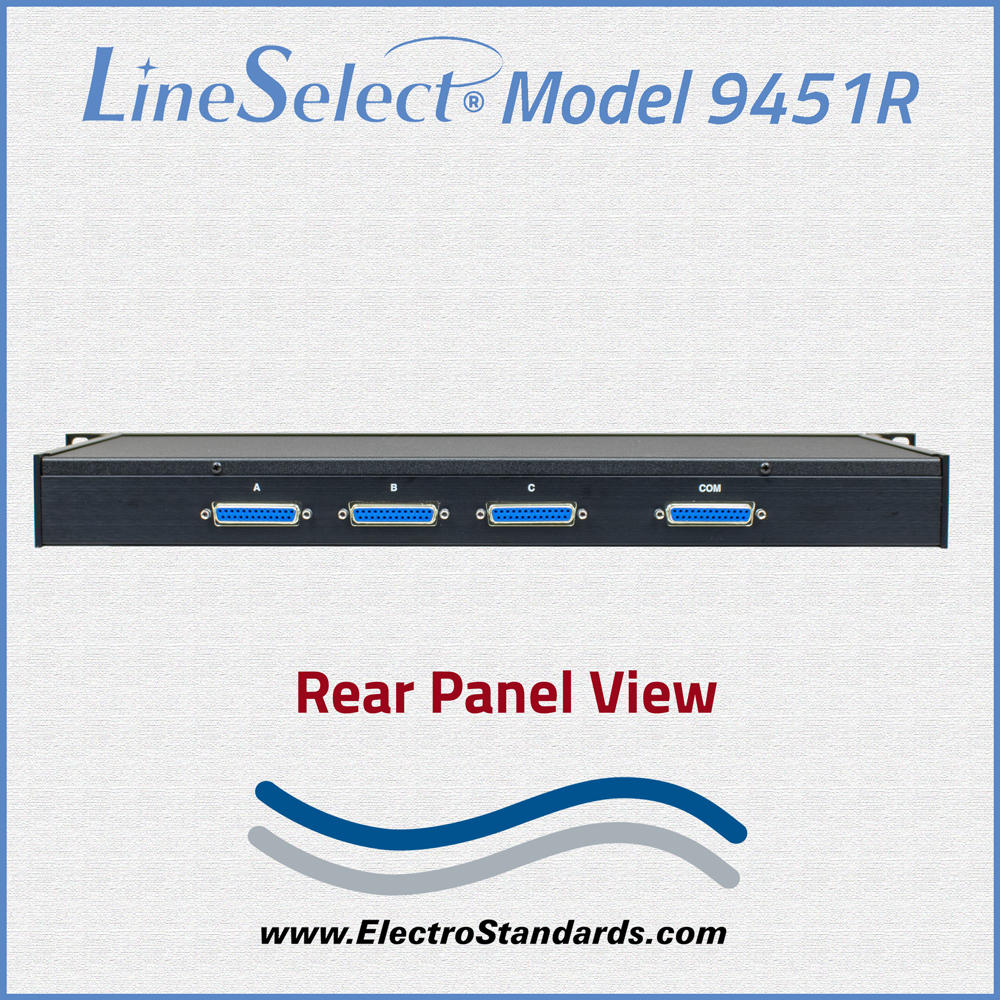

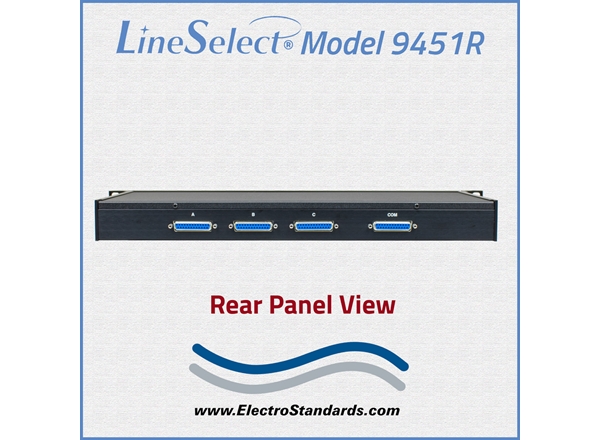

  • PORT CONNECTORS: (4) DB25 female connectors labeled A, B, C and Common.

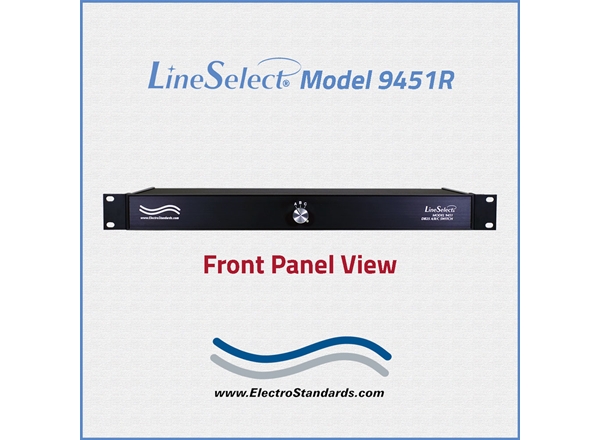

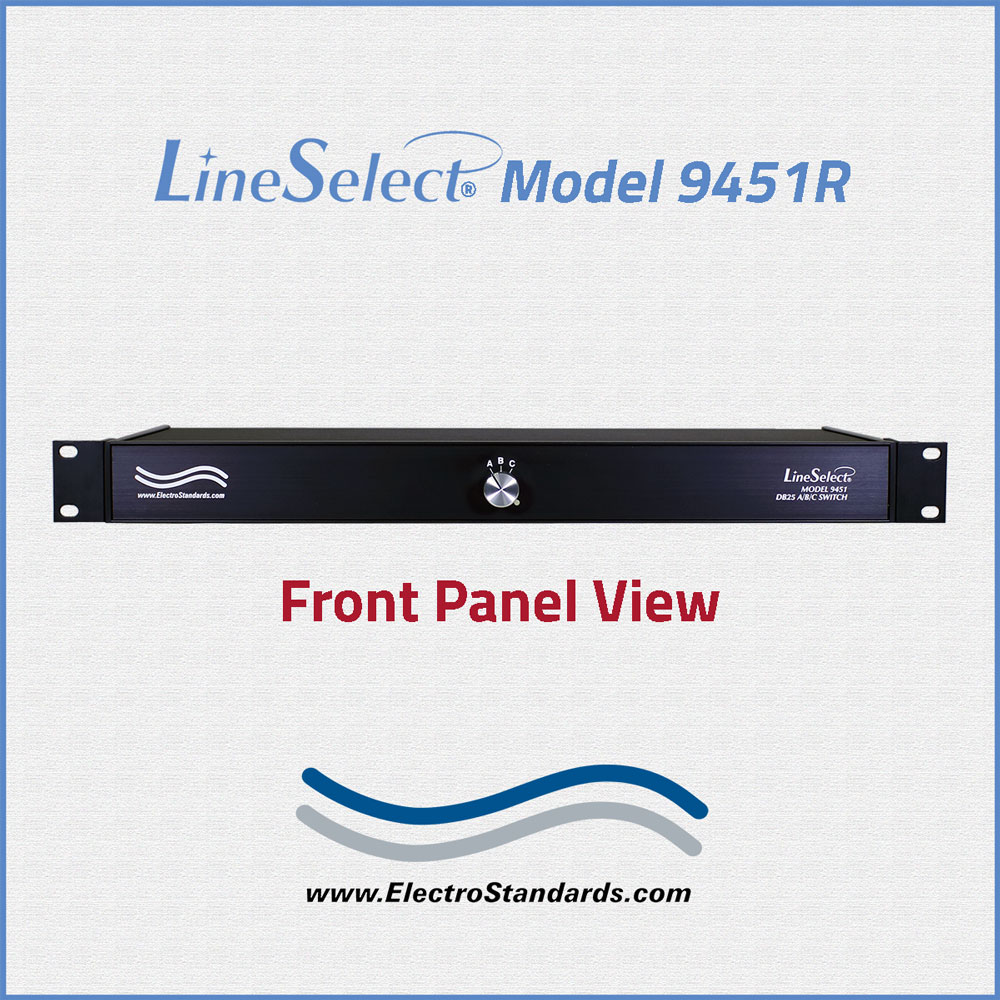

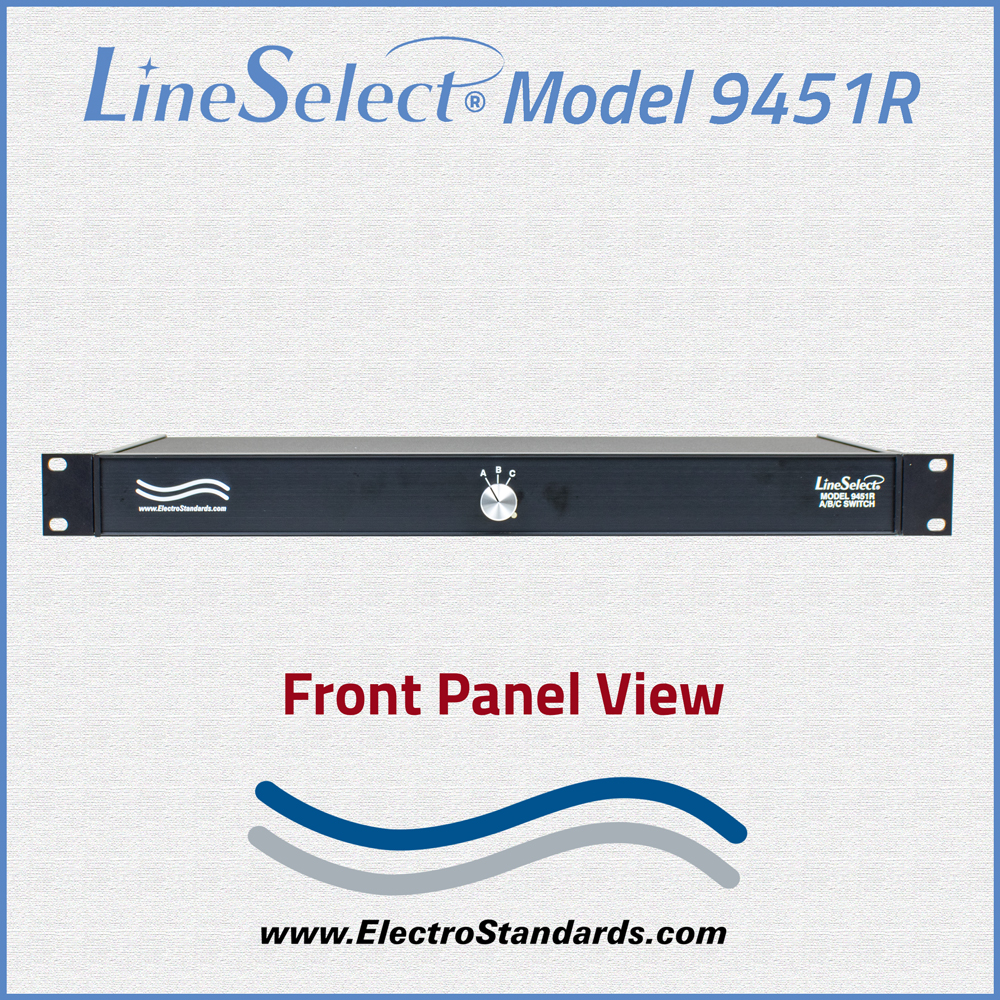

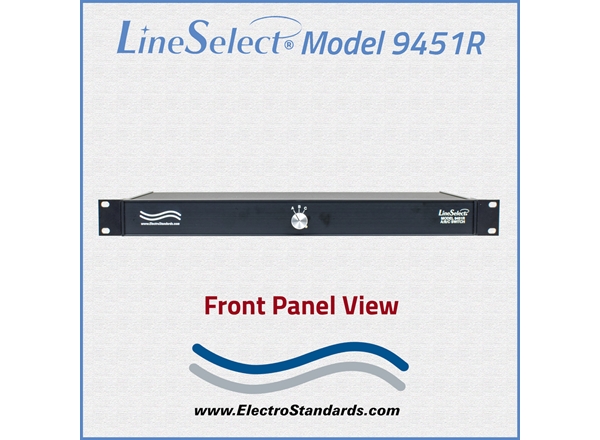

  • FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects A, B, C.
  • LIFE: 10,000 cycles at the rate of 20-25 cycles/minute and no load.
  • OPERATING & STORAGE TEMP: -10° C TO 60° C.
  • POWER:  Manually operated.  No power required.
  • DIMENSIONS:  Rackmount 19.0"W x 1.75"H x 8.75"D. (48.3 x 4.5 x 22.3 cm)
  • WEIGHT: Approximately 4.4 lbs. (2.0 kg.)

DB25 MANUAL NETWORK APPLICATION:

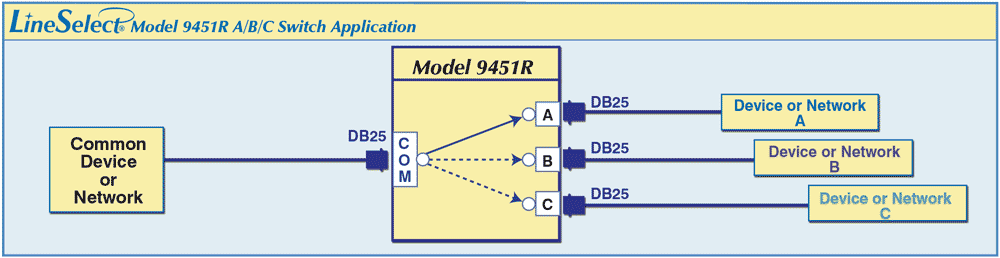

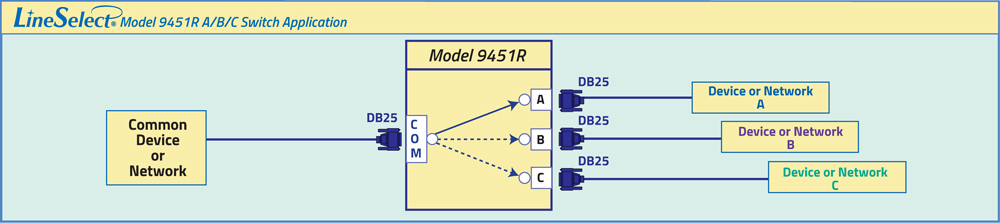

The drawing illustrates a COMMON device or network connected to the DB25 COM port accessing any one of the DB25 devices or networks connected to DB25 ports A, B, and C for the RoHS, REACH & SVCH compliant unit, Model 9451R.

LineSelect® Model 9451R DB25 A/B/C Switch application

FEATURES:

  • Allows quick connection to any one of three DB25 devices or networks from one COMMON device or network.
  • RoHS, REACH, and SVCH compliant.
  • Manual operation via front panel rotary switch.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Transparent to data speed and format.
  • All 25 pins of the DB25 interface are switched via break-before-make rotary switch.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length DB25 cables available for your switch installation.
  • Lifetime warranty against manufacturing defects.
  • Electro Standards manufactures a wide range of RS232 network switches.

The LineSelect® Model 9451R allows the user to access three DB25 devices connected to its A, B and C ports with one DB25 device connected to its Common port.  The unit is manually operated requiring no power. Port selection is quick and easy via front panel rotary switch.

The LineSelect® Model 9451R is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Ask about our popular Model 700 RS-232 Breakout Box.
Tri-State LED's monitor the data interface for fault isolation

Model 700 RS232 Breakout Box

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
