Catalog # 306269 - Model 6269 SC Duplex Gigabit A/B Fiber Switch with Contact Closure Remote Control

    Gigabit A/B Fiber SwitchGigabit A/B Fiber SwitchGigabit A/B Fiber SwitchGigabit A/B Fiber Switch
Click image to enlarge
    • Gigabit A/B Fiber Switch
    • Gigabit A/B Fiber Switch
    • Gigabit A/B Fiber Switch
    • Gigabit A/B Fiber Switch
Base Price:
$3,021.00
Catalog No: 306269
Model No: 6269
Product Type:Switches: Fiber Optic
Positions:2
Cable Type/Port Connector:SC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:Contact Closure
Configuration:Desktop
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Duplex
Remote Port:DB9
Mirror Technology:OO
Speed:Gigabit
Wavelength Nano:850 nm

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

QuickSwitch® Fiber Optic Network Switch, SC Duplex

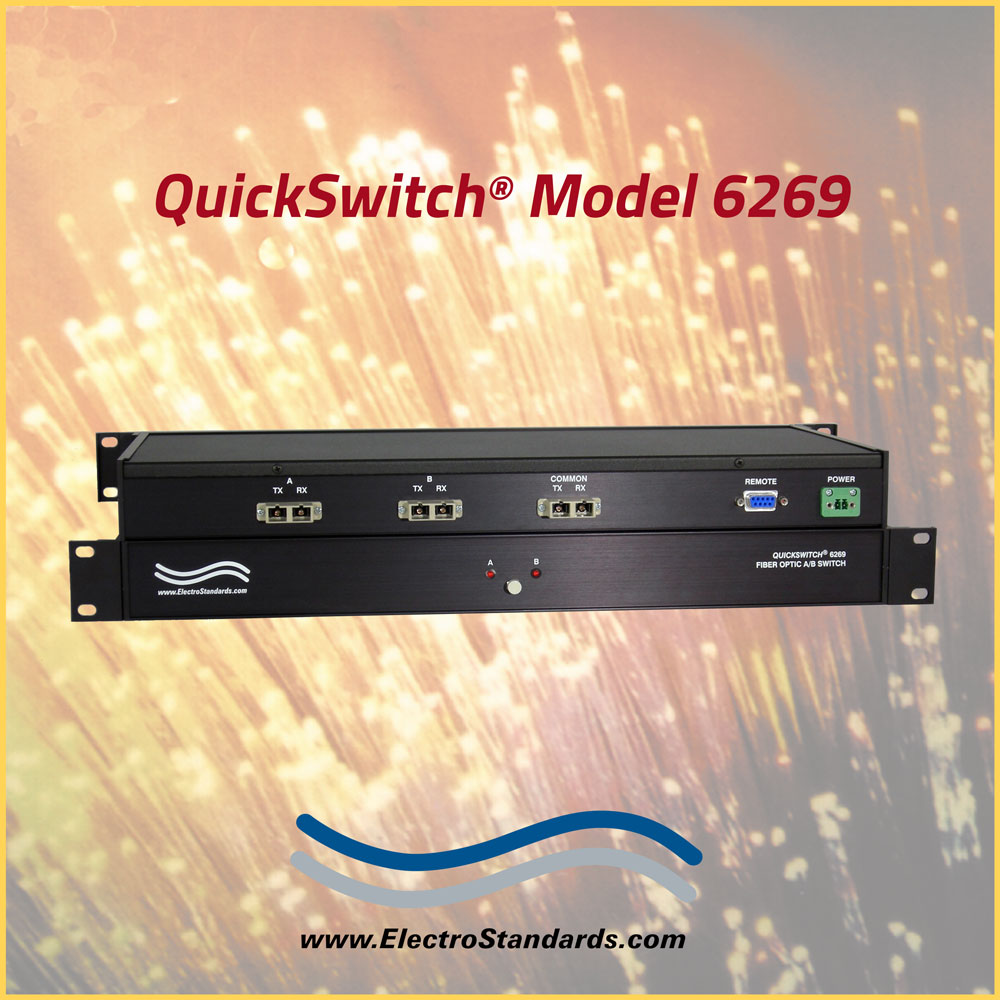

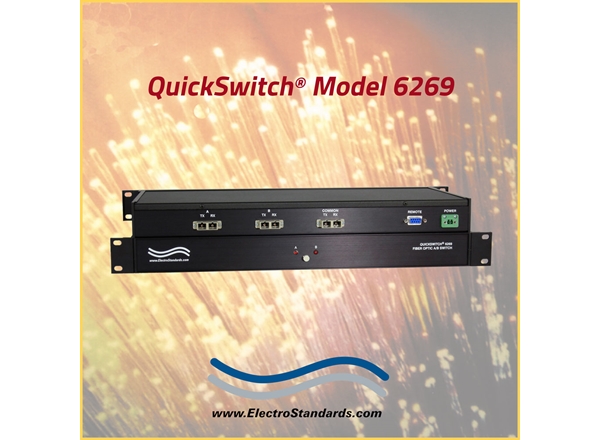

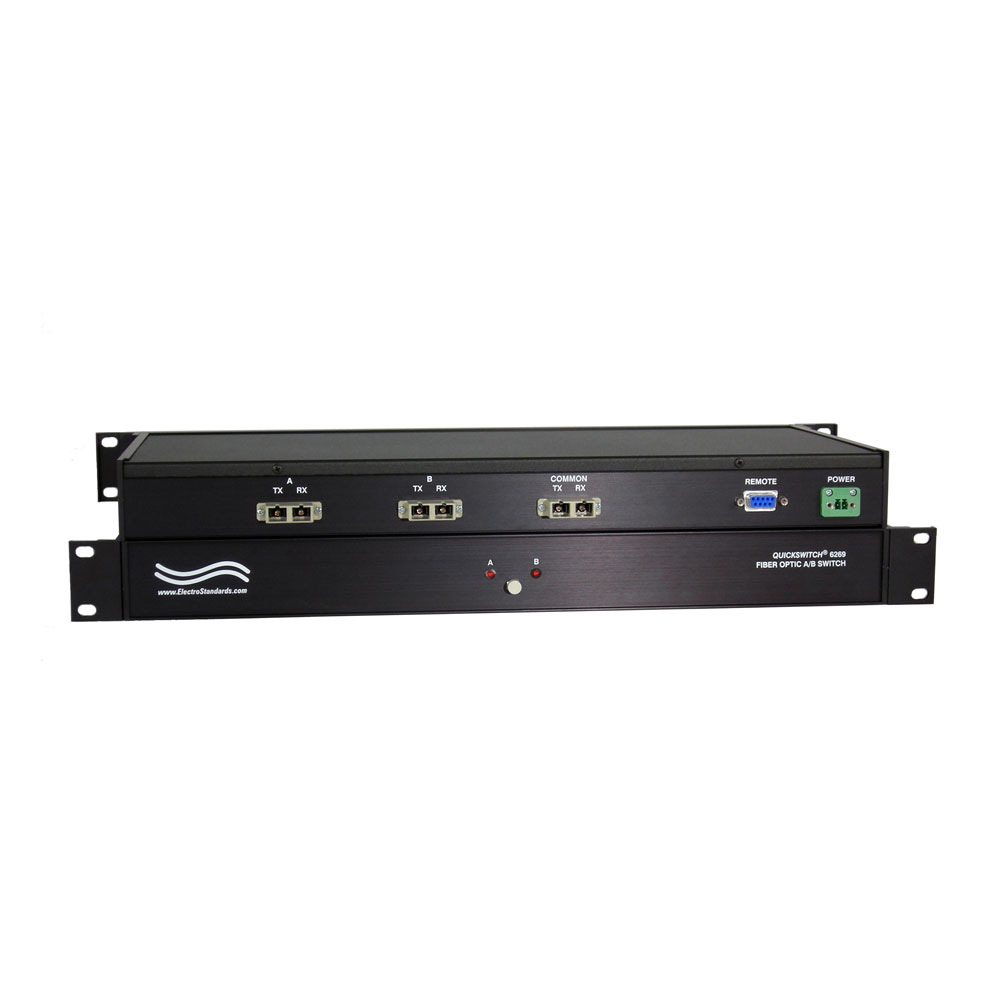

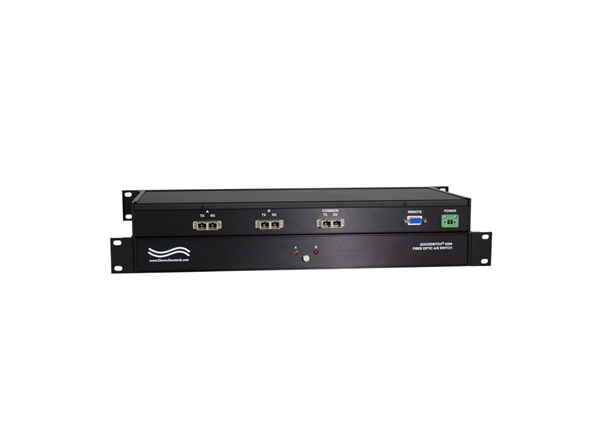

QuickSwitch® 6269 SC Duplex A/B Switch with Contact Closure Remote

SPECIFICATIONS:

  • PORT CONNECTORS: (3) SC duplex female connectors labeled A, B, and COMMON.
  • FIBER: 62.5/125 micron, 850 nm.

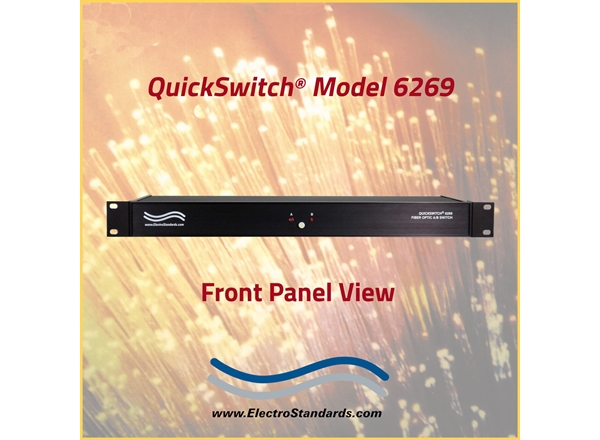

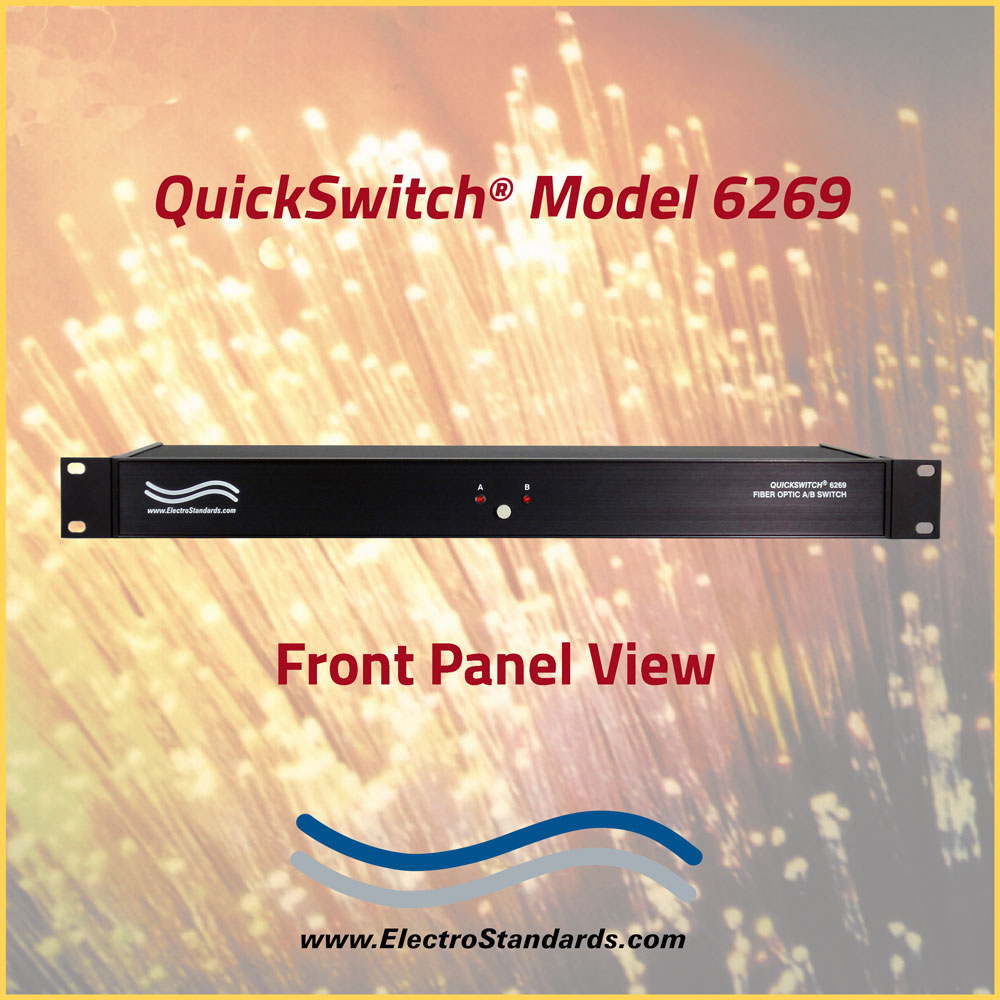

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED’s display switch position and power status.

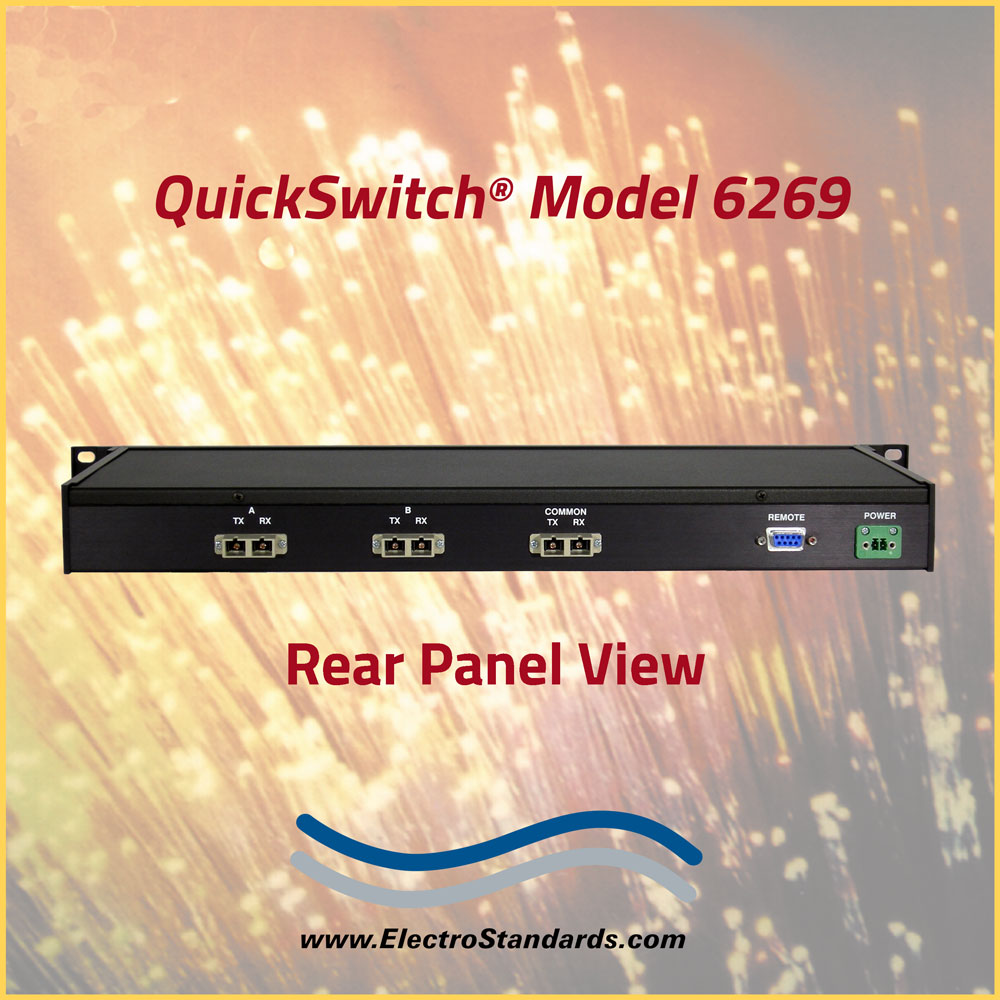

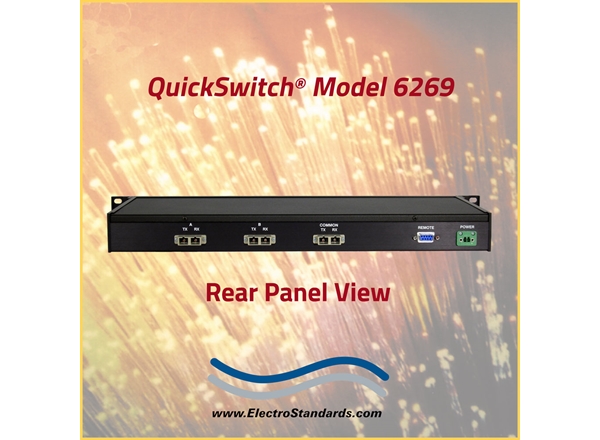

  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts Contact Closure commands for Remote Control operation.
  • POWER:  UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0” W x 1.75” H x 8.0” D. (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approximately 4.5 lbs. (2.0 kg)

QuickSwitch 6269 SC Duplex A/B Switch with Custom Contact Closure Remote Application:

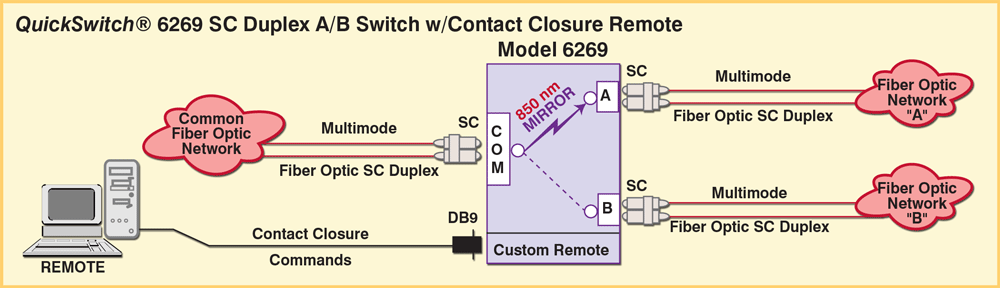

The drawing illustrates a COMMON Fiber Optic Network connected to the SC Duplex COMMON port with access to Fiber Optic Network A or Fiber Optic Network B. The Fiber Optic Network A and the Fiber Optic Network B are connected to the SC Duplex A and SC Duplex B ports, respectively. The DB9 Remote port is a custom Contact Control Remote that provides Dry Contact Logic to allow control of the switch positions and position status, as well as lock/unlock front panel operations.

QuickSwitch® 6269 SC Duplex A/B Switch Application

FEATURES:

  • Access any one of two separate fiber optic networks from one computer.
  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
  • Internal circuitry insures isolation between networks/devices.
  • MEMS-based mirror/prism switch technology supports Gigabit data rates.
  • Local control via front-panel pushbuttons.
  • Front panel pushbutton control can be locked out, remotely.
  • Remote Contact Closure control provides dry contact logic to allow the control of the switch position, as well as position status.
  • Ideal for fallback applications.
  • Front panel LED’s switch position and power status.
  • Switch maintains position on power loss and continues to pass data.
  • When power is restored, unit switches to position based on Contact Closure command.
  • All fiber ports are SC duplex, multimode, 62.5/125 micron and support a wavelength of 850 nm.
  • Custom length rigorously tested and certified SC fiber optic cables available for your installation.
  • Municipalities, schools, government: This product is on GSA Schedule!

The QuickSwitch® 6269 SC Duplex A/B Switch with Contact Closure Remote allows a device connected to the “COM” port access to the “A” or “B” port.  The QuickSwitch® 6269 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19” rack.

The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9 Remote Control port located on the rear of the unit.  The DB9 Remote port provides Contact Closure Control and allows the user to monitor the switch position remotely through a set of dry contacts.  The front panel LED display indicates the switch position and unit power status.

Wide Range Power Option Available: (Cat No 517277) CE, RoHS and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 6269 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.
