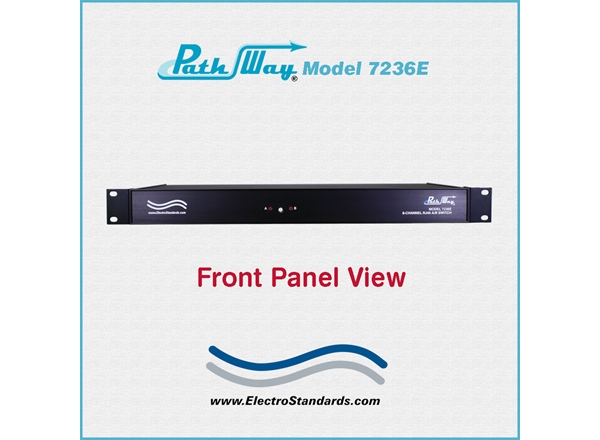

Catalog # 306236E - Model 7236E 8-Channel RJ45 A/B Switch with GUI Remote

    Model 7236E 8-Channel RJ45 A/B Switch with GUI RemoteModel 7236E 8-Channel RJ45 A/B Switch with GUI RemoteModel 7236E 8-Channel RJ45 A/B Switch with GUI RemoteModel 7236E 8-Channel RJ45 A/B Switch with GUI Remote
Click image to enlarge
    • Model 7236E 8-Channel RJ45 A/B Switch with GUI Remote
    • Model 7236E 8-Channel RJ45 A/B Switch with GUI Remote
    • Model 7236E 8-Channel RJ45 A/B Switch with GUI Remote
    • Model 7236E 8-Channel RJ45 A/B Switch with GUI Remote
Base Price:
Call for Price
Catalog No: 306236E
Model No: 7236E
Product Type:Switches: Copper

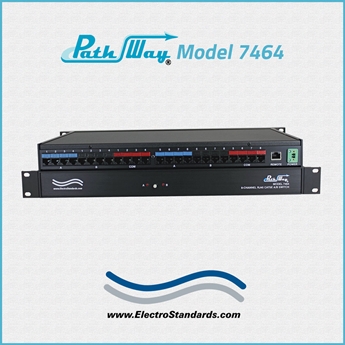

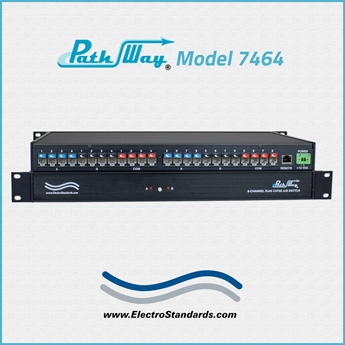

See Model 7464:Model 7464 Replaces Model 7236E
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:8
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Ethernet
Compliance/Standards:Cat5
Configuration:Rackmount
Pins Switched:8
Remote Port:RJ45
Local Control:Pushbutton
Feature:GUI Remote Access, IP Addressable
Protocol:IP Addressable with GUI

See Model 7464, Replaces Model 7236E

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

See Model 7464, Replaces Model 7236E

Path Way® Remotely Controllable Network Switch, RJ45
Model 7236E 8-Channel RJ45 Cat5 A/B Switch with Telnet & GUI Remote Control

  • Cat5 Compliant, See Model 7464, Replaces Model 7236E

  • Over 45 years of being a key supplier to the MIL/COTS industry.

SPECIFICATIONS:

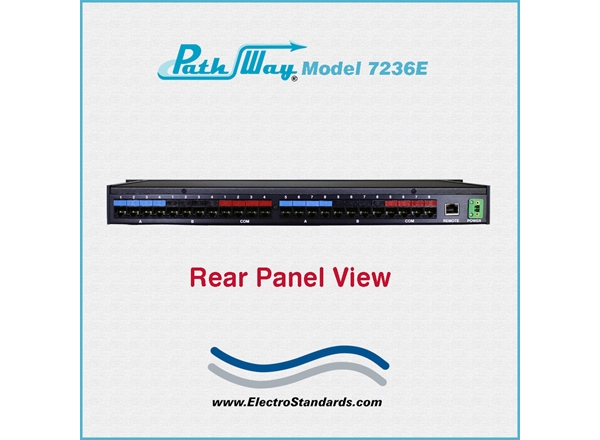

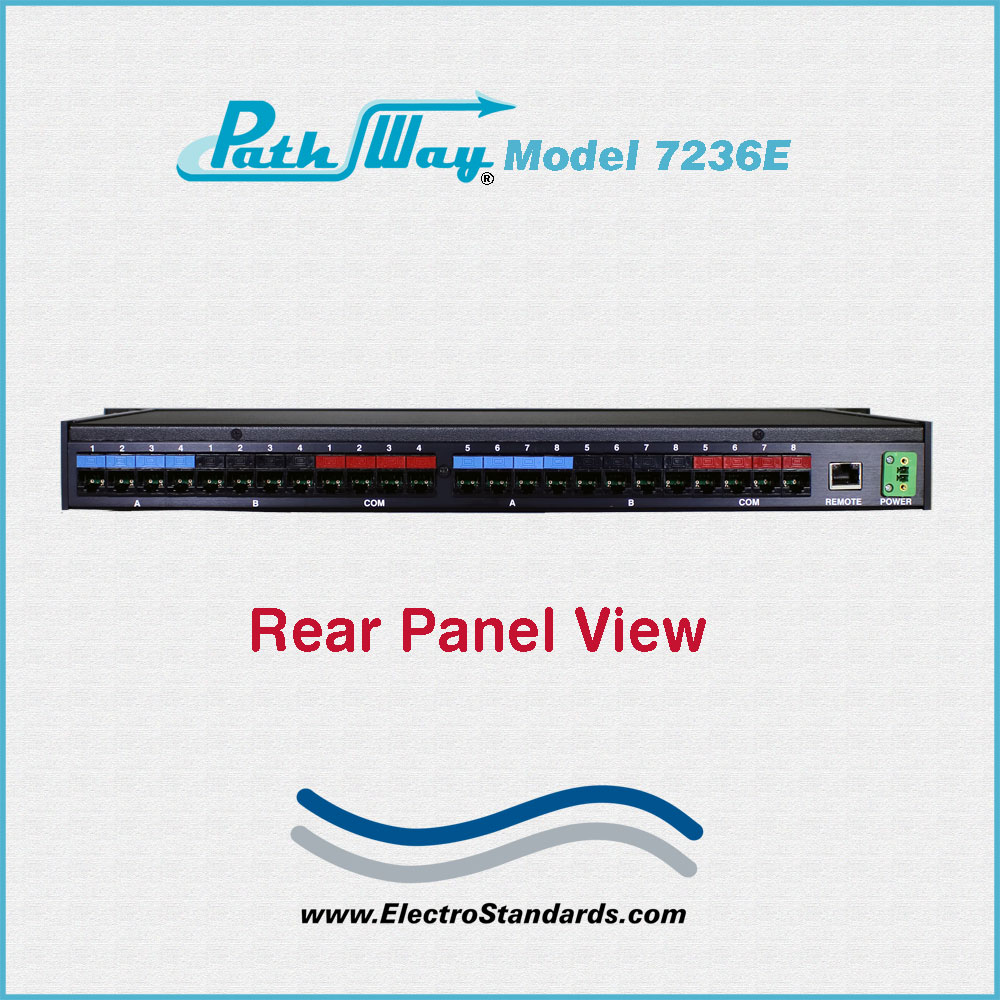

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON for each of eight channels.

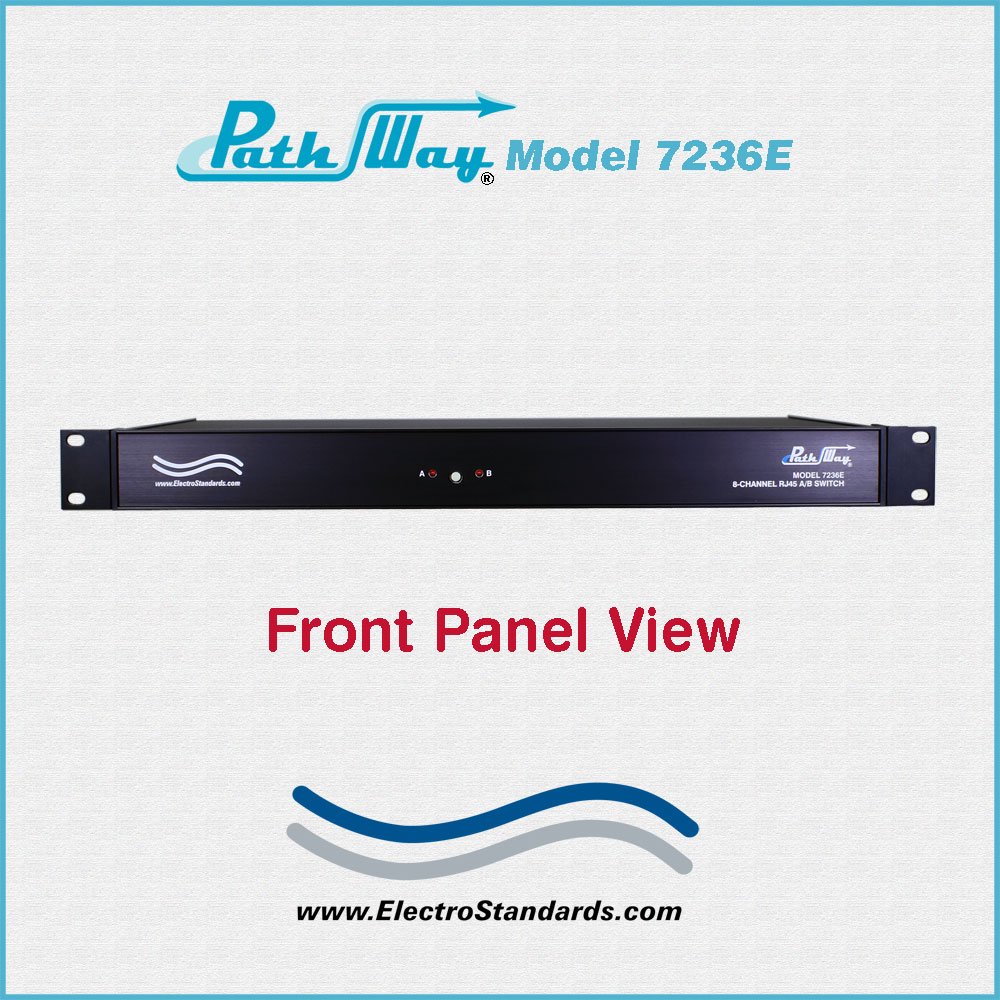

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE: (1) RJ45 female connector on rear panel accepts 10/100 Base-T LAN Ethernet for either Telnet Commands or Graphical User Interface for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 10.5" D. (48.3 x 4.5 x 26.4 cm)
  • WEIGHT: Approximately 6.0 lbs. (2.8 kg)

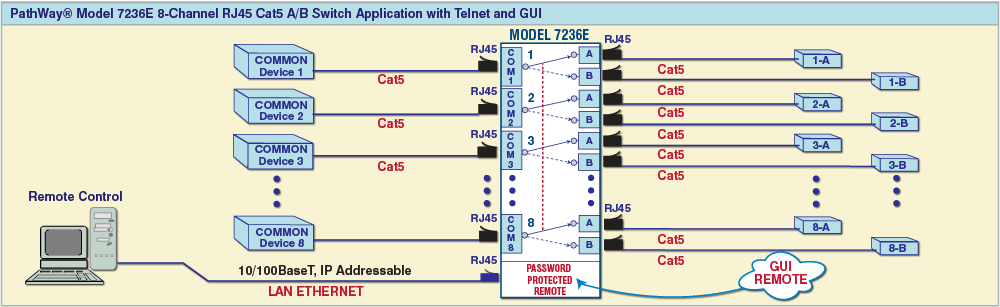

PathWay® Model 7236E 8-Channel RJ45 Cat5 A/B Switch Application with Remote Control (Telnet Commands / Graphical User Interface):

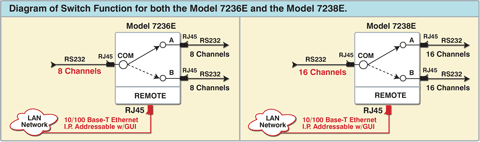

The diagram shows eight RJ45 Cat5 A/B channels. Each channel has a COMMON device with access to a Device connected to the A port or a device connected to the B port. All eight channels are simultaneously switched. The RJ45 10/100Base-T LAN Remote port allows control of the unit via either Telnet Commands or Graphical User Interface.



FEATURES:

  • Each channel allows access to two RJ45 networks from one COMMON network or device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via a break-before-make electromechanical relays.
  • Simultaneous control of all channels.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power restore, the unit will remain in the position it was in at power down.
  • Front panel pushbutton control.
  • Control of the switch position from a 10/100-Base-T LAN Ethernet environment.
  • Remote Control Telnet Command Interface that allows the user to control switch position, lockout front panel operations, obtain switch status, as well as query firmware version number, query serial number, and enable/disable autosend of  switch positions.
  • Remote Graphical User Interface that allows the user to control switch position, lockout front panel operations, and obtain switch status.
  • Remote control of the switch is password protected, where the password protection can be disabled.
  • Front panel LED’s display present position and power status.
  • Cat 5 Compliant

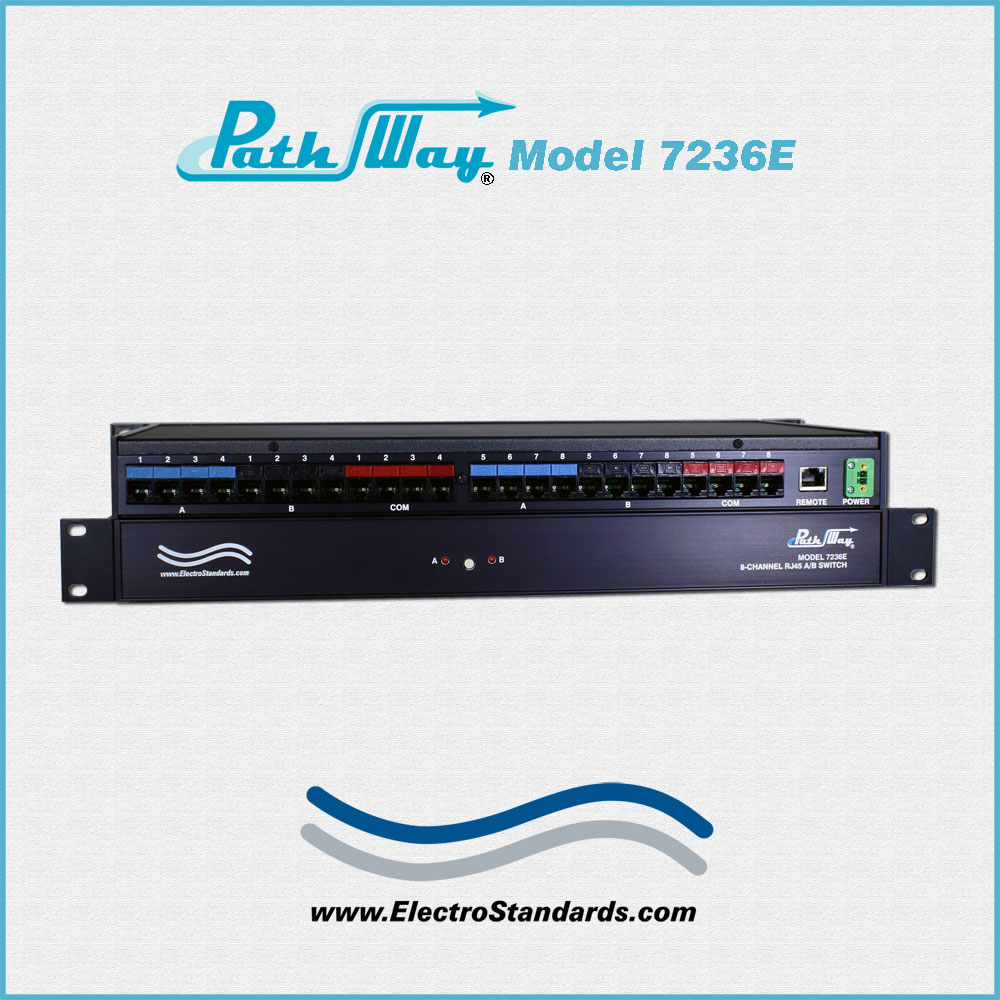

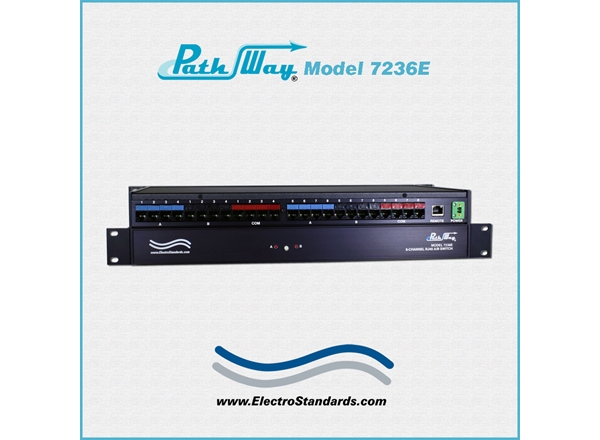

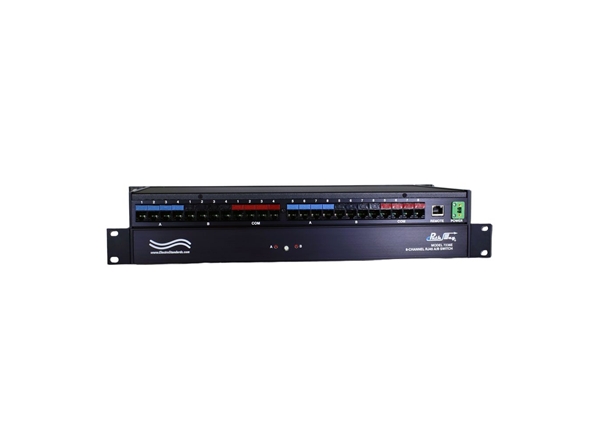

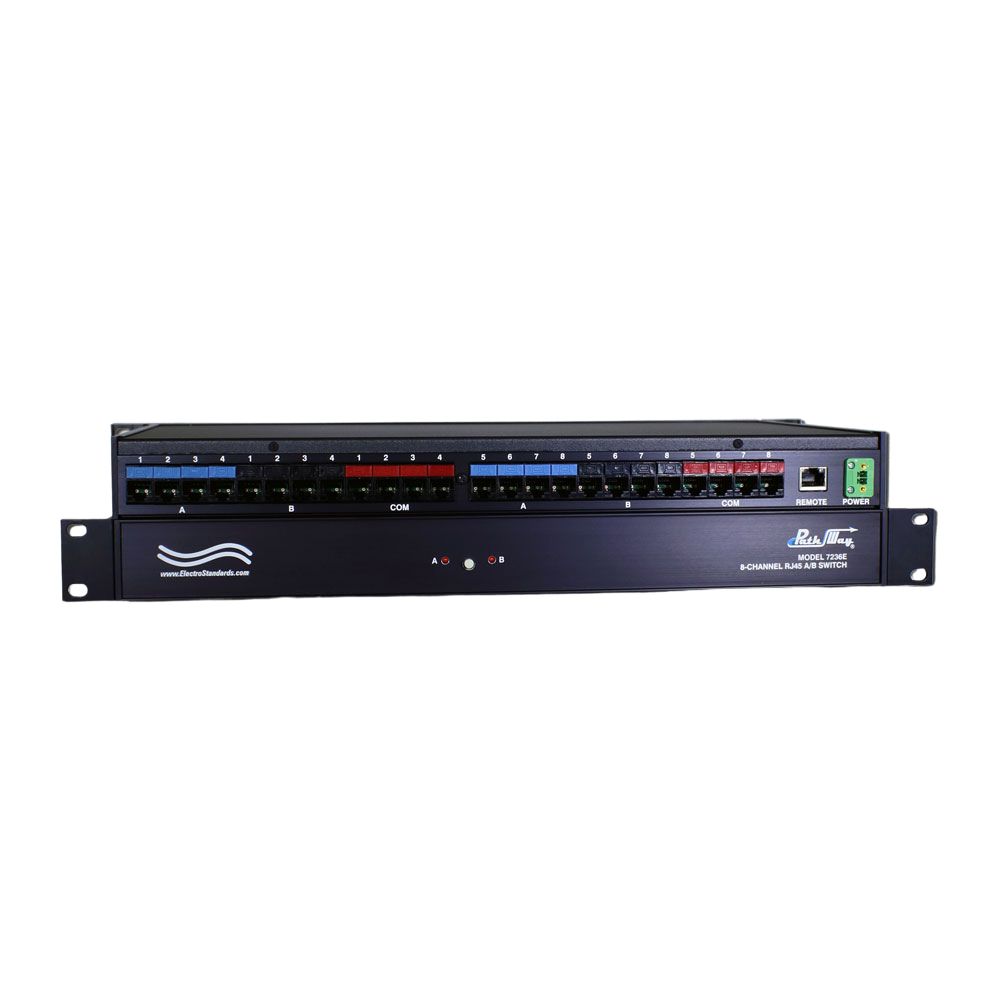

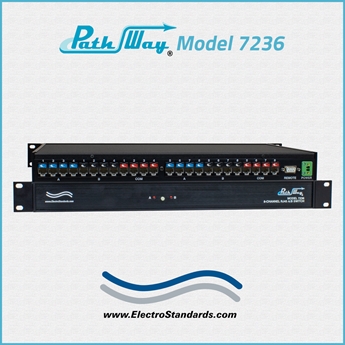

The PathWay® Model 7236E 8-Channel RJ45 Cat5 A/B Switch with Ethernet Remote Control allows the user the capability of accessing one of two separate devices via a device connected into the Common port for each channel. The Model 7236E is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

The switch may be controlled manually by a front panel push button or remotely from an RJ45 10/100 Base-T LAN Ethernet port located on the rear of the unit. Remote control access can be accomplished using an Ethernet 10/100Base-T LAN connection and either Telnet Commands or Graphical User Interface.

For an equivalent unit, having RS232 commands and Contact Closure, see Model 7236, Cat No 306236.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the Model 7236E LAN port is connected to, simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

PathWay® Model 7236E 8-Channel Cat5 RJ45 A/B Switch

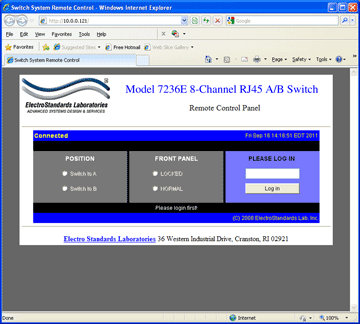

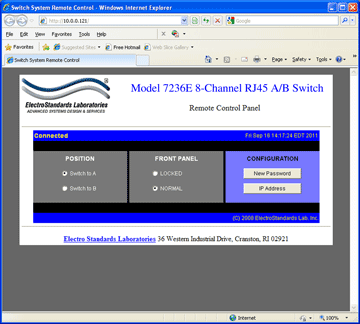

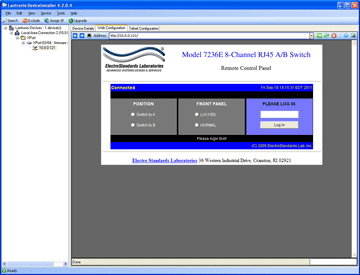

Figure 1: Model 7236E GUI in a standard Web Browser

SOFTWARE FEATURES

* Graphical User Interface

  • Select a position:
    • Select Position A or B switching all eight channels simultaneously.
  • Lock and unlock front panel pushbutton control.
  • GUI is alerted to changes made by front panel pushbutton
  • Users can change the login password and/or the switch's IP address.
  • Login: Password authentication can enabled or disabled.
  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7236E  8-Channel RJ45 A/B Switch System.
  • LAN access gives users across the LAN or over the Internet access to control the unit via the GUI, if user network is configured accordingly.

CHANGING POSITION AND LOCK STATUS

To change the switch position, click on the radio button "A" or "B" as desired.  Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" or "Unlocked" radio buttons. See Figure 2.

PathWay® Model 7236E 8-Channel CAT5 RJ45 A/B Switch

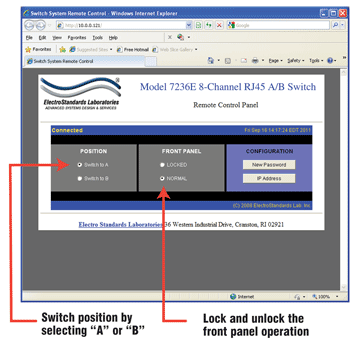

Figure 2: Change the switch position and lockout front-panel operation using the Main Panel of the Graphical User Interface.

QUERYING THE STATUS OF THE UNIT

Once connected, the GUI will stay up-to-date on the current position and status of the unit. Any changes that are made outside the GUI, such as by a pushbutton, will be reflected in the GUI. These changes will cause the radio buttons of the GUI to automatically change to show the new status. The GUI will report the source of the most recent change in the bottom left of the panel.  See Figure 3.

PathWay® Model 7236E 8-Channel CAt5 RJ45 A/B Switch



Figure 3: The Graphical User Interface is alerted to changes in the unit status including a change made by a front panel pushbutton.


Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
