Catalog # 306238 - Model 7238 16-Channel RJ45 A/B Switch

Click image to enlarge

Base Price:

$4,541.00

Catalog No:

306238

Model No:

7238

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Channel Control:

Simultaneous Channel Control

Remote Control:

Contact Closure, RS232 Serial

Configuration:

Rackmount

Pins Switched:

Remote Port:

DB9

Local Control:

Pushbutton

Feature:

DB9 Remote

Protocol:

ASCII

Qty

Add to Cart

16-Channel RJ45 A/B Switch.
DB9 Remote port accepts RS232 Serial Commands or Contact Closure Control.

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch, RJ45

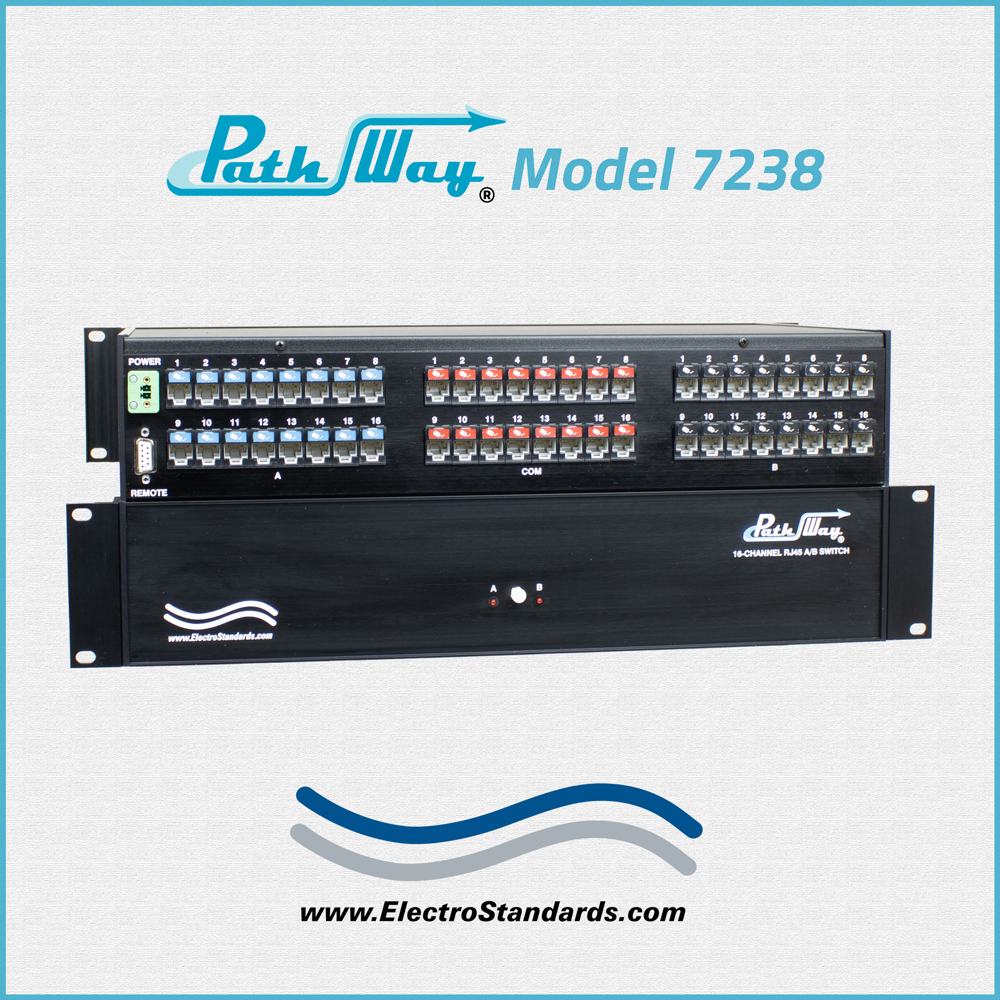

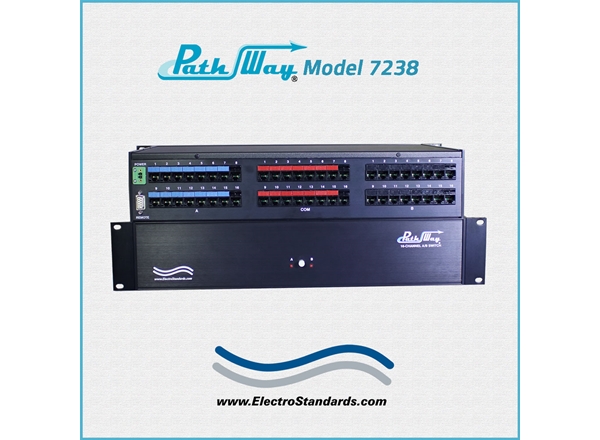

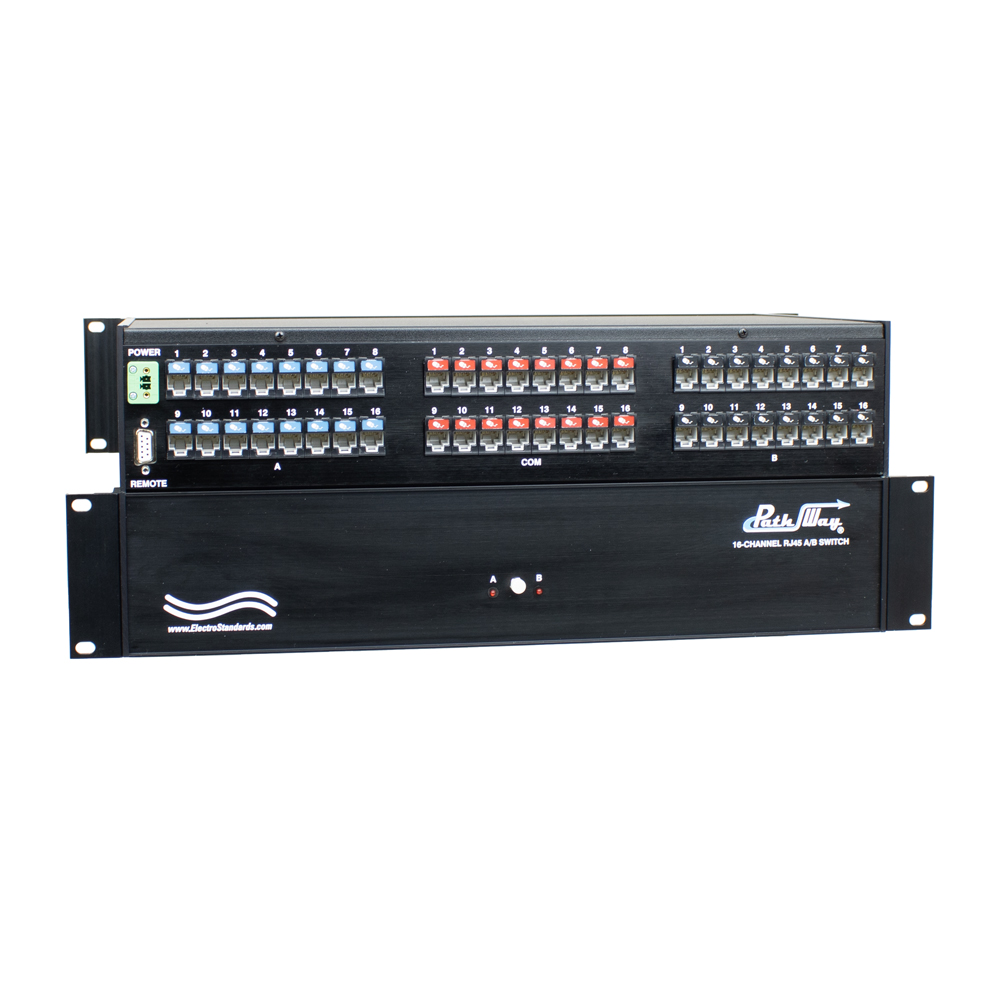

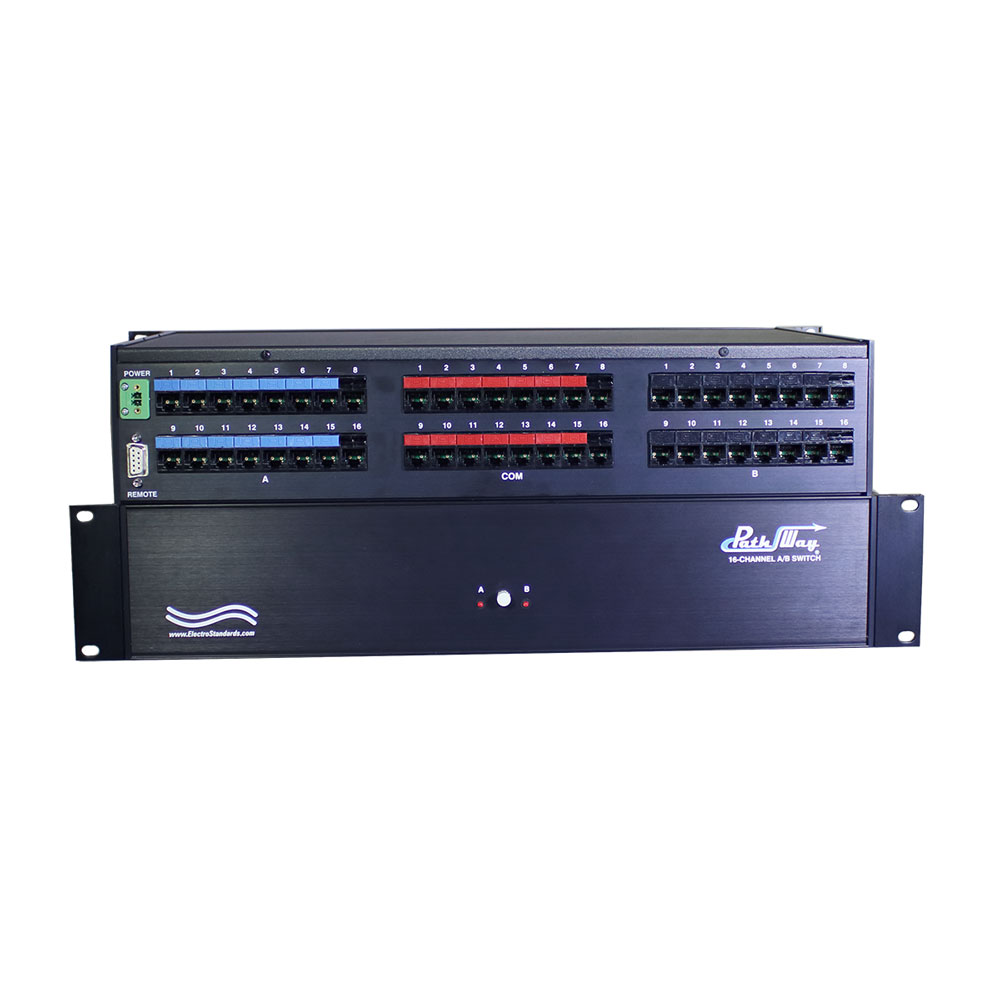

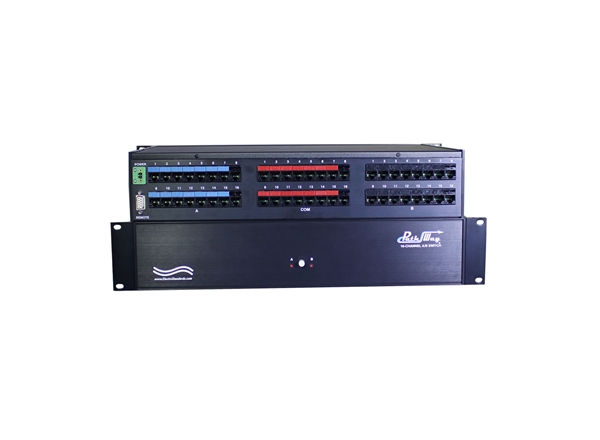

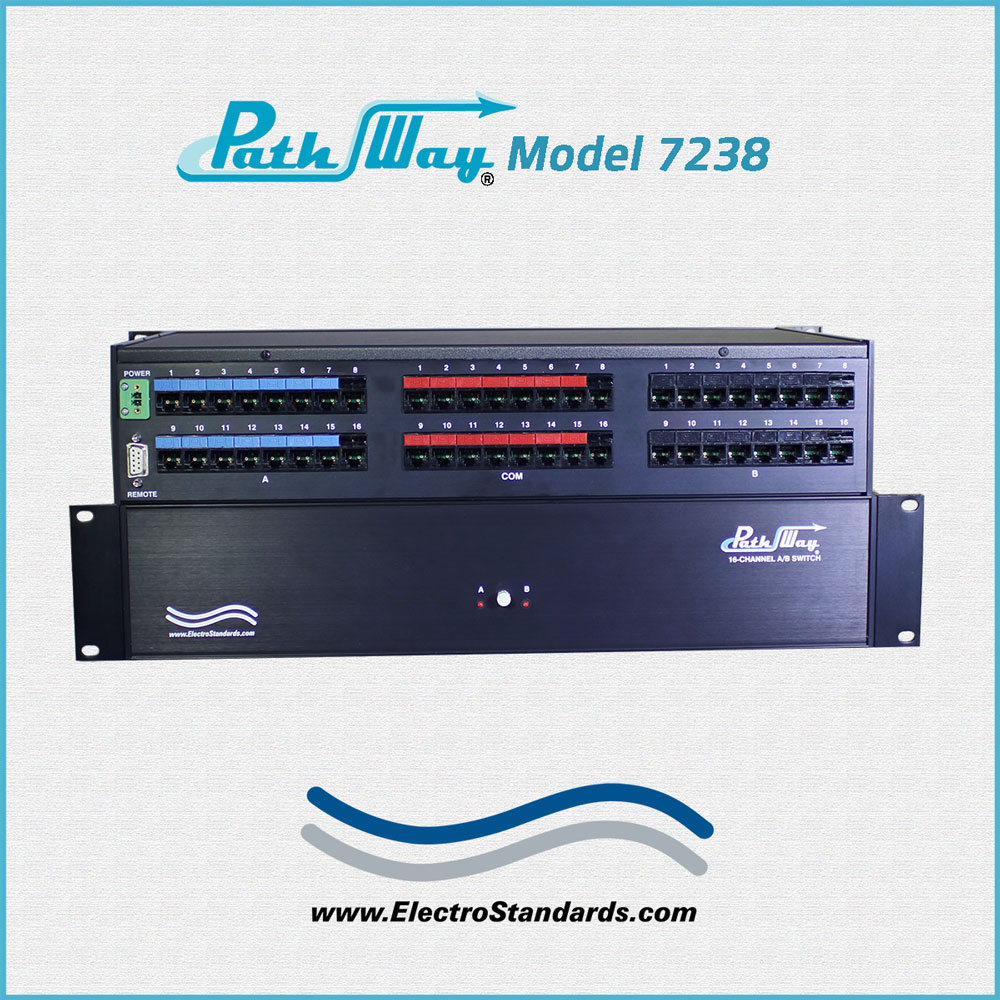

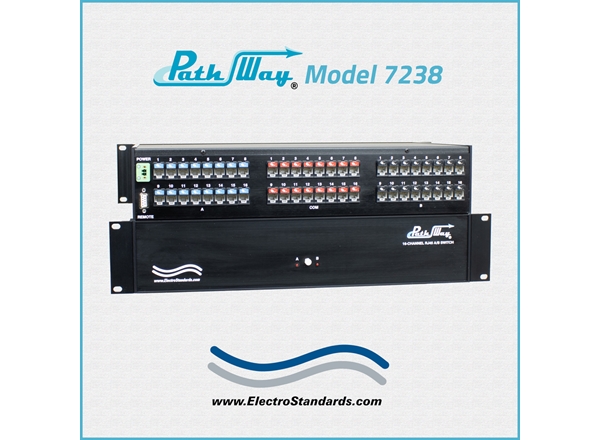

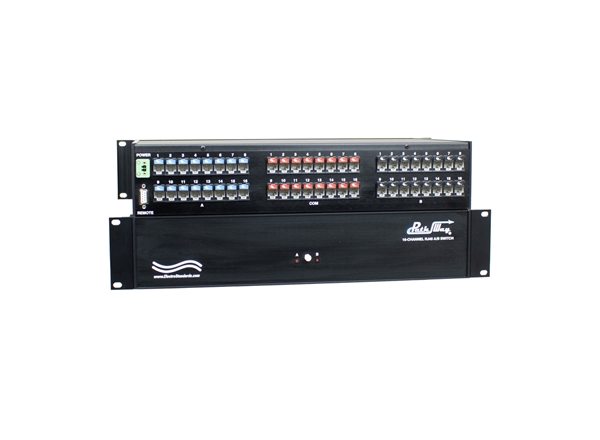

Model 7238 16-Channel RJ45 Cat5 A/B Switch with RS232 Remote

Applicable to switching ANY RJ45 interface networks or devices.
Over 45 years of being a key supplier to the MIL/COTS industry.

SPECIFICATIONS:

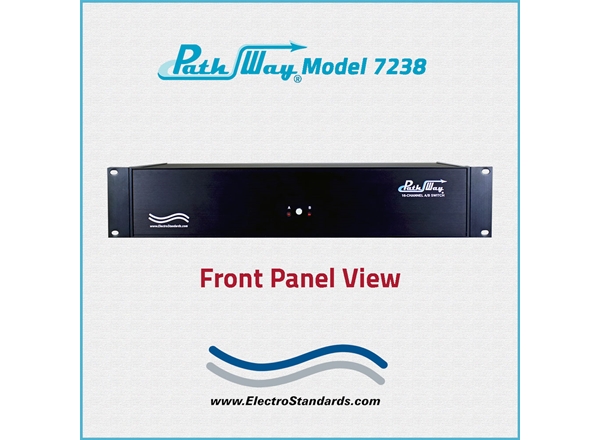

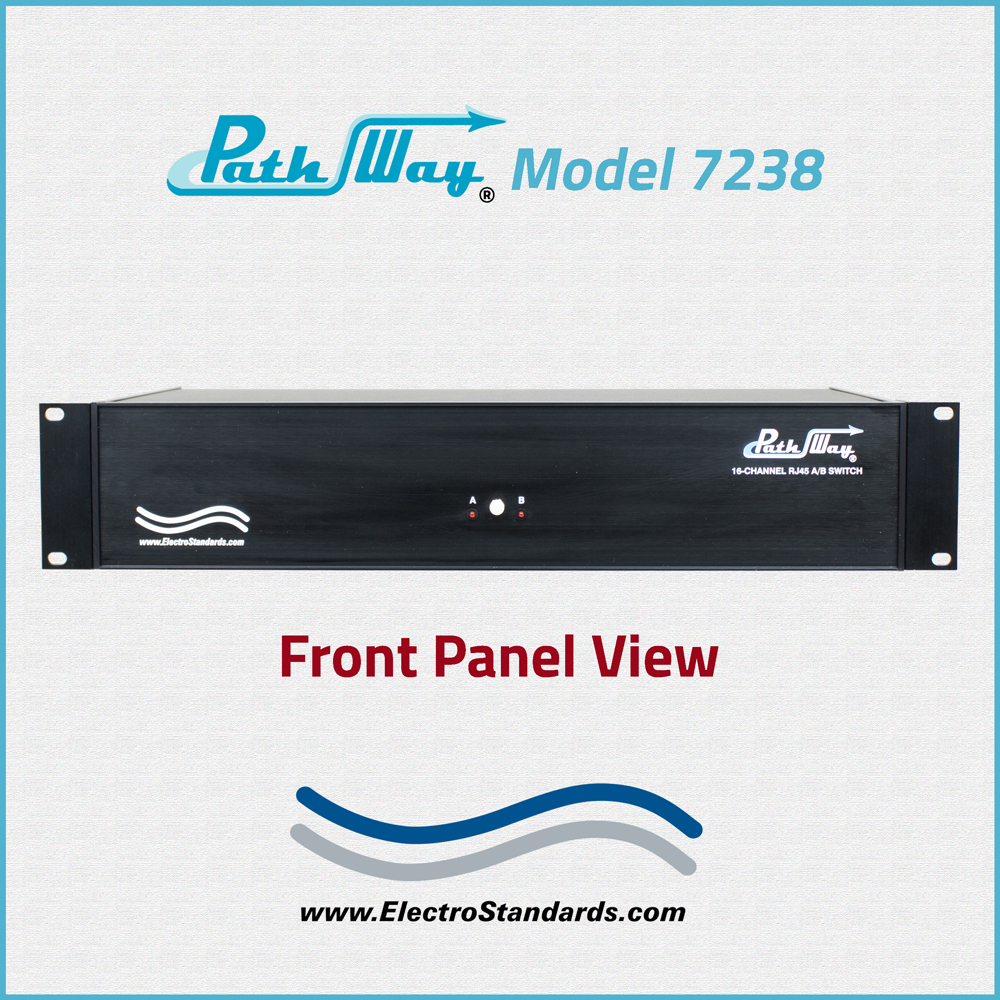

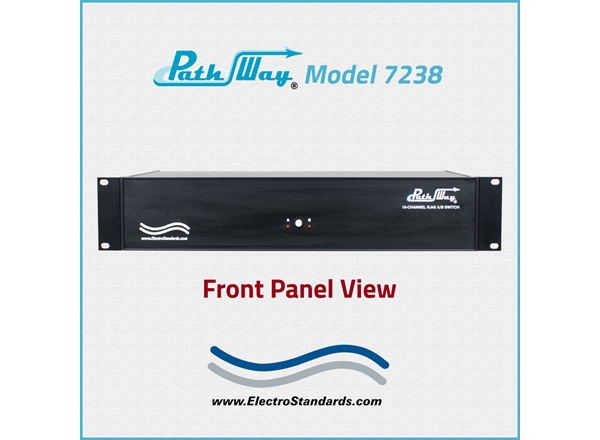

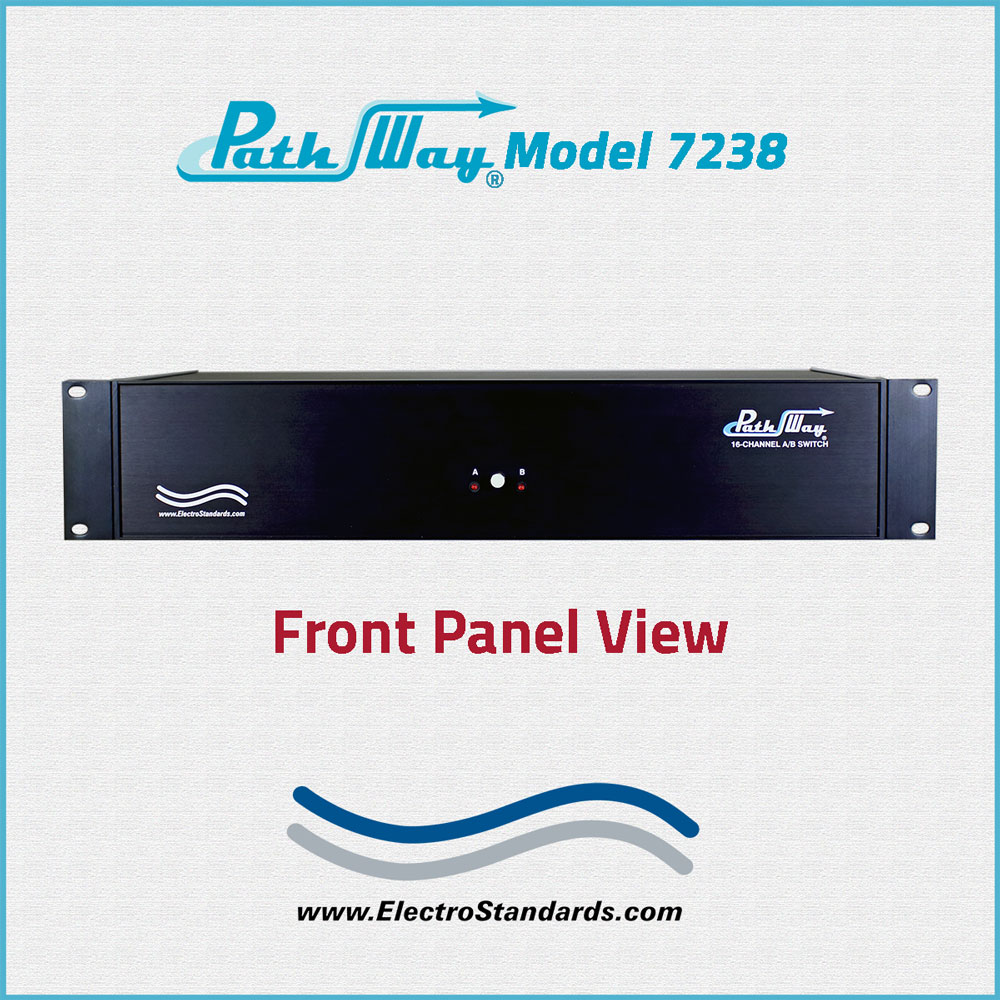

FRONT PANEL CONTROLS: (1) Manual pushbutton allows local switching.

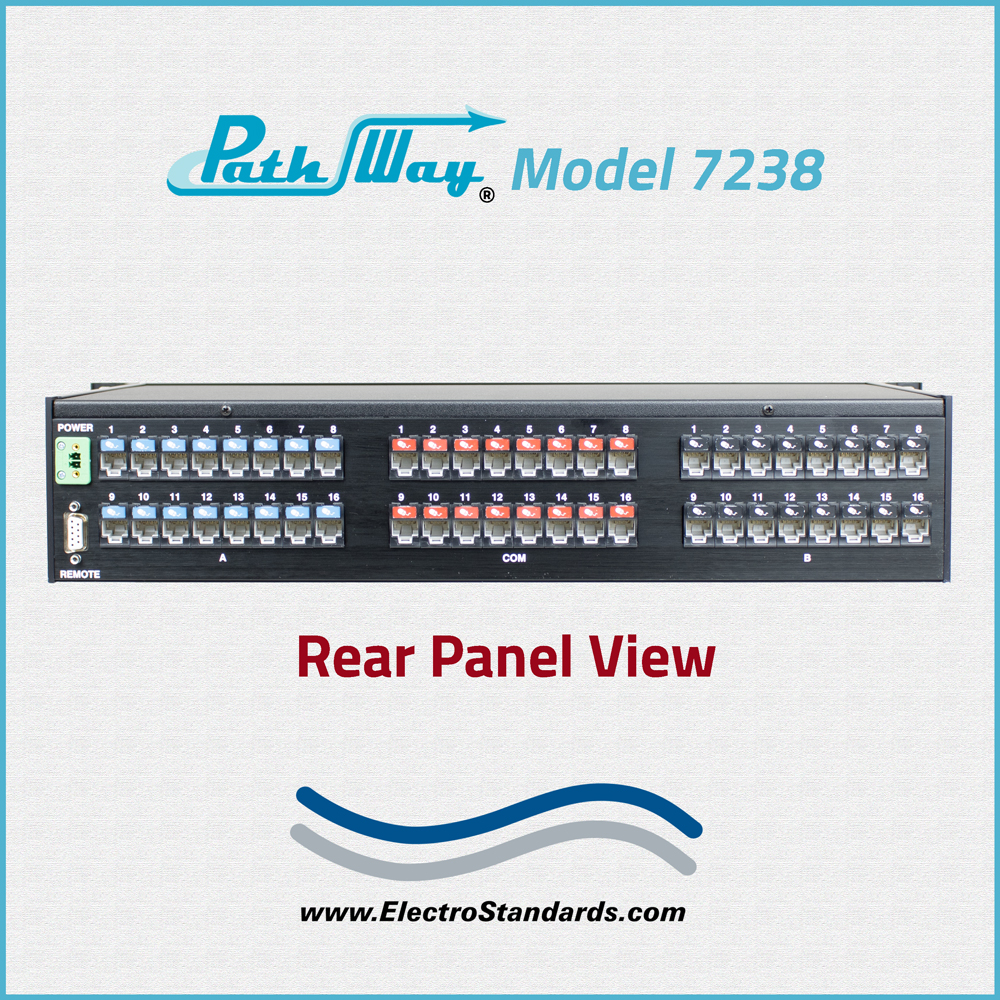

PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON
for each of the sixteen channels.
DISPLAY: (2) Front panel LED's display switch position and power status.

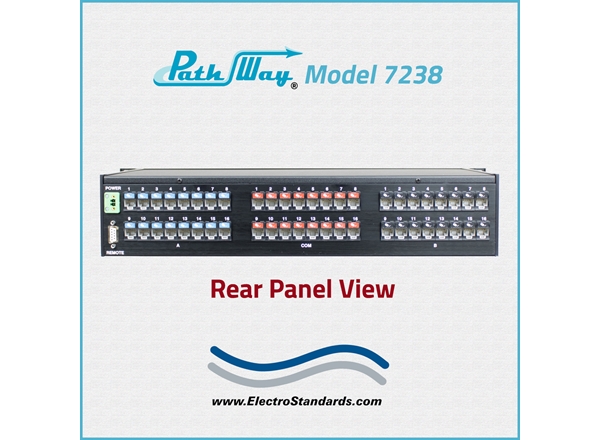

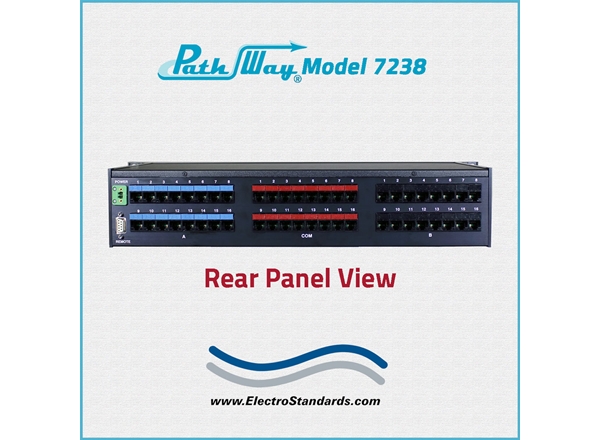

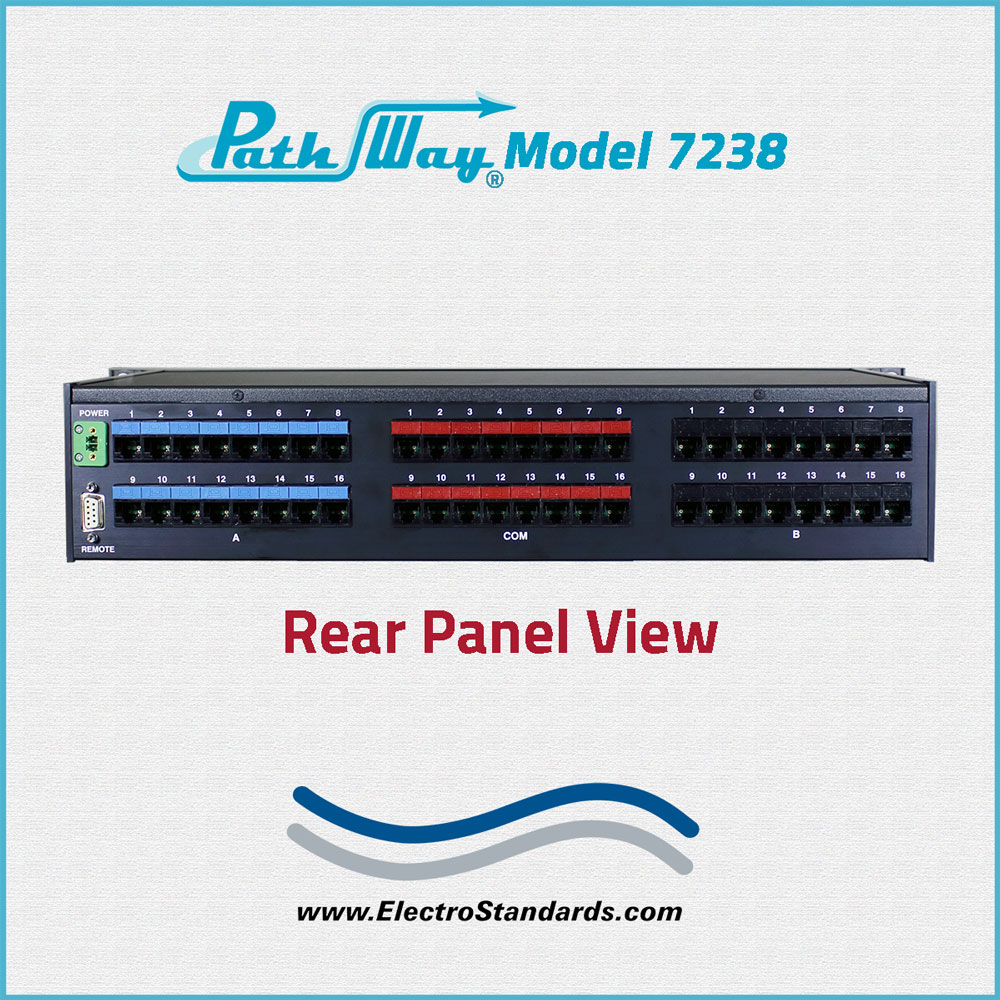

REMOTE: (1) DB9 female connector on rear panel accepts RS232 Serial Data or contact closure for Remote Control operation.
POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
ENCLOSURE: All aluminum enclosure designed to be EMI/RFI resistant.
Dimensions: Rackmount 19.0" W x 3.5" H x 10.23" D. (48.3 x 8.9 x 26.0 cm)
WEIGHT: 8.3 lbs. (3.8 kg)

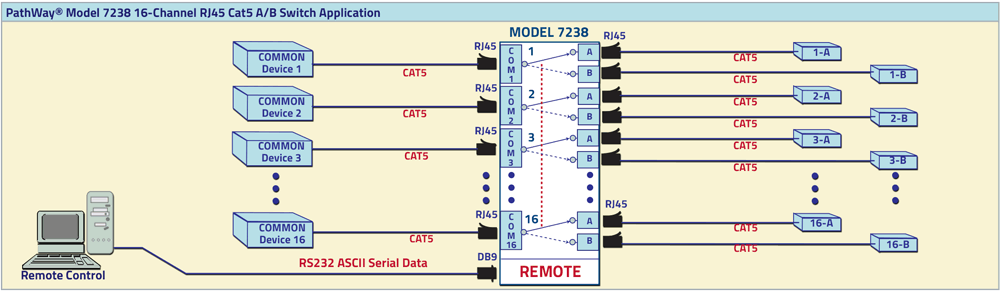

PathWay® Model 7238 16-Channel RJ45 Cat5 A/B Switch Application with Remote Control:

The diagram shows sixteen RJ45 Cat5 A/B channels.
Each channel has a COMMON device with access to a Device connected to either the A port or to the B port.
The DB9 Remote port allows control of the unit via RS232 ASCII commands or Contact Closure Control.

PathWay® Model 7238 16-Channel RJ45 A/B Switch w/RS232 Serial Remote Control

FEATURES:

Each channel allows access to two RJ45 networks from one COMMON network or device.
The switch ports are transparent to data.
All 8 pins of the RJ45 interface are switched via a break-before-make electromechanical relays.
The unit maintains last set position on power loss and continues to pass data.
Upon power restore, the unit will remain in the position it was on power down.
Simultaneous control of all channels.
Front panel pushbutton control.
The REMOTE port accepts RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, as well as query firmware version number, query serial number, and enable/disable autosend of switch positions.
Front panel LED's display switch position and power status.
Certified for Cat 5 Compliance.
Municipalities, schools, government: This product on GSA Schedule!

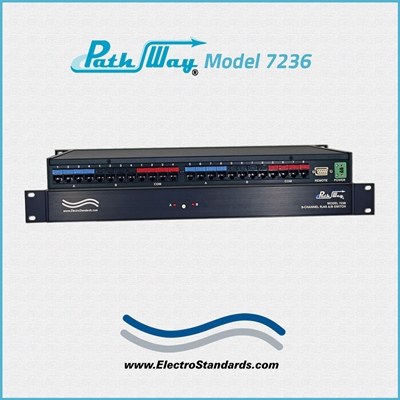

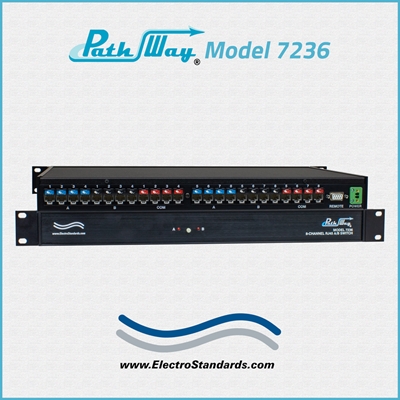

For an 8 Channel version of this switch, see Model 7236, Cat No 306236

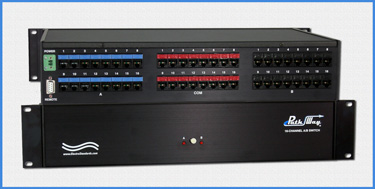

The PathWay® Model 7238 16-Channel RJ45 A/B Switch with RS232 Remote allows the user the capability of accessing, on each channel, one of two separate devices via a device connected into the channel’s Common port. The Model 7238 is enclosed in a 2U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

The switch may be controlled manually by a front panel pushbutton or remotely from an RS232 Serial and Contact Closure control port located on the rear of the unit. Switch position status may be attained via the front panel LED display or remote RS232 serial port (DB9) located on the rear of the unit.

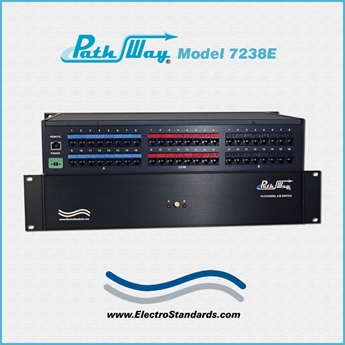

For an equivalent unit, having Ethernet Remote Port, IP Addressable (with GUI), see Model 7238E, Cat No 306238E.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7238 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
