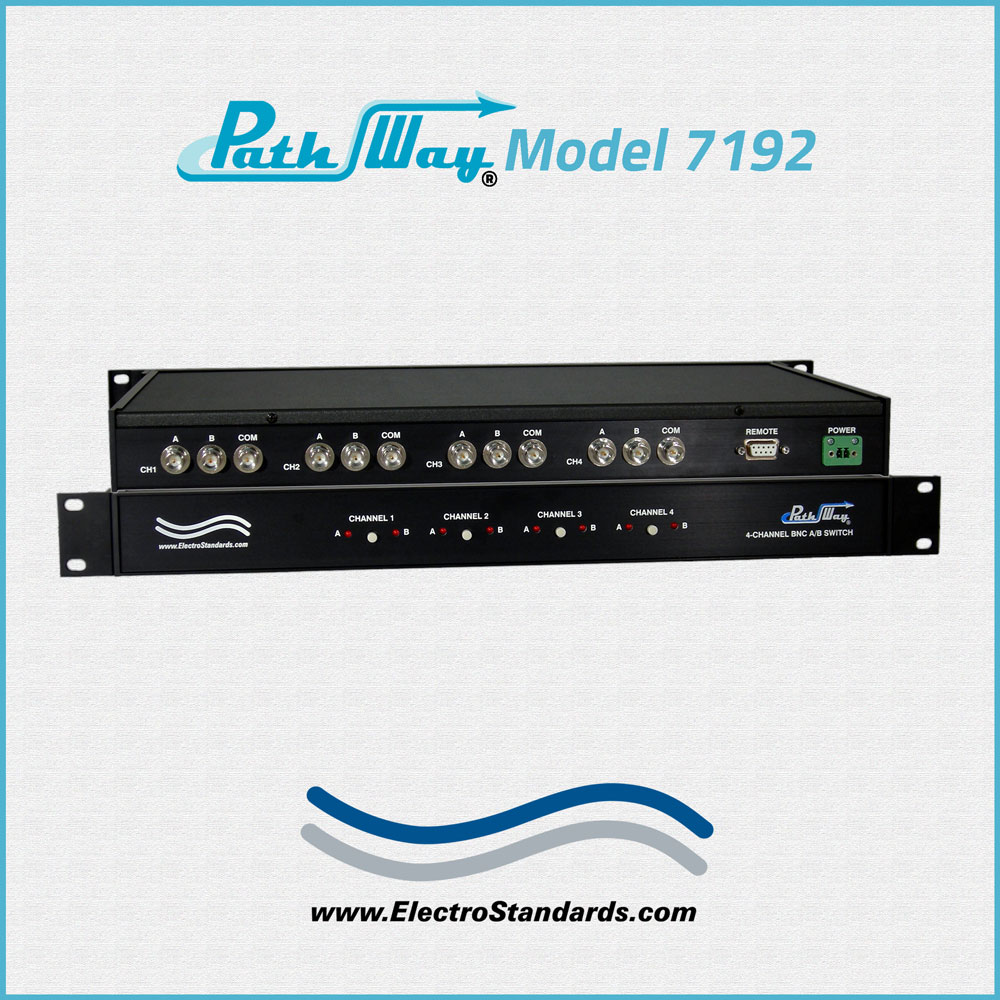

Catalog # 307192 - Model 7192 BNC 4-Channel Switch, RG59, 75 Ohm, RS232 Remote

    BNC 4-Channel Switch, RS232 RemoteBNC 4-Channel Switch, RS232 RemoteBNC 4-Channel Switch, RS232 RemoteBNC 4-Channel Switch, RS232 Remote
Click image to enlarge
    • BNC 4-Channel Switch, RS232 Remote
    • BNC 4-Channel Switch, RS232 Remote
    • BNC 4-Channel Switch, RS232 Remote
    • BNC 4-Channel Switch, RS232 Remote
Base Price:
$2,068.00
Catalog No: 307192
Model No: 7192
Product Type:Switches: Copper
Positions:2
Switch Application:Audio/Video Switching
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:4
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control, Independent Channel Control, Gang Channel Control
Remote Control:RS232 Serial
Configuration:Rackmount
Ohms:75
Pins Switched:Both Center Pin and Shell
Remote Port:DB9
Local Control:Pushbutton

Add to Cart
  • All BNC ports support RG59, 75 Ohm impedance.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch, BNC, 75 Ohm

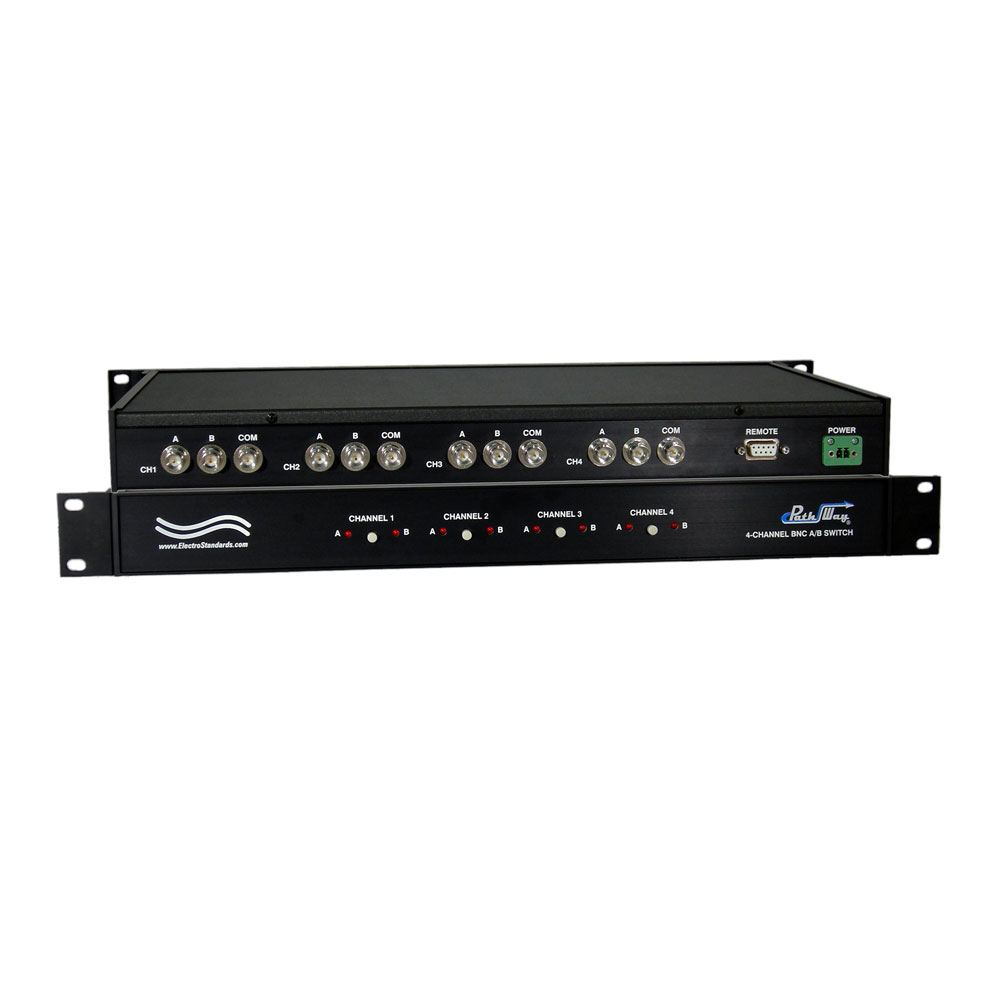

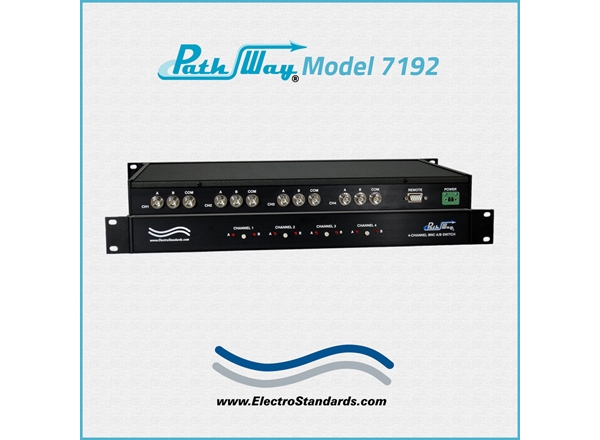

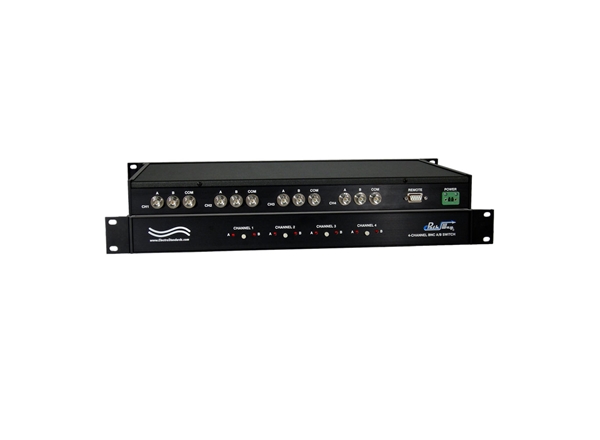

Model 7192 4-Channel 75 Ohm BNC A/B Switch Box with RS232 Remote

  • Great for sharing laboratory test equipment having BNC Coaxial interface.

  • Great for Audio & Video Remote Switch Applications.

MODEL 7192 SPECIFICATIONS:

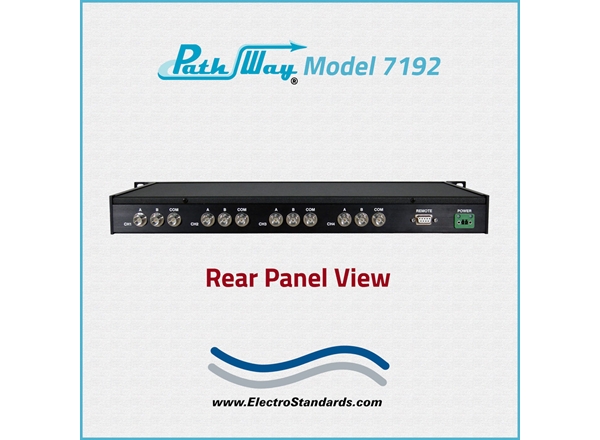

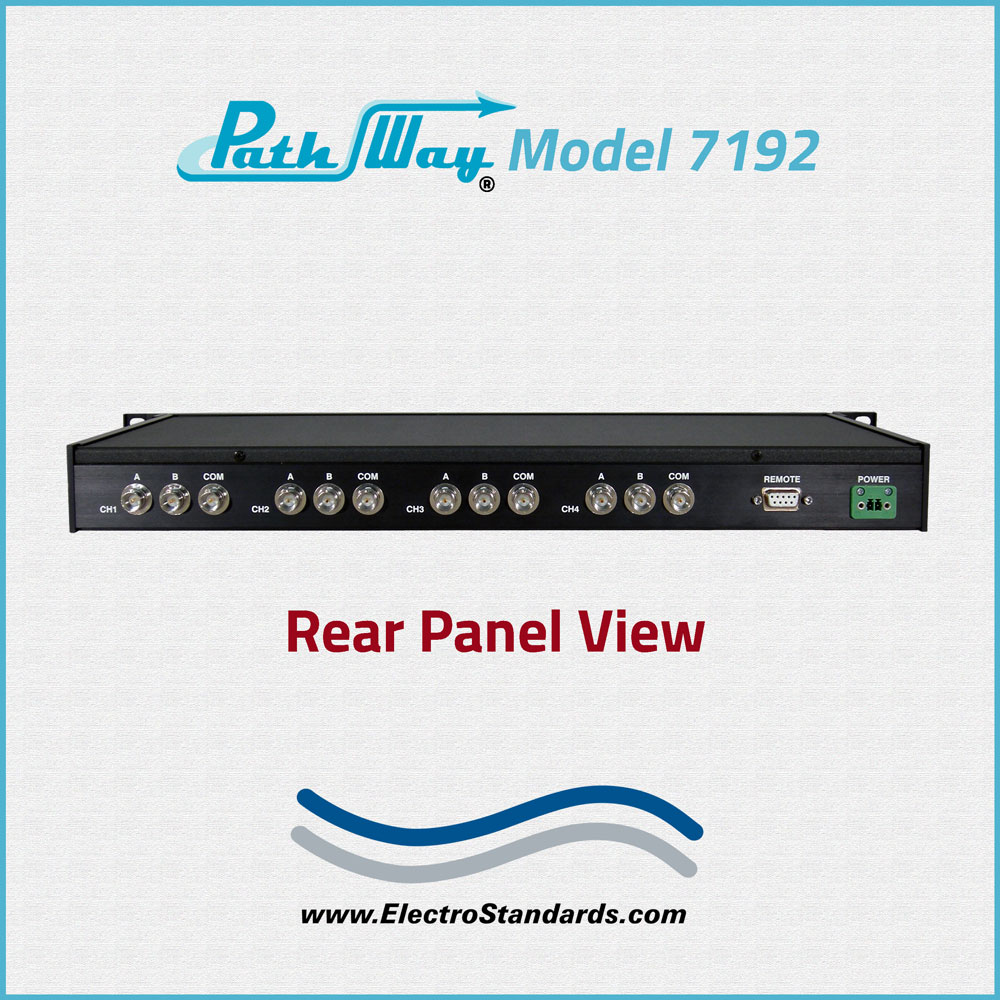

  • PORT CONNECTORS: (3) BNC (F) connectors labeled A, B and COMMON for each Channel.

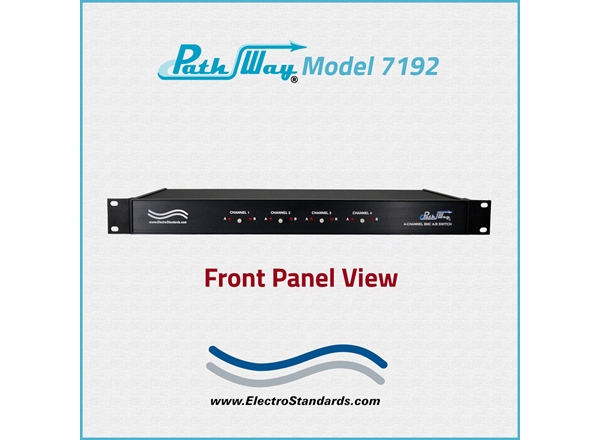

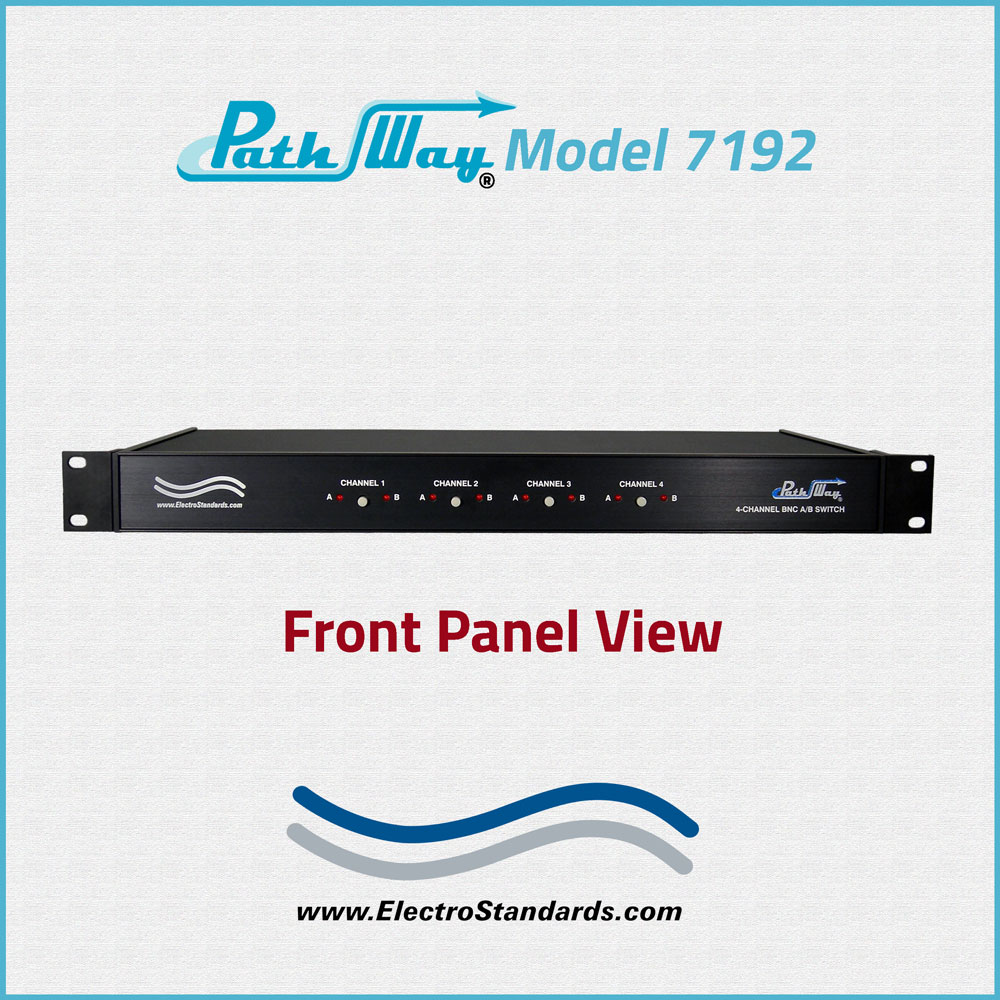

  • DISPLAY: (8) Front panel LED's display switch position and power status.
  • REMOTE: (1) DB9 female connector on rear panel accepts RS232 ASCII commands for Remote Control Operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 10.55" D. (48.3 x 4.4 x 26.8 cm), (1U rack height).
  • WEIGHT: Approximately 5.7 lbs. (2.6 kg)

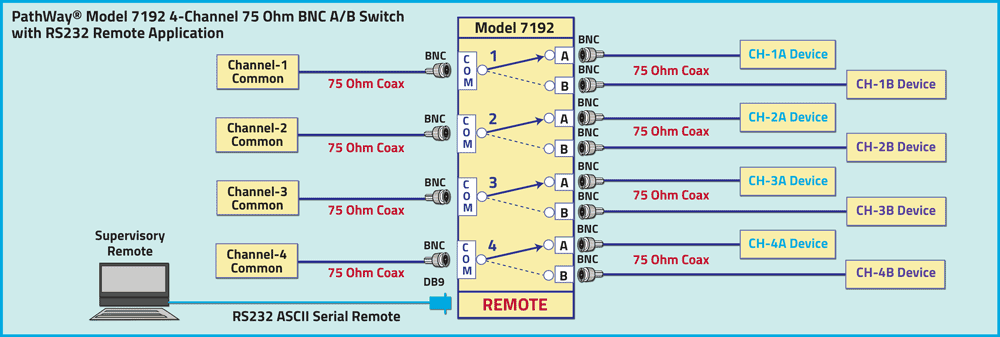

PathWay Model 7192 Quad Channel 75 Ohm BNC A/B Switch application with RS232 Serial Remote Control:

The drawing illustrates four channels of 75 Ohm BNC A/B Switching. Each channel has a COMMON device connected to its BNC "COMMON" port accessing two other devices connected to the BNC "A" and "B" ports. A workstation connected to the DB9 REMOTE port allows a user Remote Control Access via RS232 ASCII commands. Remotely switch all channels simultaneously or independently switch each channel with gang commands.

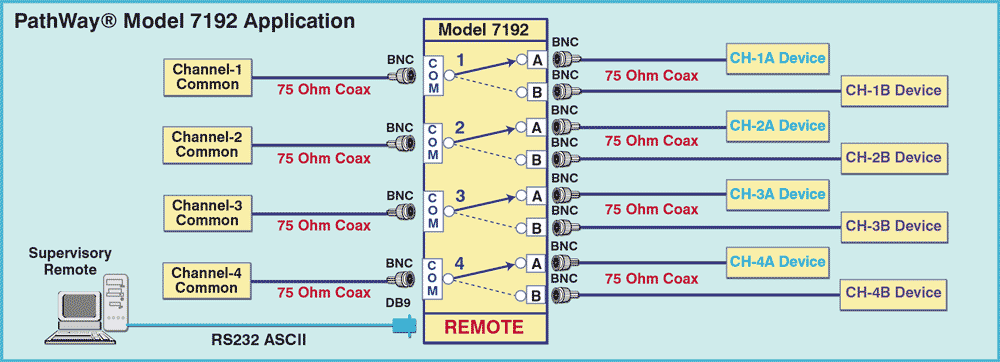

PathWay Model 7192 4-Channel 75 Ohm BNC A/B Switch Application

MODEL 7192 FEATURES:

  • Each channel of the Model 7192 switch box allows access to two BNC networks from one COMMON BNC network or device.
  • Four independent switch channels may be switched individually or simultaneously.
  • The switch ports are transparent to all data.
  • Both the center pin and shell of the BNC interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Independent control of channels, with gang commands.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, as well as query firmware version number, query serial number, enable/disable autosend of switch positions.
  • Front panel LED's display the present position and power status.
  • All BNC ports support RG59, 75 Ohm impedance.
  • All metal black box packaging provides EMI/RFI shielding.

The PathWay® Model 7192 4-Channel 75 Ohm BNC A/B Switch Box with RS232 Remote allows the user the capability of sharing a single port interface device connected to the Common port among two other devices connected to the A and B ports, for each channel.  The Model 7192 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled manually via a front panel pushbutton or remotely from an RS232 serial port located on the rear of the unit.

Wide Range Power Option Available: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Check out suggested cables for use with the Model 7192 Switch.

Suggested cables for use with Model 7192 Switch
Part Number  Description

990137-006
 990137-010
990137

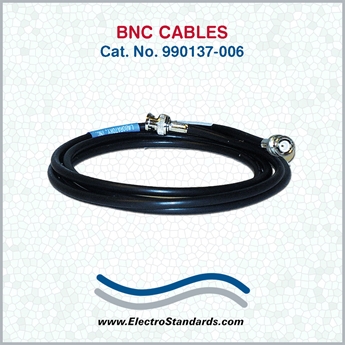

BNC Coaxial Cable, 75 ohm, 6ft. (M/M)

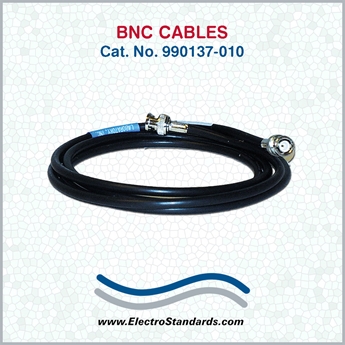

BNC Coaxial Cable, 75 ohm, 10ft. (M/M)
BNC Coaxial Cable, 75 Ohm, (M/M) Custom Length

Custom length BNC Coaxial cables available for your switch installation.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
