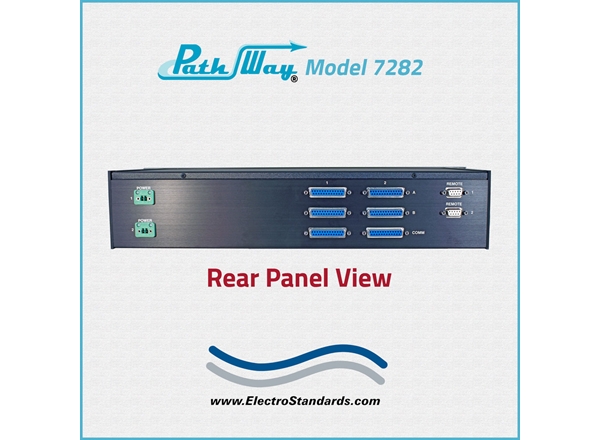

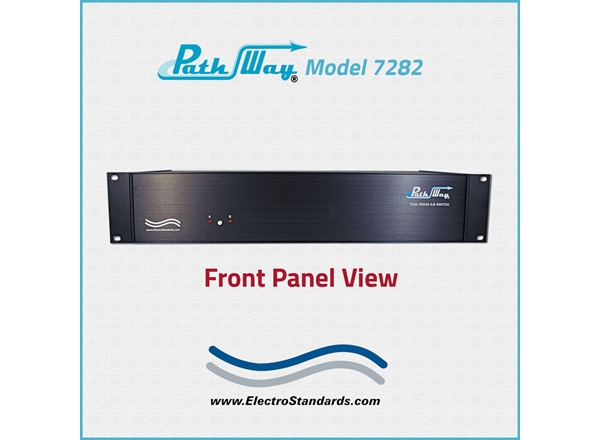

Catalog # 307282 - Model 7282 2-Channel DB25 RS530 A/B Switch, Dual Remotes & Power Supply Ports

    2-Channel DB25 RS530 A/B Switch2-Channel DB25 RS530 A/B Switch2-Channel DB25 RS530 A/B Switch2-Channel DB25 RS530 A/B Switch
Click image to enlarge
    • 2-Channel DB25 RS530 A/B Switch
    • 2-Channel DB25 RS530 A/B Switch
    • 2-Channel DB25 RS530 A/B Switch
    • 2-Channel DB25 RS530 A/B Switch
Base Price:
$1,642.00
Catalog No: 307282
Model No: 7282
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:RS232 Serial
Configuration:Rackmount
Pins Switched:25
Remote Port:Dual, DB9
Local Control:Pushbutton
Feature:Redundant Power Supply, Redundant Remote Control
Protocol:RS232 commands

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

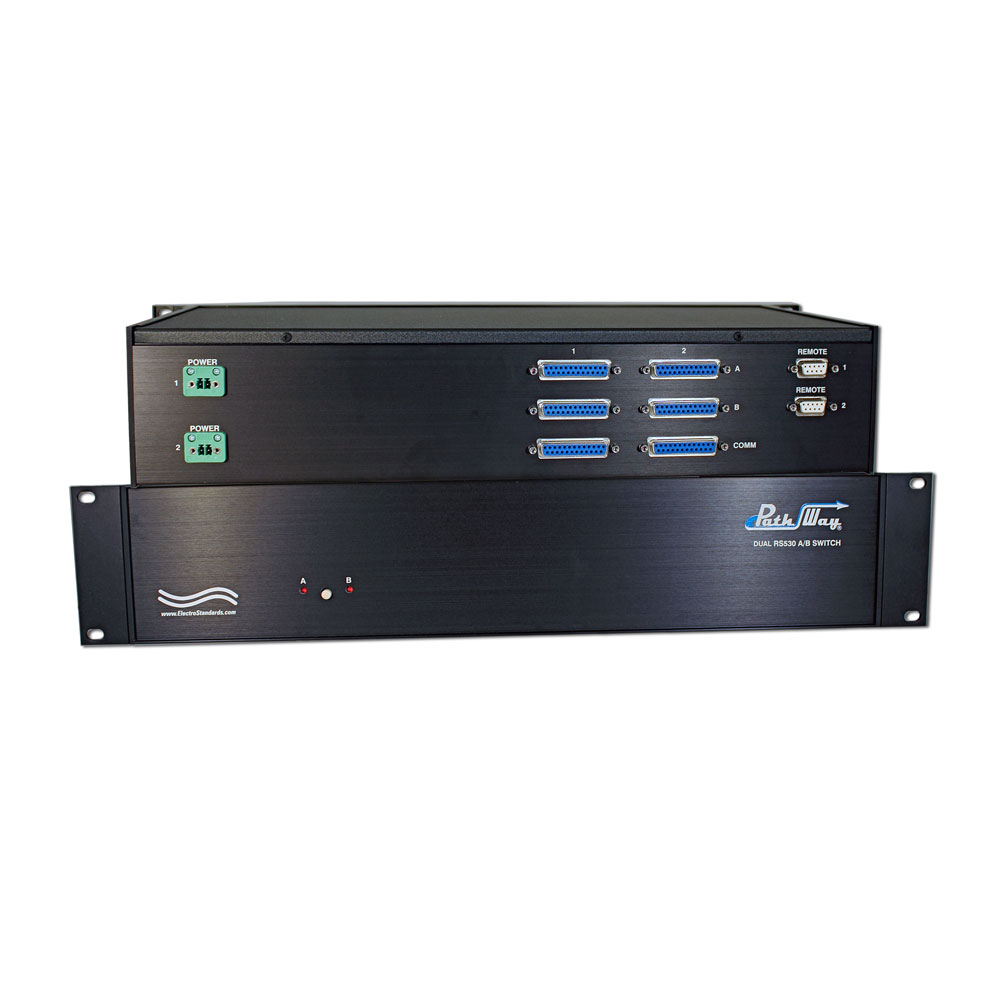

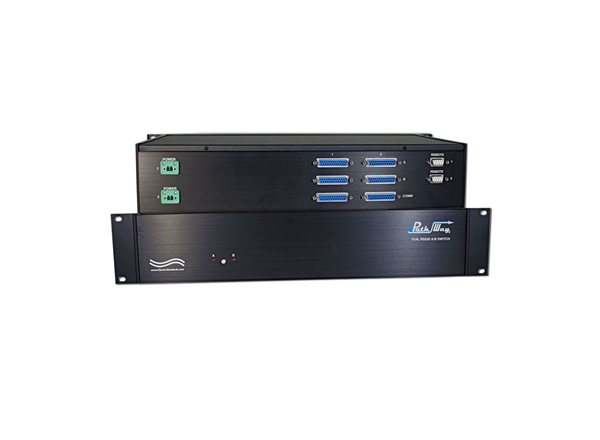

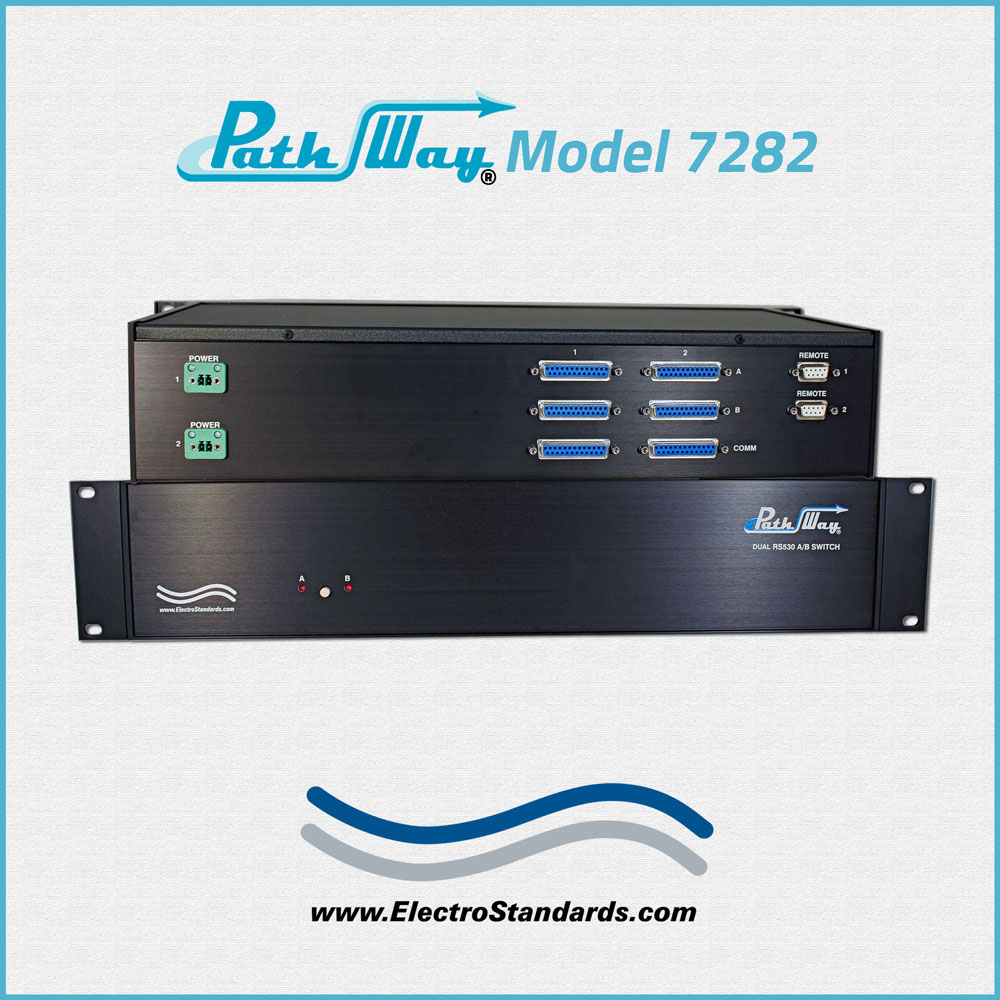

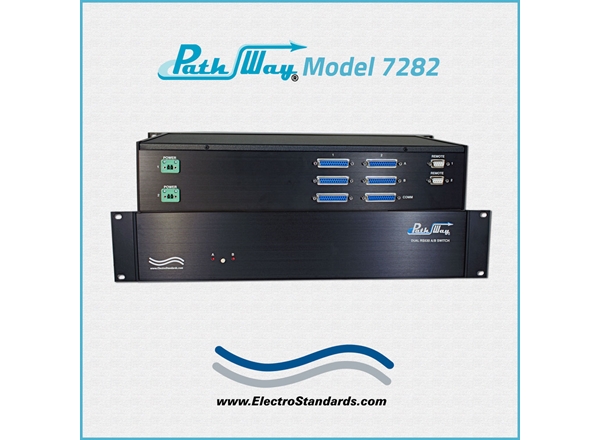

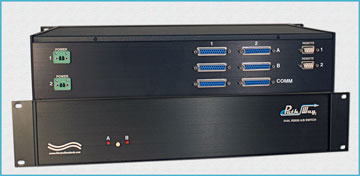

Path Way® Model 7282 Dual Channel DB25 A/B Switch, with Dual RS232 Remote Control and Dual Power

  • Highest Reliability achieved through Redundant Remote Control and Redundant Power Supplies

SPECIFICATIONS:

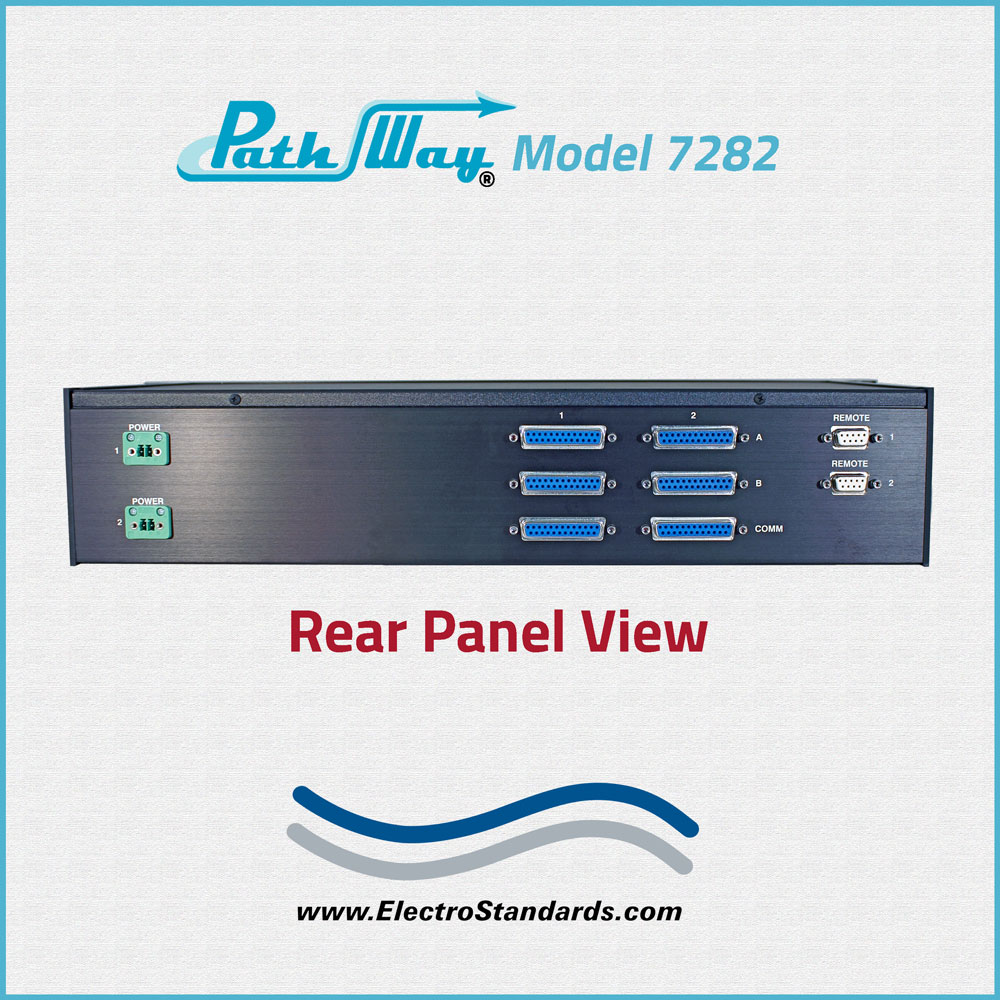

  • PORT CONNECTORS: (6) DB25(F) Connectors on rear panel labeled A1, B1, COM1, A2, B2, COM2

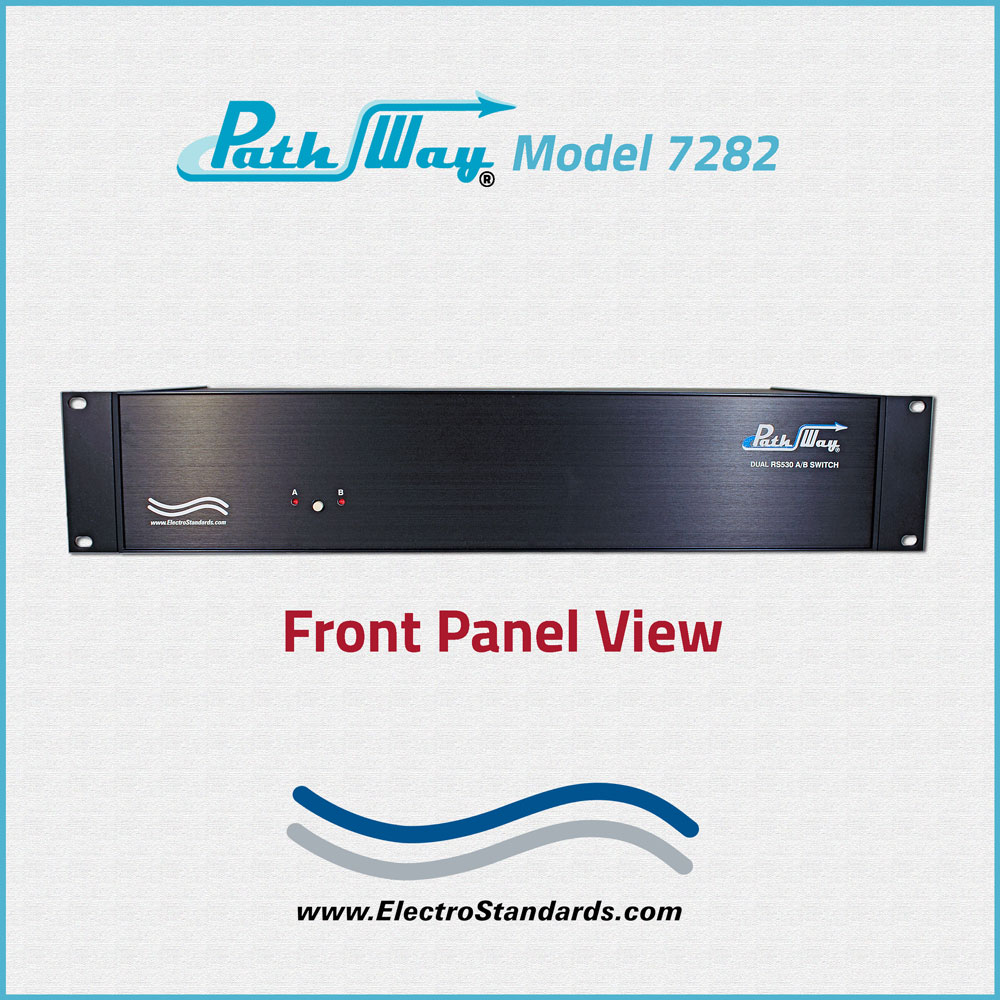

  • FRONT PANEL CONTROL: (1) Manual pushbutton, switches both channels.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • DUAL REMOTE CONTROL: (2) DB9 female connectors on rear panel accept multidrop RS232 for Remote Control operation.
  • DUAL POWER: (2) Power Jacks on rear panel accept power from (2) CE, RoHS, and UL listed table mount power modules, 100VAC-240VAC, 50Hz-60Hz (included with the unit) (Cat No 517277). Has IEC 60320 C14 inlet. Ideal for International applications.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.0" D. (48.2 x 4.4 x 20.4 cm)
  • WEIGHT: Approx. 6.3 lbs (2.9 kg)

PathWay® Model 7282 Dual Channel DB25 A/B Switch, Dual RS232 Remote, Dual Power Applications:

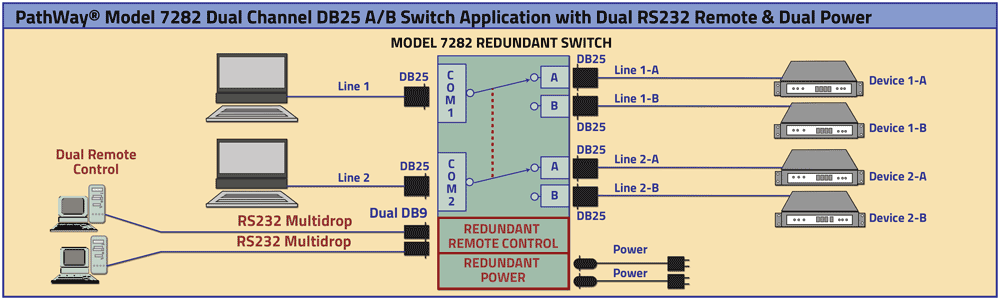

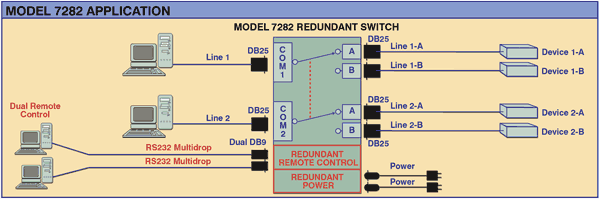

The drawing illustrates two channels of DB25 AB switching. Both channels are switched simultaneously. A COMMON Device is connected to the DB25 COMMON port with access to two other devices connected to the DB25 A and B ports for each channel. The illustration shows Dual DB9 Remote Control ports that accept ASCII RS232 commands as well as support multi-drop format. The diagram shows that the unit allows two external power supplies to be connected to the switch for redundancy.  See Multidrop features.
