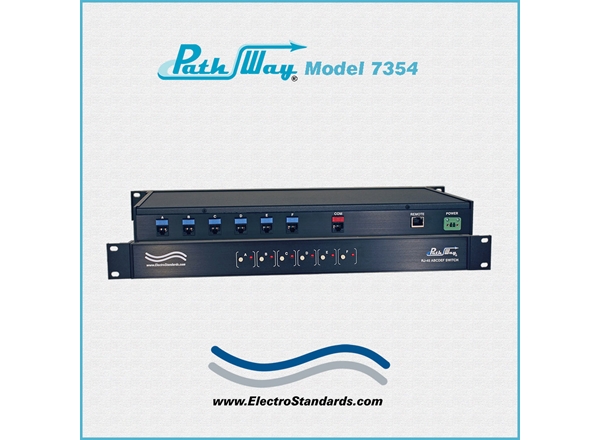

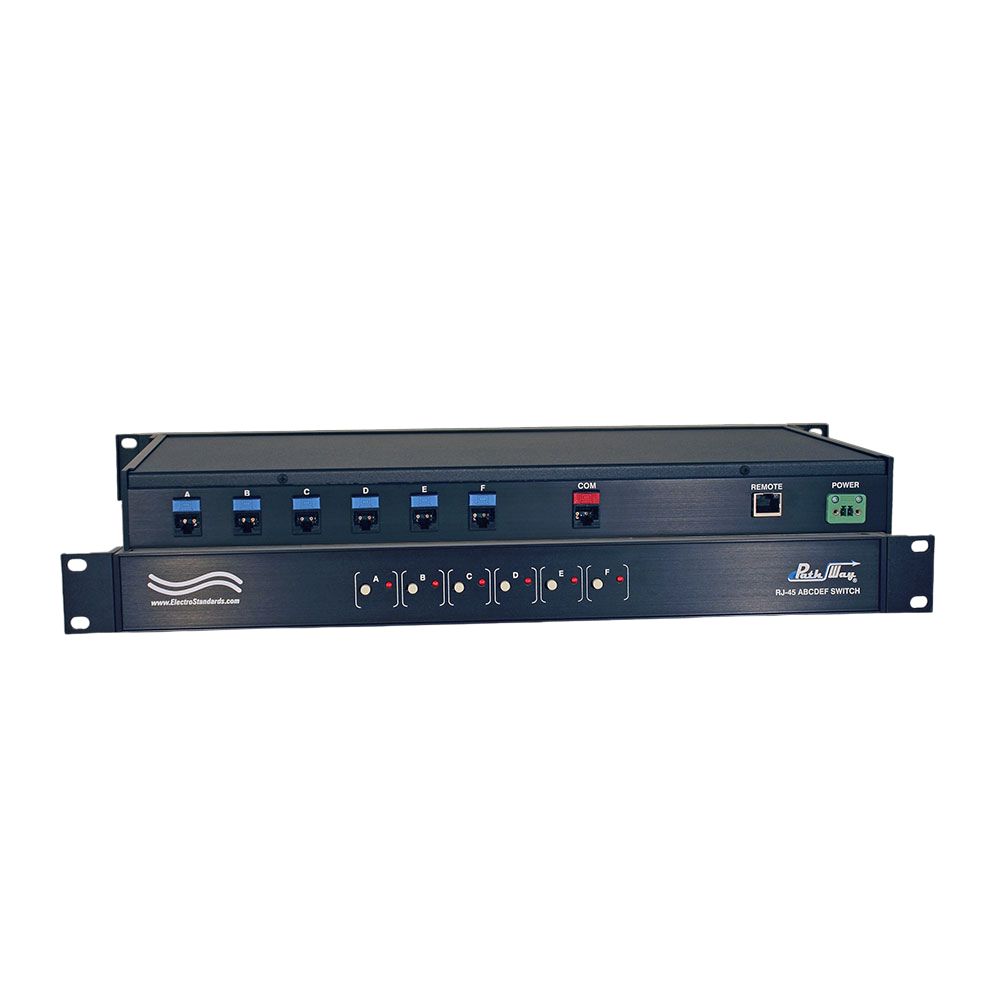

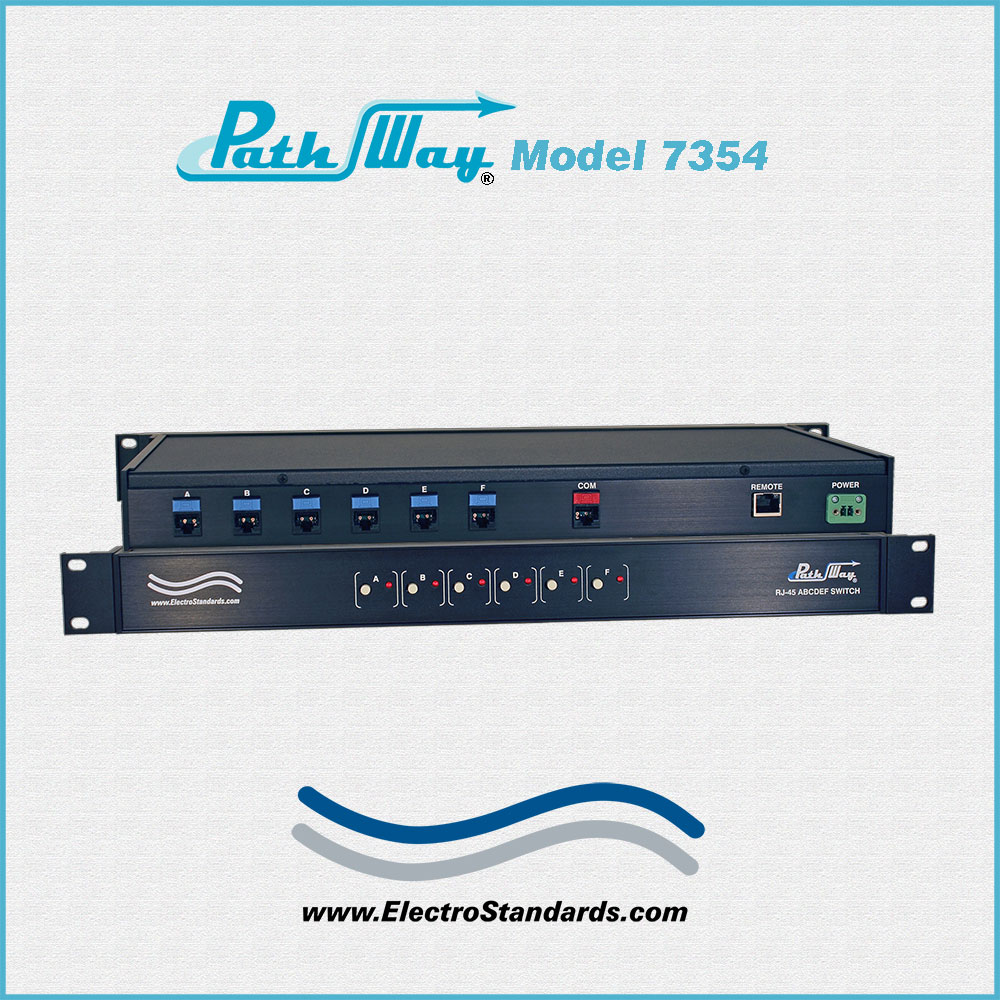

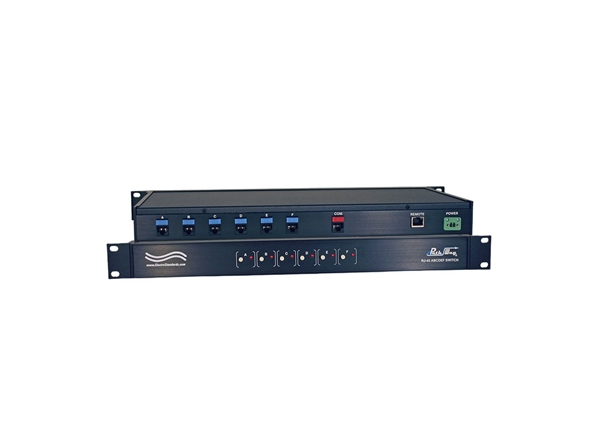

Catalog # 307354 - Model 7354 RJ45 A/B/C/D/E/F Network Switch

    RJ45 Cat6 A/B/C/D/E/F SwitchRJ45 Cat6 A/B/C/D/E/F SwitchRJ45 Cat6 A/B/C/D/E/F SwitchRJ45 Cat6 A/B/C/D/E/F Switch
Click image to enlarge
    • RJ45 Cat6 A/B/C/D/E/F Switch
    • RJ45 Cat6 A/B/C/D/E/F Switch
    • RJ45 Cat6 A/B/C/D/E/F Switch
    • RJ45 Cat6 A/B/C/D/E/F Switch
Base Price:
$2,225.00
Catalog No: 307354
Model No: 7354
Product Type:Switches: Copper
Positions:6
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Ethernet
Security:Password Protection
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Remote Port:RJ45
Local Control:Pushbutton

Add to Cart

PathWay® Model 7345 RJ45 A/B/C/D/E/F Network Switch

  • Cat5e Compliance!
  • Remote Control port accepts Telnet commands



UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Model 7354 Single Channel RJ45 Cat5e A/B/C/D/E/F Switch with Telnet Remote

  • Certified for Cat5e Compliance. Remote Control Port accepts TELNET commands.

  • Applicable to switching ANY RJ45 interface networks or devices.

SPECIFICATIONS:

  • PORT CONNECTORS: (7) RJ45 Female connectors labeled A, B, C, D, E, F and COMMON.
  • COMPLIANCE: Interface meets or exceeds Cat 5e performance.

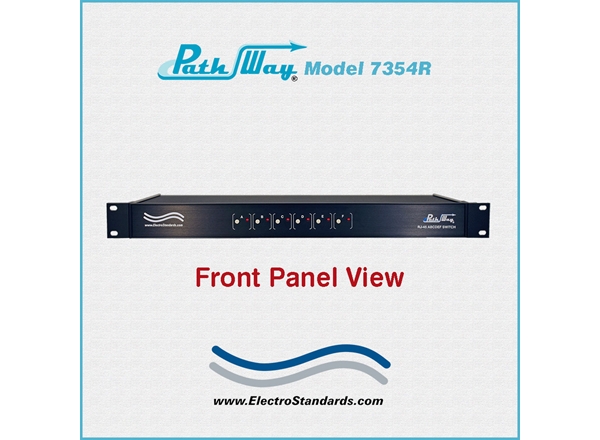

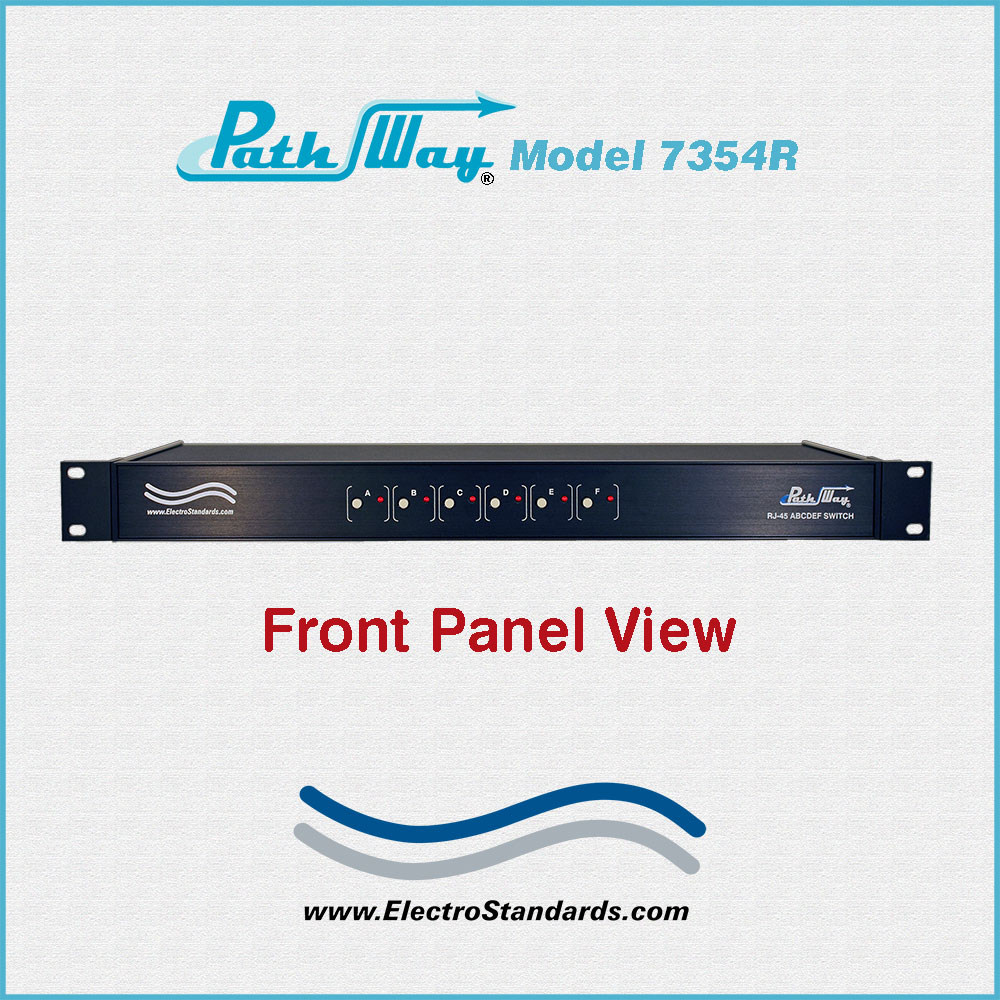

  • FRONT PANEL CONTROL: (6) Manual pushbuttons allow local switching.
  • DISPLAY: (6) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts 10/100 Base-T LAN Access Ethernet that uses TELNET commands for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz, wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19" W x 1.75" H x 8" D. (48.3 x 4.4 x 20.4 cm)
  • WEIGHT: Approx. 4.5 lbs. (2.1 kg).

IP ADDRESSABLE CAT 5e A/B/C/D/E/F DATA NETWORK APPLICATION WITH TELNET REMOTE, PASSWORD PROTECTED:

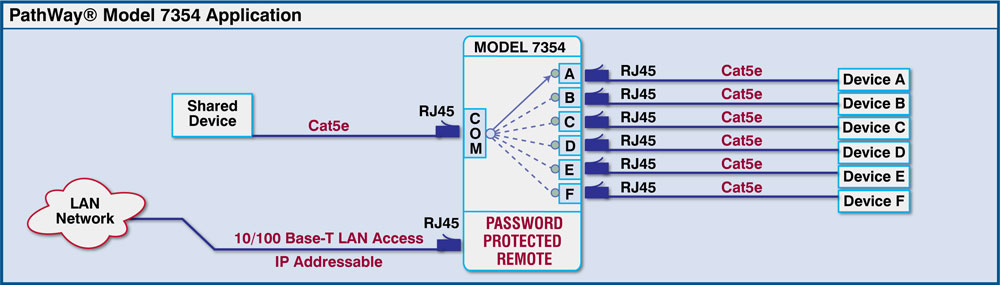

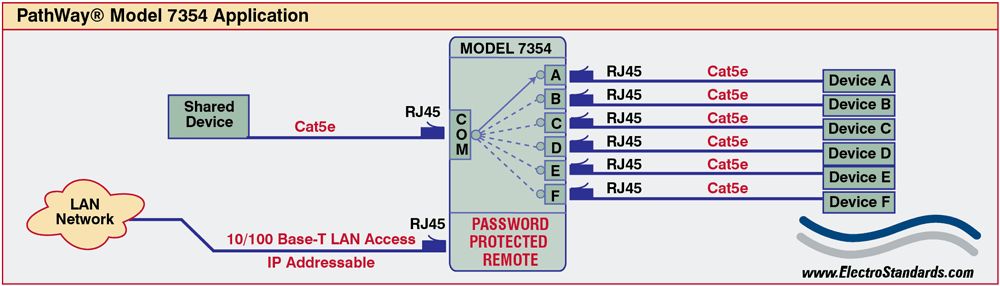

The drawing illustrates a Shared Device connected to the RJ45 Cat5e COMMON port with access to six other devices connected to the Cat 5e RJ45 ports labeled A, B, C, D, E, and F. The RJ45 Remote Port accepts 10/100 Base-T LAN Ethernet for Remote Control using Telnet Commands. The RJ45 Remote port is Password Protected and can be disabled.

Model 7354 application drawing

FEATURES:

  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Certified for Cat5e compliance.
  • Switch maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control for quick and easy switching.
  • IP Addressable!
  • Control of the switch position from a 10/100 Base-T LAN Ethernet Environment.
  • Remote Control Telnet Command Interface that allows the user to control switch position, lockout front panel operations, obtain switch status, as well as, query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Remote control of the switch is password protected, where the password protection can be disabled.
  • Front panel LED's display present position and power status.
  • Custom length certified Cat5e cable available. Get better performance!
  • For a RoHS Version of the Model 7354, See Model 7354R, Cat. No.307354R.

The PathWay® Model 7354 Single Channel RJ45 Cat5e A/B/C/D/E/F Network Switch with Telnet Remote allows the user the capability of sharing a single port interface device, connected to the "COMMON" port, among six other devices, connected to the "A", "B", "C", "D", "E", and "F" ports, with remote access functionality.

Remote Control access can be accomplished using an Ethernet 10/100Base-T connection and Telnet commands. The Model 7354 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

OPTION WIDE RANGE POWER OPTION: (Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
