Catalog # 307402 - Model 7402 BNC 2-Position Switch, 93 Ohm

    BNC 2-Position Switch, 93 OhmBNC 2-Position Switch, 93 OhmBNC 2-Position Switch, 93 OhmBNC 2-Position Switch, 93 Ohm
Click image to enlarge
    • BNC 2-Position Switch, 93 Ohm
    • BNC 2-Position Switch, 93 Ohm
    • BNC 2-Position Switch, 93 Ohm
    • BNC 2-Position Switch, 93 Ohm
Base Price:
$613.00
Catalog No: 307402
Model No: 7402
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Desktop
Ohms:93
Pins Switched:Center Pin and Shell
Remote Port:DB9
Local Control:None
Protocol:ASCII

Add to Cart
  • Model 7402 A/B BNC 93 Ohm Switch
  • DB9 RS232 Serial Remote



UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview



Path Way Remotely Controllable Network Switch, BNC Coaxial
Model 7402 93 Ohm Impedance BNC A/B Switch Box with RS232 Serial Remote Port

  • Ideal for sharing laboratory test equipment having a BNC coaxial cable interface.

SPECIFICATIONS:

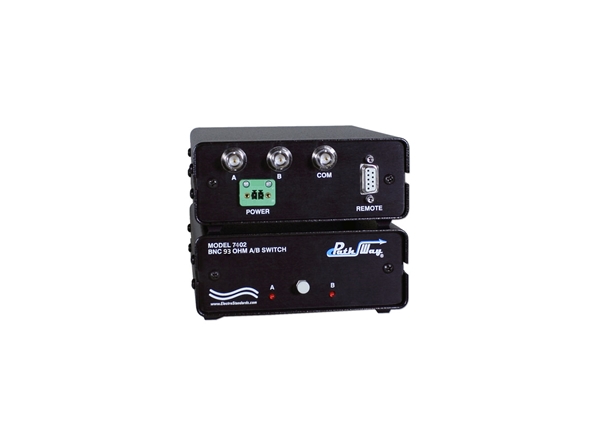

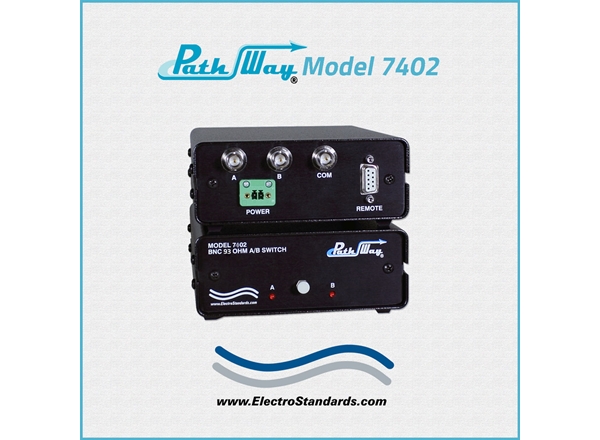

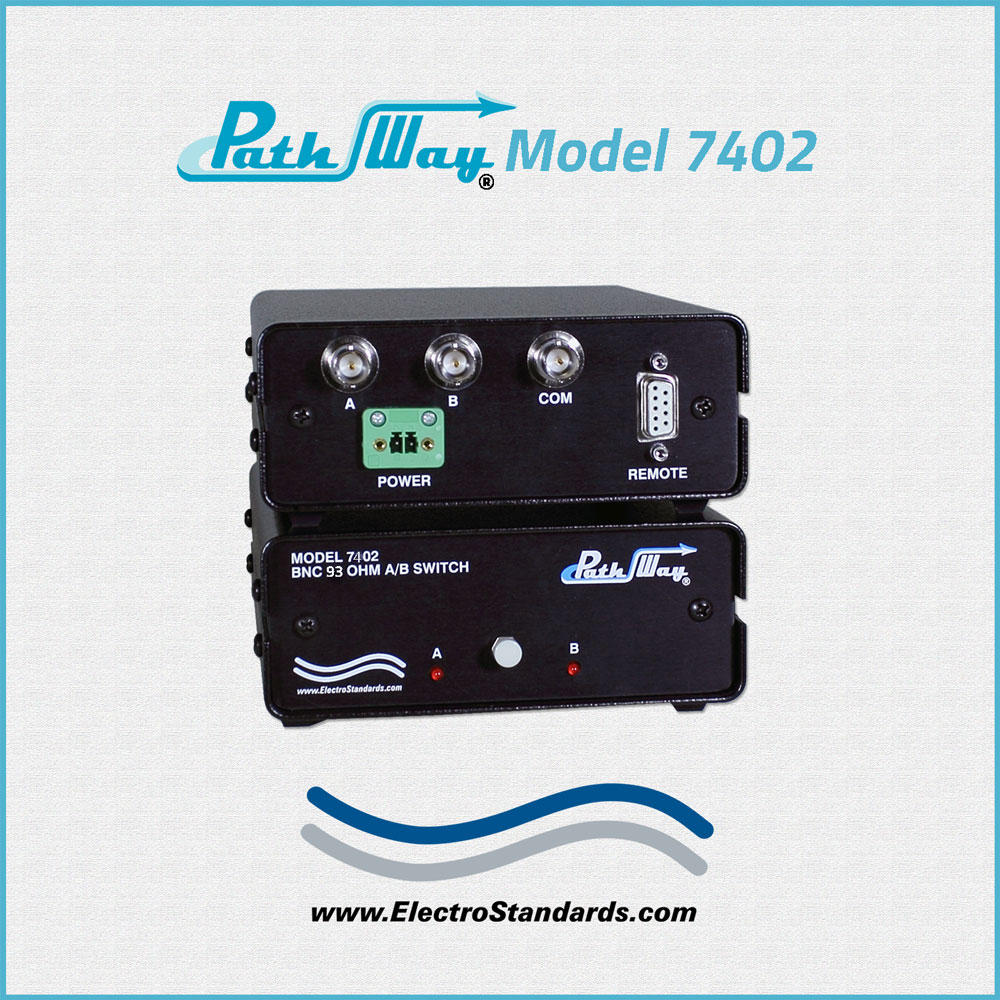

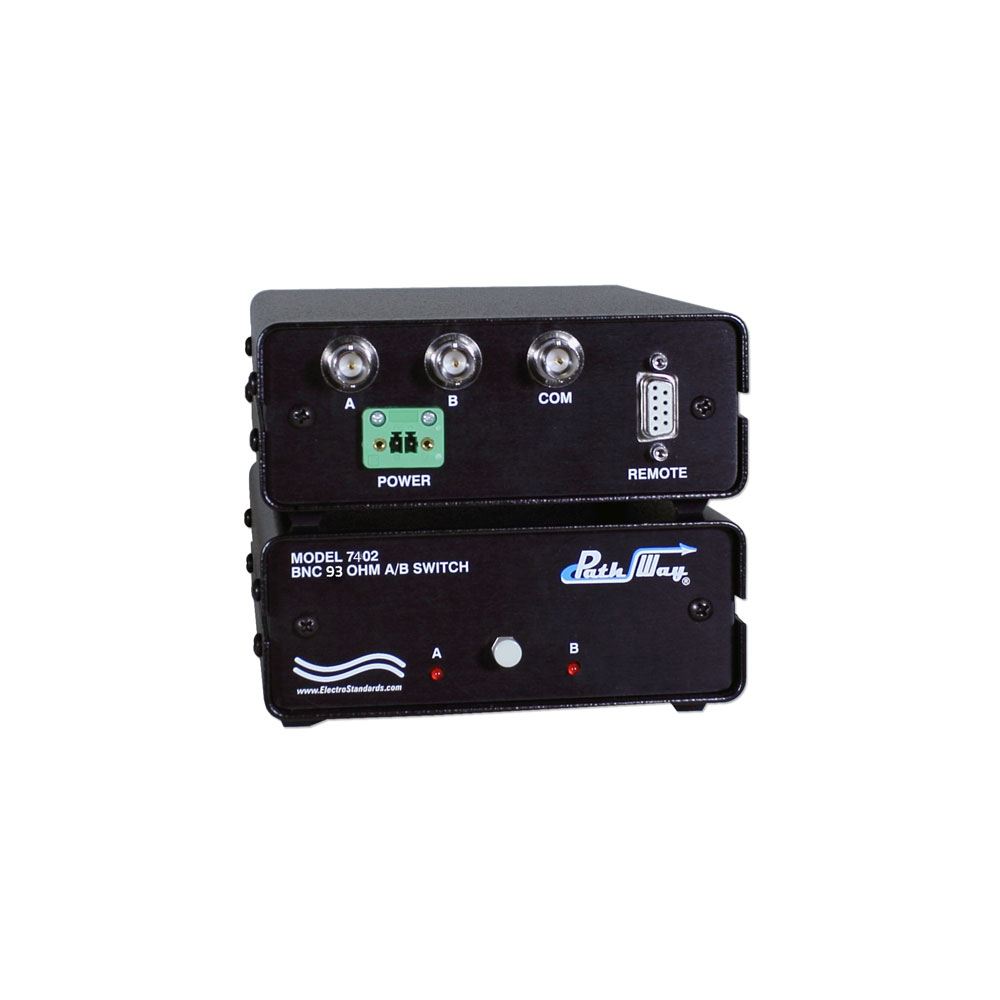

  • PORT CONNECTORS: (3) BNC (F) connectors, A, B & COM.

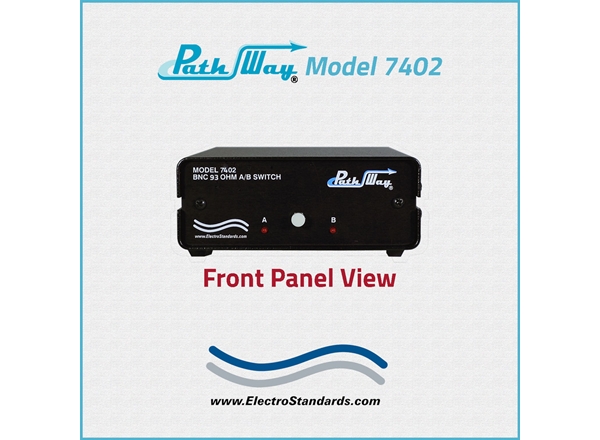

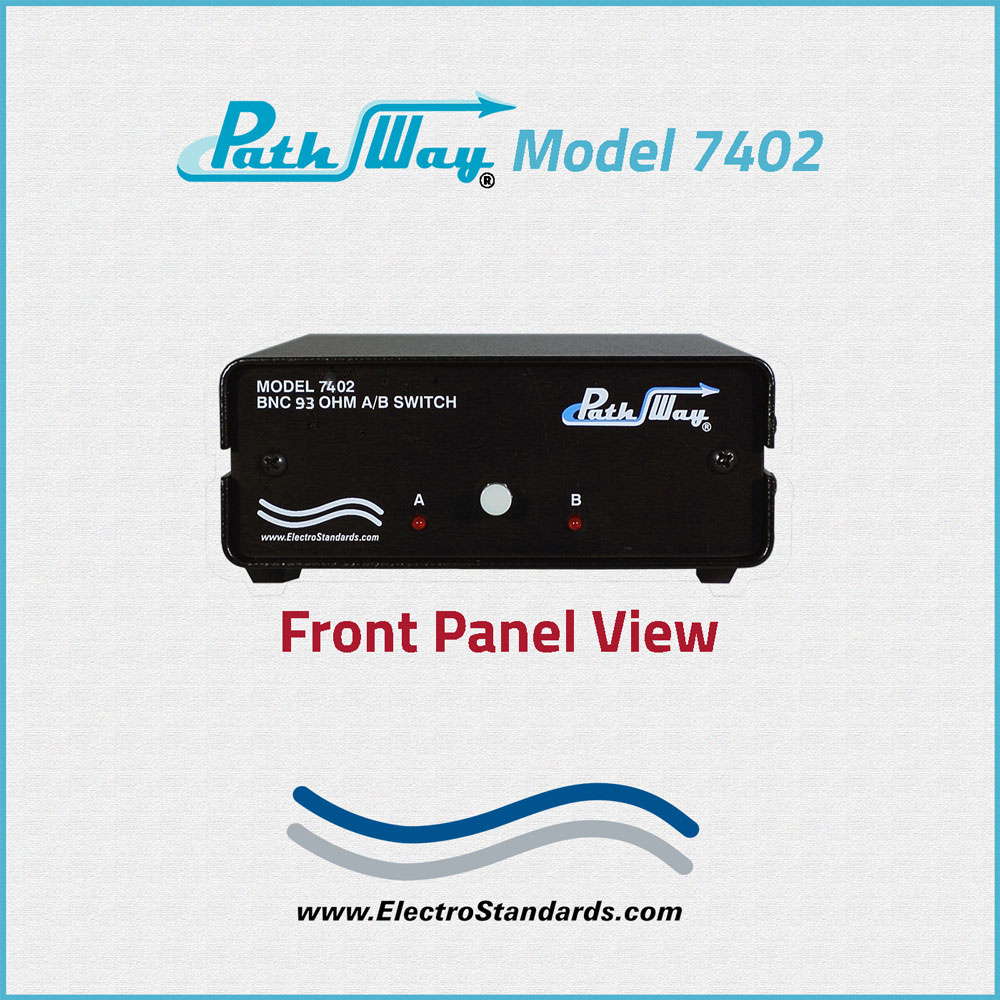

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

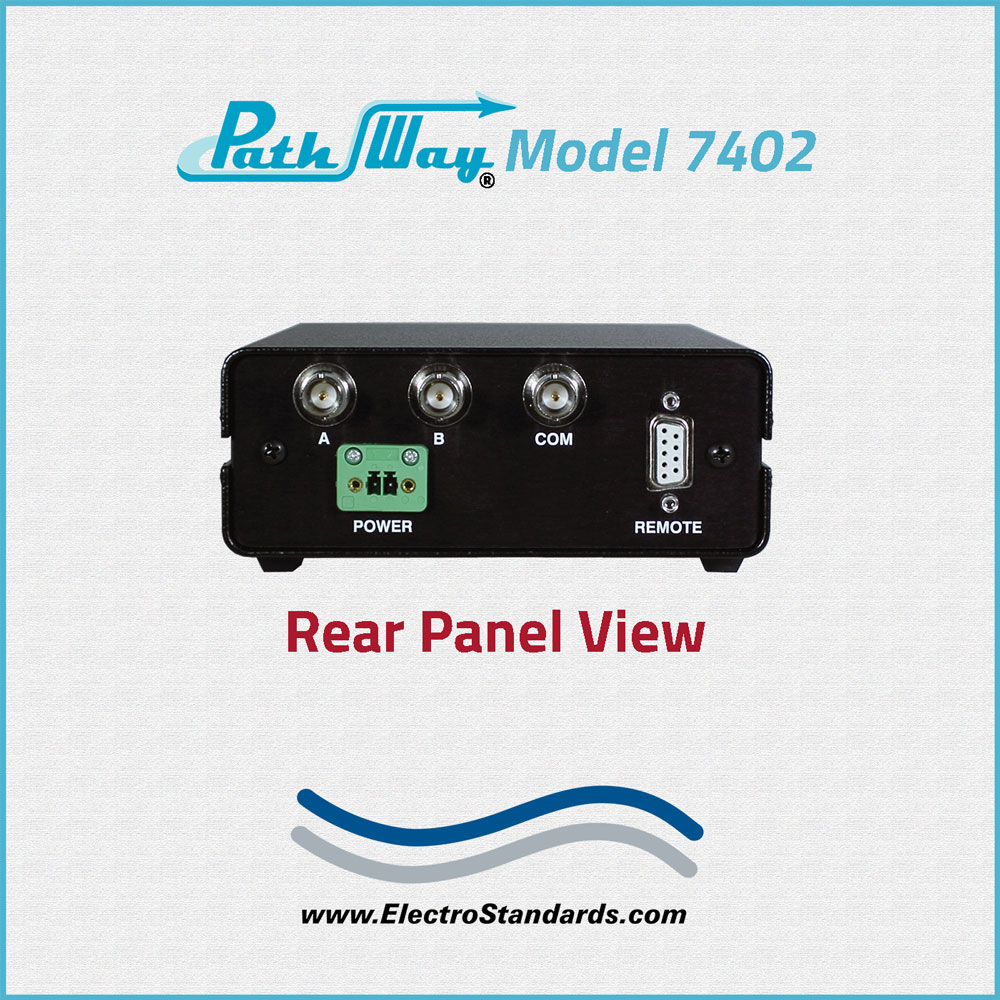

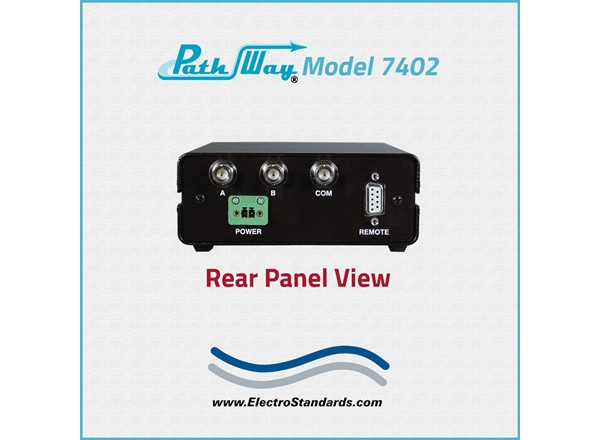

  • REMOTE CONTROL: (1) DB9 (F) REMOTE connector on rear panel accepts ASCII RS232 Serial Data.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop 5.44" W x 7.27" D x 2.26" H. [13.9 x 18.5 x 5.8 cm]
  • WEIGHT: Approximately 1.4 lbs (0.7 Kg)

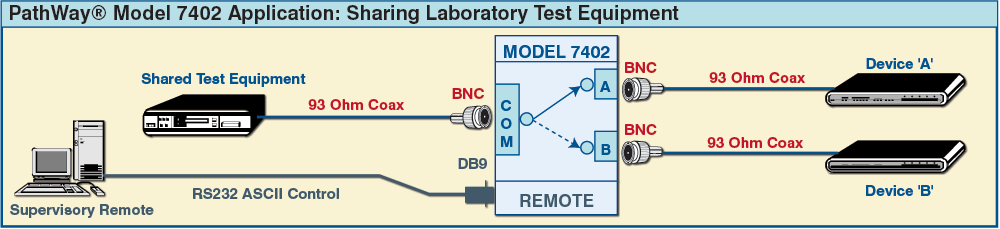

PathWay Model 7402 93 Ohm Impedance BNC Network Application with RS232 Remote Port

The diagram illustrates a shared test equipment connected to the COMMON port sharing between Device A and Device B connected to the A and B ports. The DB9 Remote accepts ASCII RS232 Serial data commands for Remote Control Operation.

PathWay® Model 7402 93 Ohm Impedance BNC A/B Switch application

FEATURES:

  • Allows quick connection to any one of two BNC interface devices from one COMMON device.
  • The switch ports are transparent to all data.
  • Both the Center and shell of each BNC interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data
  • Front-panel pushbutton control.
  • Switches to new position within 15ms of pressing the front panel pushbutton.
  • The REMOTE RS232 ASCII Commands that allow the user to control switch position and obtain switch status.
  • Remote RS232 port pinout configured as a DTE device.
  • Front panel LED's display switch position and power status.
  • All BNC ports are impedance matched to support 93 Ohm equipment.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length 93 Ohm BNC coaxial cables available for your switch installation. Call for quote.
  • For 50 Ohm BNC Switch, see Model 7202, Cat No 307202
  • For 75 Ohm BNC Switch, see Model 7302, Cat No 307302

The PathWay® Model 7402 BNC A/B Switch with Remote Control allows the user the capability of accessing two separate devices, ports A and B, via connection through a device connected to the COMMON port of the switch The Model 7402 is packaged in a slim desktop style enclosure.

The switch may be controlled manually from the front panel pushbutton or remotely from an RS232 Serial port located on the rear of the unit.

Switch position state may be attained via the LED display on the front of the unit.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

PathWay® is a registered trademark of Electro Standards Laboratories.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All ESL products are available for export. Electro Standards welcomes business from International companies: commutateur de réseau, conmutador de red, switch di rete, przelacznik sieciowy , switch de rede, nätverksswitch.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
