Catalog # 307423 - Model 7423 RJ45 CAT5 A/B/C/D Switch, Board

Click image to enlarge

Base Price:

$1,115.00

Catalog No:

307423

Model No:

7423

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Remote Control:

RS232 Serial

Compliance/Standards:

Cat5

Configuration:

Board

Pins Switched:

Four Signals (1 & 2) (3 & 6)

Remote Port:

DB9

Local Control:

Pushbutton

Feature:

Remote Control, Board Only

Protocol:

ASCII

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

PathWay®
Path Way® Board-Only Network Switch
Remotely Controllable Network Switch, Cat5, RJ45

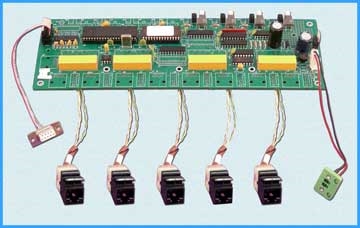

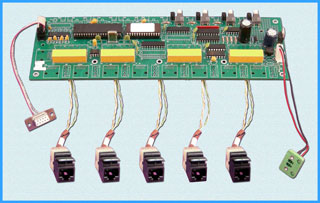

Model 7423 RJ45 Cat5 A/B/C/D Switch with Serial Remote Control port, Board Only

Designed for inclusion as a component in your product or system.

Model 7423 Cat5 RJ45 A/B/C/D Switch with Serial Remote Control. (board only)

SPECIFICATIONS:

PORT CONNECTORS: (5) RJ45(F) connectors tagged A, B, C, D and COMMON.
MANUAL CONTROLS: (4) Manual pushbuttons allow local switching.
DISPLAY: (4) LED's display switch position and power status.
REMOTE CONTROL: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for remote control operation.
POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: (Board), 10.5" W x 1.5" H x 3.5" D. (26.7 x 3.8 x 8.9 cm)
WEIGHT: Approximately 0.5 lbs. (227 grams)

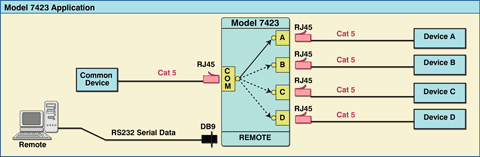

CAT5 FOUR POSITION APPLICATION: The diagram illustrates a COMMON device connected to the CAT5 COMMON port with access to four of your system devices or product devices connected to the CAT5 ports, labeled A, B, C, and D. There is also a DB9 REMOTE port which accepts ASCII RS232 commands for remote control operation of the board.

Model 7423 Cat5 A/B/C/D Application

FEATURES:

The network switch ports are transparent to all data.
Four signals switched. Pairs (1 & 2) (3 & 6).
All switched signals are passed via copper contact relays that maintain their position and continuity even in the event of a power loss.
Board mounted pushbutton control or Remote ASCII Command access through the serial port.
Board mounted LED's display the current switch position and power status.
Remote Control Lockout of pushbuttons.
Remote Control query of current switch position.
Meets Cat 5 compliance standards.
Municipalities, schools, government: This product on GSA Schedule!

The PathWay® Model 7423 RJ45 4-Position Data Switch with Serial Remote Control, Board Only, provides the user with local and remote control functionality. It allows the user to share a single RJ45 interface device connected to the Common port among four other devices connected to the A, B, C, and D ports.

Remote access can be accomplished by RS-232 commands sent via the Serial Remote Control Port. Users can remotely monitor status, control switch functions, and lockout the front panel pushbuttons.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

PathWay® is a registered trademark of Electro Standards Laboratories.

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

Order Custom Length Cat5 Cables For Optimum Performance!

For all RJ45 Premium Network Cables, No Boots (For Data Ports of the switch), click here: RJ45 Premium Network Cables, No Boots

For all RJ45 Premium Network Cables, Snaggless Boots (For Data Ports of the switch), click here: RJ45 Premiums Network Cables, Snagless Boots

For all RJ45 Economy Network Cables (for Data Ports of the switch),
click here: RJ45 Ecomonmy Network Cables

For the DB9 Remote Port Cable,
click here: DB9 Remote Port Cable

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
