Catalog # 307815 - Model 7815 HD15 / RJ45 Cat5e 8-to-1 Switch

    HD15 / RJ45 Cat5e 8-to-1 SwitchHD15 / RJ45 Cat5e 8-to-1 Switch
Click image to enlarge
    • HD15 / RJ45 Cat5e 8-to-1 Switch
    • HD15 / RJ45 Cat5e 8-to-1 Switch
Base Price:
$6,219.00
Catalog No: 307815
Model No: 7815
Product Type:Switches: Copper
Positions:8
Cable Type/Port Connector:RJ45, HD15 Switch Ports
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:15 of the HD15 Interface, 8 of the RJ45
Local Control:Pushbutton

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview


Path Way® Manual Network Switch, HD15/RJ45
Multi Interface Copper Network Switches
Model 7815 HD15/RJ45 Cat5e 8-to-1 Switch

  • Simultaneously switches HD15 and RJ45 Cat 5e interfaces.

Model 7815 HD15/RJ45 Cat5e 8-to-1 Switch

SPECIFICATIONS:

  • PORT CONNECTORS:  (9) HD15 female connectors labeled 1, 2, 3, 4, 5, 6, 7, 8, and COMMON. (9) RJ45 female connectors labeled 1, 2, 3, 4, 5, 6, 7, 8, and COMMON.
  • FRONT PANEL CONTROL: (8) Manual pushbuttons allow local switching.
  • DISPLAY: (8) Front panel LED's display switch position and power status.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19.0" W x 3.5" H x 10.0" D. (48.2 x 8.9 x 25.4 cm)
  • WEIGHT: Approximately 9.0 lbs. (4.0 kg).

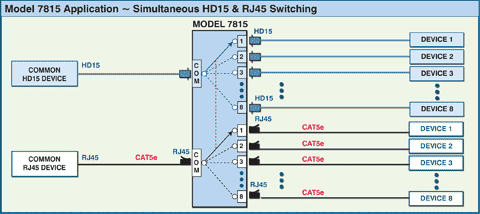

HD15 & RJ45 CAT5e 8-to-1 APPLICATION: Simultaneous HD15 & RJ45 swtiching for eight HD15 interface ports and eight Cat5e Compliant RJ45 interface ports. The drawing illustrates a HD15 device connected to the HD15 COMMON port accessing eight HD15 interface devices. There is also an RJ45 device connected to the RJ45 COMMON port accessing eight RJ45 interface devices.

Application Diagram for Model 7815 HD15/RJ45 Cat5e 8-to-1 Switch Network

FEATURES:

  • Allows quick connection to any one of 8 HD15 and RJ45 interface devices from one HD15 and RJ45 COMMON device, respectively.
  • Switches all 15 pins of the HD15 interface and all 8 pins of the RJ45 interface.
  • Simultaneous control of the HD15 and RJ45 interface ports.
  • Eliminates the need to plug and unplug cables.
  • Transparent to data speed and format.
  • RJ45 ports are certified for Cat5e compliance.
  • Local control via front-panel pushbuttons.
  • Front panel LED's display switch position and power status.
  • Retains last switch position in the event of power loss and continues to pass data.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length HD15 and RJ45 cables available for your switch installation.

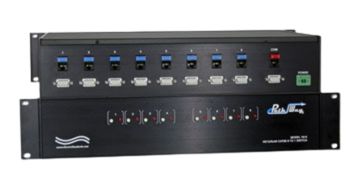

 The PathWay® Model 7815 HD15/RJ45 Cat5e 8-to-1 Switch allows the user the capability of sharing a  device connected to the COMMON port among eight other devices connected to the 1, 2, 3, 4, 5, 6, 7, and 8 ports for both the HD15 interface and the RJ45 interface.  The Model 7815 is enclosed in a 2U, full rack size, black anodized chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Option: Wide Range Power Module Available:
(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
All ESL products are available for export.
