Catalog # 308163 - Model 8163 3-Pos. RJ45 CAT5e Switch, No Enclosure 11-inch Legs

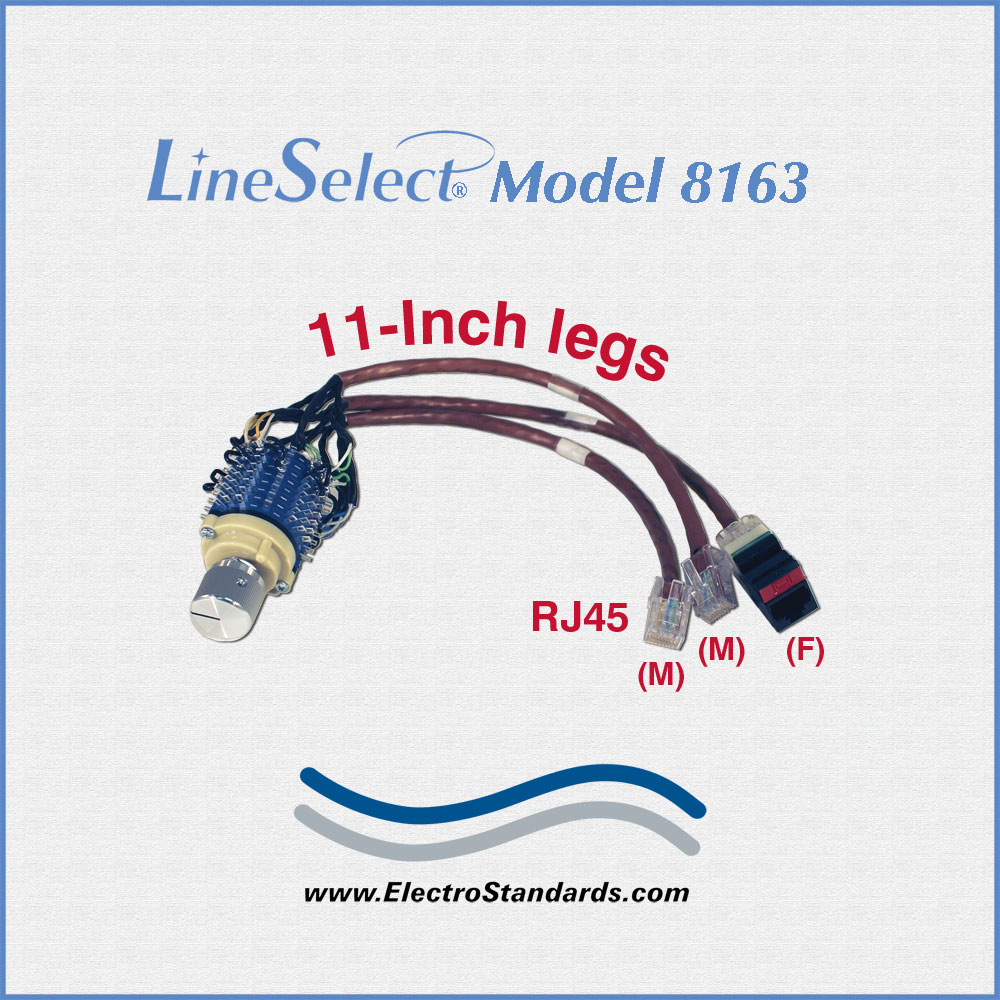

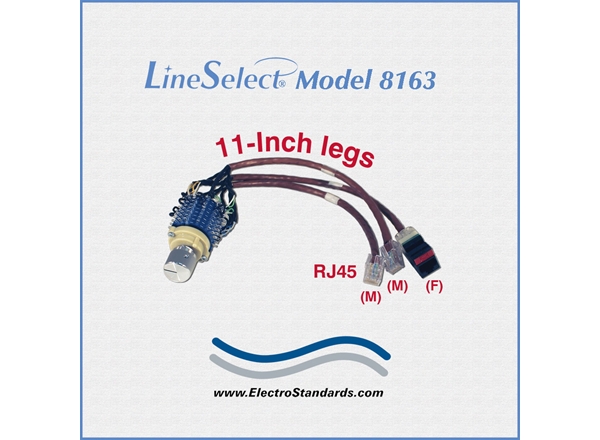

    RJ45 Cabled Switch, No Enclosure -  Ready for InstallationRJ45 Cabled Switch, No Enclosure -  Ready for Installation
Click image to enlarge
    • RJ45 Cabled Switch, No Enclosure -  Ready for Installation
    • RJ45 Cabled Switch, No Enclosure -  Ready for Installation
Base Price:
$275.00
Catalog No: 308163
Model No: 8163
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Compliance/Standards:Cat5e
Configuration:No Enclosure
Pins Switched:8
Local Control:Rotary Knob

Add to Cart
(2) Male Connectors and (1) Female Connector
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

RJ45 Manual Network Switch, Cat5e, Rotary Switch
Model 8163 3-Position RJ45 Cat5e A/B Rotary Switch Assembly, No Enclosure

  • High quality cabled RJ45 Cat5e A/B Switch, ready for installation into your custom enclosure.

  • Applicable to switching ANY RJ45 interface device.

 SPECIFICATIONS:

  • PORT CONNECTORS:
    • (2) RJ45 male connectors labeled A and B
    • (1) RJ45 female connector labeled COMMON.
  • THREE SWITCH POSITIONS: (1) Rotary switch selects COM to A, COM to B, or A to B.
  • PINS SWITCHED: All 8 pins are switched.
  • POWER: No Power required. Manually operated.
  • WEIGHT: Approximately, 0.2 lb., (0.4 kg)
  • LEG LENGTHS: 11" (27.9 cm)

CAT5e 3-POSITION RJ45 ROTARY SWITCH APPLICATION w/NO ENCLOSURE:

Designed for installation in any custom enclosure.

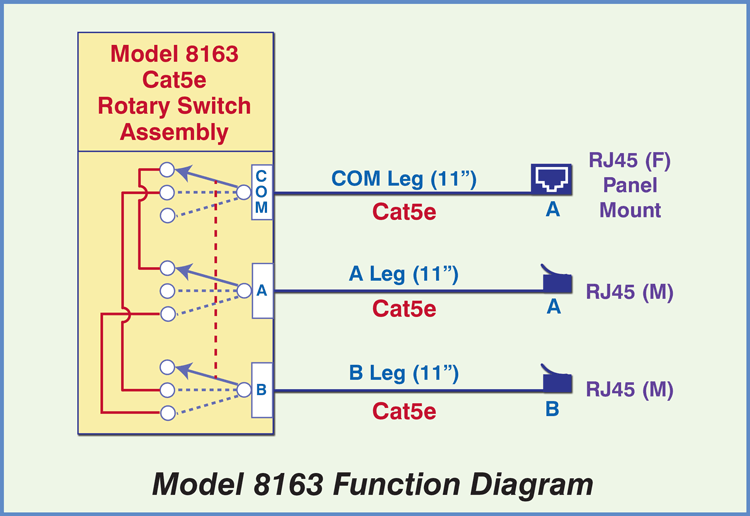

CAT5e A/B SWITCH FUNCTION DIAGRAM: The 3-Position Model 8163 Function Diagram shows two Male RJ45 port connectors, (RJ45 A port, RJ45 B port) and one Female RJ45 port connector (COMMON Port).  A device connected to the COMMON port can access one of two devices connected to the RJ45 A and RJ45 B ports or to connect ports A and B to each other.

LineSelect® Model 8163 application drawing

 CUSTOM LEG LENGTHS ARE AVAILABLE UPON REQUEST. CALL FOR QUOTE.

FEATURES:

  • (2) RJ45 male connectors labeled A and B and (1) RJ45 female connector labeled COMMON.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make rotary switch.
  • No power required for operation.
  • Switch and cabled RJ45's allow install into custom enclosures.
  • Leg Lengths: 11" (27.9 cm)
  • Certified Cat 5e compliance.

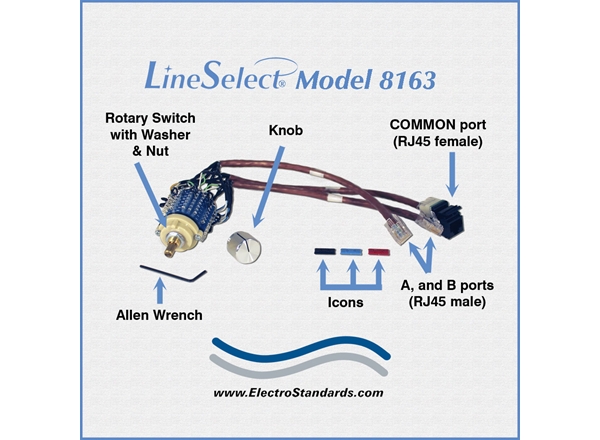

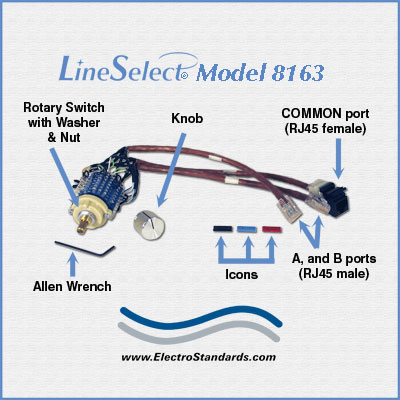

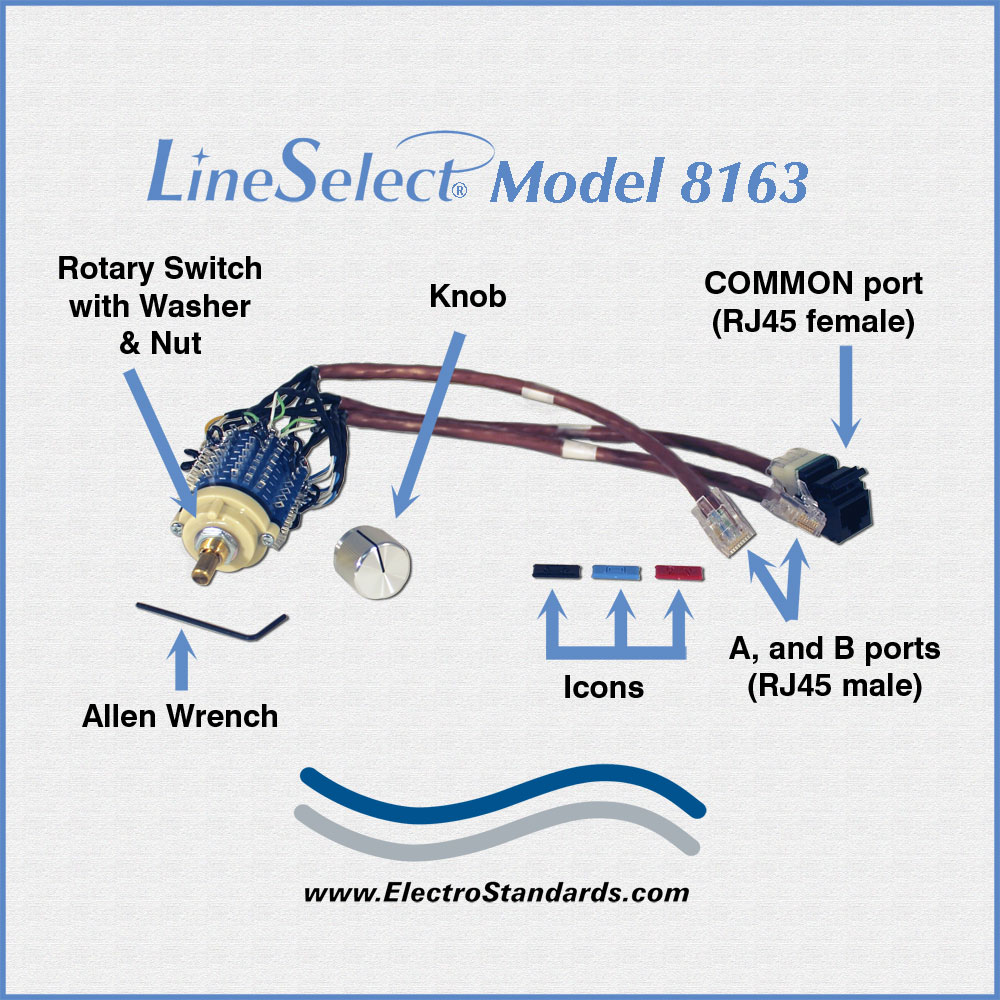

COMPONENTS PROVIDED:

  • Rotary Switch with A/B/COM RJ45's – The switch has the RJ45's soldered and labeled appropriately. The washer and nut for installing the switch is provided on the switch.
  • Knob – To be installed on the rotary switch shaft to facilitate turning the switch. (P/N 502241).
  • Icons – Blue/Black/Red icons (1 of each) provided that show a "Computer" image on one side and a "Telephone" image on the other.  These are used to secure the RJ45 COMMON port once installed in an enclosure.
  • Allen Wrench – The 1/16" Allen wrench provided for installing the knob (P/N 507460).

LineSelect® Model 8163 components

The LineSelect® Model 8163 3-Position RJ45 Cat5e Rotary Switch allows the user the capability of accessing two separate devices, ports A and B, via connection through a device connected to the Common port, or to connect ports A and B to each other. The LineSelect® Model 8163 is provided as a rotary switch with cabled RJ45's for installation into any custom enclosure.  No power is required for operation.

LineSelect® is a registered trademark of Electro Standards Laboratories.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
