Catalog # 308057 - Model 8057 RJ45 CAT5e Switch, No Enclosure 8-inch Legs

    RJ45 CAT5e Switch, No Enclosure 8-inch LegsRJ45 CAT5e Switch, No Enclosure 8-inch LegsRJ45 CAT5e Switch, No Enclosure 8-inch Legs
Click image to enlarge
    • RJ45 CAT5e Switch, No Enclosure 8-inch Legs
    • RJ45 CAT5e Switch, No Enclosure 8-inch Legs
    • RJ45 CAT5e Switch, No Enclosure 8-inch Legs
Base Price:
$255.00
Catalog No: 308057
Model No: 8057
Product Type:Switches: Copper
Interface:RJ45 Cat5e
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Compliance/Standards:Cat5e
Configuration:No Enclosure
Pins Switched:8
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

RJ45 Manual Network Switch, Cat5e, Rotary Switch
Model 8057 Single Channel RJ45 Cat5e A/B Rotary Switch, No Enclosure

  • High quality cabled RJ45 Cat5e A/B Switch, ready for installation into any custom enclosure.

  • Applicable to switching ANY RJ45 interface devices.

SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
  • TWO SWITCH POSITIONS: (1) Rotary switch selects COM to A, or COM to B.
  • PINS SWITCHED: All 8 pins are switched.
  • POWER: No Power required. Manually operated.
  • WEIGHT: Approximately, 0.3 lb., (0.2 kg)
  • LEG LENGTHS: 8" (20.3 cm)

LineSelect® Model 8057 Single Channel Cat5e A/B Rotary Switch application w/No Enclosure:

  • Designed for installation in any custom enclosure.
  • LineSelect® Model 8057 Cat4e A/B Switch Function Diagram:

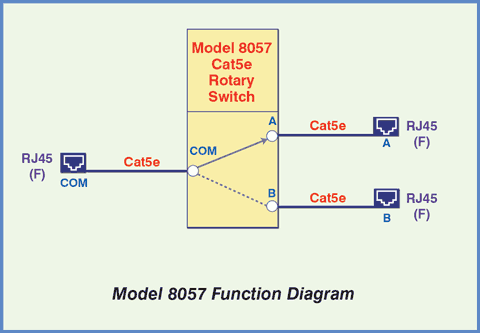

The LineSelect® Model 8057 Function Diagram:

The diagram for the Model 8057 shows three Female RJ45 port connectors, (RJ45 A, RJ45 B, RJ45 COMMON). A device connected to the COMMON port connector can access one of two devices connected to the RJ45 A and RJ45 B ports.

LineSelect Model 8057 RJ45 Cat5e A/B Switch Function Diagram

High Quality Manual Data Network Switches Increase the Reliability of Your Network!

FEATURES:

  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched.
  • No power required for operation.
  • Switch and cabled RJ45's allow install into custom enclosures.
  • Leg Lengths: 8" (20.3 cm)
  • For a similar switch with 20" legs, See Model 8084, Cat No 308084 in the RELATED TAB!
  • Certified Cat 5e compliance.

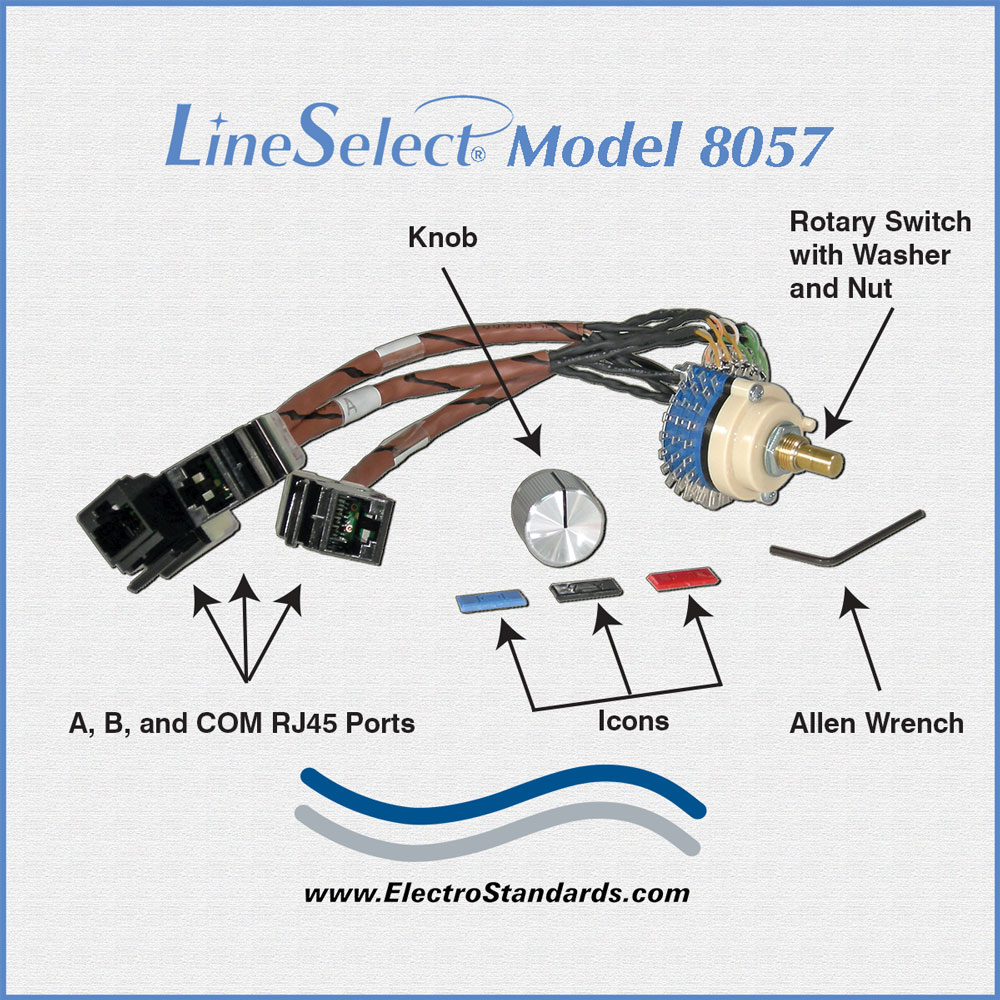

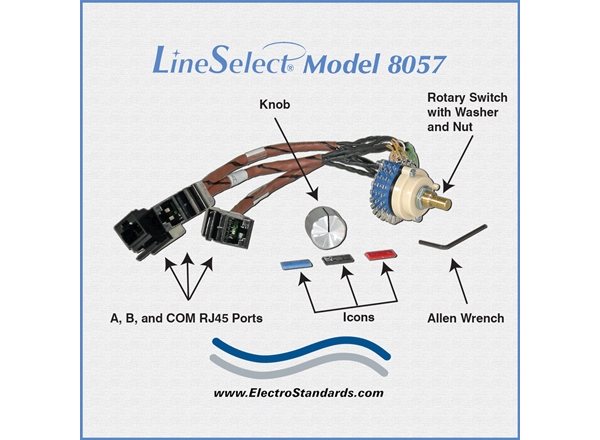

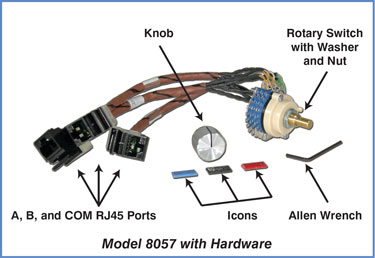

LineSelect® Model 8057 Components Provided:
