Overview

DB25 Manual Network Switches, 4-Positions, Rotary Switches

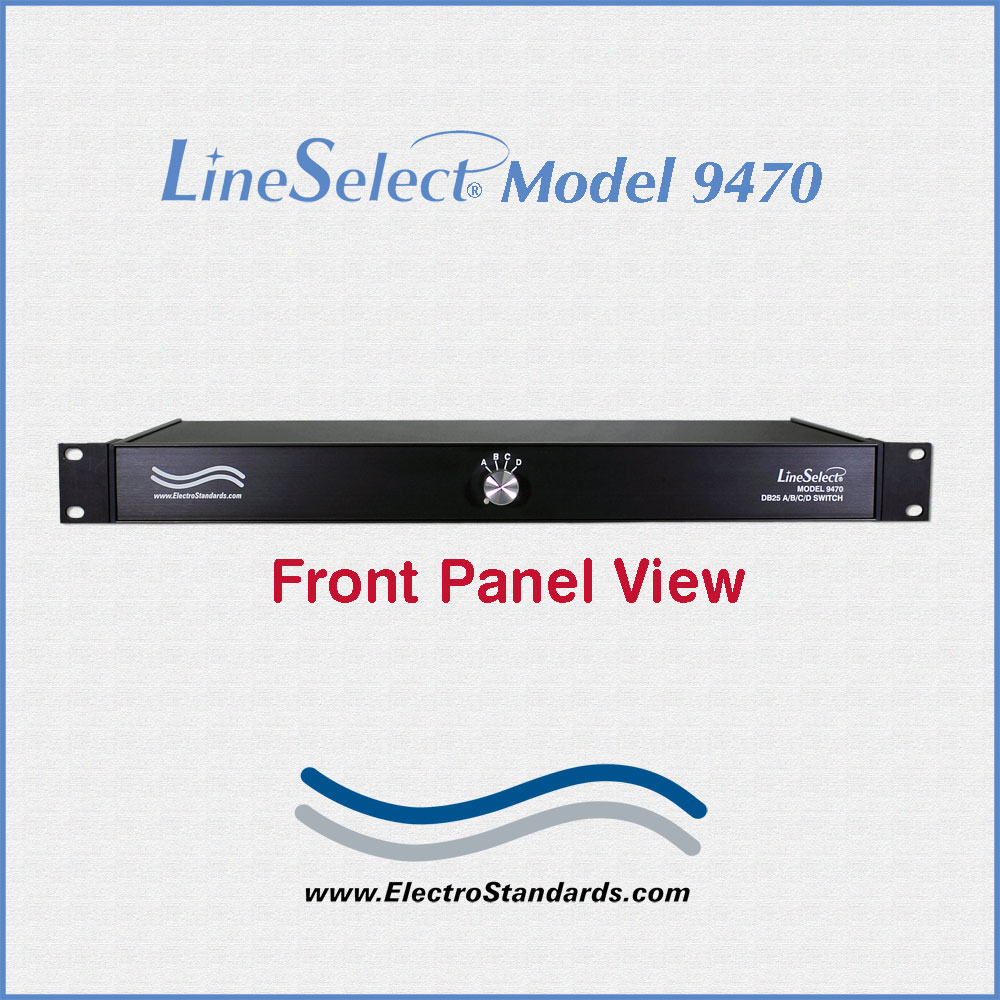

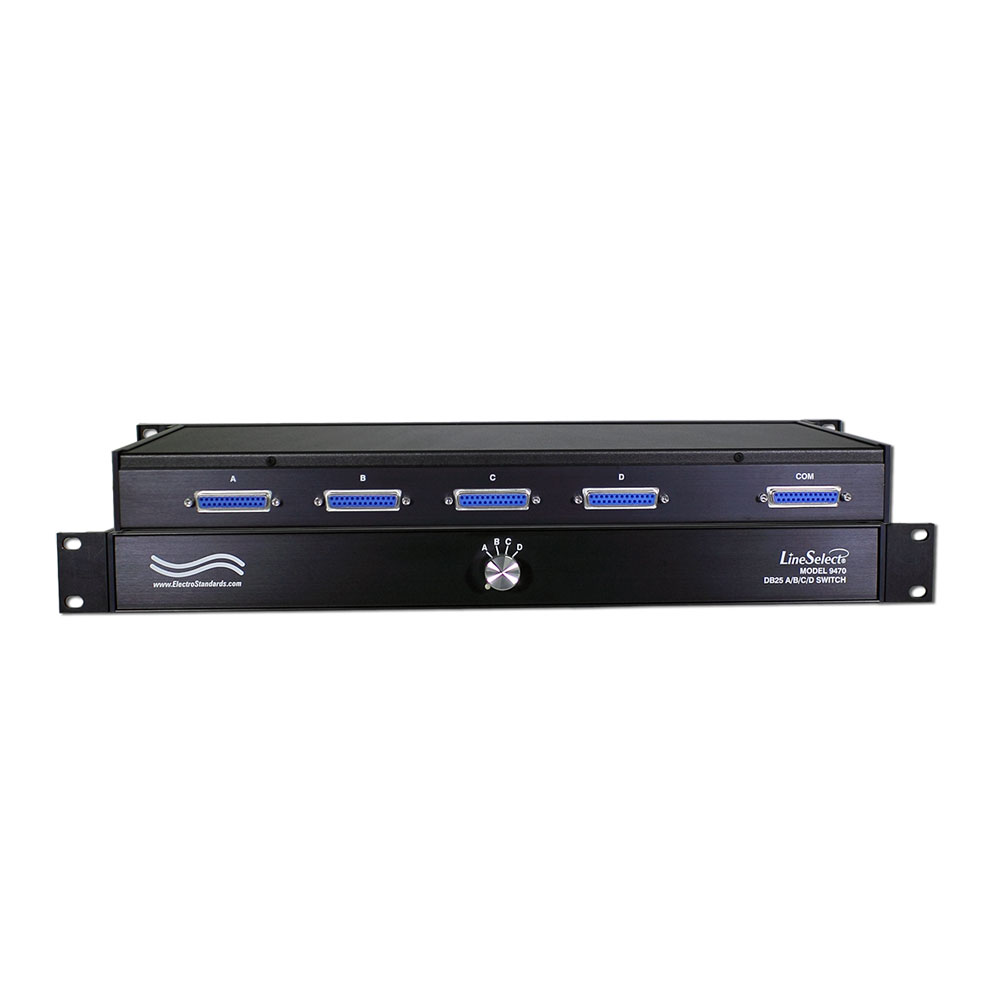

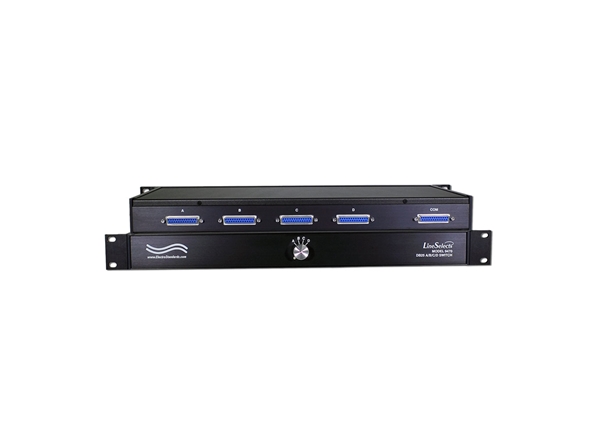

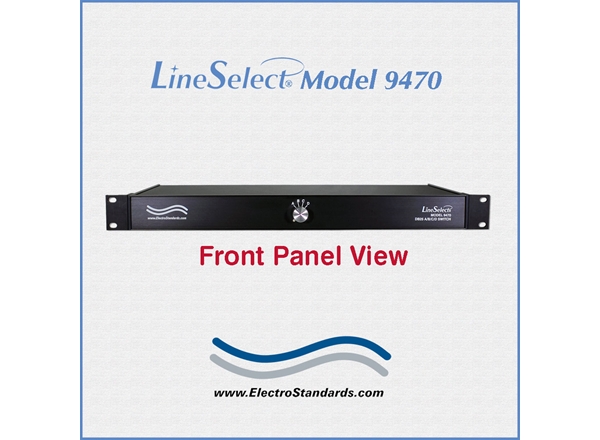

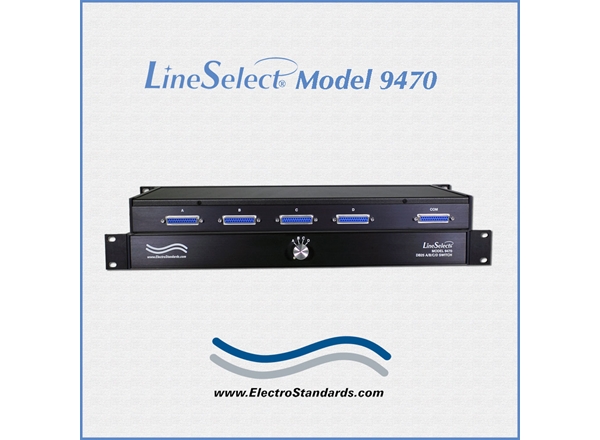

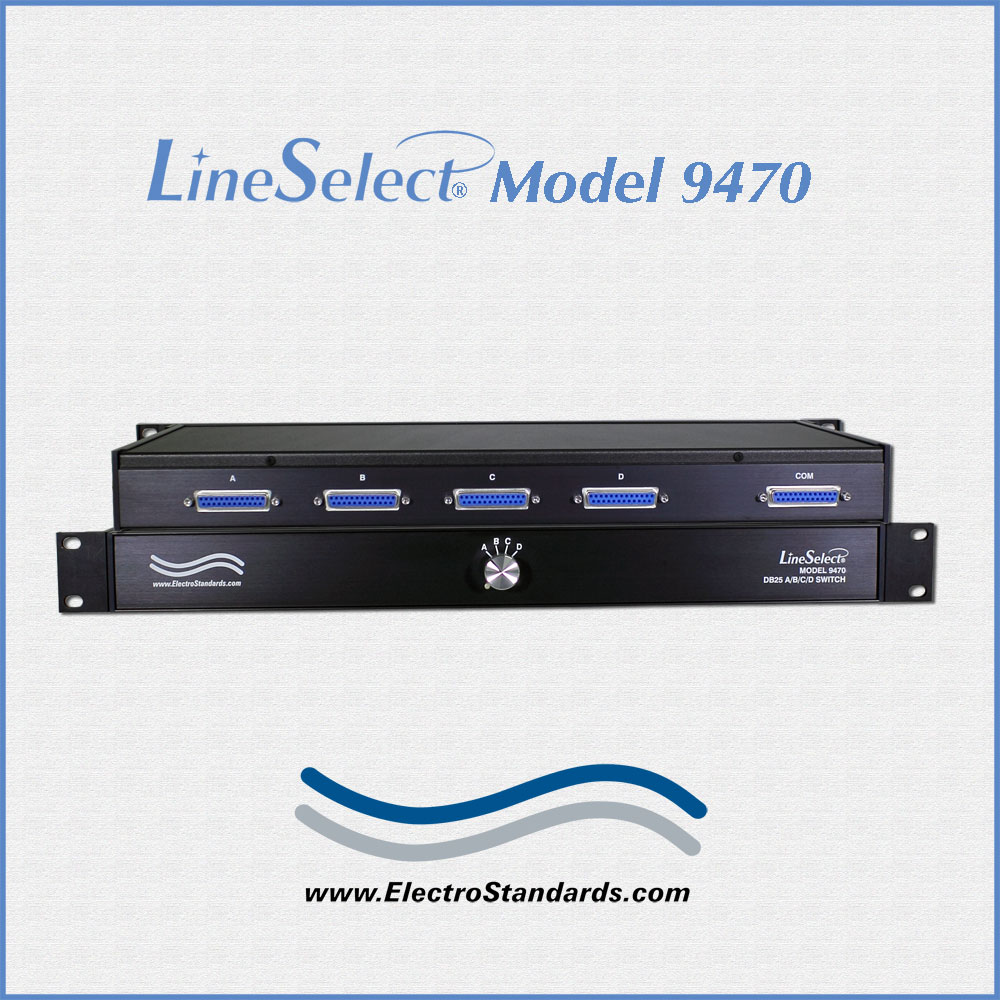

Model 9470 DB25 A/B/C/D Switch, Manual Operation, Rackmount

  • Provides reliable network backup for mission critical systems.

  • Applicable to switching ANY DB25 interface devices.

SPECIFICATIONS:

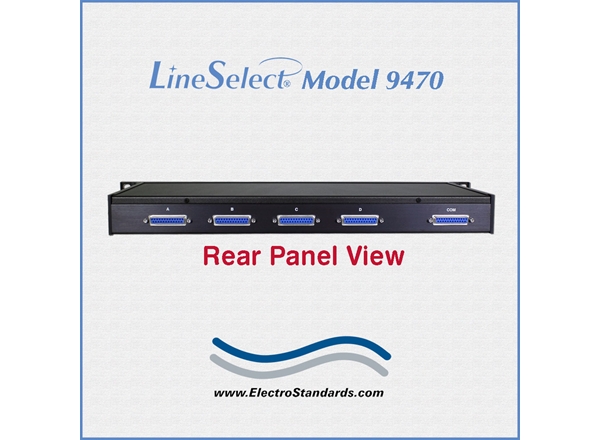

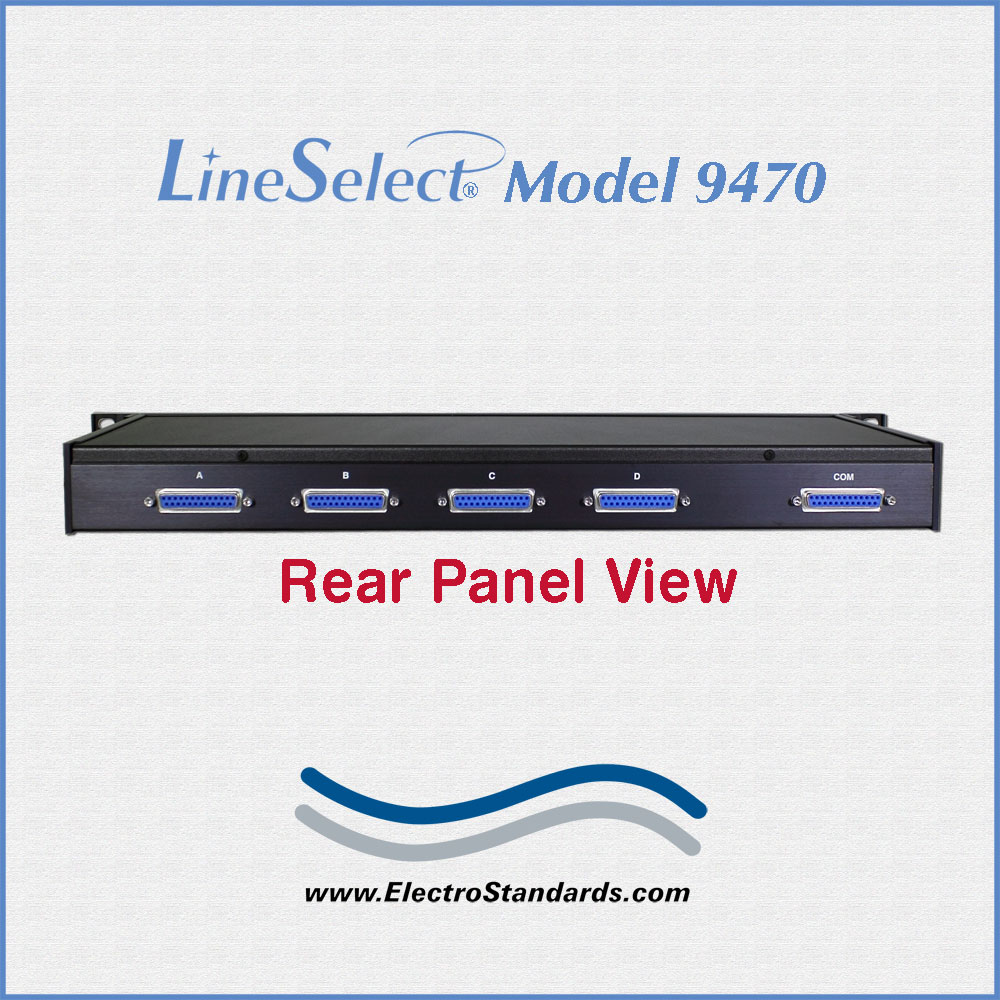

  • PORT CONNECTORS: (5) DB25 female connectors labeled A, B, C, D and Common.
  • FRONT PANEL CONTROLS: (1) Rotary Switch on front panel selects A, B, C, D.
  • LIFE: 10,000 cycles at the rate of 20-25 cycles/minute and no load.
  • OPERATING & STORAGE TEMP: -10° C TO 60° C.
  • POWER:  Manually operated.  No power required.
  • DIMENSIONS:  Rackmount 19.0"W x 1.75"H x 8.75"D. (48.3 x 4.5 x 22.4 cm)
  • WEIGHT: Approximately 4.4 lbs. (2.0 kg.)

LineSelect® Model 9470 DB25 A/B/C/D Manual Network Switch Application:

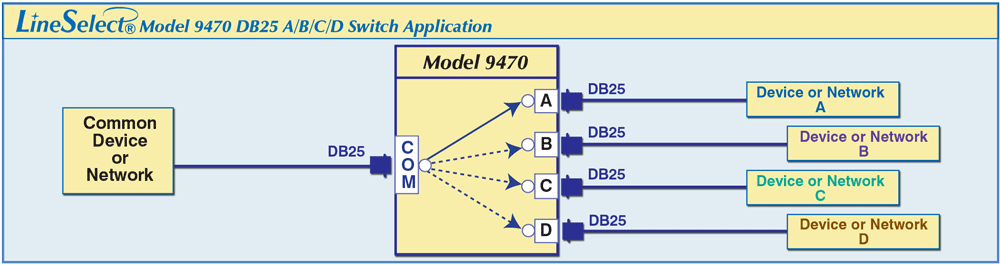

The drawing illustrates a COMMON Device or Network connected to the DB25 COMMON port with access to four other Devices or Networks connected to the DB25 A, B, C, and D ports.

LineSelect® Model 9470 DB25 A/B/C/D Application drawing

FEATURES:

  • Allows quick connection to any one of four DB25 devices or networks from one COMMON device or network.
  • Manual operation via front panel rotary switch.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Transparent to data speed and format.
  • All 25 pins of the DB25 interface are switched via break-before-make rotary switch.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.

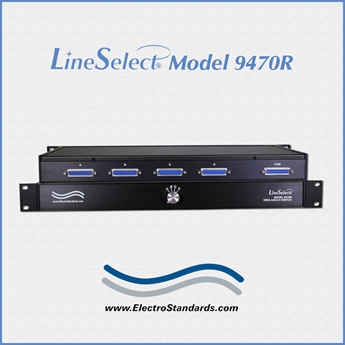

  • For RoHS Compliant version, See Model 9470R, Cat. No. 309470R

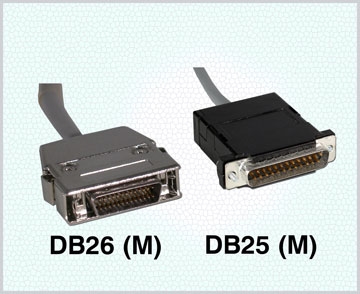

  • Custom length DB25 cables available for your switch installation.
  • Lifetime warranty against manufacturing defects.

The LineSelect® Model 9470 DB25 A/B/C/D Switch allows the user to access four DB25 devices connected to its A, B, C and D ports with one DB25 device connected to its Common port.  The unit is manually operated requiring no power. Port selection is quick and easy via front panel rotary switch.

The LineSelect® Model 9470 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.
