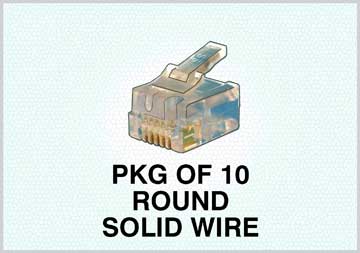

Amp Modular Plugs, Round, Solid Wire
(Pkg. of 10)
Features:
- These high quality Amp modular plugs offer a true mass displacement termination of jacketed cable for solid wire.
- These modular plugs are a one piece construction with preloaded contacts and can be terminated with round cable, solid wire.
- Construction:
- Housing: Polycarbonate, UL 94V-0
- Terminal: Phosphor Bronze: underplated with 100 µin Nickel and plated with 50µin Gold in contact region and gold flash on remainder of terminal.
- Listing/Ratings: UL and CSA. Meets FCC and EIA/TIA Industry Standard size and performance.
- Application: 6 Position, Round, Solid Wire.
- Type: RJ12 modular connectors.
For RJ12 Round Stranded, see Cat No 506416.

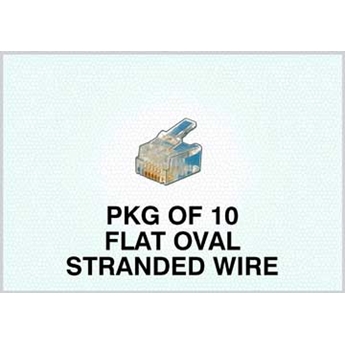

For RJ12 Flat Oval Stranded, see Cat No 407270.
For RJ12 Long Body, Round, Solid Wire, see Cat No 502950.
For RJ12 Field Installable, 22/24 AWG Wire, See Cat No 407299.
Electro Standards Laboratories also manufactures all types of Copper and Fiber Optic Cable Assemblies, including MTP/MPO Fiber Solutions and Mil Spec.
