Overview

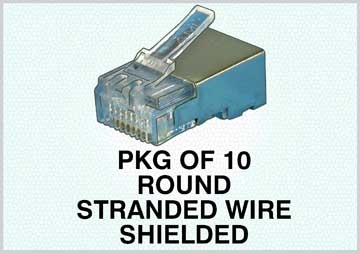

Amp Modular Plugs,
8 Position Shielded, Round, Stranded
(Pkg. of 10)
Features:
- These high quality Amp modular plugs offer a true mass displacement termination of jacketed cable for stranded wire.
- These modular plugs are a one piece construction with preloaded contacts and can be terminated with round cable, stranded wire.
- Construction:
- Housing: Polycarbonate, UL 94V-0
- Terminal: Phosphor Bronze: underplated with 100 µin Nickel and plated with 50µin Gold in contact region and gold flash on remainder of terminal.
- Listing/Ratings: UL and CSA. Meets FCC and EIA/TIA Industry Standard size and performance.
- Application: 8 Position Shielded, Round, Stranded.
- Type: RJ45 modular connectors.
For RJ45 Flat, Stranded Wire, See Cat No 407290.
For RJ45 Round, Solid Wire, See Cat No 407291.
For RJ45 Flat Oval, Stranded Wire, See Cat No 407294.
For RJ45 Round, Stranded Wire, See Cat No 407324.
For RJ45 Flat Oval, Solid Wire, See Cat No 502946.
For RJ45 Round, Stranded Wire, See Cat No 502953.
For RJ45 Round, Stranded Wire, Level 5, See Cat No 502958.
For RJ45 Field Installable, 22/24 AWG Wire, See Cat No 407298.
Electro Standards Laboratories also manufactures all types of Copper and Fiber Optic Cable Assemblies, including MTP/MPO Fiber Solutions and Mil Spec.
We have the capability to custom design and over 30 years experience in the business!For a Custom Copper Data Network Cable Design Form:
/Products-Custom/Data-Cable/
We would be happy to quote any requirement or answer any questions you may have at 401-943-1164. We are here to assist!
*Prices online are subject to change and verification.
All ESL products are availabe for export.
